HDPE Spiral Tank Machine

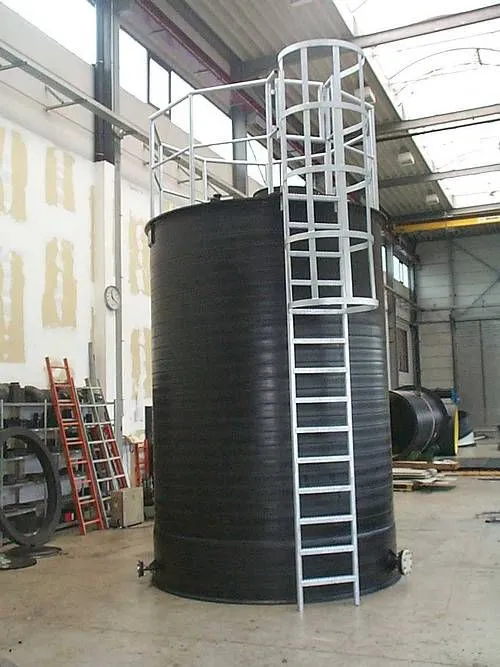

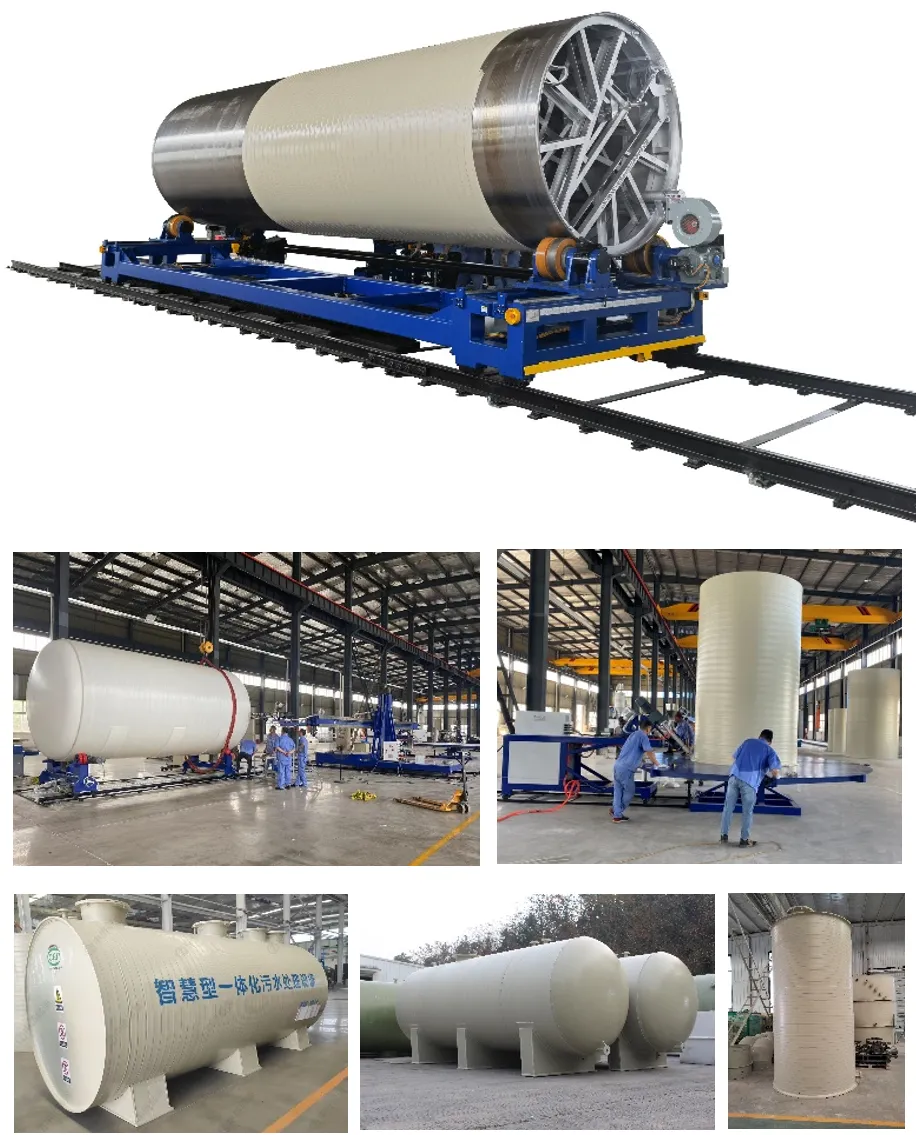

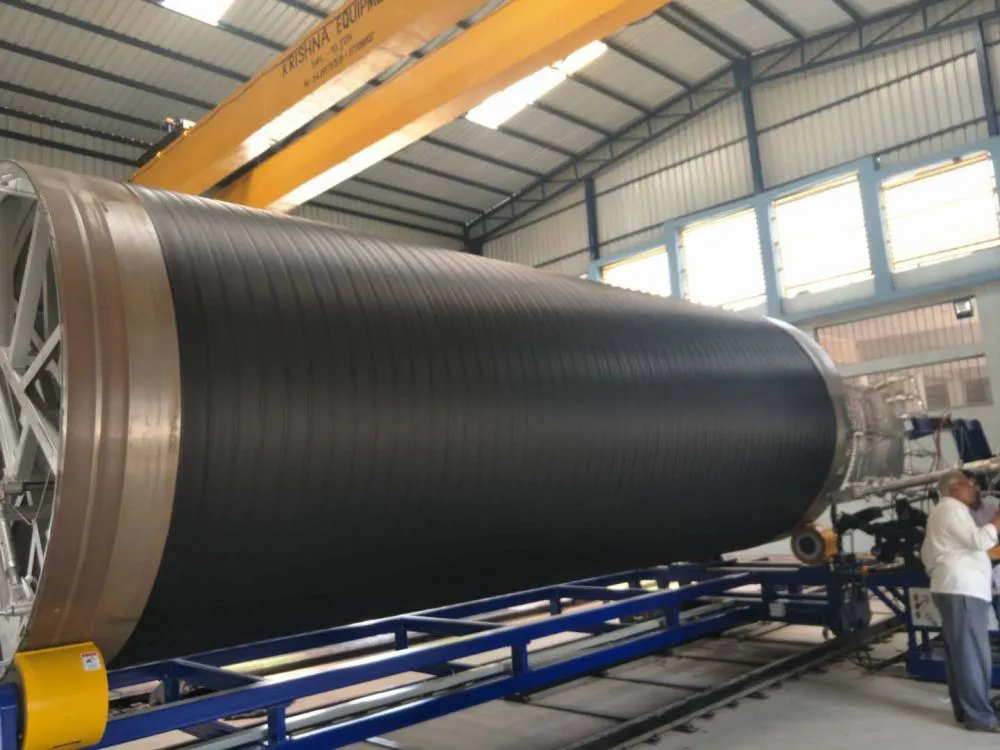

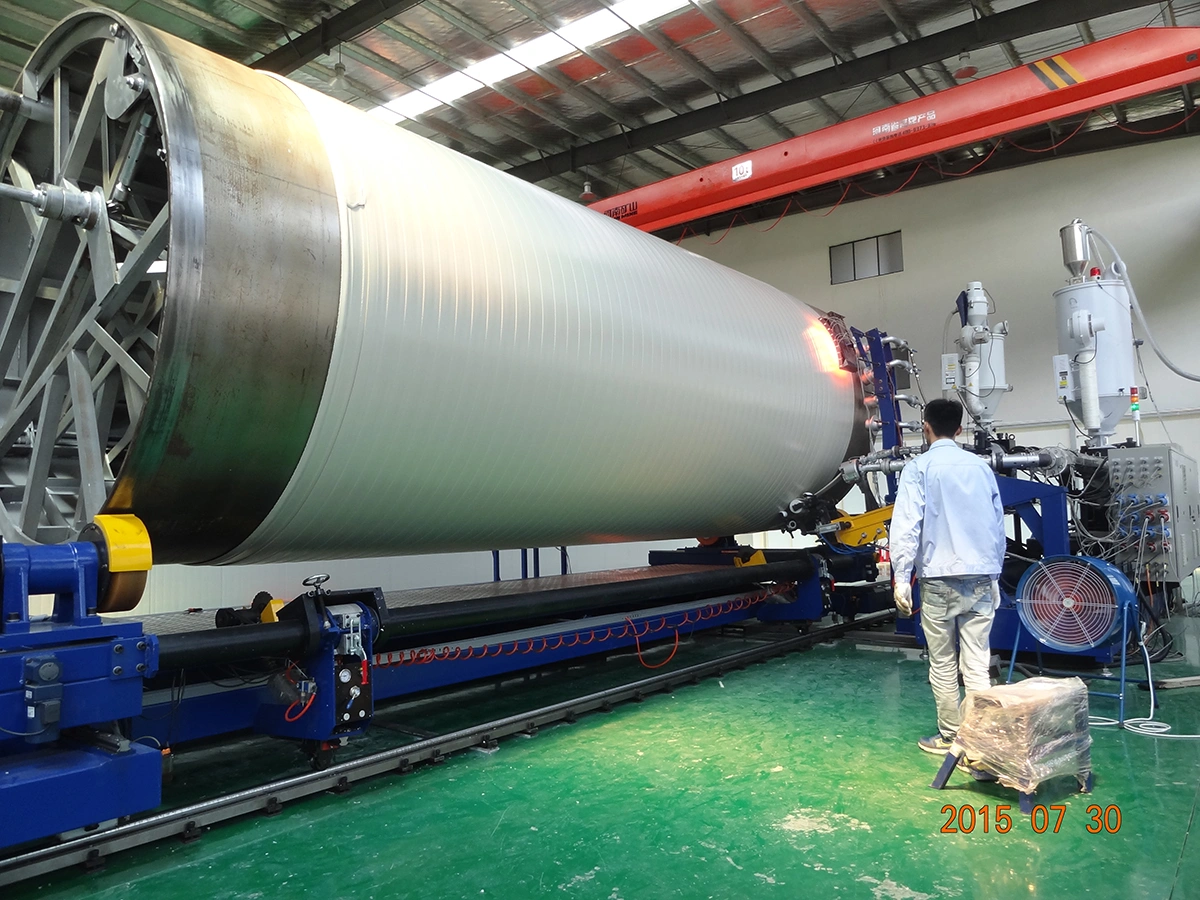

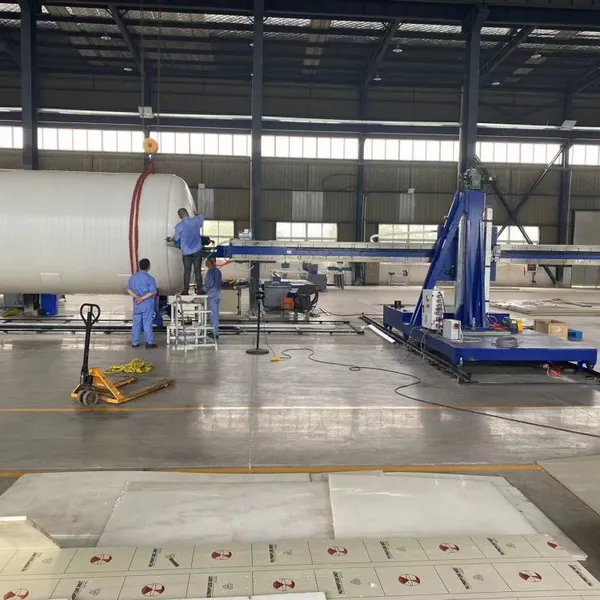

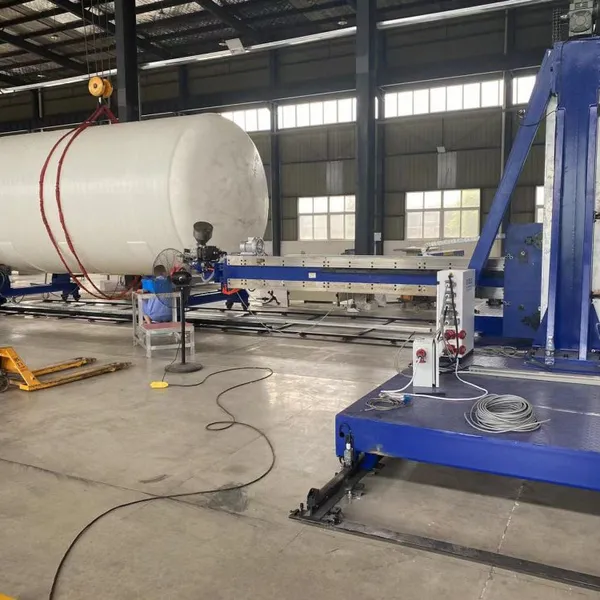

The HDPE spiral wound tank machine can produce the tank with the diameter up to ID5000mm and length up to 10000mm, with EAGLE seamless spiral winding technology what is most cost-efficient method for the manufacturing of large diameter HDPE or PP tanks. The tank wall thickness can be more than 150mm. This machine is fully computer controlled and stepped wall thickness tank can be produced automatically.
The tank can be made from different grade of high -density polyethylene(HDPE) and polypropylene(PP). The machine can be upgraded to produce special double wall structure tank with leakage control for chemical storage tank.

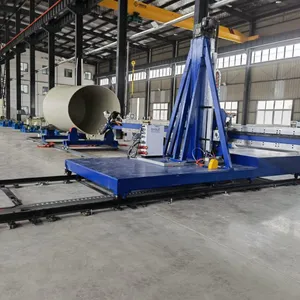

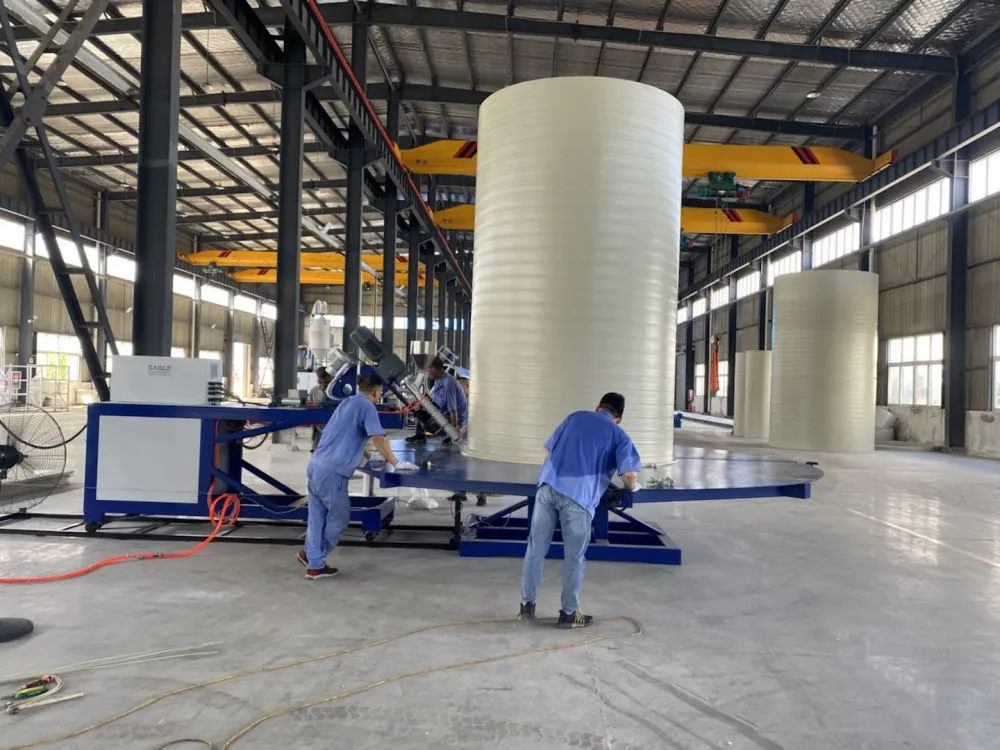

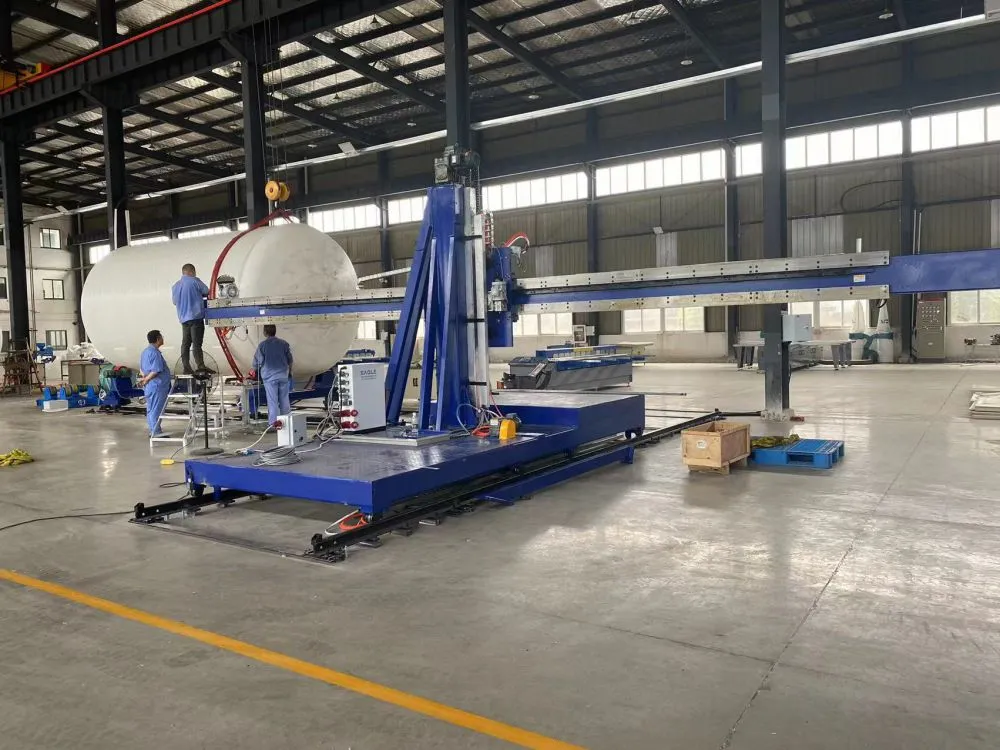

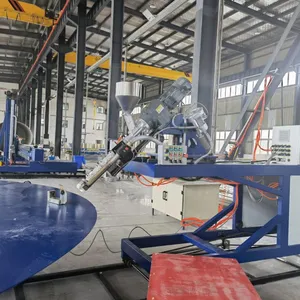

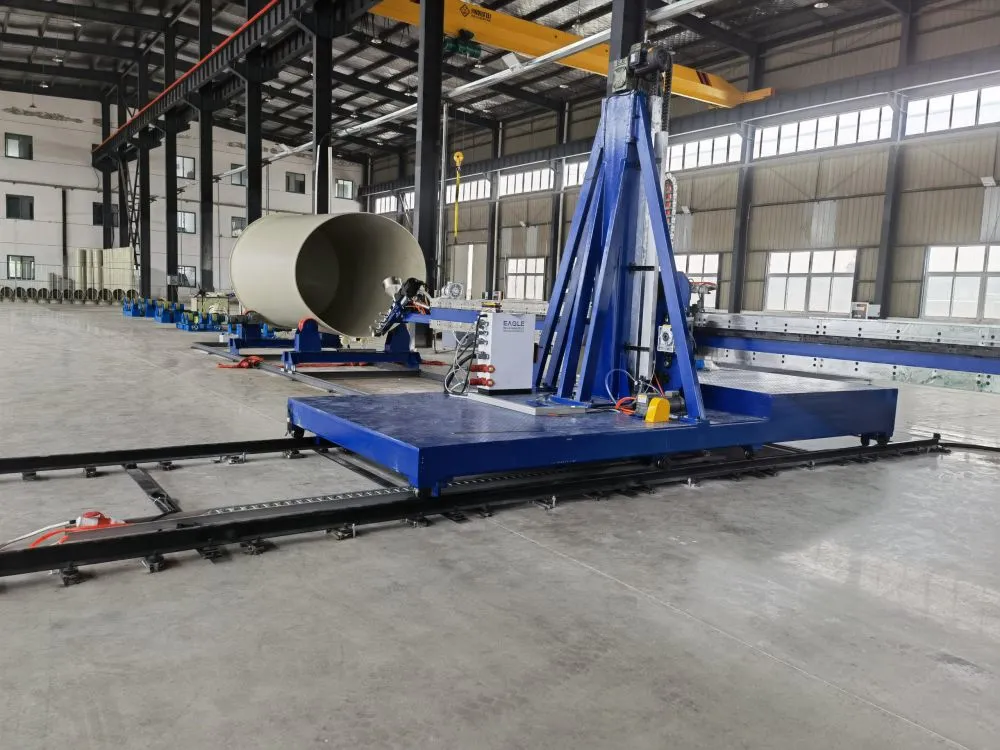

With advanced automatic welding machine, the bottom and cover can be welded automatically. The welding seam is uniform and strong to avoid any leakage.
Main Feature
• Tank diameters: ON/ID 600 mm up to ON/ID 4500 mm
• Tank length: 6-10 m
• Wall thickness: up to 150mm
• Material: HDPE, PP-HM, PP-B, PP-H, PVOF
• Output: 400-900kg/h
• Application: chemica l sto rage and process tank , scrubber, silo for food and grain storage tank, water storage tank, CO2 Stripper, storm retention tank, manhole, pump station,etc
- Detailed Technical Specifications:
Benefits for Your Business:
Lower Production Cost: The automated process reduces labor dependency and minimizes material waste, leading to a favorable cost per unit.
High Product Quality & Consistency: Automated control ensures every meter of pipe or every tank section meets the same high standard, building your brand's reputation for reliability.
Operational Flexibility: The ability to switch between different diameters and materials allows you to respond quickly to changing market orders and customer specifications.
Durability & Low Maintenance: The robust design of the machinery translates to high uptime and lower long-term maintenance costs, maximizing your return on investment.
Meeting Industry Demand: Produces pipes and tanks that are highly sought after for modern sewage systems, chemical containment, and agricultural irrigation due to their leak-proof joints, corrosion resistance, and long service life.
Choosing Qingdao Yongke Machinery is a decision backed by substantial evidence of capability and trust. With an annual export value ranging between US$1 Million and US$1.5 Million and a dedicated workforce of 51-100 skilled professionals, we have the scale and expertise to support your project from inquiry to installation. Our machinery ships directly from the Port of Qingdao, facilitating smooth logistics to our main markets worldwide. The trust placed in us by clients across diverse regions is a testament to the performance and reliability of our production lines. This machinery is more than an asset; it's a gateway to producing superior HDPE products that meet the growing global infrastructure needs. Contact us today to discuss how we can customize a solution that aligns perfectly with your production goals and helps you capture a larger share of the market.
Frequently Asked Questions (FAQ)
Q: What is the main advantage of spiral hollow wall structure over traditional extrusion pipes?
A: The spiral hollow wall design provides superior ring stiffness and impact resistance with less material usage. This makes the pipes ideal for deep burial applications where they must withstand significant soil pressure, offering a more cost-effective and mechanically robust solution.Q: Can this machine produce both pipes and storage tanks?
A: Yes, the core winding principle is the same. By adjusting the mandrel (the core around which the material is wound) and the production parameters, the same machinery line can be configured to manufacture continuous lengths of pipe or closed-end tanks of specified diameters and lengths.Q: What is the typical lead time for receiving a complete production line?
A: Lead times vary based on the level of customization and current production schedule. Standard configurations may have a shorter lead time, while fully customized systems require detailed engineering. We provide estimated timelines upon finalizing the technical specifications for your order.Q: Do you provide installation supervision and operator training?
A: Yes, we offer comprehensive after-sales support. This typically includes detailed installation manuals, wiring diagrams, and the option for our engineers to provide on-site or remote installation guidance and thorough operator training to ensure you can run the machine efficiently and safely.Q: How energy-efficient is this machinery?
A: The machinery incorporates several energy-saving features. The frequency conversion drive system optimizes motor power based on load, and the efficient heating zones are designed to minimize heat loss. Specific energy consumption data can be provided based on the configured model and production speed.Q: What kind of after-sales service and technical support do you offer?
A: Our support includes a standard warranty period for the machinery. We maintain a stock of commonly required spare parts and offer remote diagnostic support. Our technical team is available to assist with troubleshooting and provide ongoing consultation to ensure optimal performance.Q: Is the machinery compliant with international safety standards?
A: While the machinery is designed with multiple safety features (emergency stops, protective guards, etc.), specific regional safety certifications (like CE marking for Europe) are typically handled as a separate project based on the destination market's requirements and can be discussed during the order process.Q: Can the line be upgraded or modified in the future to increase capacity or add new features?
A: The modular design of our machinery allows for potential future upgrades. This could include adding auxiliary equipment, upgrading the control system, or modifying components to handle larger diameters. We recommend discussing long-term plans during the initial design phase.
