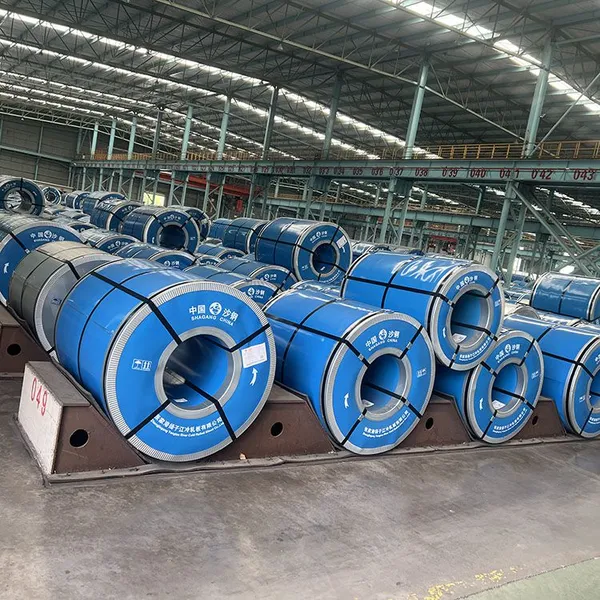

Help CenterHigh Permeability 50W600 NOES 0.50mm JIS GB/T Steel Coil for EV Motors and Compressors
Product Spotlights
Related Products
-
Industrial 65W1300 Non Grain Oriented Silicon Steel Sheet 0.65mm IEC 60404-8-4 CoatedUS$ 0.55 - 1.25MOQ: 100 Kilograms -
35W440 Electrical Steel Strip 0.35mm C6 Insulation ASTM JIS Transformer & Fan Core MaterialUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
EV Motor Stator Laminations 50W800 Non-Oriented Silicon Steel 0.50mm GB/T IEC ASTMUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
0.35mm NOES 35W250 Coil Sheet 600–1250mm Width JIS C2552 Motor Rotor Lamination SteelUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
Non Grain Electrical Steel 65W600 0.65mm IEC GB/T High Punching Quality Motor SheetUS$ 0.55 - 1.25MOQ: 100 Kilograms
Energy-Efficient Steel for Electric Vehicles
50W600 NOES offers high magnetic permeability and low core loss, enhancing motor and compressor efficiency. Its precise thickness and quality ensure minimal energy loss, ideal for electric vehicles, industrial compressors, and renewable energy applications.
Key Specifications (Non-Oriented Silicon Steel Coil)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A677, IEC 60404-8-4, GB/T 2521 |
Others on request |
Grades |
50W800, 50W600, 35W440, 65W1300 |
– |
Thickness |
0.35 mm – 0.65 mm |
– |
Width |
600 mm – 1250 mm |
Slit edge available |
Core Loss (50Hz) |
P1.5: 3.0 – 6.5 W/kg |
Grade dependent |
Magnetic Induction B50 |
≥1.65 – 1.75 T |
– |
Coating |
C-3 / C-5 / C-6 insulation coating |
– |
Density |
7.75 – 7.80 g/cm³ |
– |
Testing |
Epstein frame, tensile, hardness |
Mill cert provided |
Packaging |
Rust-proof paper + steel strapping + wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
