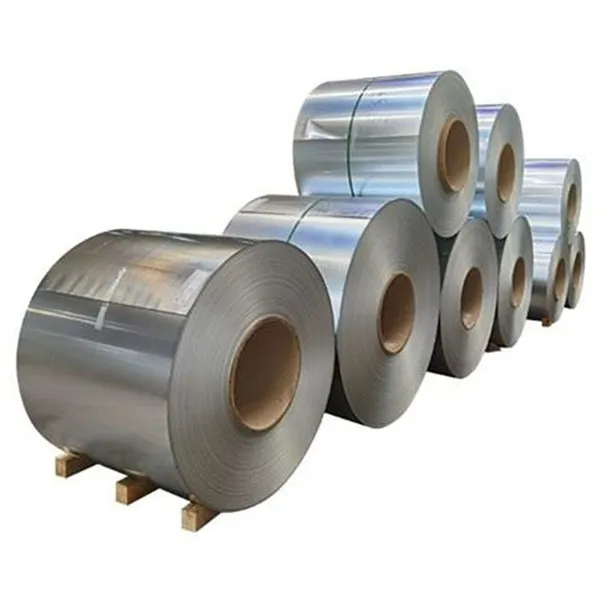

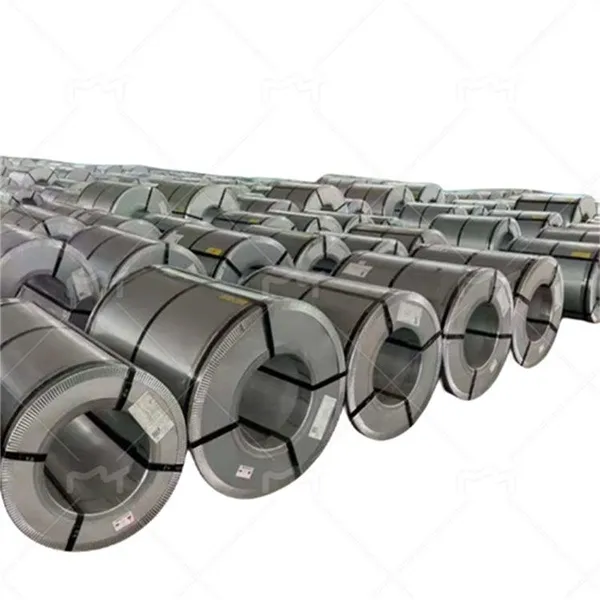

Help Center50W600 Non Grain Silicon Steel Sheet 0.50mm JIS GB/T Motor & Compressor Applications
Product Spotlights
Related Products
-
IEC 60404-8-4 65W1300 Electrical Steel Strip 0.65mm High Induction Motor LaminationsUS$ 0.55 - 1.25MOQ: 100 Kilograms -
35W440 NOES Sheet 0.35mm C5 Insulation Transformer Motor Rotor Core Lamination MaterialUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
Industrial 50W800 Electrical Steel 0.50mm ASTM GB/T Coated Strip for EV Motor CoresUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
Non-Oriented 35W250 0.35mm Silicon Steel Coil 600–1250mm Width IEC ASTM StandardUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
50W1300 NOES 0.50mm Electrical Steel Sheet for HVAC, Pump, and Fan Motor ApplicationsUS$ 0.55 - 1.25MOQ: 100 Kilograms
Efficient Material for Motors and Compressors
Manufactured to JIS and GB/T standards, 50W600 electrical steel provides consistent magnetic properties and reduced core losses. It is widely used in compressor motors, industrial drives, and electrical machinery requiring stable and efficient operation.
Key Specifications (Non-Oriented Silicon Steel Coil)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A677, IEC 60404-8-4, GB/T 2521 |
Others on request |
Grades |
50W800, 50W600, 35W440, 65W1300 |
– |
Thickness |
0.35 mm – 0.65 mm |
– |
Width |
600 mm – 1250 mm |
Slit edge available |
Core Loss (50Hz) |
P1.5: 3.0 – 6.5 W/kg |
Grade dependent |
Magnetic Induction B50 |
≥1.65 – 1.75 T |
– |
Coating |
C-3 / C-5 / C-6 insulation coating |
– |
Density |
7.75 – 7.80 g/cm³ |
– |
Testing |
Epstein frame, tensile, hardness |
Mill cert provided |
Packaging |
Rust-proof paper + steel strapping + wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
