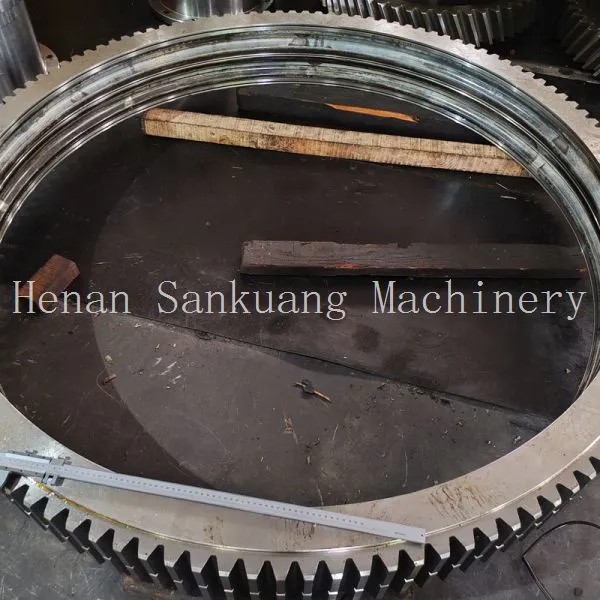

Help CenterCustom-Sized Annular Gear for Industrial Gearbox and Power Transmission Systems
Product Spotlights
Related Products
-
Flywheel Ring Gear for Marine Diesel Engine and Power Generation SetsNegotiableMOQ: 1 Piece -
Precision Machined Annular Gear With Ground Teeth for High-Speed TransmissionNegotiableMOQ: 1 Piece
-
Large Diameter Swing Bearing Gear With Custom Tooth Profile & Hardness HRC 58-62NegotiableMOQ: 1 Piece
-
Custom Size Segmented Girth Gear Suitable for Mixer & Kiln Drive SystemNegotiableMOQ: 1 Piece
-
35CrMo Alloy Steel Split Ring Gear With Precision Gear Hobbing MachiningNegotiableMOQ: 1 Piece
As a leading manufacturer with over a decade of expertise, Henan San Kuang Machinery Technology specializes in engineering high-performance custom components for demanding industrial applications. Our Custom-Sized Annular Gears are precision-engineered to serve as the critical backbone in your gearbox and power transmission systems, ensuring reliable torque transfer and operational longevity. We understand that off-the-shelf solutions often fall short, which is why we focus on delivering gears tailored to your exact dimensional and performance specifications. With a modern factory spanning over 10,000 square meters and a commitment to rigorous quality management, we provide a seamless blend of customization, durability, and technical support. Partner with us to enhance the efficiency and reliability of your machinery with a component built specifically for your needs.
These custom annular gears, also known as ring gears or internal gears, are designed for integration into complex drive systems where standard sizes are not applicable. The core value lies in their bespoke nature, allowing for optimal design integration, load distribution, and space utilization within your assembly.
- Precision Engineering: Each gear is manufactured using advanced CNC gear hobbing, shaping, and grinding equipment to achieve precise tooth geometry and tight tolerances, critical for smooth meshing and minimal backlash.
- Material Excellence: We utilize high-grade alloy steels (e.g., 20CrMnTi, 42CrMo) or carbon steels, selected based on your application's load, speed, and environmental requirements. Material certificates are available upon request.
- Enhanced Durability: A comprehensive heat treatment process, including carburizing and quenching, is applied to significantly increase surface hardness (typically HRC 58-62) while maintaining a tough core to resist wear and pitting under heavy cyclic loads.
-
Customization at Every Stage: Every parameter is customizable:
- Dimensions: Outer diameter, inner diameter (bore), face width.
- Gear Specifications: Module/Diametral Pitch, number of teeth, pressure angle, helix angle.
- Finishing: Choice of surface treatments like black oxide for corrosion resistance or precision grinding for superior surface finish and noise reduction.
- Technical Collaboration: Our engineering team works closely with clients from the design phase, offering analysis and recommendations for tooth profile optimization, material selection, and lubrication requirements.
The following table outlines typical specification ranges and options for our custom annular gears:
| Parameter | Standard Range / Options |
|---|---|
| Module (Metric) | 1 - 20 |
| Diametral Pitch (Imperial) | 20 - 1.25 DP |
| Outer Diameter | 100 mm to 2500 mm (Custom) |
| Precision Grade | DIN 5-10 / AGMA 9-13 |
| Pressure Angle | 20° (Standard), 14.5° or custom available |
| Tooth Type | Spur, Helical, Internal Involute |
| Keyway / Spline | Machined as per customer drawing |
By choosing our custom gears, you gain significant advantages. Perfect System Fit eliminates adaptation compromises, leading to higher system efficiency. Extended Service Life reduces downtime and maintenance costs. Optimized Performance allows your machinery to operate at its intended capacity with reduced vibration and noise. Ultimately, this translates into lower total cost of ownership and increased productivity for your operations.
Trust and Global Reach: Henan San Kuang Machinery is not just a supplier but a certified manufacturing partner. Our operations are backed by a robust quality management system, holding certifications such as ISO 9001 for quality and ISO 14000 for environmental management, ensuring consistent and responsible production. With an annual export value ranging between US$2.5 to $5 Million, we have successfully delivered reliable components to key industrial markets across North America, Europe, Southeast Asia, and beyond. Our strategic location allows for efficient logistics through major ports like Shanghai and Qingdao. We invite you to leverage our decade of experience, modern manufacturing facilities, and dedicated team of over 50 professionals. Contact us today to discuss your project requirements and receive a detailed quotation for your custom annular gear solution.
Frequently Asked Questions (FAQ)
Q1: What information do you need to provide a quote for a custom annular gear?
A: To provide an accurate quote and technical proposal, we typically require a detailed drawing (CAD file preferred) specifying dimensions (OD, ID, width), gear data (module/DP, tooth count, pressure/helix angle), material grade, heat treatment requirements, precision grade, and any special finishes or markings.
Q2: What is your typical lead time for a custom gear order?
A: Lead time depends on the gear's complexity, size, and quantity. For standard material and treatment, lead times generally range from 4 to 8 weeks for prototyping and initial batches. We can discuss expedited options if needed.
Q3: Can you manufacture gears according to international standards like AGMA or DIN?
A: Yes, absolutely. Our manufacturing processes and quality control are aligned to produce gears meeting various international standards, including AGMA (American) and DIN (German). We can manufacture to the specific grade and tolerance class you require.
Q4: What are the benefits of a custom-sized gear versus modifying a standard one?
A: A custom gear is designed and manufactured from the outset to your exact specifications, ensuring optimal tooth engagement, load distribution, and structural integrity. Modifying a standard gear can compromise its core geometry and material properties, potentially leading to premature failure.
Q5: Do you offer material testing and certification?
A: Yes, we can provide material test certificates (MTC) for the raw materials used. For finished gears, we can perform and provide reports for hardness testing, gear geometry inspection, and other non-destructive tests as required.
Q6: How do you ensure the quality of the heat treatment process?
A: We use controlled atmosphere heat treatment furnaces and follow strict process parameters. The hardness and case depth are meticulously checked to meet specified requirements, ensuring consistent and reliable performance.
Q7: What is the maximum size (diameter) you can produce?
A: Our manufacturing capabilities allow us to produce annular gears with outer diameters up to approximately 2500 mm. For requirements beyond this, please consult with our engineering team to explore feasibility.
Q8: Can you assist with reverse engineering if I only have a worn sample?
A: Yes, we offer reverse engineering services. We can measure your existing sample, analyze its specifications and wear patterns, and work with you to design and manufacture a replacement or an improved version.
