Help CenterLarge Diameter Swing Bearing Gear With Custom Tooth Profile & Hardness HRC 58-62
Product Spotlights
Related Products
-
Precision Slewing Ring Bearings: The Core of Rotating Heavy MachineryNegotiableMOQ: 1 Unit -
High Precision Mill Girth Gear, Girth Gear & Split Girth Gear ManufacturerNegotiableMOQ: 1 Combo
-
Turntable Bearing for Solar Tracker Systems With Corrosion Resistance CoatingNegotiableMOQ: 1 Piece
-
Swing Bearing With Sealed Raceway for Harsh Environment OperationNegotiableMOQ: 1 Piece
-
Turntable Bearing With 4-Point Contact Design for High Load CapacityNegotiableMOQ: 1 Piece
As a leading manufacturer with over a decade of expertise in heavy-duty mechanical components, Henan San Kuang Machinery Technology Co., Ltd. specializes in engineering precision large diameter swing bearing gears that are the backbone of robust industrial motion systems. Our gears are not just components; they are engineered solutions designed to transmit immense torque and withstand extreme operational stresses in the most demanding applications. The combination of a customizable tooth profile and a guaranteed hardness range of HRC 58-62 ensures optimal engagement, minimal wear, and unparalleled longevity, directly translating into reduced downtime and lower lifecycle costs for your equipment.
Operating from a sprawling factory facility, we leverage advanced manufacturing and stringent quality control processes, backed by a comprehensive suite of international certifications including ISO 9001 and ISO 14000, to deliver components that meet global standards. This gear is engineered for applications where standard offerings fail, providing a tailored interface for slewing mechanisms in cranes, excavators, wind turbine yaw systems, and large robotic platforms.
Core Product Features & Technical Specifications:
- Tailored Tooth Geometry: We don't just supply a gear; we engineer the tooth profile—helical, spur, or a specialized design—to match your specific drive system's requirements, optimizing for load distribution, noise reduction, and efficiency.

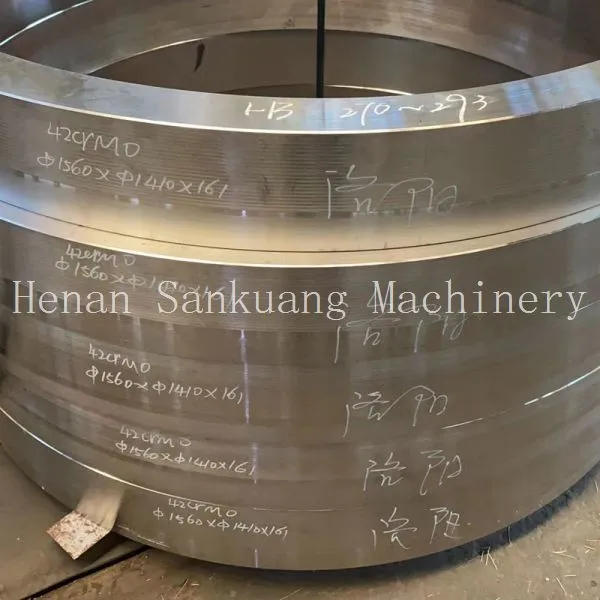

- Superior Material Integrity: Manufactured from high-grade alloy steel, the gear undergoes controlled heat treatment processes to achieve the specified hardness (HRC 58-62), ensuring exceptional resistance to abrasion, pitting, and plastic deformation.

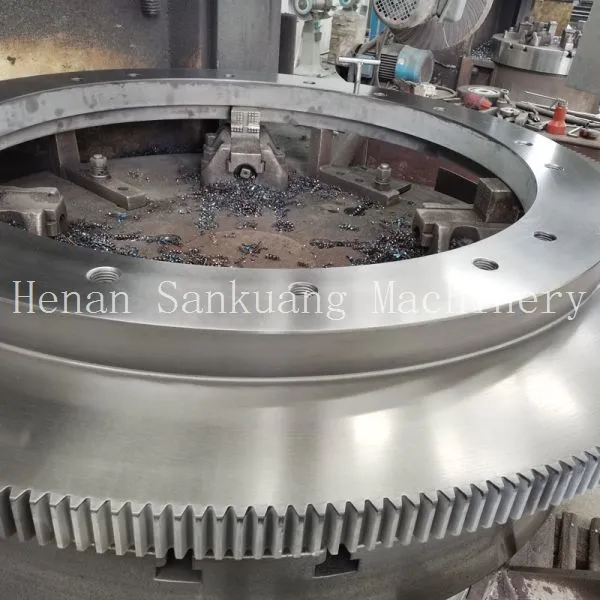

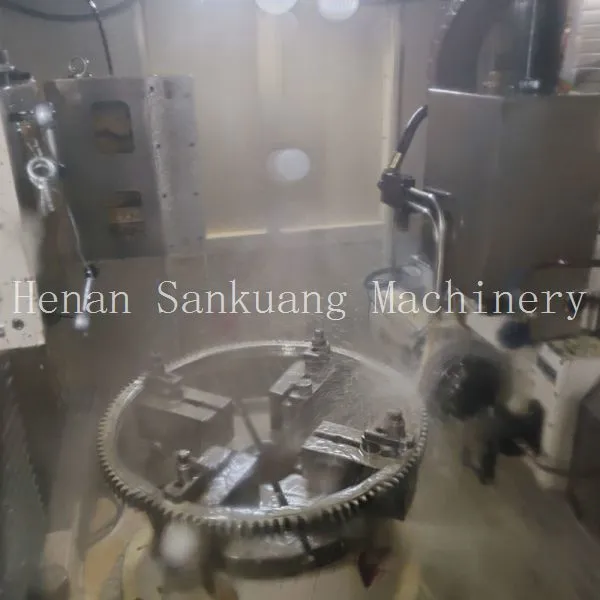

- Precision Machining & Finishing: The large diameter gear is machined with high-precision equipment to guarantee tight tolerances on tooth spacing, root diameter, and surface finish, leading to smooth meshing and consistent performance.

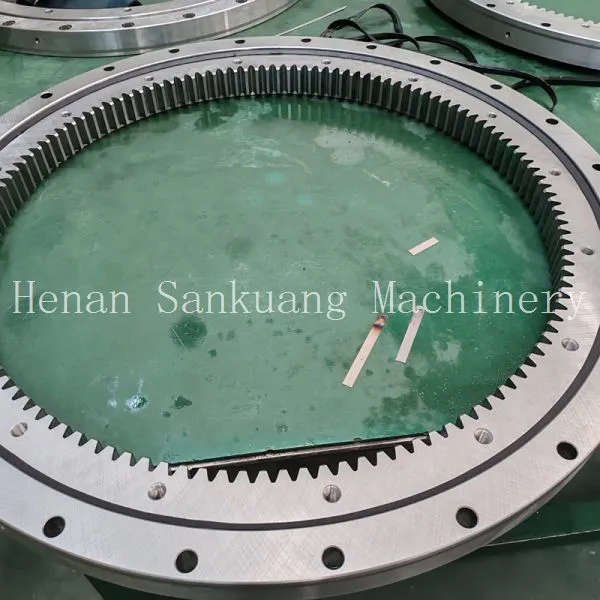

- Integrated Design Flexibility: The gear can be designed as an integral part of the swing bearing ring or as a separate mounted component. Flange styles, bolt hole patterns, and lubrication channel integration are all customizable.
- Robust Load Management: Engineered to handle high combined loads (axial, radial, and moment), making it suitable for the core rotational joints in heavy machinery.
The technical advantages are clear in the performance. A gear hardened to HRC 58-62 significantly extends service life compared to softer gears, reducing the frequency of replacements. A custom tooth profile minimizes stress concentrations, preventing premature failure. For B2B buyers, this means:
- Enhanced Equipment Reliability: Your machinery operates with a dependable rotational drive, minimizing unexpected breakdowns.
- Reduced Operational Costs: Longer gear life lowers part replacement and maintenance expenses.
- Improved System Efficiency: Optimal gear meshing reduces energy loss in the drive train.
- Design Synergy: Getting a gear tailored to your system eliminates integration challenges and performance compromises.
To illustrate the customizable nature and common parameters, consider the following reference table. Note: All values are customizable based on your technical drawings and requirements.
| Parameter | Typical Range / Options | Key Benefit |
| Outer Diameter | 1000 mm to 5000 mm+ | Suitable for very large slewing assemblies |
| Module (Gear Size) | 10 to 30+ (custom) | Determines tooth strength and torque capacity |
| Number of Teeth | Custom calculation based on diameter & module | Optimizes rotational speed and drive ratio |
| Tooth Profile Type | Spur, Helical, Double Helical, Custom | Affects smoothness, noise, and load sharing |
| Hardness Verification | HRC 58-62 (certified test report provided) | Guaranteed wear resistance and durability |
| Mounting Configuration | Flange with bolt holes, integrated ring, other | Ensures easy and secure installation |
Our commitment to quality is demonstrated by our operational scale and global reach. With a factory size of 10,000-30,000 square meters and an annual export value ranging between US$2.5 Million and US$5 Million, we have the capacity and experience to handle large, complex orders reliably. Our products reach markets worldwide, including North America, Europe, Asia, and Africa, via major ports like Shanghai, Qingdao, and Tianjin. This global footprint is supported by a dedicated team of 51-100 people focused on engineering, manufacturing, and quality assurance. When you choose our large diameter swing bearing gear, you are not just buying a part; you are leveraging a certified manufacturing partner with a proven track record of delivering high-performance, custom-engineered solutions for heavy industry.
To initiate a project, simply provide your technical specifications or drawings. We will engineer a gear solution that meets your exact requirements for tooth profile, hardness, and dimensions, ensuring it integrates perfectly and performs reliably in your application. Contact us today to discuss your needs and receive a detailed proposal.
Frequently Asked Questions (FAQ)
Q1: What does "custom tooth profile" mean, and why is it important?
A: It means the shape and geometry of the gear teeth are designed specifically for your application, rather than using a standard profile. This is crucial for optimizing load distribution between teeth, minimizing noise and vibration, improving meshing efficiency, and extending the gear's life by reducing stress concentrations.
Q2: How is the hardness of HRC 58-62 achieved and verified?
A: The hardness is achieved through controlled heat treatment processes (like quenching and tempering) on the selected high-grade alloy steel. We verify the hardness using standardized Rockwell C scale testing on sample areas, and a test report can be provided as part of our quality documentation.
Q3: What information do I need to provide to get a custom gear made?
A: Ideally, provide a detailed technical drawing or specification sheet. Key data includes: required outer diameter, number of teeth or module, desired tooth profile type, mounting interface details (flange, bolt holes), load requirements (axial, radial, moment), and any special features like lubrication channels or seals.
Q4: What are the typical applications for this large diameter swing bearing gear?
A: Common applications include: slewing rings for mining excavators and cranes, yaw drive gears for wind turbines, rotational joints for large robotic arms and manipulators, turntables for heavy material handling, and any machinery requiring a robust, large-scale rotational drive mechanism.
Q5: What is the lead time for a custom gear of this size and specification?
A: Lead time varies based on complexity, size, and current order volume. For a standard custom design, it typically ranges from 4 to 8 weeks after finalizing the engineering drawings. We provide a estimated timeline upon project review.
Q6: Does the gear come with any surface treatment or protection?
A: Surface treatments are customizable. Common options include anti-corrosion coatings, black oxide finishing, or specified paint. For the gear teeth themselves, the high hardness provides inherent wear resistance. Additional protective seals for the bearing interface are also available.
Q7: Can you supply the complete swing bearing assembly, including the gear?
A: Yes. While this listing focuses on the gear component, we are capable of manufacturing and supplying the entire swing bearing assembly—including the inner and outer rings, rolling elements, seals, and the integrated or mounted gear—as a complete, ready-to-install unit.
Q8: What quality certifications support your manufacturing process?
A: Our manufacturing is governed by a robust quality management system certified under ISO 9001. We also adhere to other relevant standards depending on the application, ensuring consistent processes, material control, and final product verification.
