As a leading manufacturer with a decade of experience in heavy industrial machinery, Henan San Kuang Machinery Technology is proud to present our advanced Multi-Segment External Girth Gear, engineered specifically for the demanding environment of cement plant rotary dryer equipment. Operating from our expansive 10,000-30,000 square meter facility, we combine robust manufacturing capabilities with stringent quality control under ISO 9001 to deliver components that ensure reliability and longevity. This girth gear is a critical power transmission component designed to handle high torque loads while withstanding the thermal stresses and abrasive conditions inherent in rotary dryer operations. Our multi-segment design directly addresses the industry's need for simplified installation, maintenance, and replacement, significantly reducing downtime and associated costs for plant operators.
The core value of this product lies in its ability to transform a traditionally complex and costly maintenance procedure into a manageable, efficient operation. By segmenting the large-diameter gear, we eliminate the need for heavy-lifting cranes and complex on-site machining, allowing for targeted replacement of worn sections rather than the entire assembly. This design philosophy, born from direct feedback from our global clientele across North America, Southeast Asia, Europe, and Africa, reflects our commitment to practical, cost-effective engineering solutions. The external mounting configuration further enhances accessibility for inspection and lubrication, promoting proactive maintenance and preventing catastrophic failures that can halt production for extended periods.
Key Features & Technical Advantages:

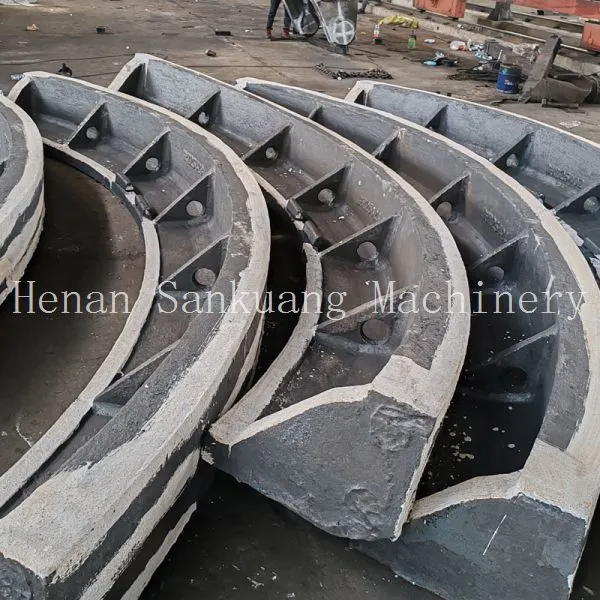

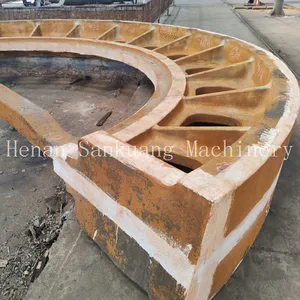

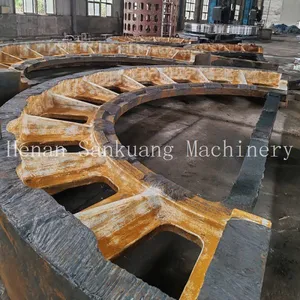

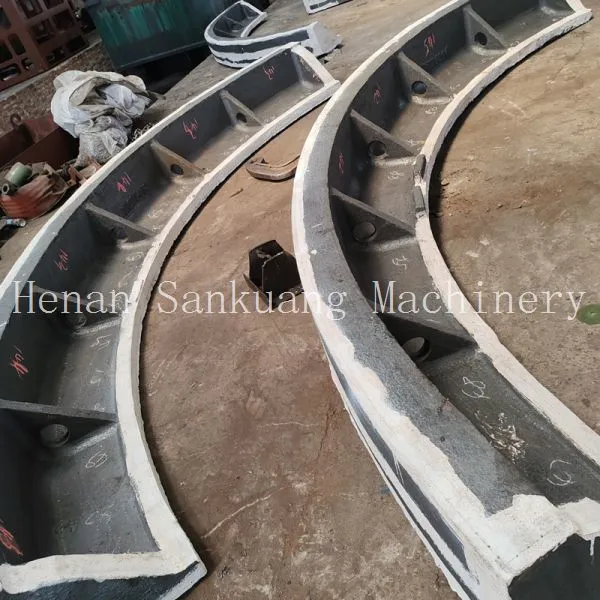

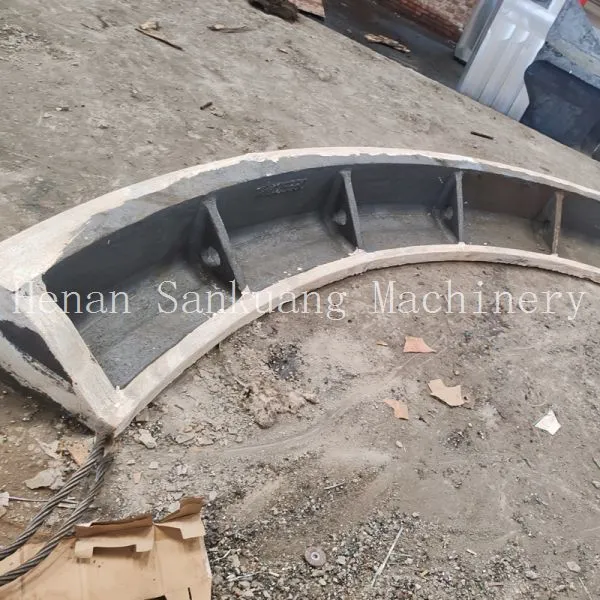

Modular, Multi-Segment Construction: The gear is manufactured in precisely machined segments that bolt together to form a complete ring. This design drastically simplifies logistics, handling, and installation compared to monolithic gears, especially in retrofit or repair scenarios where space is constrained.
Superior Material Integrity: Fabricated from high-grade alloy steel or cast steel, selected based on the specific torque, speed, and environmental conditions of the application. Optional heat treatment processes, such as carburizing and quenching, can be applied to achieve optimal surface hardness and core toughness for extended service life.

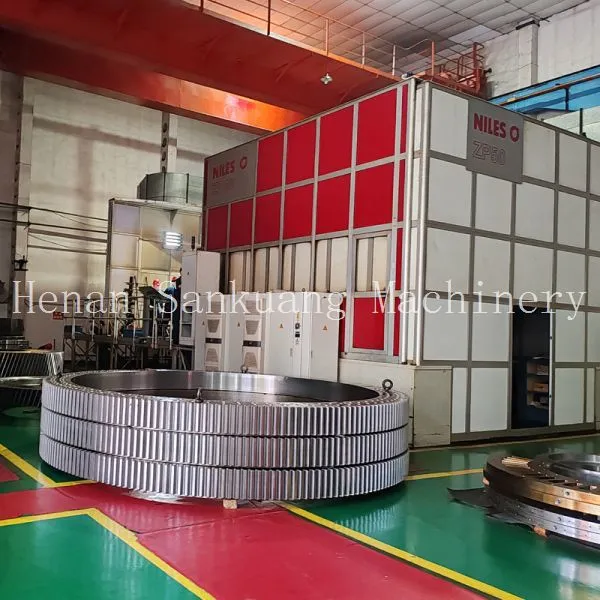

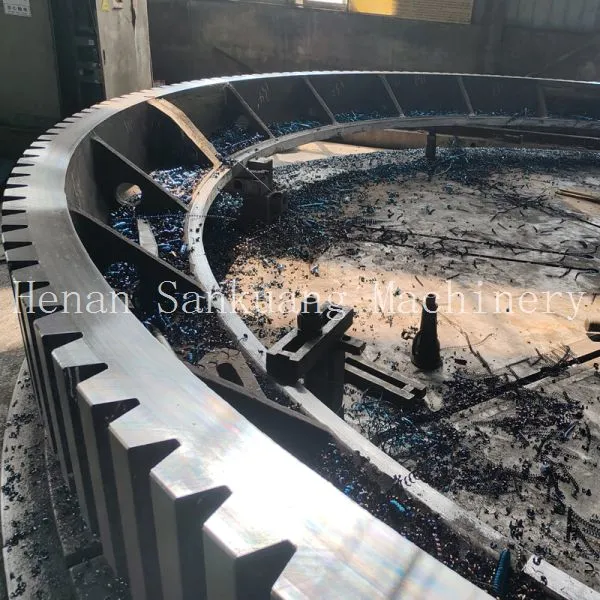

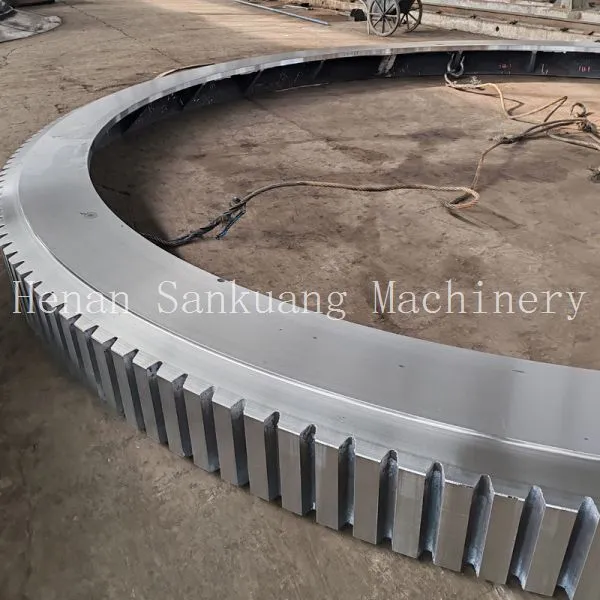

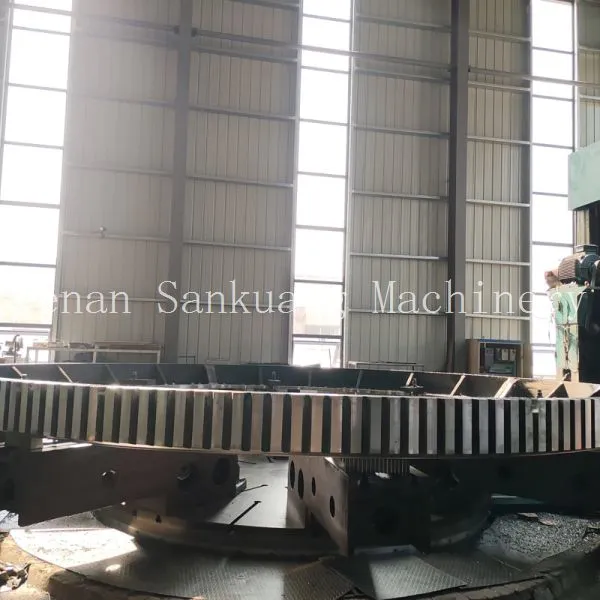

Precision Machining for Optimal Meshing: Each segment undergoes CNC gear hobbing and finishing to ensure precise tooth profile, pitch, and runout. This guarantees smooth, quiet, and efficient power transmission from the pinion, minimizing vibration and uneven wear.
Enhanced Maintenance Accessibility: The external mounting position allows maintenance crews easy visual and physical access for routine tasks like cleaning, lubrication, and bolt tension checks. This promotes a preventive maintenance culture.
Robust Connection System: Segments are joined using high-tensile alloy steel bolts and precision-machined mating faces. The connection design ensures structural integrity and accurate alignment under full operational load, preventing fretting or slippage.
Customization for Perfect Fit: We do not offer a one-size-fits-all solution. Gears are engineered to match the specific diameter, face width, module, and number of teeth required by your existing or new rotary dryer, ensuring seamless integration.
Technical Specifications & Parameters:
| Parameter | Description / Typical Range |
| Primary Application | Rotary Dryers in Cement Production Lines |
| Gear Type | External Spur or Helical Girth Gear |
| Construction | Multi-Segment (Typically 2, 4, or 8 segments) |
| Material Options | ZG270-500, ZG310-570 Cast Steel; 42CrMo, 35CrMo Alloy Steel |
| Module (m) | Customizable (Common range: 20 to 50) |
| Hardness | Tooth Flank: 45-55 HRC (After Heat Treatment); Core: 220-280 HB |
| Accuracy Grade | ISO 1328 Class 9-10 (or as specified) |
| Mounting | Bolted to dryer shell via forged or welded pads |
Benefits for Your Cement Plant Operation:
Reduced Downtime & Maintenance Costs: Segment replacement is faster and requires less specialized equipment than full gear replacement, getting your dryer back online quicker.
Lower Capital Expenditure for Spares: Instead of stocking a complete spare girth gear, plants can stock critical segments, reducing inventory costs and tied-up capital.
Extended Overall Equipment Life: Precision manufacturing and durable materials reduce wear rates on both the girth gear and the mating pinion, protecting your broader drive train investment.
Improved Operational Safety: Easier, more manageable handling of segmented components reduces the risks associated with lifting and maneuvering extremely heavy single-piece gears.
Minimized Vibration & Noise: Accurate machining ensures proper meshing, leading to smoother operation, which can reduce stress on bearings and the dryer shell structure.
Backed by Henan San Kuang Machinery's established track record of supplying durable industrial components to a global market, including North America, Eastern Europe, Africa, and Southeast Asia, this girth gear is manufactured under a certified quality management system. Our annual export value of US$2.5-5 million and a dedicated team of 51-100 professionals are testaments to our capacity and reliability. We support shipments from major ports like Shanghai, Qingdao, and Tianjin, ensuring smooth logistics to your project site. For plant managers and procurement specialists seeking a reliable, innovative, and cost-conscious solution for rotary dryer drive maintenance, our Multi-Segment External Girth Gear represents a strategic investment in operational continuity. Contact us today with your dryer specifications to receive a detailed technical proposal and quotation tailored to your needs.
Frequently Asked Questions (FAQ):
Q: What is the main advantage of a multi-segment design over a single-piece girth gear?
A: The primary advantage is drastically simplified installation and maintenance. Large single-piece gears require massive cranes and pose significant handling risks. Segmented gears are easier to transport, lift, and install. Furthermore, if damage occurs, only the affected segment needs replacement, saving considerable time and cost compared to replacing an entire monolithic gear.Q: How do you ensure the structural integrity and alignment of the bolted segments under heavy load?
A: Integrity is achieved through precision. Each segment has machined mating faces that fit together with minimal gap. High-strength alloy steel bolts are torqued to precise specifications in a defined sequence. The design often includes locating dowels or keys to prevent shear movement, creating a rigid assembly that performs as a single unit.Q: Can you manufacture a gear to replace an existing one from a different original manufacturer?
A: Yes, reverse engineering for replacement parts is a core service. We require detailed measurements or drawings of the existing gear (pitch diameter, module, number of teeth, face width, bolt hole pattern) and the mating pinion. Our engineering team can then manufacture a compatible multi-segment replacement.Q: What information do you need to provide a quotation?
A: To provide an accurate quote, we typically need: Rotary dryer model/shell diameter, desired gear diameter/face width/number of teeth (or existing gear drawings), material preference, required hardness, operational speed/torque details, and any preferred surface treatment or coating.Q: What is the typical lead time for a custom multi-segment girth gear?
A: Lead time varies based on size, material, and complexity. For standard configurations, it generally ranges from 8 to 16 weeks after order confirmation and final drawing approval. This includes material procurement, machining, heat treatment, finishing, and quality inspection.Q: Do you provide installation supervision or technical guidance?
A: We provide detailed installation manuals, including bolt torque sequences and alignment procedures. For critical installations, on-site technical supervision by our engineers can be arranged as an optional service to ensure correct fitting and optimal performance.Q: How does the external mounting affect lubrication?
A: External mounting is beneficial for lubrication. It allows for easier access to set up and maintain automatic lubrication systems (spray or drip). It also enables visual inspection of the gear mesh and lubrication distribution, ensuring the teeth are properly protected from wear.
