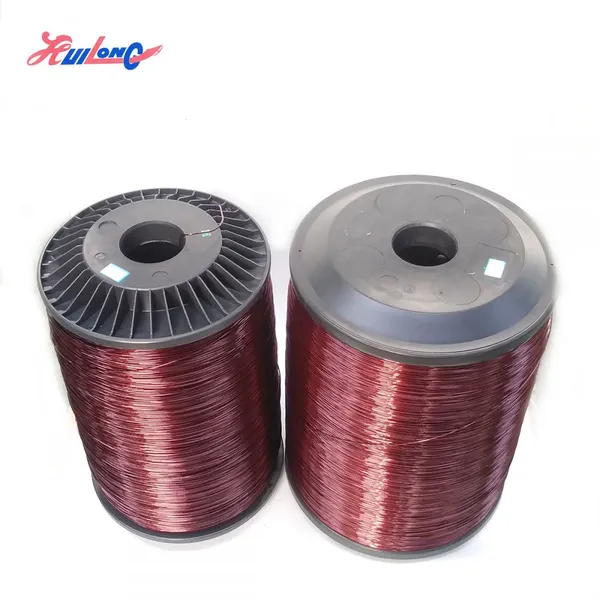

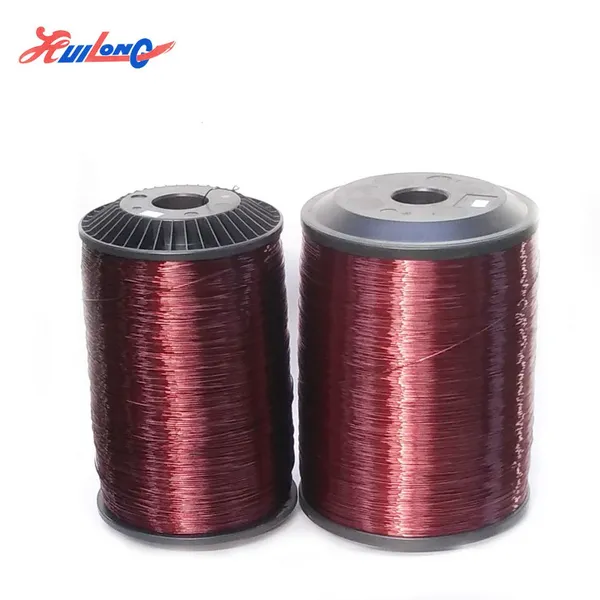

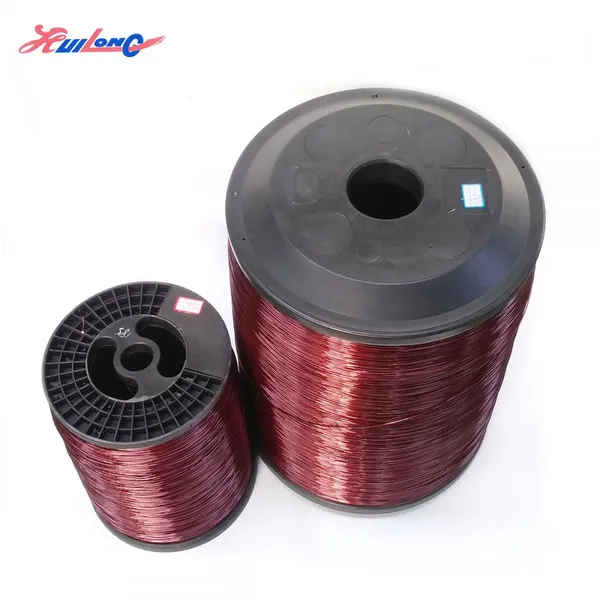

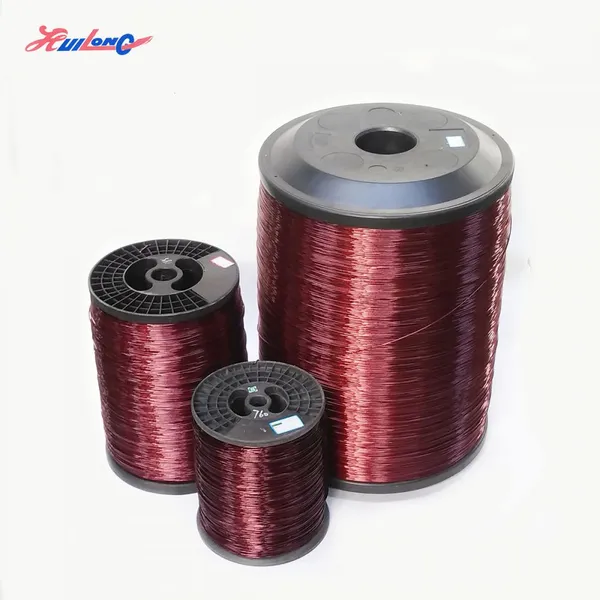

Help CenterAluminum Winding Wire With Enamel Insulation Electrical Wires Manufacturing Price AWG 6-32 NM1000
Product Spotlights
Related Products
-
19 Swg Winding Wire From ChinaUS$ 3.75 - 4.00MOQ: 500 Kilograms -
Winding Wire Enameled Copper 30 SwgUS$ 3.70 - 4.00MOQ: 500 Kilograms
-
SWG 13 -27 180 Class Enameled Round Wire Manufacturer FranceUS$ 3.70 - 4.00MOQ: 500 Kilograms
-
18 Awg Enamelled Aluminium Wire Manufacturers in ChinaUS$ 3.29 - 3.50MOQ: 500 Kilograms
-
China Factory Price Enameled Aluminum Wire Awg5 to Awg32 Enameled Aluminum Round WireUS$ 3.58MOQ: 1000 Kilograms
Since 1970, Shandong Huilong Electrical Material Co., Ltd. has been manufacturing premium magnet wires from our 30,000 sqm facility in Dezhou, China. Our polyamide/polyester-imide coated aluminum magnet wire delivers exceptional dielectric strength and thermal stability for demanding electrical applications. With over 50 years of specialized production expertise and $100M+ annual export volume, we provide OEMs with reliable winding solutions that enhance motor efficiency and transformer performance.
Technical Advantages:
Dual-layer coating provides superior chemical resistance against oils, solvents and refrigerants
Withstands continuous operating temperatures up to 200°C (Class 180 thermal rating)
Excellent adhesion properties prevent coating cracking during winding operations
Low dielectric loss characteristics improve energy efficiency in high-frequency applications
Performance Specifications:
| Parameter | Standard Range | Testing Standard |
| Breakdown Voltage | ≥8kV | IEC 60851 |
| Elongation at Break | 15-30% | ASTM B193 |
| Heat Shock Resistance | No cracking at 3×D | IEC 60172 |
The unique molecular structure of our polyester-imide coating creates a flexible yet tough insulation barrier that maintains integrity under thermal cycling. Aluminum conductors offer 50% weight reduction compared to copper equivalents while maintaining excellent conductivity-to-weight ratios. Our proprietary coating technology ensures uniform film thickness with tolerance within ±0.005mm, critical for precision winding applications in aerospace and automotive industries.
Frequently Asked Questions:
Q: What temperature range does this wire support?
A: Continuous operation at 180°C with short-term peak tolerance to 220°C.Q: Are custom diameters available?
A: Yes, we produce wires from 0.1mm to 5.0mm diameter based on specifications.Q: What packaging options do you offer?
A: Standard spool sizes from 5kg to 50kg, with custom packaging solutions.Q: Do you provide technical documentation?
A: Complete material datasheets and certification documents accompany shipments.Q: What's your production lead time?
A: Standard orders ship within 15 days from Qingdao/Shanghai ports.Q: Can I request sample reels?
A: Sample coils available for technical evaluation upon request.
Trusted by electrical manufacturers across North America, Europe and Asia, our IATF 16949 certified production processes ensure consistent quality. With dedicated logistics coordination from major Chinese ports, we've delivered to 30+ countries including specialized markets in Oceania and Eastern Europe. Contact our engineering team today to discuss how our thermally stable aluminum magnet wire can optimize your electromagnetic component performance while reducing material costs.
