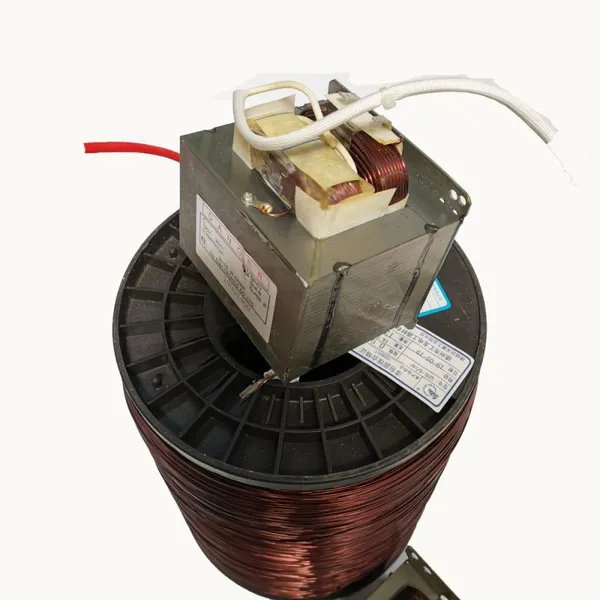

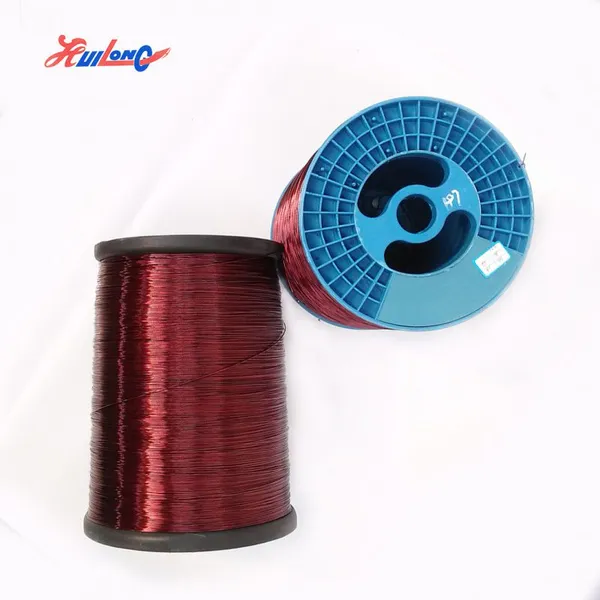

Winding Wire Enameled Copper 30 Swg
US$ 4.00
500 - 4999 Kilograms
US$ 3.80
5000 - 17999 Kilograms
US$ 3.70
≥18000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SWG 13 -27 180 Class Enameled Round Wire Manufacturer FranceUS$ 3.70 - 4.00MOQ: 500 Kilograms -
18 Awg Enamelled Aluminium Wire Manufacturers in ChinaUS$ 3.29 - 3.50MOQ: 500 Kilograms
-
China Factory Price Enameled Aluminum Wire Awg5 to Awg32 Enameled Aluminum Round WireUS$ 3.58MOQ: 1000 Kilograms
-
China Factory Price Enameled Aluminum Wire Awg5 to Awg32 Enameled Aluminum Round WireUS$ 3.80MOQ: 1000 Kilograms
-
Aluminum Wire Factory Price AWG 10 Enameled Winding Round Circular Wire Class 180 and Class 200 PhilippinesUS$ 4.65 - 4.70MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Shape:
Round
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.0mm
Certification:
ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200
Standard
IEC-60317
Product Description
Round Wire Diameter: 1.30mm
Scope: 5awg-32awg/7swg-35swg
Product Name: 32 awg magnet wire enamel coated insulating varnish
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
QY-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class N |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.2-4.5 |
0.2-4.5 |
0.2-4.5 |
0.2-4.5 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
Product Details
Advantage
Techinical Data
Why do enamelled aluminium wires fail to bond properly?
During the use of enameled aluminum wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled aluminum wire.
