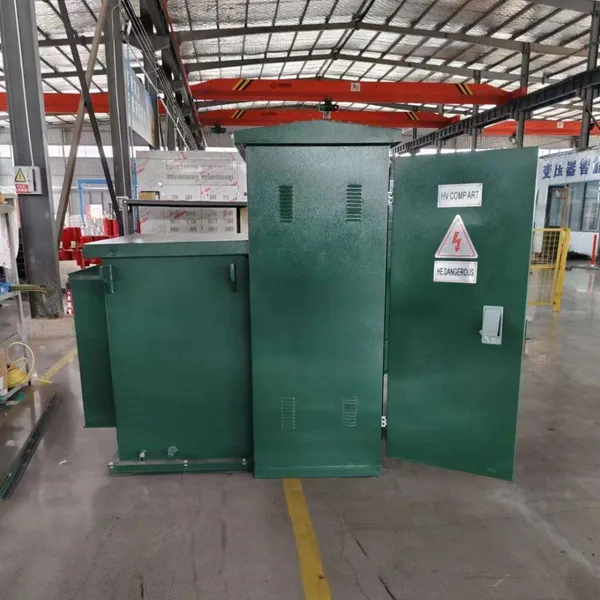

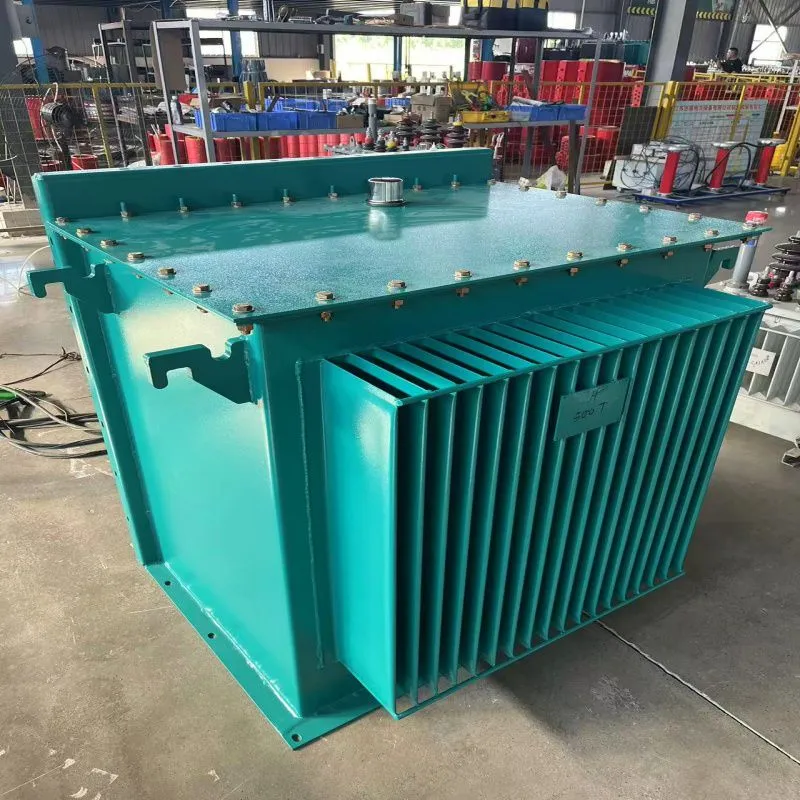

As a dedicated manufacturer with over a decade of experience in power distribution equipment, Jinhua Dika Electrical Equipment Co., Ltd. proudly presents our specialized Compact Pad Mounted Combined Transformer. Engineered specifically for the demanding environments of renewable energy generation, this integrated solution addresses the critical need for reliable, safe, and space-efficient power transformation and distribution at solar and wind farm collection points. Our ISO9001-certified manufacturing process ensures each unit delivers consistent performance, helping project developers and EPC contractors optimize land use without compromising on power quality or system reliability.
This transformer represents a significant advancement in substation design for distributed generation. Unlike traditional setups requiring separate transformers, switchgear, and enclosures, our combined unit integrates key components into a single, robust, tamper-resistant housing. This design philosophy offers substantial benefits for renewable energy sites, which are often located in remote areas with limited space for expansive electrical infrastructure. Key features and technical specifications include:
- Space-Saving Integrated Design: Combines the transformer, primary and secondary switchgear, metering, and protective devices into one compact, pre-assembled enclosure. This drastically reduces the overall footprint compared to conventional pad-mounted transformers with separate gear.
- Robust Construction for Harsh Environments: The enclosure is typically constructed from heavy-gauge, corrosion-resistant galvanized steel. Optional stainless steel construction is available for highly corrosive coastal or industrial atmospheres commonly encountered near wind farms.
- Enhanced Safety and Security: Features a fully locked, tamper-proof design with no exposed live parts. Bushings and connections are internally protected, minimizing risks to personnel and wildlife. The design often includes pressure relief devices and fault interrupters for added operational safety.
- Optimized for Renewable Energy Fluctuations: The transformer core and winding design are optimized to handle the variable and sometimes harmonic-rich loads characteristic of inverter-based solar and wind generation, ensuring stable voltage output and longevity.
- Flexible Configuration: Available in various primary and secondary voltage combinations to match grid interconnection requirements and collector system voltages. Common configurations include stepping up from a medium voltage collector to a distribution voltage, or stepping down for on-site auxiliary power.
- Low Maintenance & High Reliability: As a sealed, liquid-filled unit, it requires minimal maintenance. High-quality materials and rigorous testing, underpinned by our ISO9001 quality system, contribute to a long service life and high availability, which is crucial for maximizing renewable energy yield.
Below is a table outlining typical specifications for our standard product range. All parameters are customizable based on project-specific requirements.
| Parameter | Typical Range / Specification |
|---|---|
| Rated Capacity (kVA) | 500, 750, 1000, 1500, 2000, 2500, 3000, 5000 |
| Primary Voltage (kV) | 15, 25, 35, 38 (or as required) |
| Secondary Voltage (V) | 240/120, 480Y/277, 600 (or as required) |
| High-Voltage Switchgear | Loadbreak Switches or Vacuum Circuit Breakers |
| Low-Voltage Switchgear | Molded Case Circuit Breakers (MCCBs) |
| Insulation Liquid | Mineral Oil or FR3 Fluid (Ester) |
| Enclosure Protection (IP Rating) | IP43 or higher (customizable) |
| Standards | ANSI/IEEE C57.12.xx, IEC 60076 |
The advantages of choosing our compact combined transformer translate directly into tangible benefits for your project:
- Reduced Installation Time & Cost: Pre-assembled, tested, and shipped as a single unit, it slashes field labor and commissioning time.
- Maximized Land Utilization: Its compact footprint frees up valuable land for additional solar panels or wind turbine placement, directly increasing revenue potential.
- Improved System Reliability: The integrated design with coordinated protection reduces points of failure and simplifies operational management.
- Scalability: Easily deploy multiple identical units as a wind or solar farm expands, standardizing maintenance and spare parts.
Backed by our company's proven track record of exporting to diverse markets including North America, Europe, and Southeast Asia, and supported by an annual export value reflecting consistent international demand, you can trust in our capability to deliver a reliable product. Our strategic location with multiple shipment ports (Shanghai, Tianjin, Guangzhou, Ningbo) ensures flexible and efficient logistics for your project timeline. We invite you to leverage our manufacturing expertise to find the optimal power distribution solution for your space-constrained renewable energy site. Contact us today to discuss your specific technical requirements and receive a detailed proposal.
Frequently Asked Questions (FAQ)
Q1: What exactly is a "combined" transformer, and how does it differ from a standard pad-mounted transformer?
A: A standard pad-mounted transformer is primarily just the transformer tank. A "combined" unit, like ours, integrates the transformer with primary (high-voltage) and secondary (low-voltage) switchgear, fusing, metering, and control components into one sealed enclosure. This creates a complete, compact substation in a single package.
Q2: Is this product suitable for both new solar/wind farm projects and retrofitting existing sites?
A: Yes, it is highly suitable for both. For new projects, it simplifies design and installation. For retrofits or capacity upgrades, its compact size allows it to fit into tight spaces where expanding conventional infrastructure might be challenging.
Q3: What are the typical lead times for an order?
A: Lead times vary based on the customization level and order quantity. For standard configurations, typical production lead times range from 8 to 14 weeks. We provide accurate timelines upon receipt of your detailed specifications.
Q4: Can you provide transformers compatible with both North American (ANSI) and International (IEC) standards?
A: Absolutely. Our engineering team designs units to meet the specific standard requirements of the target market, whether it's ANSI/IEEE standards common in North America or IEC standards prevalent in Europe, Asia, and other regions.
Q5: What kind of after-sales support and documentation do you provide?
A: We provide comprehensive documentation including detailed drawings, test reports (routine tests), installation manuals, and material lists. We offer technical support remotely and can guide installation and commissioning. Critical spare parts recommendations are also provided.
Q6: How do you handle harmonic loads from solar inverters?
A: Our transformers can be specified with design features to mitigate harmonic effects, such as using a higher temperature class of insulation, specifying a K-factor rating, or employing special core/winding designs to reduce losses and overheating caused by harmonics.
Q7: Are there options for environmentally friendly insulating fluids?
A: Yes, in addition to standard mineral oil, we offer biodegradable, less-flammable insulating fluids like FR3 (natural ester) as an option. This can be beneficial for projects with strict environmental or fire safety regulations.
Q8: What is included in the factory testing before shipment?
A> Each unit undergoes standard routine tests per applicable standards, which typically include turns ratio test, winding resistance measurement, insulation resistance tests, power factor tests, and applied/induced potential tests. Full testing reports are available for review.
