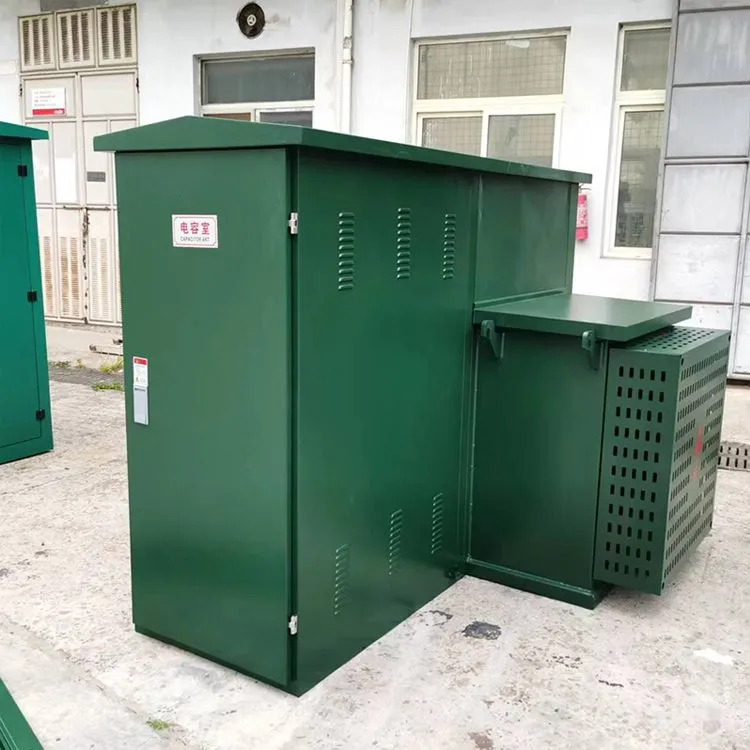

As a dedicated manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing reliable and efficient electrical solutions for the renewable energy sector. Our Wind and Solar Power Pad Mounted Transformer is engineered to meet the demanding requirements of modern renewable power plants, offering robust performance, enhanced safety, and intelligent management in a single, compact unit. Designed with an IP67-rated enclosure and integrated remote monitoring, this transformer ensures your wind or solar farm operates seamlessly, maximizing energy output and minimizing operational disruptions. We combine our manufacturing expertise with a commitment to quality, delivering products that support the global transition to sustainable energy.
This pad-mounted transformer is a critical component for stepping up the voltage generated by wind turbines or solar inverters to a level suitable for grid connection. Its core design focuses on durability, efficiency, and smart functionality to thrive in harsh outdoor environments typical of renewable energy sites.
Key Features and Technical Advantages:
- Superior Environmental Protection: The IP67-rated enclosure provides complete protection against dust ingress and temporary immersion in water up to 1 meter deep. This ensures reliable operation in coastal areas, deserts, or regions with heavy rainfall and snow.
- Intelligent Remote Monitoring System: Integrated sensors and communication modules allow for real-time monitoring of critical parameters such as oil temperature, winding temperature, load current, voltage, and gas pressure (for oil-filled units). This enables predictive maintenance and reduces the need for on-site inspections.
- Robust Construction for Longevity: Built with high-quality magnetic steel and copper or aluminum windings, the core and coil assembly ensures low no-load and load losses, contributing to higher overall system efficiency and lower lifetime costs.
- Flexible Configuration Options: Available in both liquid-filled and dry-type designs to suit specific project requirements, safety regulations, and environmental considerations. Cooling methods like AN (air natural) or AF (air forced) are available upon request.
- Enhanced Safety Features: Equipped with pressure relief devices, fault indicators, and secure locking systems. The tamper-resistant enclosure protects internal components from unauthorized access and vandalism.
- Easy Installation and Maintenance: The pad-mounted design simplifies foundation work and installation. Removable panels and strategically placed access points facilitate easier maintenance when required.
Technical Specifications Overview:
| Parameter | Typical Range / Description |
| Rated Power | 500 kVA to 5000 kVA (customizable) |
| Primary Voltage (HV) | Up to 36 kV |
| Secondary Voltage (LV) | 0.4 kV, 0.48 kV, or other LV standards |
| Frequency | 50 Hz / 60 Hz |
| Vector Group | Dyn11, Yyn0, or others as required |
| Impedance Voltage | As per customer specification or standard values |
| Noise Level | Designed to meet relevant environmental standards |
Benefits for Your Renewable Energy Project:
- Increased Operational Uptime: The rugged IP67 design and remote diagnostics minimize weather-related and unexpected failures, keeping your power generation assets online.
- Reduced Operational Expenditure (OPEX): Remote monitoring reduces manual inspection costs and travel to remote sites. Predictive maintenance helps avoid costly catastrophic failures.
- Improved Asset Management: Gain valuable insights into transformer health and performance trends, allowing for better long-term planning and resource allocation.
- Scalability and Future-Proofing: The smart monitoring platform can often be integrated into broader SCADA or plant management systems, supporting the growth of your renewable portfolio.
- Compliance and Safety: The design considers industry safety standards, and our manufacturing process is certified under the ISO9001 quality management system, ensuring consistent product quality.
Backed by Jinhua Dika's experience in serving a global clientele across North America, Europe, Asia, and other key markets, and supported by an annual export value reflecting our international reliability, this transformer represents a sound investment. Our strategic shipment ports ensure efficient logistics to your project site. We invite you to leverage our manufacturing capability to secure a transformer solution that delivers durability, intelligence, and peace of mind for your critical wind or solar power application. Contact us today to discuss your specific technical requirements and receive a detailed proposal.
Frequently Asked Questions (FAQ)
Q1: What does the IP67 rating mean for this transformer?
A1: The IP67 rating signifies that the transformer's enclosure is completely protected against dust (6) and can withstand temporary immersion in water up to 1 meter deep for 30 minutes (7). This makes it suitable for installation in challenging outdoor environments.
Q2: What parameters can be monitored remotely?
A2: The remote monitoring system typically tracks key operational data such as top-oil temperature, winding temperature (hot spot), load current, voltage levels, gas pressure (Buchholz relay status for oil-filled units), and the status of cooling fans or pumps. Alarms for abnormal conditions can be configured.
Q3: Is this transformer suitable for both wind and solar applications?
A3: Yes, it is designed for the output characteristics of both wind turbine generators and solar inverter stations. The primary consideration is matching the voltage and power ratings to your specific generation equipment.
Q4: What is the lead time for a custom-rated transformer?
A4: Lead times vary based on the power rating, specifications, and order quantity. Standard models may have shorter lead times, while fully customized units require detailed engineering and manufacturing. We provide estimated timelines upon receipt of your detailed inquiry.
Q5: Do you provide the communication protocol for integration with our SCADA system?
A5: Yes. The remote monitoring unit often supports standard industrial communication protocols such as Modbus RTU/TCP, IEC 61850, or DNP3. The specific protocol and interface details can be specified during the ordering process.
Q6: What are the main differences between liquid-filled and dry-type options for this application?
A6: Liquid-filled transformers generally offer better heat dissipation and can be more compact for a given rating, but require containment for the dielectric fluid. Dry-type transformers use solid insulation, are often considered lower fire risk, and may be preferred for indoor or environmentally sensitive areas. We can advise on the best choice for your site.
Q7: What kind of foundation is required for pad mounting?
A7: A reinforced concrete pad is typically required. We provide general foundation and dimensional drawings for the specific transformer model to guide your civil works contractor during site preparation.
Q8: What after-sales support do you offer?
A8: We provide comprehensive documentation, including operation and maintenance manuals, wiring diagrams, and test reports. Technical support is available for installation guidance and troubleshooting. Spare parts for critical components are also available.
