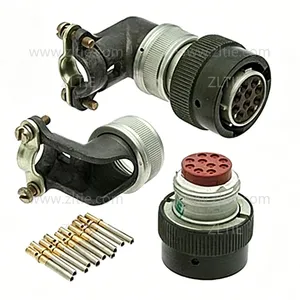

Help CenterСНЦ23-10/18Р-8-В ZH23 Series 10 Pin Female Circular Connector Plug Shell Size 18 Right Angle Cable Clamp
Related Products
-
Russian Standard Connector PC4TB PC7TB ZB PC10TB PC10ZB 19TB ZBNegotiableMOQ: 500 Pieces -
Russian Standard Connector PY04-4T PY04-4Z PY04-4T/Z PY04-7T PY04-7Z PY04-7T/Z PY04-10T PY04-10Z PY04-19T/ZNegotiableMOQ: 500 Pieces
-
Russian Standard Connector PY04-4T PY04-4Z PY04-4T/ZNegotiableMOQ: 500 Pieces
-
Russian Standard Connector PY04-7T PY04-7Z PY04-7T/ZNegotiableMOQ: 500 Pieces
-
Russian Standard Connector PY04-10T PY04-10Z PY04-10T/ZNegotiableMOQ: 500 Pieces
Product Details
The ZH23 series bayonet circular connectors feature excellent environmental resistance, five-key positioning, anti-mismating protection, and quick bayonet coupling for reliable and secure connections.
These connectors are widely used in low-frequency AC and DC electrical circuits for industrial, aviation, military, and communication equipment applications.
ZH23 series connectors are fully compatible and interchangeable with Russian СНЦ23 series connectors.
ATTRIBUTES:
Connector Type: Plug
Contact Type: Female
Number of Positions: 10 Pin
Orientation: Right Angle
Shell Size: 18
Fastening Type: Bayonet Connection
Contact Material: Copper Alloy Gold
Insulating Materials: PPS
Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)
Operating Temperature: -60℃ – +200℃
Vibration: Acceleration 40g (1-5000HZ)
Impact: Acceleration 500g (Once); 150g (Multiple Times)
Salt Spray Resistance: 96h
Relative Humidity: 40℃-65℃ 95%-98%
Insulation Impedance: ≥5000MQ
Mechanical and Working Life: 500 Cycles
