High Quality FQ18 Series 5-Pin Straight Female Plug

High Quality FQ18 Series 5-Pin Straight Female Plug photo-1

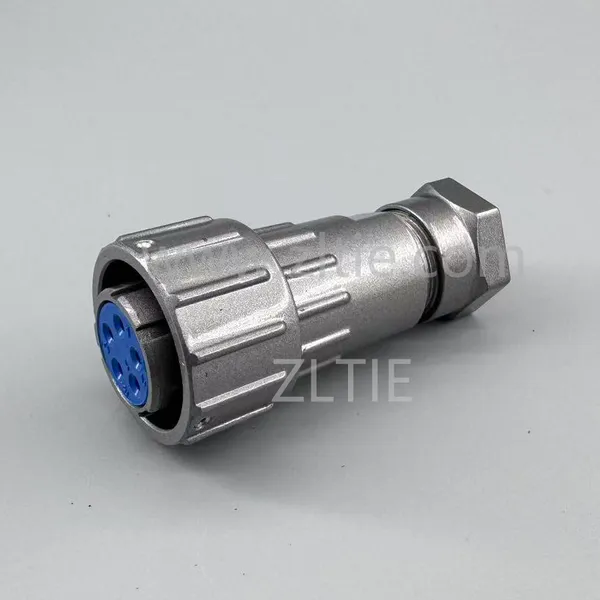

High Quality FQ18 Series 5-Pin Straight Female Plug photo-2

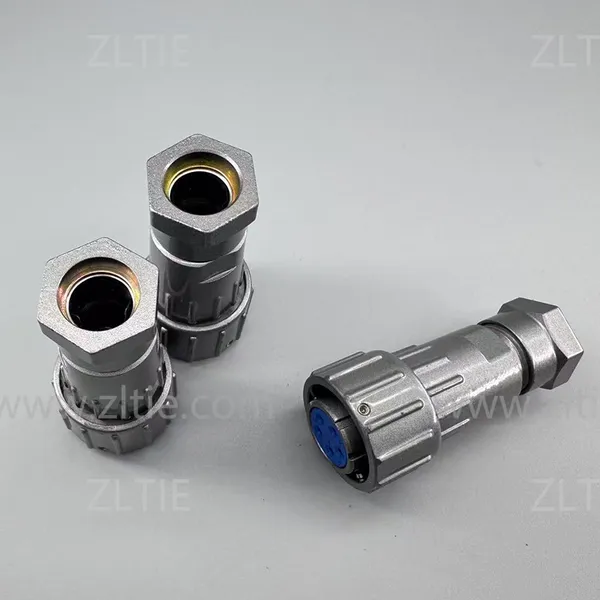

High Quality FQ18 Series 5-Pin Straight Female Plug photo-3
Negotiable MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO9001
Housing:
Aluminum Alloy
Gender:
Female
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
20 days
Certification ISO9001
Housing Aluminum Alloy
Gender Female
Model FQ18-5TK
Origin China

Product Details:

FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.

The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.


ATTRIBUTES:

  • Connector Type: Plug

  • Shell Size: 18

  • Contact Size: 5*1.5m

  • Nummber of Positions: 5 Pin

  • Connection Method: Bayonet Connection

  • Terminal Method:  Solder

  • Rated Current: 10A

  • Contact Resistance: ≤2.5MΩ

  • Rated Voltage: 400V

  • Material of Contacts: Copper with Gold Plated

  • Copper with Gold Plated: PBT

  • Shell Material: Aluminum Alloy Surface Anodizing Treatment

  • Ambient Temperature: -55°C~+100°C

  • Relative Humidity:Relative Humidity: When the temperature is 40°C, it can reach 98±3%

  • Atmospheric: 1Kpa

  • Vibration: 10 ~ 200Hz, 150M/S²

  • IP Rating: IP67

  • Life Duration: 500 Cycles


Product Tags: Waterproof circular connectors , Straight Cable Plug , Female Connectors
