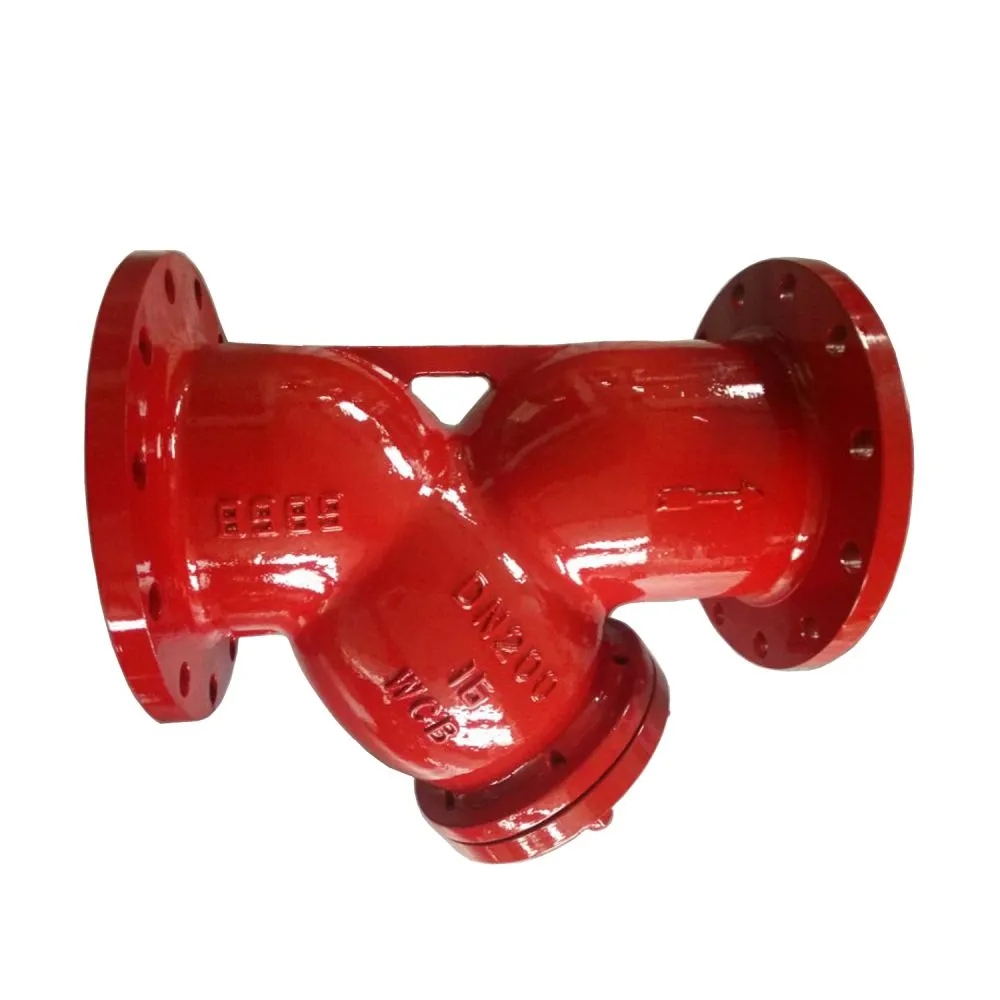

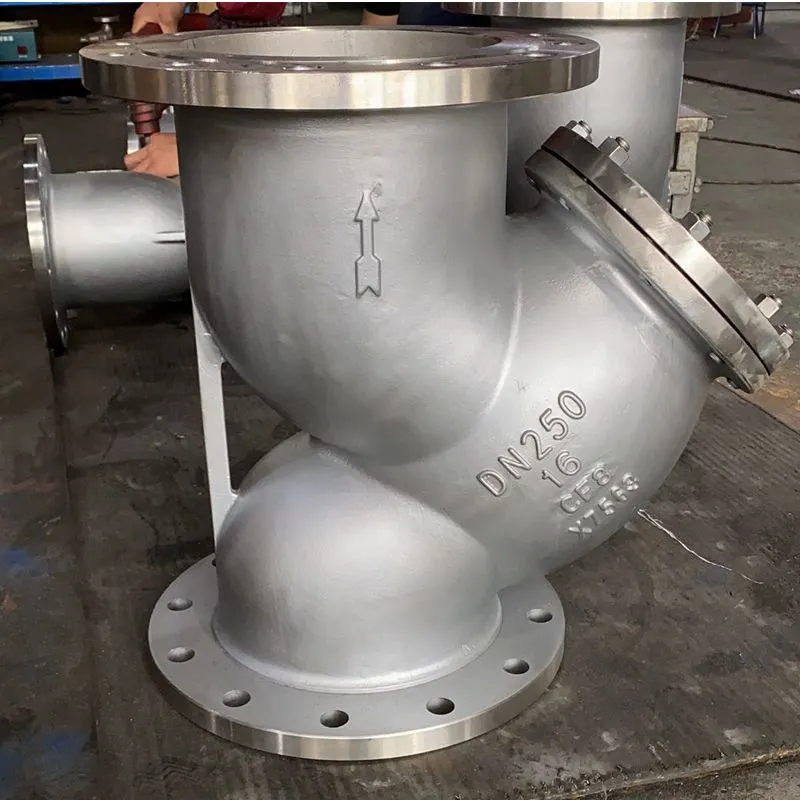

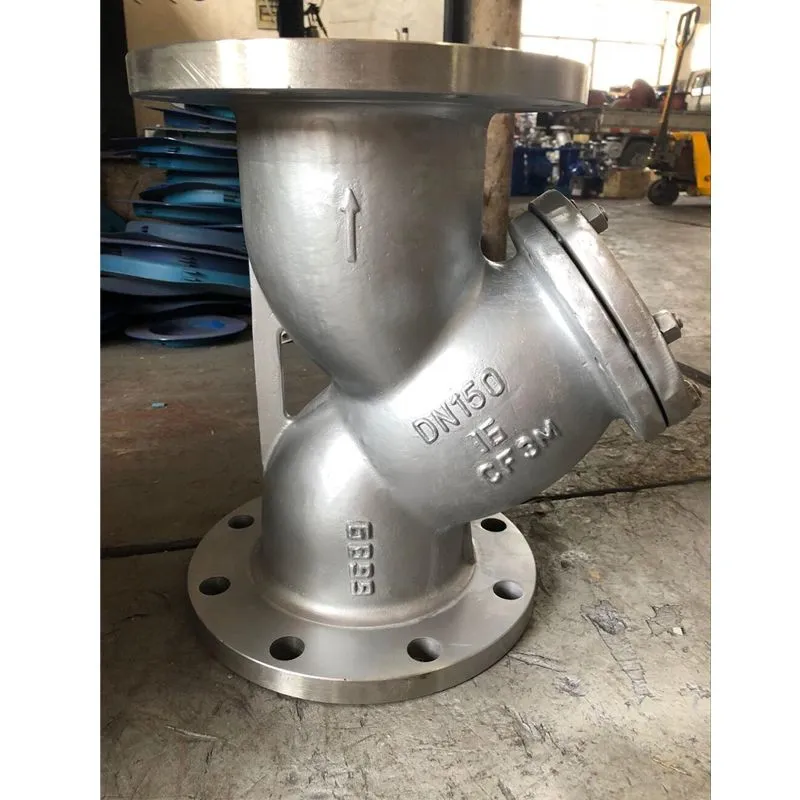

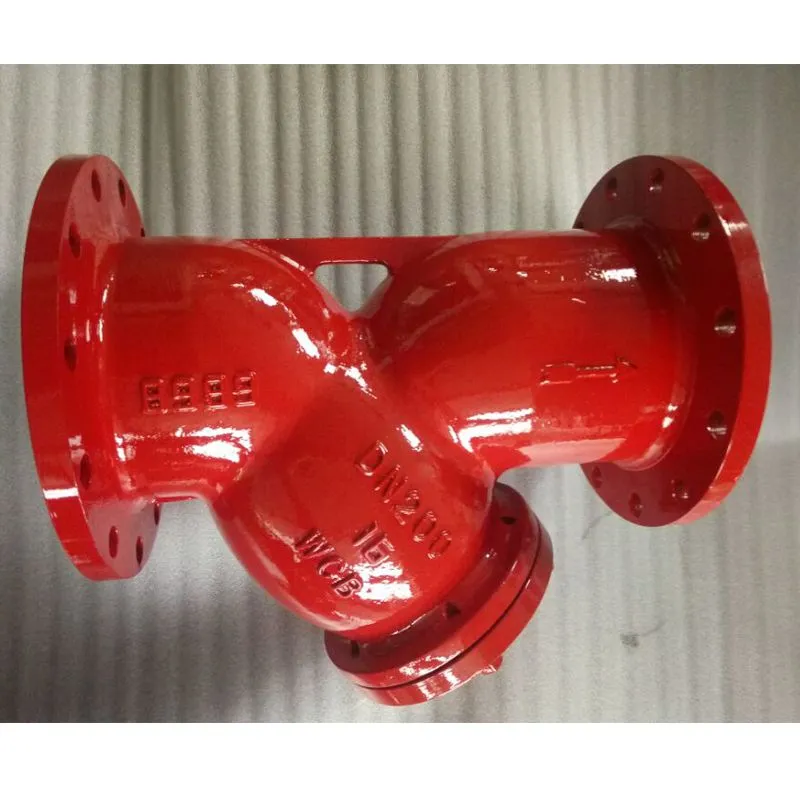

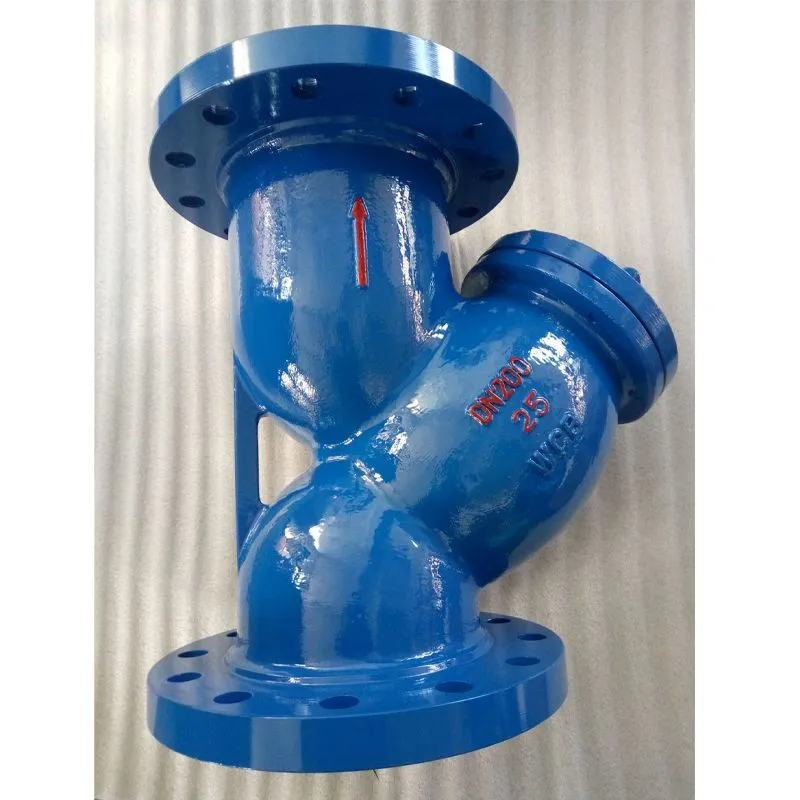

DIN Strainer
Product Overview
This DIN strainer features an advanced structural design with low flow resistance. It is widely compatible with media such as water, oil and steam. Usually installed upstream of pressure relief valves and pressure reducing valves, it effectively filters impurities in the medium to safeguard the normal operation of valves and other pipeline equipment.
The product boasts easy cleaning and maintenance. Users only need to remove the screen for cleaning and reinstall it back into the body, which greatly simplifies daily upkeep work.
Technical Specifications
| Item | Details |
|---|---|
| Size Range | 1/2'' - 24'' (DN15 - DN600) |
| Pressure Rating | PN10, PN16 |
| Design Standard | DIN |
| Face to Face Standard | DIN3202-F1 |
| Flange Standard | EN 1092-2 |
| Testing Standard | ISO 5208 |
Main Materials
Body & Bonnet: ASTM A216B
Screen: 2Cr13, SS304, SS316
Plug: Carbon Steel, Brass
Cover Gasket: Graphite with Soft Steel, EPDM, NBR
Core Advantages
Optimized structure brings low flow resistance, ensuring stable and smooth medium circulation in pipelines.
Simple assembly and disassembly design. The screen can be easily taken out and cleaned, realizing convenient routine maintenance.
Excellent filtering performance to trap dirt and impurities, protecting pressure relief valves, pressure reducing valves and other downstream equipment from damage.
Complete size and pressure specifications, covering DN15 to DN600 with PN10 and PN16 pressure classes for various industrial pipeline systems.
Manufactured strictly in accordance with DIN, EN and ISO standards, with reliable quality and high part interchangeability.
Diversified material selections for key components, delivering outstanding durability and adaptability to different working conditions.
Application
Ideal for pipelines conveying water, oil and steam. It is a preferred filtering component for industrial systems, especially installed before pressure relief valves and pressure reducing valves in water supply, petrochemical, power and general industrial piping.
Remarks
We support customized solutions based on your actual working conditions. All products undergo strict tests in line with ISO 5208 before delivery. Feel free to contact us for quotations and detailed technical documents.
About Our Factory
Our factory is a professional valve manufacturer with more than 30 years of production experience, located in Xingtai, Hebei, China. The factory covers an area of 70,000 square meters, with 400+ employees, and has passed ISO9001 quality management system certification. Our products are exported to more than 50 countries and regions in Europe, America, Southeast Asia, Middle East and Africa, winning high praise from global customers. We adhere to the business philosophy of "Quality First, Customer Supreme", providing customers with high-quality products and professional services. Welcome to contact us for inquiry and cooperation!
✅ International Quality Certification
Our company is certified by ISO 9001 Quality Management System, ensuring strict quality control throughout the production process, and delivering reliable valve products to global customers.
-
🔹 Packaging and Transportation
Packaging：Standard export plywood case / carton, with foam protection to avoid damage during transportation
Delivery Time：3-7 working days for stock, 15-20 working days for customized orders
Shipping Method：Sea freight, air freight, express (DHL, FedEx, etc.)
Customization Support：Accept customized size, pressure, material, logo, etc.
Q&A
Q1: What is the difference between WCB, CF8, and CF8M strainers?
A: WCB is carbon steel for general water, steam, and oil applications; CF8 (304) and CF8M (316) are stainless steel for corrosive media such as acid, alkali, and chemical liquids.
Q2: How often should the Y-strainer be cleaned?
A: Cleaning frequency depends on the medium’s impurity content: generally 1–3 months for general industrial water, and adjusted according to actual working conditions for corrosive or high-impurity media.
Q3: Can you provide strainers with EPDM or NBR gaskets?
A: Yes, we offer graphite, EPDM, NBR, and soft steel gaskets to meet different temperature, pressure, and medium resistance requirements.
