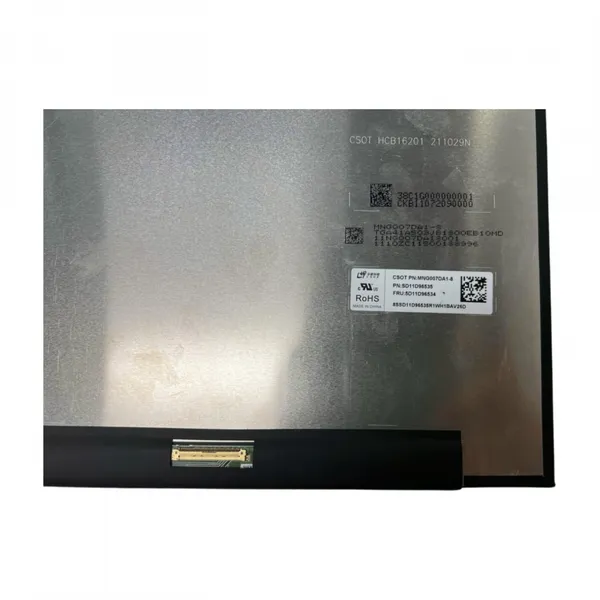

Help Center16" 165Hz 2.5K Portable Gaming Monitor Screen MNG007DA1-8 | 500nit QHD IPS USB-C LCD Screen DIY EDP Laptop Replacement
Product Spotlights
Related Products
-
ATSC V5D – The Ultimate Multi-Region Portable TV, ATSC Portable Digital TV DVB-T;DVB-T2, ISDB/ATSCNegotiableMOQ: 1 Piece -
14inch 1920*1080 FHD Ultra-Narrow Bezel LCD Screen – Premium EDP 30-Pin Replacement for LaptopsNegotiableMOQ: 1 Piece
-
24" Stretched Bar LCD Screen – 1920x360 IPS Ultra-Wide Display for High-Impact Shelf Advertising & Gaming MarqueeNegotiableMOQ: 1 Piece
-
15.6" Glasses-Free 3D Portable Monitor | Eye-Tracking + Real-Time 2D-to-3D Conversion for RTX GraphicsNegotiableMOQ: 1 Piece
-
CSOT MNF601BS1-2 15.6" FHD Laptop LCD Panel EDP 30pin for Laptop ScreenNegotiableMOQ: 1 Piece
MNG007DA1-8 16" 2.5K 165Hz Gaming Monitor | 500nit 100% sRGB Portable USB-C Display,16" 165Hz 2.5K Portable Gaming Monitor screen MNG007DA1-8 | 500nit QHD IPS USB-C LCD Screen DIY eDP Laptop Replacement
Specification Detail
Model MNG007DA1-8 (CSOT)
Size 16.0 inch
Resolution 2560 x 1600 (WQXGA / 2.5K)
Aspect Ratio 16:10
Refresh Rate 165Hz
Panel Type IPS (ADS Technology)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.)
Color Depth 1.06 Billion colors (8-bit + FRC)
Color Gamut 100% sRGB
Viewing Angle 89/89/89/89 (L/R/U/D)
Response Time 3ms (GTG with OD)
Interface eDP (4 Lanes), 40 pins connector
Voltage 3.3V (Typ.)
Power Consumption Low driving voltage & low power
Backlight Edge-type WLED (15K hours lifespan)
Dimensions 349.68(W) × 224.42(H) × 4.6(D) mm
Active Area 344.68(W) × 215.42(H) mm
Weight 312g (Max.)
Surface Anti-glare, Hard coating (3H)
Send Inquiry to This Supplier
