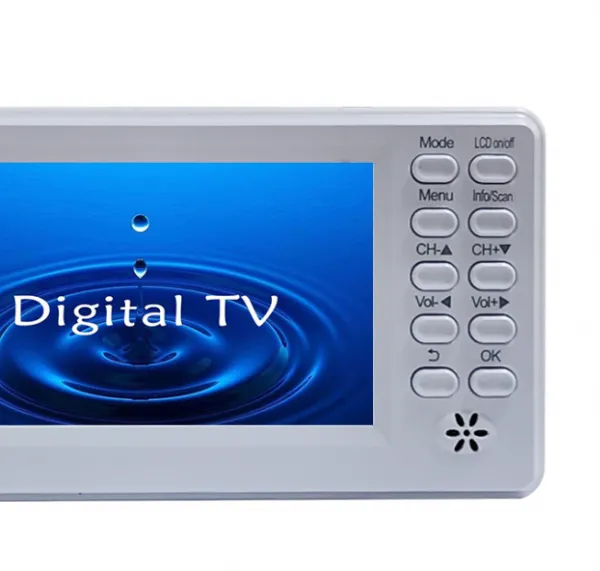

Help CenterATSC V5D – The Ultimate Multi-Region Portable TV, ATSC Portable Digital TV DVB-T;DVB-T2, ISDB/ATSC
Product Spotlights
Single-TV Function Board ATSC V5D – Built-in 7.4V Battery, TF/USB Media & Firmware Upgrade
Related Products
-
14inch 1920*1080 FHD Ultra-Narrow Bezel LCD Screen – Premium EDP 30-Pin Replacement for LaptopsNegotiableMOQ: 1 Piece -
24" Stretched Bar LCD Screen – 1920x360 IPS Ultra-Wide Display for High-Impact Shelf Advertising & Gaming MarqueeNegotiableMOQ: 1 Piece
-
15.6" Glasses-Free 3D Portable Monitor | Eye-Tracking + Real-Time 2D-to-3D Conversion for RTX GraphicsNegotiableMOQ: 1 Piece
-
CSOT MNF601BS1-2 15.6" FHD Laptop LCD Panel EDP 30pin for Laptop ScreenNegotiableMOQ: 1 Piece
-
PANDA LM140LF1L02 | 14.0 Inch LCD Panel Laptop LCD Panel EDP Display ScreenNegotiableMOQ: 1 Piece
ATSC V5D Universal Digital TV Motherboard – Multi-Standard Support (DVB-T2 / ISDB / ATSC)
Hi2611M2 + SONY D6822GL: Global TV Receiver Core Board with Full HD LVDS Output
ATSC V5D single-TV function model; uses the Japanese SONY D6822GL all-standard tuning chip, and the Beijing Haier TV main control chip HI2611M2; it is a digital TV control motherboard suitable for Europe, America, and Japan, and supports full high-definition LCD panels. It features an external antenna and a built-in telescopic antenna. It supports TF card and USB for multimedia. TF card and USB support upgrades. Digital amplifier output: maximum 5W. Uses a built-in 7.4V lithium battery.
Chip Solution: Haier HI2611M2 main chip, SONY6822GL TUNER chip, MD4181 Amplifier chip, QN8035 FM tuner
Sales Region: Europe, America, Japan
LCD Panel: LED
Interface: Single/Dual LVDS
Maximum Resolution: 800x480
Audio/Video: DVB-T; DVB-T2; ISDB/ATSC
Digital TV: Reception Range 48.25MHz ~ 863.25MHz
Input Impedance: 75Ω
Video Standard: PAL, NTSC
Audio Standard: DK, BG, I
Maximum Channel Storage: 199CH
Power Rating: Supports QC/PD fast charging protocol
Driver Voltage: 3.3V
Power Management: Standby Power Consumption
Button Functions: Mode, Menu, Channel +, Channel -, Volume +, Volume -, etc.
Supported digital TV formats:
DVB-T2
DVB-C2
DVB-T
DVB-C
ISDB-T/SBTVD-T
ISDB-C
J.83B
ATSC1.0
