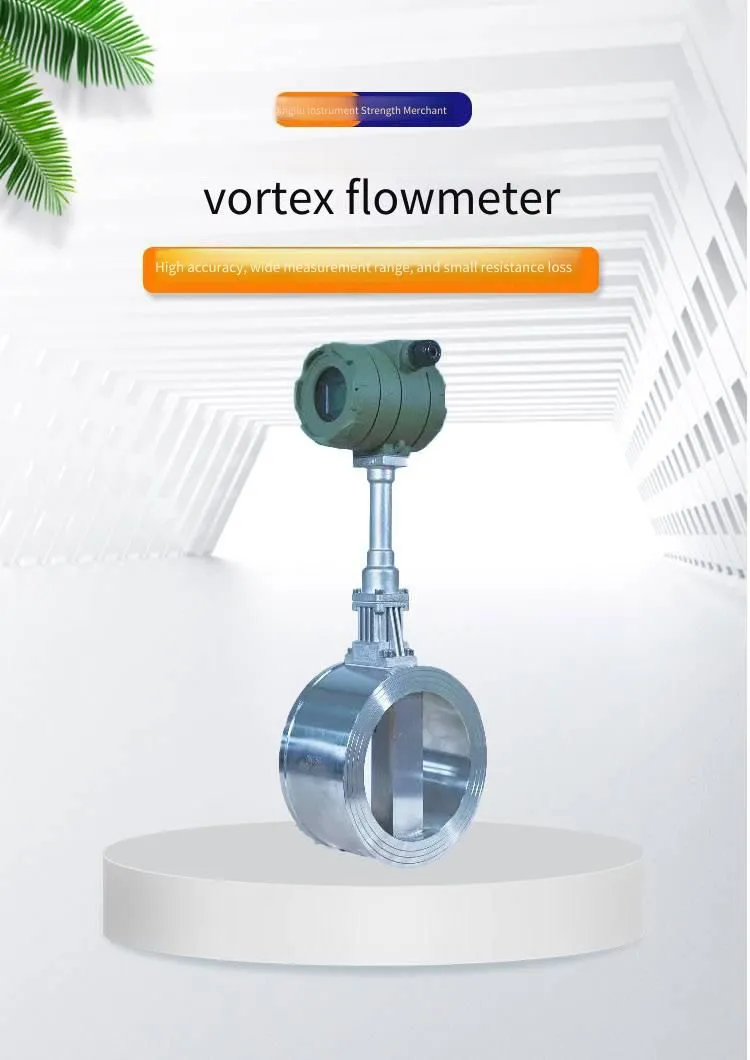

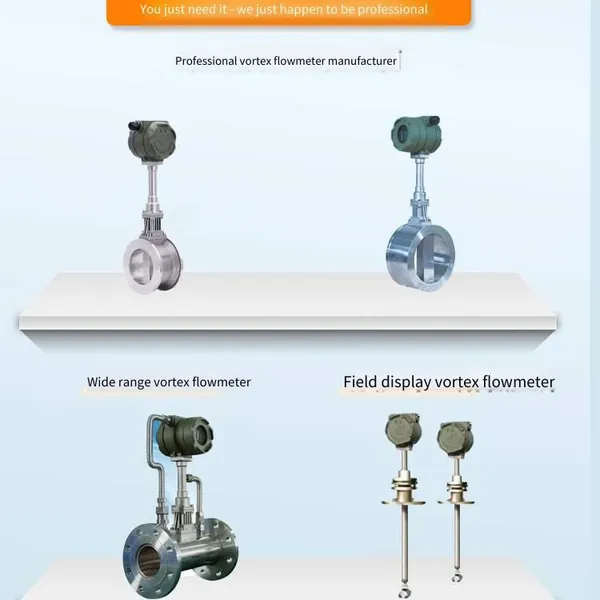

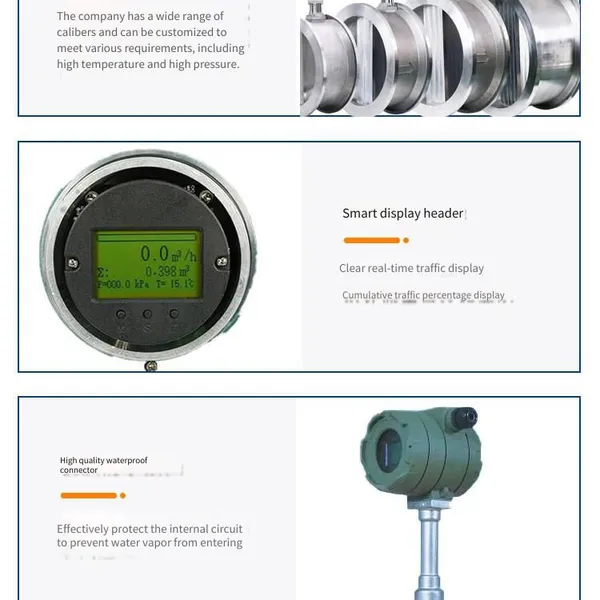

Help CenterFactory Direct Sales of Intelligent High-precision Steam Vortex Flowmeter for Air and Gas. Qingliu Lugb - 200 Integrated Vortex Flowmeter, Flange Connection, Intelligent Digital Display and Remote Transmission Type
Related Products
-
Qingliu Lugb-100 Vortex Flowmeter, Flange Type or Clamp Type for Gas Flow MeasurementUS$ 769.23 - 1353.85MOQ: 1 Unit -
Qingliu Lugb-50 Vortex Flowmeter With Intelligent Remote Transmission, Two-wire System, 4 ~ 20ma.dc Current SignalUS$ 769.23 - 1046.15MOQ: 1 Unit
-
Qingliu Lugb-200 Integrated Vortex Flowmeter With Flange Connection, Intelligent Digital Display and Remote Transmission TypeUS$ 769.23 - 1046.15MOQ: 1 Unit
-
Vortex Flowmeter OEM, Smart Flowmeter Manufacturer, Flange Type, Compressed Air, Steam, Gas, Liquid, High PrecisionUS$ 750 - 800MOQ: 1 Piece
-
Customized Large-diameter Intelligent Integrated High-precision Pipeline Electromagnetic FlowmeterUS$ 307.69 - 630.77MOQ: 1 Unit
TAG:Vortex Flowmeter,Flowmeter

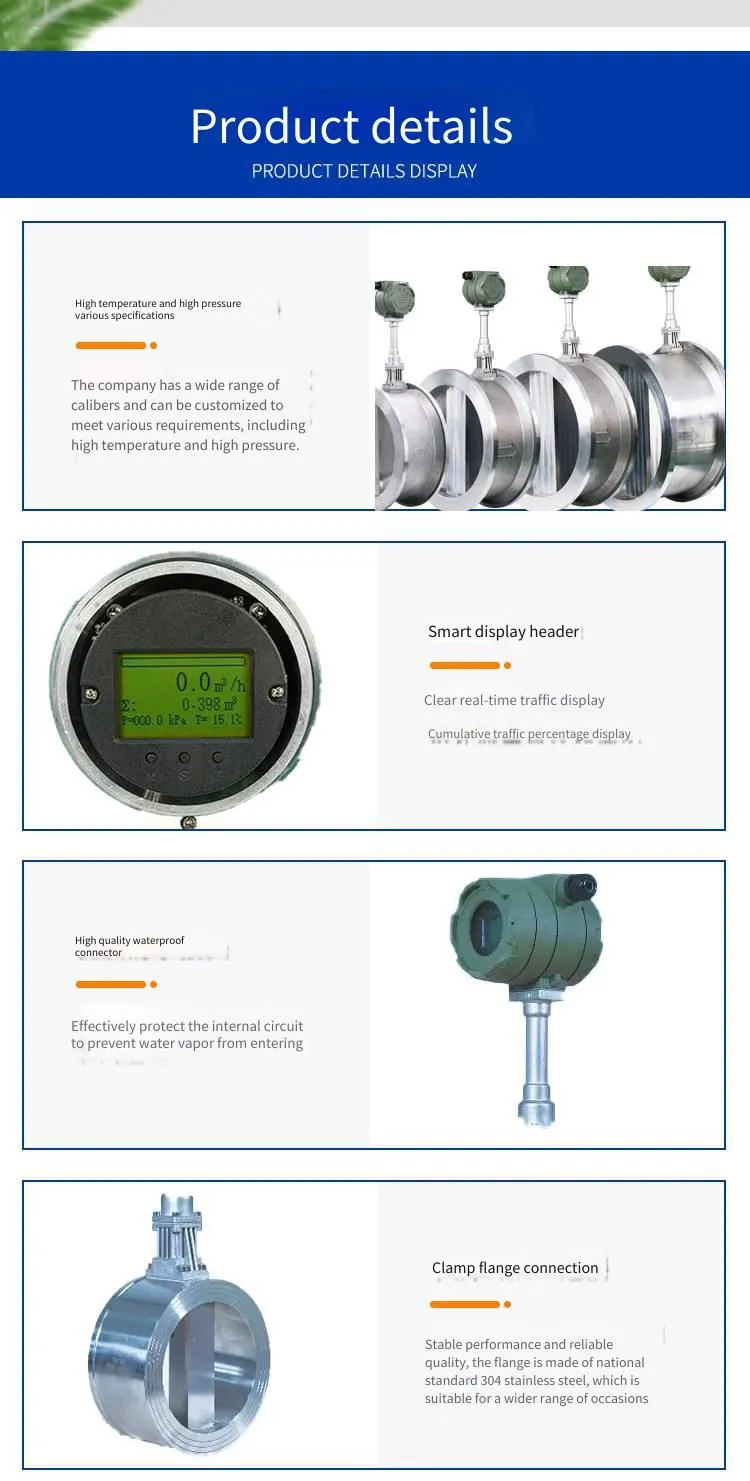

Product Features
1) Complete caliber series: DN10mm~DN500mm.
2) Wide range: “Qingliu”Brand Vortex Flowmeter's range degree has always maintained an advanced level in China (). Especially when measuring small flow rates, the signal characteristics are extremely strong.
3) High temperature of the measured medium: The patented product has a special high-temperature (H) typeVortex Flowmeter, which can measure the medium temperature up to400℃ or above.
4) Easy to replace the probe: Once the probe is damaged, the probe can be directly replaced without stopping the flow and relieving the pressure (), truly enabling online repair(Only applicable toH model).
5) Each Qingliu Brand Flowmeter leaving the factoryQingliu Brand Flowmeter has been individually calibrated, and no on - site parameter adjustment is required.
6) Multiple variety identifications: K,G,G0,H、B、M.

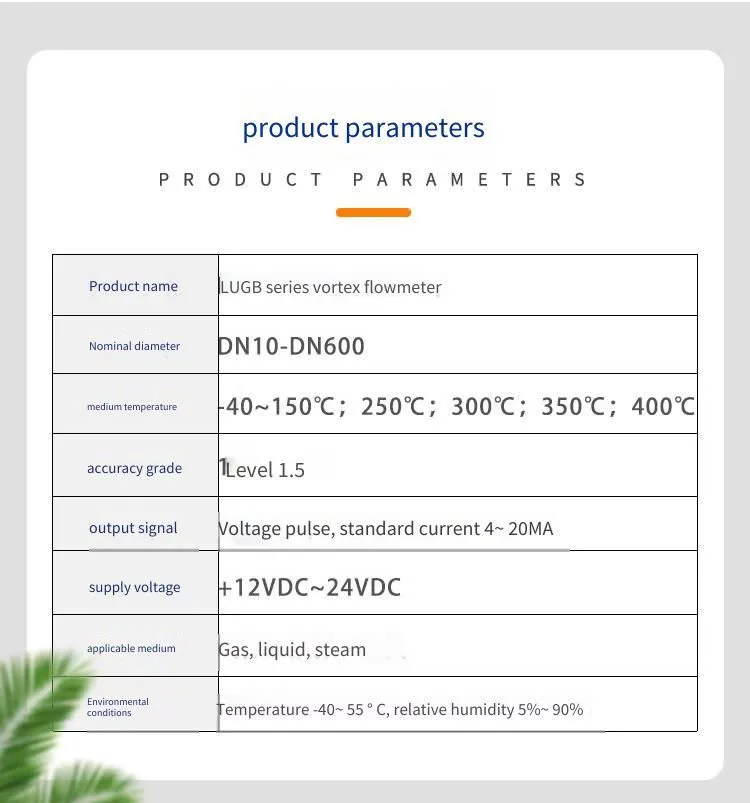

Main technical indicators
Nominal diameter (mm) 10、12.5、15、20、25、32、40、50、65、80、100、
125、150、200、250、300、350、400、450、500
Flow rangeability Extended flow range: Liquid 40:1 Gas 25:1
Standard flow range: Liquid 10:1 Gas 8: 1
Nominal pressure (MPa) 2.5 (If >2.5, supply by agreement)
Medium temperature -40 to 150℃; -40 to 250℃; 0～300℃;-200～400℃
Body material 1Cr18Ni9Ti(Other materials are supplied by agreement)
Accuracy 1.0 level;1.5 level (0.5 level is supplied by agreement)
Output signal Square wave: High level≥6V, Low level; Standard current4～20mA
Supply voltage +12VDC～24VDC
Drag coefficient Cd≤2.4
Explosion-proof mark iaⅡCT6
Environmental conditions Temperature-40～55℃, Relative humidity5%～90%, Atmospheric pressure86～106kPa
Applicable media Gas, liquid, steam
Explosion-proof associated equipment Zener Safety Barrier:WD97-65A/D WD97-72A/D WD97-78A/D
QingdaoVortex Flowmeter－Qingdao Automation Instrument Co., Ltd.
