Home > Electrical & Electronics > Connector & Terminals > Circular Connector > Hot Selling ZH23 Series Shell Size 18 7 Pin Male Plug With Straight Tail Attachment (Key Position: A) – СНЦ23-7/18В-6А-В

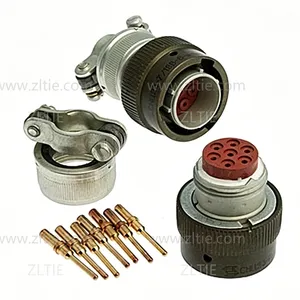

Hot Selling ZH23 Series Shell Size 18 7 Pin Male Plug With Straight Tail Attachment (Key Position: A) – СНЦ23-7/18В-6А-В

Hot Selling ZH23 Series Shell Size 18 7 Pin Male Plug With Straight Tail Attachment (Key Position: A) – СНЦ23-7/18В-6А-В thumbnail-1
Hot Selling ZH23 Series Shell Size 18 7 Pin Male Plug With Straight Tail Attachment (Key Position: A) – СНЦ23-7/18В-6А-В photo-1
Negotiable MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO9001
Housing:
Aluminum Alloy
Gender:
Male
Contact Supplier Request Quote Chat Now
Hefei Zheng Ling Electronics Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification ISO9001
Housing Aluminum Alloy
Gender Male
Model ZH23-7/18B-6a-B

Product Details:

ZH23 series bayonet connectors have the characteristics of environmental resistance, five-button positioning, anti-insertion, and bayonet quick connection.
Used in low frequency AC and DC circuits. It can be matched and interchanged with the Russian connector СНЦ23 series.

ATTRIBUTES:

  • Connector Type: Plug

  • Contact Type: Male

  • Number of Positions: 7 Pin

  • Orientation: Straight

  • Shell Size: 18

  • Fastening Type: Bayonet Connection

  • Contact Material: Copper Alloy Gold

  • Insulating Materials: PPS

  • Shell Material: Aluminum Alloy Surface Anodized Treatment, Zinc Alloy Nickel Plating (Industrial Grade)

  • Operating Temperature: -60℃ – +200℃

  • Vibration: Acceleration 40g (1-5000HZ)

  • Impact: Acceleration 500g (Once); 150g (Multiple Times)

  • Salt Spray Resistance: 96h

  • Relative Humidity: 40℃-65℃ 95%-98%

  • Insulation Impedance: ≥5000MQ

  • Mechanical and Working Life: 500 Cycles


Product Tags: Male Plug , ZH23 Series , Russian standard connector
