PRODUCTION DESCRIPTION

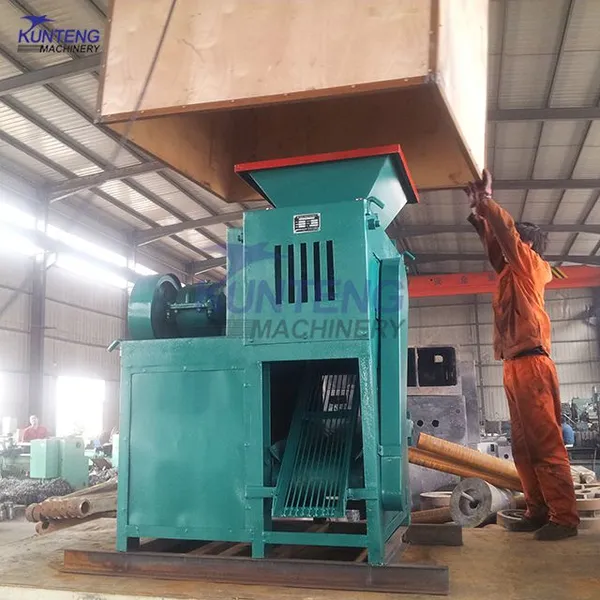

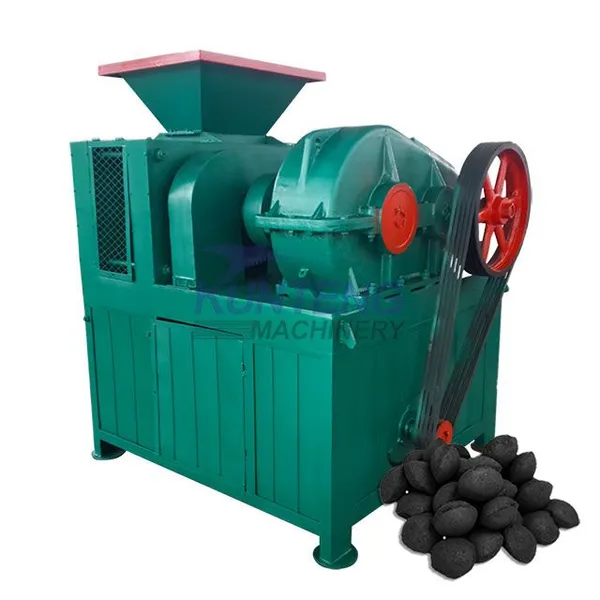

Professional dolomite limestone shale powder ball press machine, automatic charcoal powder briquetting Machine
The coal briquette press mould machine specializes in pressing various powder material like coal, coke and semi-coke, charcoal and other powder material to briquettes. Due to double rollers forced squeezing, the discharged briquettes have features of high density,high strength and high hardness.
DETAILS DISPLAY
In order to make the material into a ball at high pressure, the pre-compression screw of the coal briquette press mould machine is used to force the material to be formed into the middle of the roller. Due to the constant speed and reverse rotation, the material is compressed and formed. The unit pressure is from small to large until the center line of the roller is "0-0". At this point, the molding unit pressure reaches the maximum value. As the counter roller continues to rotate, the molding pressure continues to decrease, and it enters the ball-off state until the ball is off.

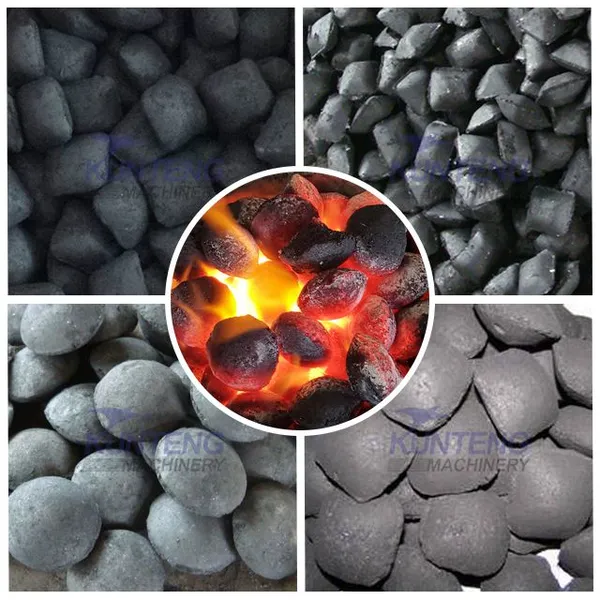

As the final products of the coal briquette press mould machine, the briquettes ball can be designed of oval shape, egg shape, pillow shape, star shape, square shape etc. In short, that can be any shape that you'd like.
We can control the combustion effect of the coal briquette press mould machine by adjusting the formula of the binder. In other words, on the one hand, we can keep the burnt briquette in its original shape without spreading, on the other hand, we can also make it burned into ashes.
PRODUCT SPECIFICATIONS
MODEL |
ROLLER DIAMETER (mm) |
CAPACITY (T/H) |
POWER (KW) |
REDUCER |
290 |
290 |
1-2 |
5.5-7.5 |
350 |
360 |
360 |
2-3 |
7.5-11 |
350 |
450 |
450 |
4-5 |
18.5-22 |
400 |
550 |
550 |
5-8 |
22-30 |
500 |
650 |
650 |
8-10 |
30-45 |
650 |
850 |
850 |
15-20 |
90 |
850 |
1000 |
1000 |
25-30 |
110 |
1000 |
PRODUCTION LINEPROCESSING
The coal briquette press mould machine making process could follow these steps: Feeding-- crushing---- mixing------ ball pressing------ drying------final product.
CERTIFICATIONS
COMPANY PROFILE
SHIPPING
The charcoal making machine will be packed with plastic film or wooden case before shipping in company. Or loaded directly into the container if there is a full production line.
FAQ
Q1： Are you a factory or a trading company?
A1： We are a professional manufacturer in China
Q2： May I know more about the briquette making machine?
A2： Your requirements in details will help us a lot for the information of the briquette making machine. Such as the raw material, the input capacity, the power supply, etc.
Q3： What is the binders used in the briquetting process?
A3： It depends on the properties of the raw material, and also the usage of briquettes. We will provide you with guidance and help.
Q4： How long is the warranty period?
A4： Normally 12 months. Except for wearing parts.
Q5： What’s your delivery time??
A5： We will arrange for shipping in factory within 10 working days after receiving the advance payment. When there are briquette machines in stock, it will be shorter.
