PRODUCTION DESCRIPTION

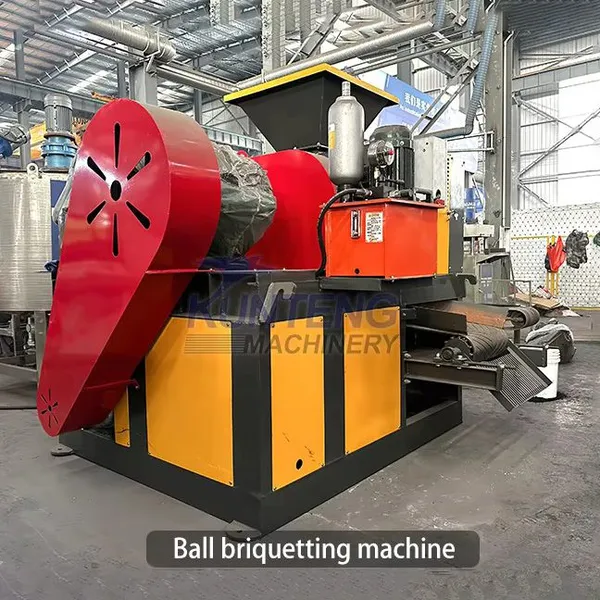

COAL BALL PRESS MACHINE

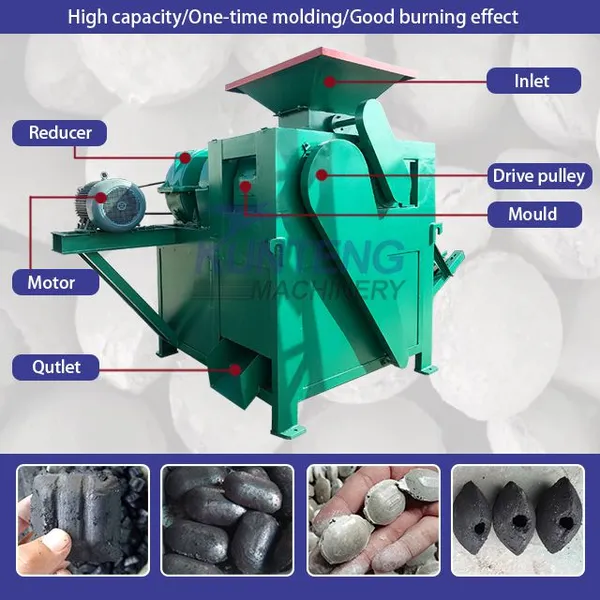

The ball charcoal briquette press machine has four rollers double pressure structure, machinery pressure and hydraulic system can be exchanged working. The rollers of coal ball press machine adopt taper assembly, so that the rollers are easy to be replaced by user, which will save a lot of time and avoid many troubles.
ADVANTAGES
GOOD WEAR-RESISTANT
LONG SERVICE LIFE
HIGH QUALITY OUTPUT
HIGHLY CUSTOMIZED
EASILY OPERATION
EASILY MAINTENANCE
WORRY-FREE AFTER-SALES
PRODUCTION APPLICATION
This manual charcoal briquette making machine is widely used in coal, metallurgy, chemical industry and other industries.
PRODUCT SPECIFICATIONS
MODEL |
ROLLER DIAMETER (MM) |
CAPACITY (T/H) |
POWER (KW) |
REDUCER |
290 |
290 |
1-2 |
5.5-7.5 |
350 |
360 |
360 |
2-3 |
7.5-11 |
350 |
450 |
450 |
4-5 |
18.5-22 |
400 |
550 |
550 |
5-8 |
22-30 |
500 |
650 |
650 |
8-10 |
30-45 |
650 |
850 |
850 |
15-20 |
90 |
850 |
1000 |
1000 |
25-30 |
110 |
1000 |
DETAILS DISPLAY

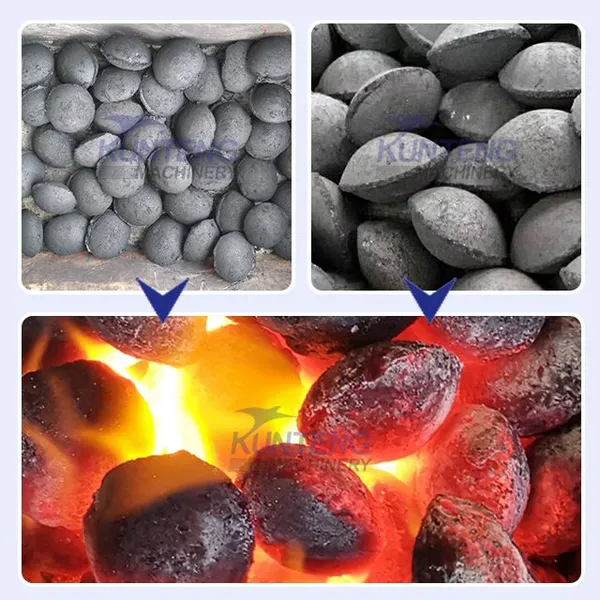

FINAL PRODUCTS
The final production can make Egg-shaped, oval-shaped, circular-shaped, square-shaped, columnar-shaped, banding-shape, cake-shaped, etc.Fianl production size range 18mm-80mm,it’s customization depends on customer need.

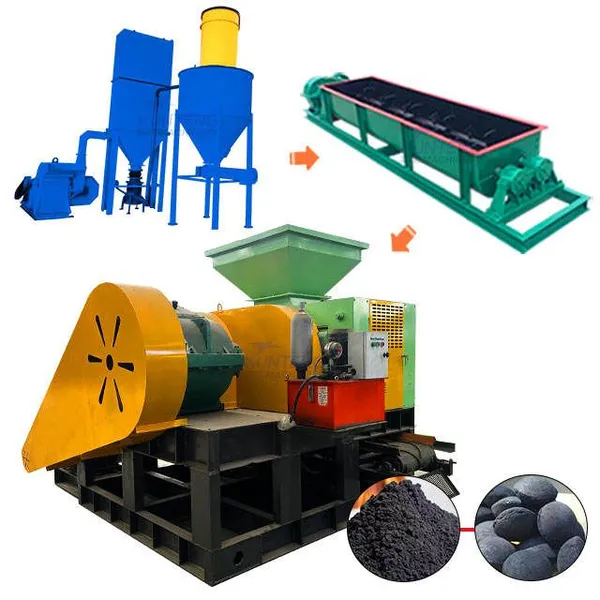

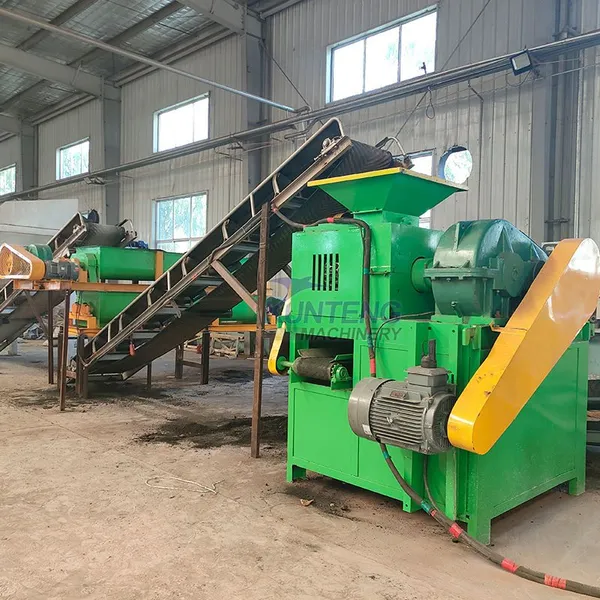

PRODUCTION LINE
The charcoal ball briquette making process could follow the steps below:
Feeding-- crushing---- mixing------ ball pressing------ drying------final product
SHIPPING SITE
All coal ball charcoal briquette press machines will be processed to be rustproof and moisture proof before delivery.
VISITORS
FAQ
Q1： Are you a factory or a trading company?
A1： We are a professional manufacturer in China
Q2： May I know more about the briquette making machine?
A2： Your requirements in details will help us a lot for the information of the briquette making machine. Such as the raw material, the input capacity, the power supply, etc.
Q3： What is the binders used in the briquetting process?
A3： It depends on the properties of the raw material, and also the usage of briquettes. We will provide you with guidance and help.
Q4： How long is the warranty period?
A4： Normally 12 months. Except for wearing parts.
Q5： What’s your delivery time??
A5： We will arrange for shipping in factory within 10 working days after receiving the advance payment. When there are briquette machines in stock, it will be shorter.
