Help CenterContinuous Mesh Belt Pinellia Ternata Cornus Officinalis Seaweed Bamboo Shoots Tea Drying Machine
Product Spotlights
2.Rapid moisture removal
3.Even drying.Internal circulation layer by layer drying
4.High efficiency and save labor costs
Related Products
-
Large Scale Pear Slice Salvia Miltiorrhiza White Peony Root Mango Star Anise Matrimony Vine Mesh Belt DryerUS$ 23000 - 25000MOQ: 1 Combo -
Industrial Smokeless Charcoal White Coal Lignitous Coal Semi Coke Mesh Belt Drying MachineUS$ 23000 - 25000MOQ: 1 Combo
-
Mesh Belt Pillow Shaped Charcoal Shisha Charcoal Barbecue Charcoal Drying Machine EPCUS$ 23000 - 25000MOQ: 1 Combo
-
Industry Flammable Charcoal Coconut Shell Charcoal Heat Pump Dryer Mesh Belt Dryer EPCUS$ 23000 - 25000MOQ: 1 Combo
-
Customizable Barbecue Charcoal Mesh Belt Dryer Industrial Continuous Instant Burning Charcoal DryerUS$ 23000 - 25000MOQ: 1 Combo
Product Description
Professional Manufacture Red Chilli Pepper Drying Machine Chilli Dry Machine
Mesh belt dryer is a kind of continuous drying equipment suitable for large-scale, continuous and large-scale material drying and dewatering. Mesh belt dryer is a kind of fruit slices, vegetables, food, agricultural and sideline products aquatic products and feed such as flake, strip, block and granular material dehydration operation of the ideal equipment, Mesh belt dryer uses hot air as a drying medium wet material continuous contact movement, so that the moisture contained in the wet material with heat diffusion, gasification and evaporation exclusion, to achieve the purpose of drying. The whole process is clean and environmentally friendly, and there is no pollution to drying materials. The main heating methods are electric heating, steam heating, hot air heating.

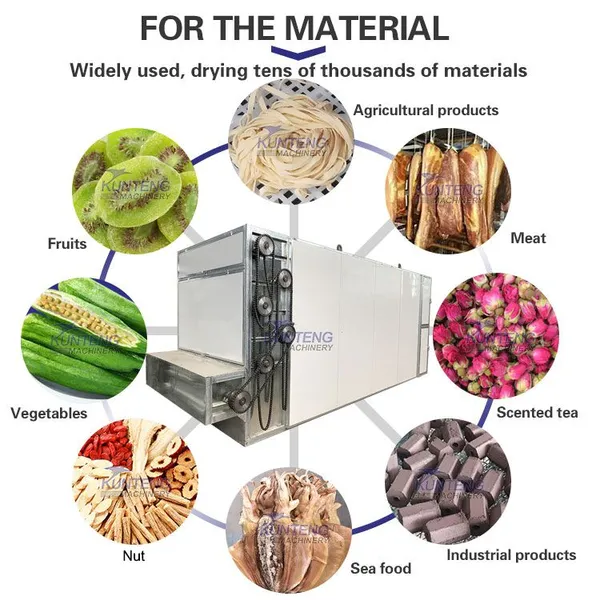

Application
Machine Characteristics and Specification
Characteristics of Mesh belt dryer
1. High efficiency, large output, good product quality.
2.The amount of air, heating temperature, material residence time and feeding speed can be adjusted to achieve the best drying
effect.
3. Most of the air is recycled and highly energy efficient.
4.The heat source can be steam, heat conduction oil, point or gas hot blast stove.
5.Small investment, fast drying speed, high evaporation intensity.
6.TheMesh Belt Dryer has good air permeability, the residence time can be adjusted arbitrarily, the material has no violent movement, and is not easy to break.
Professional Manufacture Red Chilli Pepper Drying Machine Chilli Dry Machine |
|||||
Model(Width*Length) |
GX1.5-6-4 |
GX2-8-4 |
GX2-9-4 |
GX2-10-4 |
GX2-12-4 |
Layers |
4 |
||||
Drying area(㎡) |
29 |
45 |
51 |
57 |
69 |
Spread thickness of material(mm) |
50-200 |
||||
Working temperature(℃) |
0-120 |
||||
Working time(hour) |
24 |
||||
Capacity(t/h) |
100-150kg/h |
200kg/h |
250kg/h |
300kg/h |
500kg/h |
heat exchange furnace(M) |
3.2*1*2.7 |
3.9*1.26*3 |
3.9*1.26*3 |
4.7*1.5*3 |
4.7*1.5*3 |
Induced draft fan(kw) |
11 |
15 |
15 |
22 |
22 |
Exhaust fan(kw) |
1.5 |
2.2 |
|||
Feeding conveyor(kw) |
1.5 |
2.2 |
2.2 |
2.2 |
3 |
Discharge conveyor(kw) |
0.55 |
||||
Total power(kw) |
14.55 |
19.25 |
19.95 |
26.95 |
27.75 |
|
LP gas consumption (90 degree fanrenheit) |
20m³/H |
25m³/H |
28m³/H |
30m³/H |
36m³/h |
|
Place requirement (W*L*H)M |
4.5*14*2.7 |
5*19*2.8 |
4.5*20*2.8 |
5.5*21*2.8 |
5.5*23*2.8 |
Heat source
Related Products

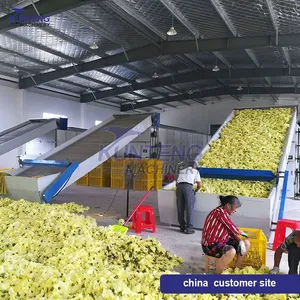

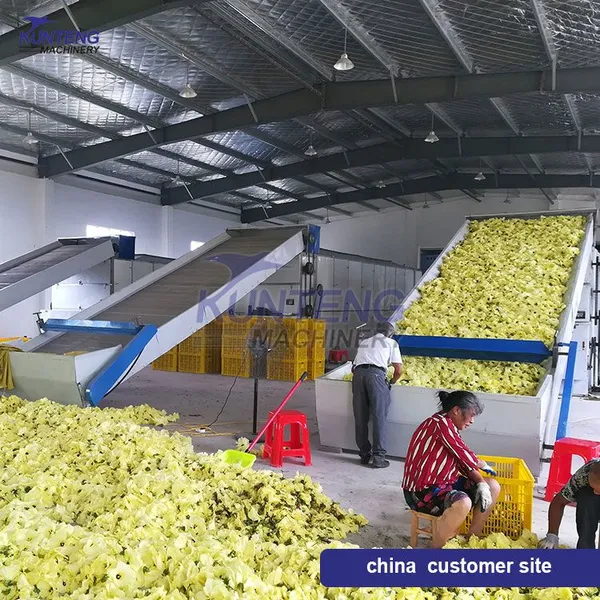

Customer case
Company Profile
Henan Kunteng Machinery Manufacture Co.,Ltd
1.Founded in 1999, Henan Kunteng Machinery Manufacture Co.,Ltd is a technology-based enterprise integrating R&D, manufacturing, sales and after-sales, we mainly process Mesh Belt Dryer and so on;
2.We have our own R&D(research and development)team. We have ability design the factory building,circuit direction, and machine assemble for the entire project.
3.The equipment is strictly controlled by the quality inspection department before loading to the container to ensure that each set of equipment work smoothly.
4.The company's products have passed more than 100 national patents, and passed passed ISO, CE quality system certification.
FAQ
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 10 working days after receiving the advance payment. When there are Mesh Belt Dryer in stock, it will be shorter.
Please feel free to contact us for details.
