PRODUCTION DESCRIPTION

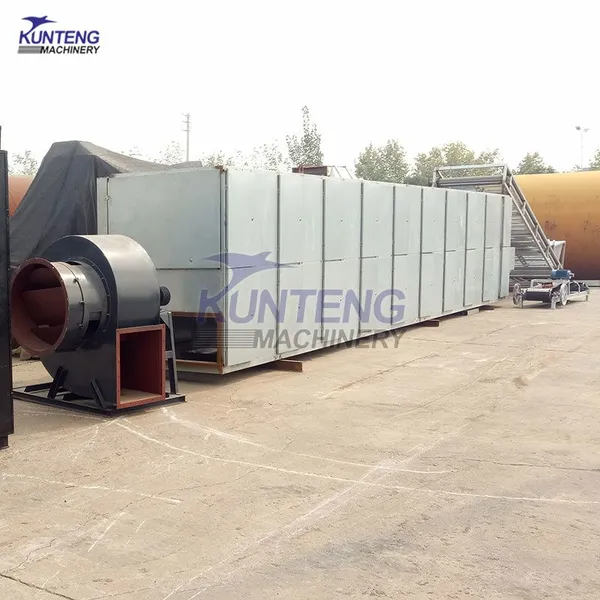

Mesh Belt Dryer
Adopts multi-layer mobile mesh belt transmission technology, inner mesh surface adopt 304 stainless steel which has the advantages of moisture resistance,corrosion resistance and no rust. the hot air flow passes through the mesh belt from bottom to top,multi-layer circulation turnover and drying layer by layer, with uniform and sufficient heat and mass exchange, high production efficiency, good product quality and large drying area, which can realize mass continuous production.
WORKING PRINCIPLEMaterials are conveyed from the first layer to the last layer by a conveyor belt and the spice come out from discharge conveyor. The belt spice dryer uses hot air as the drying medium. The hot air passes through the material from the bottom to the top. The final moisture comes out of the top of the dryer. The dryer use strong hot air for drying. it improve drying efficiency and shorten drying time. It is more convenient and no require manual loading and discharging.
Heating source
According to the local situation of customer. the heat source can be electric,gas,wood,coal,steam.etc.
KUNTENG Mesh Belt Dryer has 30 years of rich industry experience and a data base of hundreds of agricultural products drying processes. We can customize washing cutting drying grinding packing production lines according to customers' needs.
Mesh belt dryer has a Large Application Range.
Product parameters
Automatic Moringa Leaf Dehydrator Dryer Machine Industrial Moringa Leaf Washing Drying Grinding Packaging Production Line Plant |
|||||
Model(Width*Length) |
KT1.5-6-4 |
KT2-8-4 |
KT2-9-4 |
KT2-10-4 |
KT2-12-4 |
Layers |
4 |
||||
Drying area(㎡) |
29 |
45 |
51 |
57 |
69 |
Spread thickness of material(mm) |
50-200 |
||||
Working temperature(℃) |
0-120 |
||||
Working time(hour) |
24 |
||||
Capacity(t/h) |
100-150kg/h |
200kg/h |
250kg/h |
300kg/h |
500kg/h |
heat exchange furnace(M) |
3.2*1*2.7 |
3.9*1.26*3 |
3.9*1.26*3 |
4.7*1.5*3 |
4.7*1.5*3 |
Induced draft fan(kw) |
11 |
15 |
15 |
22 |
22 |
Exhaust fan(kw) |
1.5 |
2.2 |
|||
Feeding conveyor(kw) |
1.5 |
2.2 |
2.2 |
2.2 |
3 |
Discharge conveyor(kw) |
0.55 |
||||
Total power(kw) |
14.55 |
19.25 |
19.95 |
26.95 |
27.75 |
LP gas consumption |
20m³/H |
25m³/H |
28m³/H |
30m³/H |
36m³/h |
Place requirement |
4.5*14*2.7 |
5*19*2.8 |
4.5*20*2.8 |
5.5*21*2.8 |
5.5*23*2.8 |

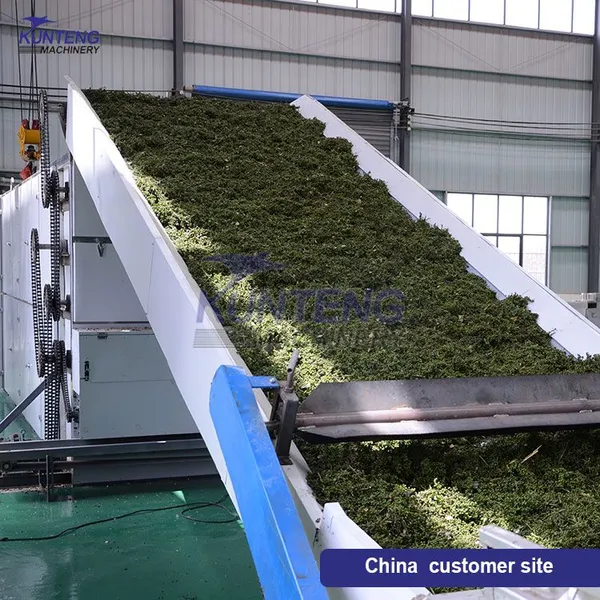

CUSTOMER SITE
Packing and shipping
COMPANY PROFILE
KUNTENG company was founded in 1999. We have been engaged in manufacturing all kinds of food dehydrator,Mesh belt drying machine,Heat pump drying oven for many years.We got more patented technologies and honor. Our machine has passed ISO9001:2000CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.
Our service
1. Three guarantee services ,
2. The equipment is well debugged before leaving the factory,
3. On-site installation and debugging of large-scale equipment technicians,
4. The technician will teach you the operating instructions of the equipment.
FAQ
1. who are we?
We are a professional manufacturer in China
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
