PRODUCTION DESCRIPTION
|
Model (Width*Length) |
KT1.5-6-4 |
KT2-8-4 |
KT2-9-4 |
KT2-10-4 |
KT2-12-4 |
Layers |
4 |
||||
Drying area(㎡) |
29 |
45 |
51 |
57 |
69 |
Spread thickness of material(mm) |
50-200 |
||||
Working temperature(℃) |
0-120 |
||||
Working time(hour) |
24 |
||||
Capacity(t/h) |
100-150kg/h |
200kg/h |
250kg/h |
300kg/h |
500kg/h |
heat exchange furnace(M) |
3.2*1*2.7 |
3.9*1.26*3 |
3.9*1.26*3 |
4.7*1.5*3 |
4.7*1.5*3 |
Induced draft fan(kw) |
11 |
15 |
15 |
22 |
22 |
Exhaust fan(kw) |
1.5 |
2.2 |
|||
Feeding conveyor(kw) |
1.5 |
2.2 |
2.2 |
2.2 |
3 |
Discharge conveyor(kw) |
0.55 |
||||
Total power(kw) |
14.55 |
19.25 |
19.95 |
26.95 |
27.75 |
|
LP gas consumption (90 degree fanrenheit) |
20m³/H |
25m³/H |
28m³/H |
30m³/H |
36m³/h |
|
Place requirement (W*L*H)M |
4.5*14*2.7 |
5*19*2.8 |
4.5*20*2.8 |
5.5*21*2.8 |
5.5*23*2.8 |
KUNTENG Drying machine has 30 years of rich industry experience and a data base of hundreds of agricultural products drying processes. It can customize production lines and supporting facilities at different prices according to customers' needs for different materials.
KUNTENG Multi layer mesh belt dryer Red Chilli Dehydrator Pepper Drying Machine Frozen chili dryer adopts air drying technology, pepper chilli paprika can be dried without damaging the nutritional value, It can also dry vegetables,fruits,fish,cassava,mango,tomato,onion,red chilli,meat,coconut copra, garlic, tea leaf, black soldier fly,herbs,alfalfa,herb,mushroom,flower,pineapple,grapes.etc.
CUSTOMER SITE
Multi layer mesh belt dryer Red Chilli Dehydrator Pepper Drying Machine Frozen chili dryer
The heat source:
The heat source of the multi layer belt conveyor dryer can be electric, coal, natural gas, diesel oil,wood, biomass particles, etc.

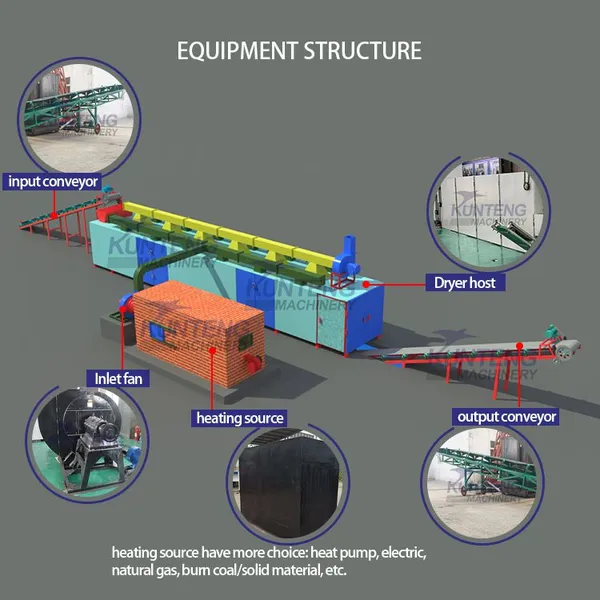

Working principle:
Multi layer mesh belt dryer Red Chilli Dehydrator Pepper Drying Machine Frozen chili dryer has a multi-layer structure in the dryer, The inner mesh surface of the oven is made of 304 stainless steel,The oven adopts multi-layer mobile mesh belt transmission, wet paprika are conveyed from the first layer to the last layer by conveyor belt,the hot air flow passes through the mesh belt from bottom to top.The final moisture comes out of the top of the dryer. the dried paprika are conveyed by a discharge conveyor.
Packing and shipping
COMPANY PROFILE
KUNTENG company was founded in 1999. We have been engaged in manufacturing all kinds of fruit and vegetable drying machine,heat pump tray dryer,multi layer belt conveyor dryer.We got more patented technologies and honor. Our machine has passed ISO9001:2000CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.
Our service
1. Three guarantee services ,
2. The equipment is well debugged before leaving the factory,
3. On-site installation and debugging of large-scale equipment technicians,
4. The technician will teach you the operating instructions of the equipment,
5. All the above are free.
FAQ
1. who are we?
We are a professional manufacturer in China
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time?? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
