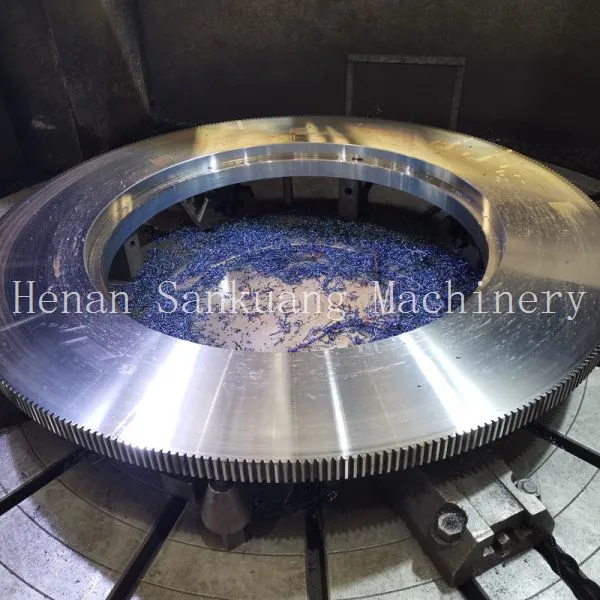

Help CenterDouble Row Ball Slewing Ring Precision Engineered for Heavy-Duty Industrial Machinery
Product Spotlights
Related Products
-
Double Row Ball Slewing Ring Designed for High-Speed Precision Indexing TablesNegotiableMOQ: 1 Piece -
Double Row Ball Slewing Ring Optimized for Stability in Wind Turbine Yaw SystemsNegotiableMOQ: 1 Piece
-
Single Row Ball Slewing Bearing Standard Size Turntable Support BearingNegotiableMOQ: 1 Piece
-
Customizable Single Row Ball Slewing Bearing With Specific Bore Diameter and Bolt PatternNegotiableMOQ: 1 Piece
-
Precision Slewing Ring Bearings: The Core of Rotating Heavy MachineryNegotiableMOQ: 1 Unit
As a specialized manufacturer of high-performance slewing bearings, Henan San Kuang Machinery Technology leverages over a decade of engineering expertise to produce the Double Row Ball Slewing Ring. Engineered specifically for the most demanding industrial environments, this component is the cornerstone of reliable rotational motion in heavy machinery. Our commitment to precision manufacturing, backed by a robust ISO 9001 quality management system, ensures that every slewing ring delivers exceptional load capacity, smooth operation, and extended service life, directly contributing to the uptime and productivity of your equipment.

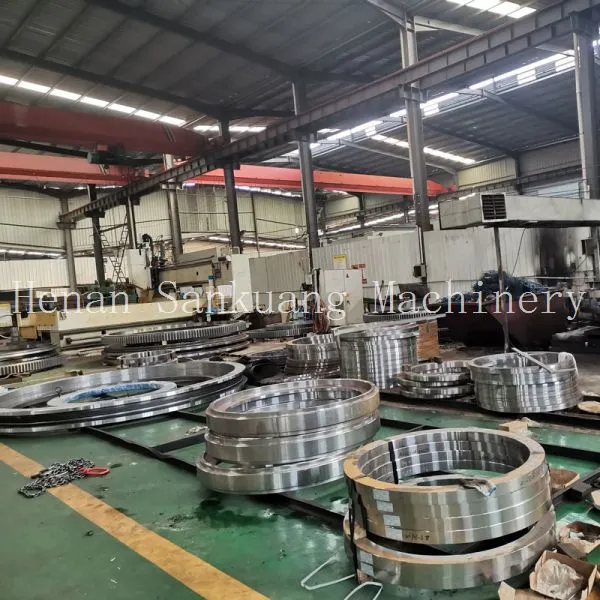

The core value of our Double Row Ball Slewing Ring lies in its optimized design for heavy-duty applications. Unlike single-row designs, the double-row ball configuration provides superior stability and moment load resistance, making it an ideal choice for applications where equipment faces significant tilting moments and combined loads. Manufactured in our expansive facilities spanning 10,000-30,000 square meters, we control the entire production process from forging to final assembly, guaranteeing consistent quality and performance.
Key Product Features & Technical Advantages:
- Enhanced Load Capacity: The double-row ball design distributes axial, radial, and moment loads across two separate raceways, significantly increasing the bearing's overall load-carrying ability compared to single-row designs.
- Precision Engineering for Smooth Operation: Raceways are precision-ground to micron-level tolerances, and high-grade balls are meticulously selected and assembled to ensure minimal friction, low running torque, and exceptionally smooth rotation.
- Robust Construction for Harsh Environments: Fabricated from high-carbon chromium steel (e.g., 42CrMo4 or equivalent) and subjected to advanced heat treatment processes like induction hardening, the ring offers superior hardness, wear resistance, and core toughness.
- Advanced Sealing Solutions: Equipped with multi-labyrinth seals or high-performance rubber seals (customizable based on application) to effectively prevent contamination from dust, moisture, and debris while retaining lubricant.

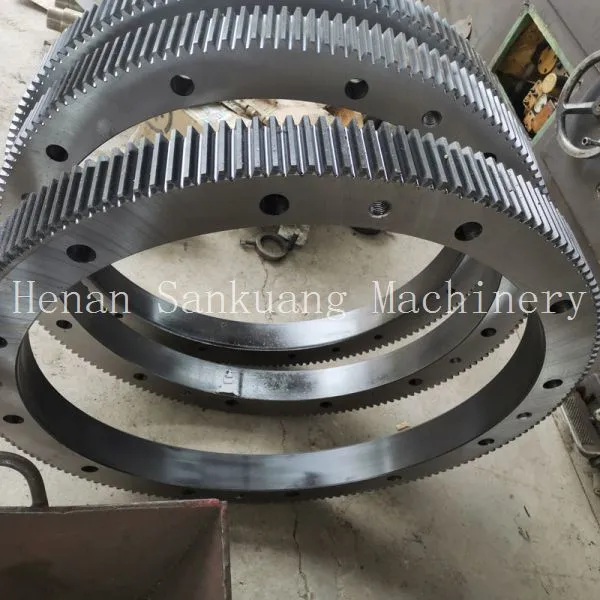

- Integrated Gear Options: Available with precisely machined internal or external gears, allowing for direct integration with drive systems in applications such as cranes, excavators, and wind turbines.
- Customization & Flexibility: We offer extensive customization options including bore diameter, bolt circle diameter, gear specifications, sealing types, and lubrication fittings to match your specific machinery requirements.
Technical Specifications Table (Typical Range):
| Parameter | Specification Range | Notes |
| Bore Diameter (ID) | 200 mm - 3000 mm | Custom sizes available |
| Outer Diameter (OD) | 300 mm - 3500 mm | Scales with ID |
| Axial Static Load Capacity | 100 kN - 10,000 kN+ | Depends on size and design |
| Radial Static Load Capacity | 80 kN - 8,000 kN+ | Depends on size and design |
| Material Grade | 42CrMo4 / 50Mn / Custom | High-carbon chromium steel |
| Gear Module | 4 - 20 mm | Internal/External, on request |
| Mounting Bolt Holes | Standard or Custom Pattern | Quantity and size customizable |
Benefits for Your Machinery:
- Increased Equipment Reliability: Reduces unplanned downtime by providing a durable and reliable rotation point.
- Improved Operational Efficiency: Low friction and smooth rotation contribute to lower power consumption and more precise control.
- Extended Service Intervals: Robust sealing and high-quality materials extend lubrication intervals and reduce maintenance frequency.
- Design Flexibility: Customizable dimensions and features allow for seamless integration into new designs or as a replacement part.
- Cost-Effectiveness: The long service life and reduced maintenance needs lead to a lower total cost of ownership over the equipment's lifespan.
Frequently Asked Questions (FAQ):
-
Q: What are the main advantages of a double-row ball design over a single-row design?
A: The primary advantage is significantly higher moment (tilting) load capacity and overall stability. The two separate raceways share the load more effectively, making it suitable for applications with high overturning moments, such as in cranes and excavators. -
Q: Can this slewing ring be used in outdoor or corrosive environments?
A: Yes. We offer options including special seal configurations and surface treatments like zinc plating or painting upon request to enhance corrosion resistance for challenging environments. -
Q: How do I determine the correct size and load rating needed for my application?
A: Our engineering team can assist you. Please provide the key application parameters: axial load, radial load, moment load, rotational speed, and installation dimensions. We will recommend or design a suitable model. -
Q: Are the gears integrated into the slewing ring, and what are the options?
A: Yes, gears can be integrally machined into the ring. You can choose between internal gears (teeth on the inner diameter) or external gears (teeth on the outer diameter). The module, number of teeth, and accuracy class can be customized. -
Q: What is the lead time for standard and customized orders?
A: Lead times vary based on order complexity and size. Standard models may have shorter lead times, while fully customized large-diameter rings require more time for machining and treatment. Specific timelines are provided upon quotation. -
Q: What lubrication is required, and what are the maintenance intervals?
A: The bearing is pre-lubricated with high-quality lithium-based grease. Re-lubrication intervals depend on operational conditions (load, speed, environment) and are specified in the product manual. Standard grease fittings are provided for easy maintenance. -
Q: Do you provide installation guidance or technical support?
A: Absolutely. We provide detailed installation manuals, and our technical support team is available to offer guidance on handling, mounting, and alignment to ensure optimal performance. -
Q: What quality certifications does your manufacturing process hold?
A: Our production is governed by a comprehensive ISO 9001 quality management system, ensuring consistent processes, material traceability, and final inspection. Other relevant standards are applied as needed.
Trust in the proven capability of Henan San Kuang Machinery Technology. With an annual export value ranging from US$2.5 to US$5 million and a strong presence across global markets including North America, Europe, and Southeast Asia, our products are trusted by industrial machinery manufacturers worldwide. Our vertically integrated manufacturing within a large-scale facility allows for stringent quality control from raw material to finished product. We invite you to experience the difference that a precision-engineered Double Row Ball Slewing Ring can make in your heavy-duty machinery's performance and reliability. Contact us today to discuss your specific requirements or to request a detailed quotation.
