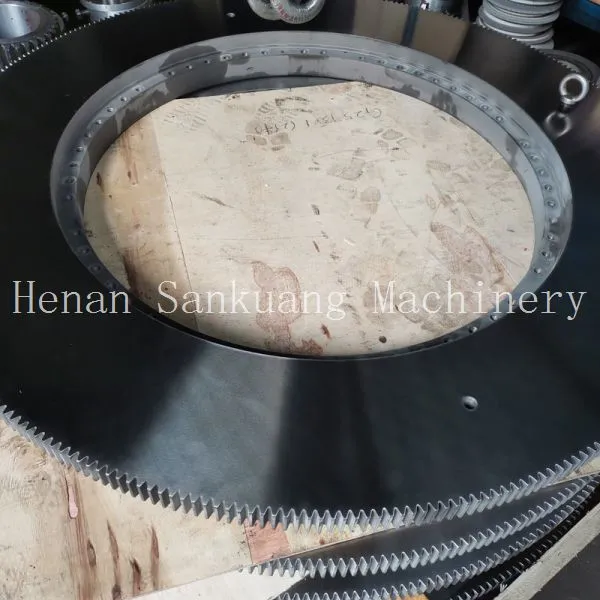

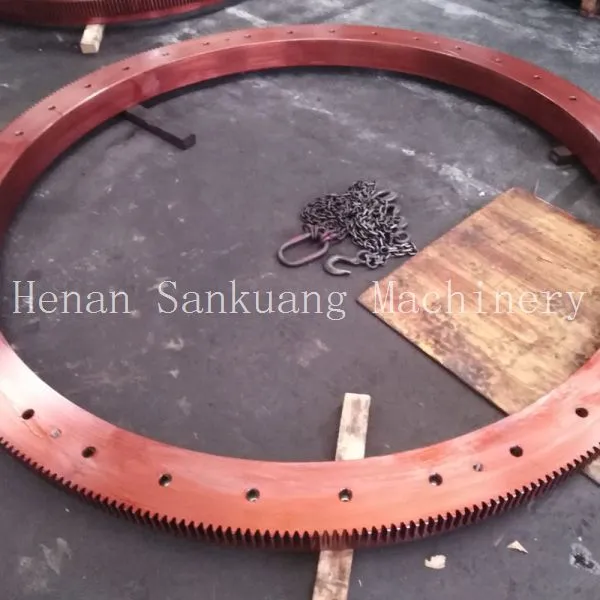

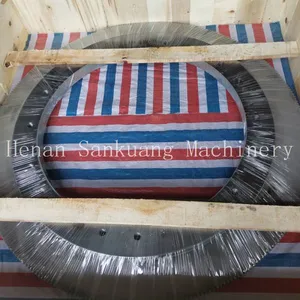

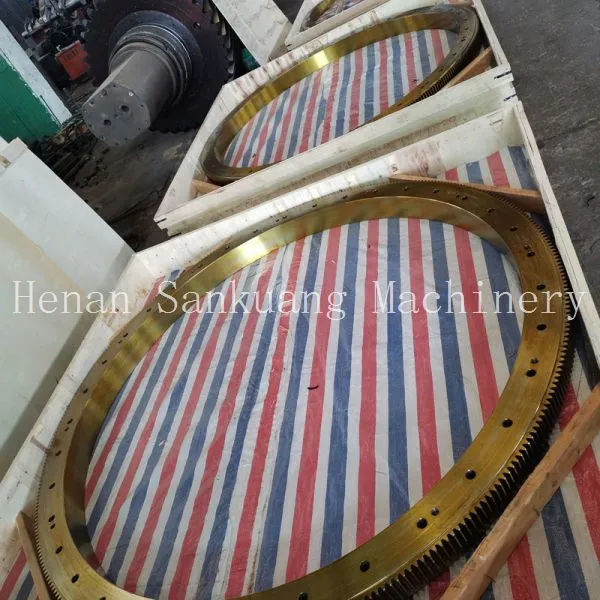

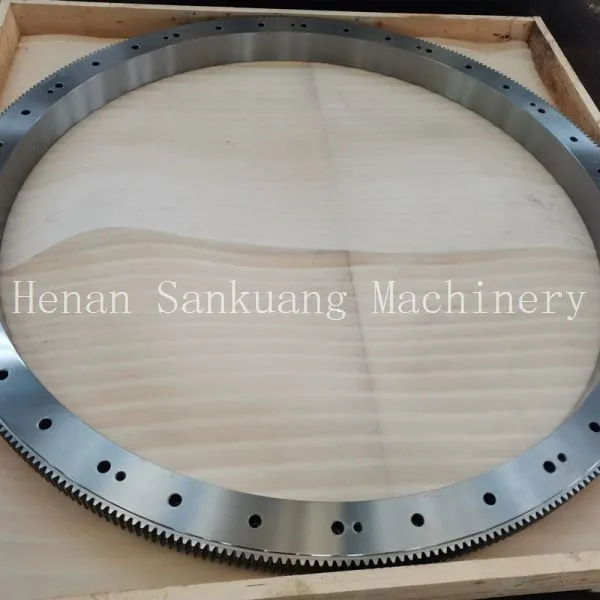

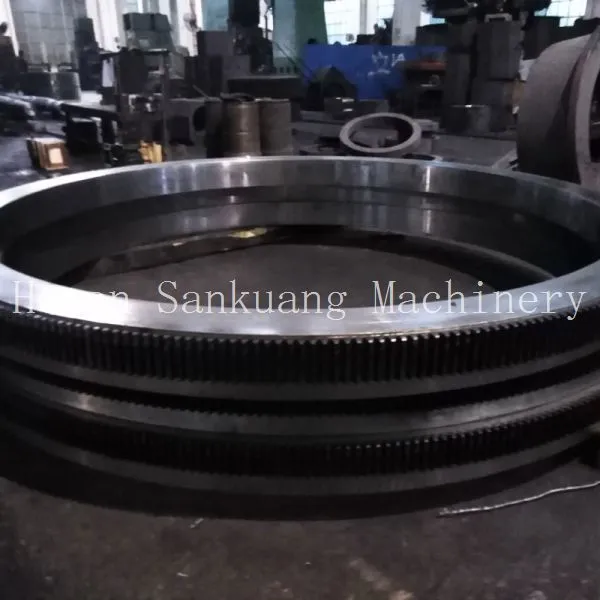

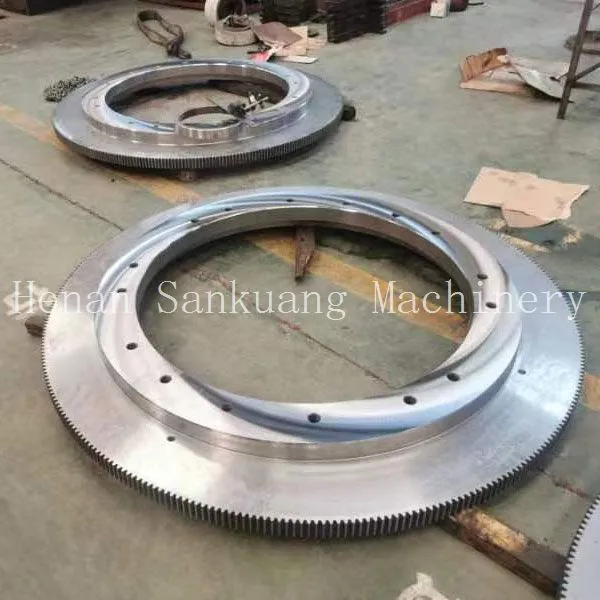

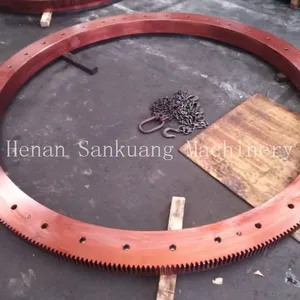

Double Row Ball Slewing Ring Optimized for Stability in Wind Turbine Yaw Systems
Product Spotlights
This double row ball slewing ring is specifically engineered for wind turbine yaw systems, offering exceptional stability through its dual raceway design. It provides high axial, radial, and moment load capacity, ensuring reliable nacelle rotation. Features include precision-ground raceways, robust sealing for harsh environments, integrated lubrication ports, and customizable configurations (gearing, mounting). Manufactured from high-grade alloy steel with ISO-certified processes, it delivers extended service life, reduced maintenance, and optimized energy yield for wind farm operators.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, High-Carbon Chromium Steel (e.g., 42CrMo4, 50Mn)
Bearing Type:
Double Row Ball Slewing Bearing
Primary Application:
Wind Turbine Yaw System
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Row Ball Slewing Bearing Standard Size Turntable Support BearingNegotiableMOQ: 1 Piece -
Customizable Single Row Ball Slewing Bearing With Specific Bore Diameter and Bolt PatternNegotiableMOQ: 1 Piece
-
Precision Slewing Ring Bearings: The Core of Rotating Heavy MachineryNegotiableMOQ: 1 Unit
-
High Precision Mill Girth Gear, Girth Gear & Split Girth Gear ManufacturerNegotiableMOQ: 1 Combo
-
Turntable Bearing for Solar Tracker Systems With Corrosion Resistance CoatingNegotiableMOQ: 1 Piece
Material
Other, High-Carbon Chromium Steel (e.g., 42CrMo4, 50Mn)
Bearing Type
Double Row Ball Slewing Bearing
Primary Application
Wind Turbine Yaw System
Key Design Feature
Optimized for High Stability
Mounting Configuration
Flange or Bolt Hole Mounting
Sealing Type
Multi-Labyrinth or Rubber Seals
Gear Type
Internal or External Gear Optional
Lubrication
Centralized Grease Lubrication System
Load Capacity
High Axial, Radial, and Moment Loads
As a leading manufacturer specializing in precision slewing bearings and rings, Henan San Kuang Machinery Technology leverages over a decade of engineering expertise to deliver robust solutions for demanding renewable energy applications. Our Double Row Ball Slewing Ring is engineered from the ground up to address the critical stability requirements of modern wind turbine yaw systems. Operating from our expansive 10,000-30,000 square meter facility in Luoyang, we combine rigorous quality management with advanced manufacturing to produce components that ensure reliable performance under the most challenging environmental conditions. This product is a cornerstone of our commitment to supporting the global transition to sustainable energy with durable, high-performance mechanical components.
Designed to endure the complex and variable loads inherent in wind energy conversion, this slewing ring is a critical interface between the nacelle and the tower. Its primary function is to facilitate the precise rotation of the nacelle, aligning the rotor with the wind direction to maximize energy capture. The double row ball design is a key differentiator, providing superior load distribution and enhanced stability compared to single row configurations. This translates directly into reduced wear, longer service intervals, and increased overall system reliability for wind farm operators.
Core Technical Advantages & Design Features:
- Enhanced Stability & Rigidity: The dual raceway configuration significantly increases the bearing's moment stiffness and resistance to tilting moments, which is paramount for maintaining nacelle alignment and protecting sensitive internal gearbox and generator components.
- Optimized Load Distribution: The double row ball arrangement allows for higher axial, radial, and moment load capacities. This design efficiently handles the combined loads from wind thrust, rotor weight, and dynamic operational forces.
- Precision Engineering for Smooth Operation: Raceways are ground to micron-level precision, and balls are meticulously graded, ensuring ultra-smooth rotation with minimal friction and backlash. This precision is vital for accurate yaw control and reduced parasitic power loss.
- Robust Sealing Solutions: Equipped with multi-labyrinth seals or optional high-performance rubber seals to effectively exclude contaminants like dust, sand, and moisture while retaining lubrication, even in offshore or harsh desert environments.
- Integrated Lubrication: Features pre-drilled lubrication channels compatible with centralized automatic greasing systems. This ensures consistent lubrication to all critical contact points, reducing maintenance frequency and preventing premature failure.
- Material Integrity: Fabricated from high-grade, through-hardened alloy steel (such as 42CrMo4), offering an excellent combination of surface hardness for wear resistance and a tough core to withstand impact loads.
- Customizable Configuration: Available with internal or external gearing, various flange and bolt hole patterns, and different sealing options to seamlessly integrate with specific turbine manufacturer designs.
Key Specifications & Parameters:
The following table outlines typical specifications. Exact dimensions and capacities are tailored to project requirements.
| Parameter | Typical Range / Description |
| Bearing Diameter | 1500mm to 4000mm (Custom sizes available) |
| Ball Row Configuration | Double Row, 45° Contact Angle |
| Gear Module | 10 to 20 (Internal/External, as specified) |
| Load Capacity (Dynamic) | High Axial & Moment Load Ratings (Specific values per design) |
| Material | Forged 42CrMo4 / 50Mn, Hardened & Tempered |
| Hardness | Raceway: 55-60 HRC; Gear Teeth: 50-55 HRC |
| Sealing | Standard: Multi-Labyrinth; Optional: NBR Rubber Seals |
| Lubrication Fittings | Standard Grease Nipples; Centralized System Ports Optional |
| Surface Treatment | Phosphating or Anti-Corrosion Coating (e.g., Zinc Flake) |
Tangible Benefits for Your Wind Turbine Projects:
- Increased Turbine Availability: Superior stability and reliability minimize unplanned downtime due to yaw system failures.
- Reduced Lifetime Cost: Extended service life and lower maintenance requirements decrease the total cost of ownership.
- Improved Energy Yield: Precise and reliable yaw positioning ensures optimal rotor alignment, maximizing energy production.
- Enhanced Safety: Robust construction and reliable performance contribute to the overall structural integrity and safe operation of the turbine.
- Global Supply Chain Support: With annual export values ranging between US$2.5 and US$5 million and shipment capabilities from major ports like Shanghai, Qingdao, and Tianjin, we are equipped to support global project logistics efficiently.
Our manufacturing processes are underpinned by a comprehensive quality framework, including ISO 9001 for quality management and ISO 14000 for environmental management, ensuring consistent product excellence and responsible manufacturing. Supported by a dedicated team of 51-100 professionals, we offer not just a component, but a partnership focused on delivering the durability and performance your wind energy projects demand. For a slewing ring solution engineered to provide unwavering stability in your yaw system, contact Henan San Kuang Machinery Technology to discuss your specifications and receive a detailed quotation.
Frequently Asked Questions (FAQ):
-
Q: Why is a double row ball design preferred for wind turbine yaw applications over a single row?
A: The double row configuration provides significantly higher moment stiffness and load capacity. It better resists the complex tilting and overturning moments experienced by the nacelle, leading to enhanced system stability, reduced deformation, and longer bearing life, which are critical for large-diameter turbines. -
Q: Can you provide slewing rings compatible with different turbine OEM designs?
A: Absolutely. A key strength is our ability to customize. We can tailor the gear module (e.g., 12, 14, 16), bolt hole circle diameter, flange design, and sealing system to match the interface requirements of various turbine manufacturers, ensuring a direct fit. -
Q: What measures are taken to ensure corrosion resistance, especially for offshore installations?
A> We apply specialized surface treatments such as zinc flake coatings (e.g., Geomet) or phosphating, which provide excellent corrosion protection. Additionally, we can specify stainless steel components for seals and fasteners upon request to enhance resistance to salty, humid offshore environments. -
Q: How does the lubrication system work, and what are the recommended maintenance intervals?
A> The bearing is equipped with grease fittings and internal channels. For optimal performance, we recommend integration with an automatic centralized lubrication system. Maintenance intervals depend on the specific grease, operating conditions, and system design, but typically range from 6 to 12 months. We provide detailed lubrication guidelines with each product. -
Q: What is your lead time for a custom-sized double row slewing ring?
A> Lead times vary based on size, complexity, and order volume. For standard-sized rings within our typical diameter range, lead times can be approximately 12-16 weeks. We provide a firm timeline upon review of your technical drawings and quantity requirements. -
Q: Do you offer any testing or inspection reports with the product?
A> Yes, we conduct rigorous in-process and final inspections. Dimensional inspection reports, hardness test reports, and material certification can be provided. Non-destructive testing (NDT) like magnetic particle inspection for critical areas is also available upon request. -
Q: What is the main advantage of your manufacturing location in Luoyang, China?
A> Luoyang is a traditional hub for heavy machinery and bearing manufacturing in China, giving us access to a deep supply chain of high-quality forged steel rings and a skilled workforce specialized in large-diameter precision machining, which is essential for these components. -
Q: How do you ensure quality consistency given your export volume?
A> Our ISO 9001 certified quality management system governs every stage, from material sourcing to final shipment. With a factory size of 10,000-30,000 sq. meters, we have controlled, scalable production lines and a dedicated QC team, ensuring every slewing ring meets the same high standard, whether destined for North America, Europe, or Southeast Asia.
