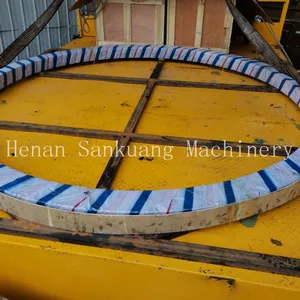

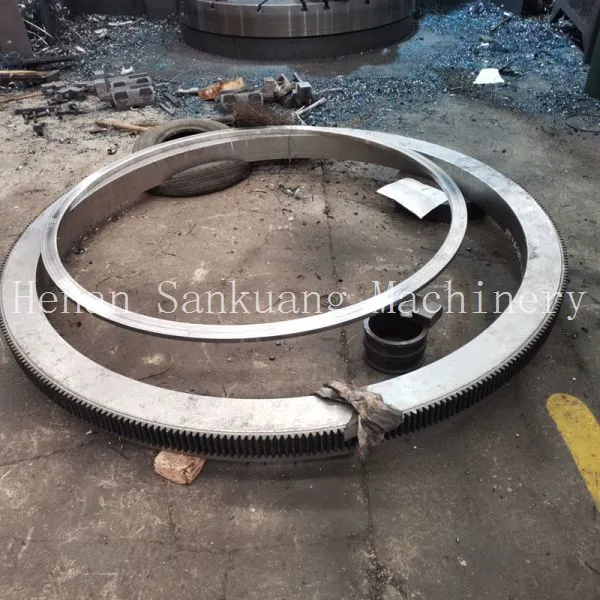

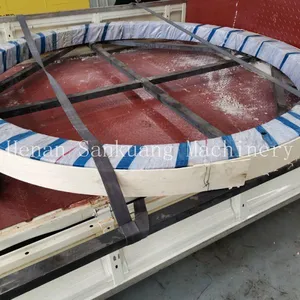

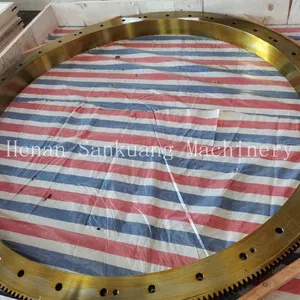

Help CenterDouble Row Ball Slewing Ring Customized Processing Rotary Support Ring
Product Spotlights
Related Products
-
Single Row Ball Slewing Bearing for Robust Performance in Mining Excavator Slewing MechanismsNegotiableMOQ: 1 Piece -
Single Row Ball Slewing Bearing Manufactured From Forged Steel for Long Service LifeNegotiableMOQ: 1 Piece
-
Single Row Ball Slewing Bearing for Crane Applications With High Load CapacityNegotiableMOQ: 1 Piece
-
Double Row Ball Slewing Ring Precision Engineered for Heavy-Duty Industrial MachineryNegotiableMOQ: 1 Piece
-
Double Row Ball Slewing Ring Designed for High-Speed Precision Indexing TablesNegotiableMOQ: 1 Piece
As a leading manufacturer with over a decade of experience, Henan San Kuang Machinery Technology Co., Ltd. specializes in producing high-performance, customized double row ball slewing rings. Our rotary support rings are engineered to deliver exceptional durability, precision, and load-bearing capacity for demanding industrial applications. Leveraging our extensive expertise and a factory spanning 10,000-30,000 square meters, we offer tailored solutions that integrate seamlessly into your machinery, enhancing operational efficiency and reliability.
Our double row ball slewing rings are designed to meet the specific needs of diverse industries. The core value lies in their ability to provide stable, low-friction rotational motion under significant radial, axial, and moment loads.
Enhanced Load Distribution: The double row ball design significantly increases contact points, distributing loads more evenly across the bearing raceways. This results in higher overall load capacity and improved longevity compared to single-row designs.
High Precision and Stability: Precision machining ensures minimal runout and consistent performance, which is critical for applications requiring accurate positioning, such in robotic arms or solar panel tracking systems.
Customizable Design: We understand that standard sizes often don't fit unique project requirements. Our rings are fully customizable in terms of dimensions, mounting configurations, sealing options, and material specifications.
Robust Construction: Manufactured from high-strength alloy steels, our slewing rings withstand harsh operating environments, including exposure to dust, moisture, and variable temperatures.
Optimized for Low Maintenance: The design and optional sealing systems minimize the need for frequent lubrication and maintenance, reducing downtime and operational costs.
The technical specifications of our double row ball slewing rings can be tailored, but common parameters for a standard customizable model include:
| Parameter | Typical Range / Description |
| Inner Diameter (ID) | Customizable from 200mm to 3000mm |
| Outer Diameter (OD) | Customizable based on ID and application |
| Ball Row Configuration | Double row, angular contact |
| Static Load Capacity (Radial) | Available upon request, typically high |
| Static Load Capacity (Axial) | Available upon request, typically high |
| Moment Load Capacity | Available upon request |
| Material | High-strength alloy steel (e.g., 42CrMo) |
| Sealing Options | Dust-proof, waterproof, or none |
| Mounting Interface | Flange with bolt holes, custom pattern |
| Precision Grade | Customizable to application tolerance needs |
The advantages of choosing our customized double row ball slewing rings translate directly into benefits for your business:
Increased Machine Lifespan: The robust design reduces wear on connected components, extending the service life of your entire system.
Improved Operational Accuracy: High precision ensures repeatable and accurate motion, which is vital for automated processes and precision engineering.
Reduced Total Cost: While the initial investment is in a quality component, the reduction in maintenance, downtime, and replacement costs leads to a lower total cost of ownership.
Design Flexibility: Our customization service allows you to integrate a perfect-fit solution without compromising your machine's design integrity.
Reliable Performance: Consistent quality ensures the ring performs as expected under planned loads and conditions, providing operational peace of mind.
Backed by a workforce of 51-100 dedicated professionals and an annual export value reaching US$2.5 Million - US$5 Million, Henan San Kuang Machinery has established a strong reputation in global markets, including North America, Europe, Asia, and beyond. Our commitment to quality is reinforced by adherence to recognized manufacturing standards. We serve a diverse clientele from heavy industry to renewable energy, proving our product's versatility and reliability. When you choose our customized double row ball slewing ring, you are not just buying a component; you are investing in a partnership with a proven manufacturer capable of delivering a solution that enhances your equipment's performance, durability, and value. Contact us today to discuss your specific requirements and receive a tailored proposal.
FAQ
Q1: What is the primary advantage of a double row design over a single row slewing ring?
A: The double row configuration provides a greater number of load-bearing contact points. This distributes forces more evenly, resulting in significantly higher load capacity (radial, axial, and moment) and enhanced stability, which is crucial for applications with heavy or complex loading.
Q2: How does the customization process work?
A: The process begins with you providing your application requirements, including load data, dimensions, environmental conditions, and mounting needs. Our engineering team then analyzes these inputs and proposes a design, often with several options for key parameters. We work collaboratively until a final specification is agreed upon before manufacturing.
Q3: What materials are typically used, and can I request a specific material?
A: We commonly use high-strength alloy steels like 42CrMo for optimal strength and durability. Yes, material specification is a key part of customization. You can request different steel grades or treatments (e.g., hardening) based on your corrosion resistance, weight, or strength requirements.
Q4: Are sealing options available for harsh environments?
A: Absolutely. We offer optional sealing systems, such as dust-proof or waterproof seals, to protect the bearing raceways and balls from contaminants like dirt, water, or debris. This is highly recommended for outdoor or dirty industrial applications.
Q5: What is the typical lead time for a customized slewing ring?
A: Lead time depends on the complexity of the customization and current production schedule. For standard customizations, it generally ranges from several weeks to a couple of months. We provide a estimated timeline during the quotation process.
Q6: Can you provide load capacity calculations or certifications for my specific design?
A: Yes. Our engineering team can perform load capacity calculations based on your provided data to ensure the design meets your needs. While we operate under stringent quality management systems, specific product certifications for your order can be discussed and provided if required.
Q7: What industries commonly use these double row ball slewing rings?
A: They are widely used in industries requiring heavy-duty rotational support, including construction machinery (cranes, excavators), renewable energy (solar tracker systems, wind turbine yaw drives), robotics, industrial automation, radar systems, and medical equipment.
Q8: How do I mount the slewing ring onto my equipment?
A: Mounting is designed per your request. Common methods include a flange with pre-drilled bolt holes matching your pattern. We ensure precise machining of these interfaces for easy and secure installation. Installation guidelines are provided with the product.
