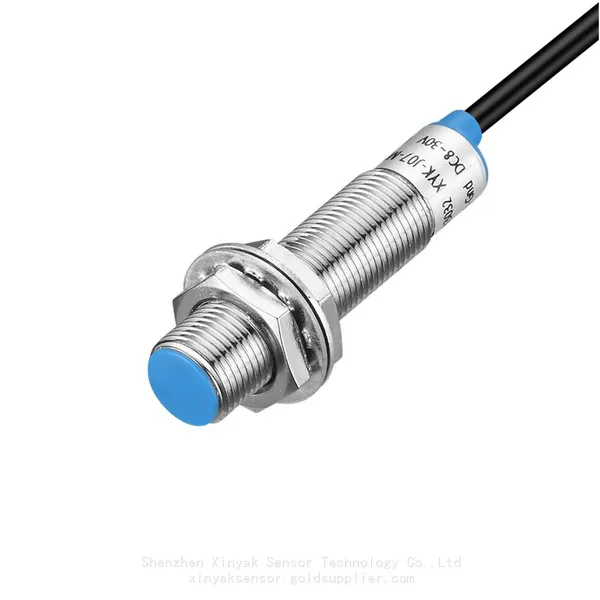

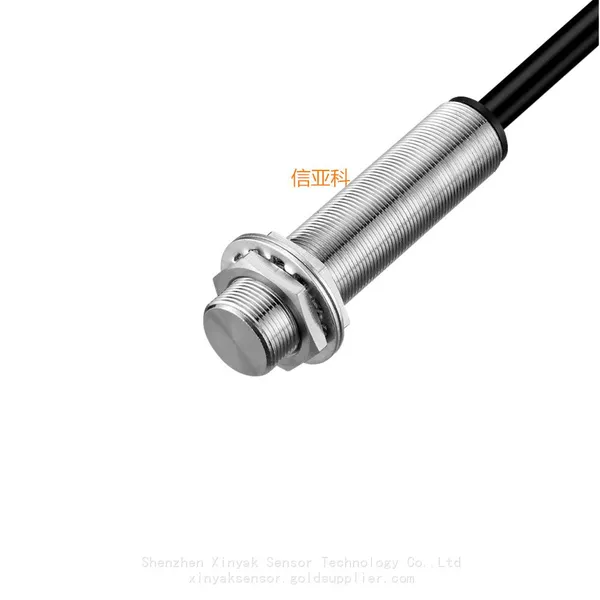

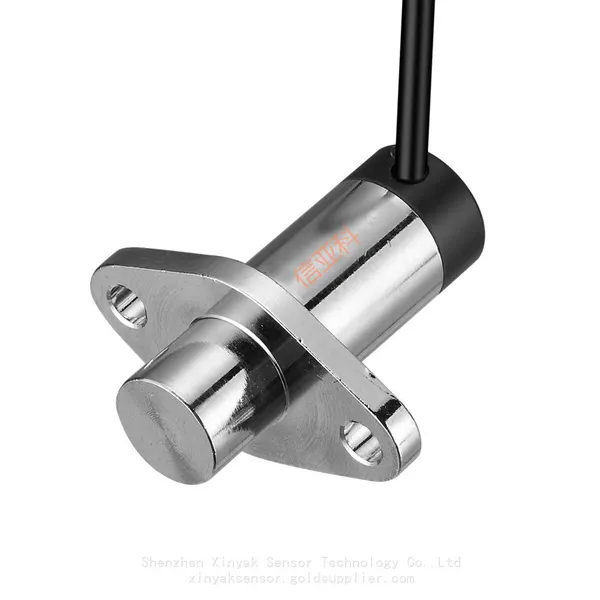

Factory Price of Hall Effect Magnetic Gear Speed Sensor for RPM of Gear Rotation
Product Spotlights
Easy Installation, Valuable Price, OEM, Excellent Technical Support
US$ 18.8
2 - 499 Pieces
US$ 16.8
500 - 999 Pieces
US$ 14.8
≥1000 Pieces
Key Specifications
Get Latest Price
Material:
Metal
Certification:
CE
Output Signal Type:
Other, NPN PNP (Pulse Signal)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
ABS M9*16m Plastice Housing Square Wave Signal Gear Speed Sensor for ATV MotorcycleNegotiableMOQ: 2 Pieces -
Manufacturer of Magnetic Gear Speed Sensor for Gear BoxNegotiableMOQ: 2 Pieces
-
ABS Plastice Housing Hall Effect Gear Speed Sensor for Motorcycle SpeedometerNegotiableMOQ: 2 Pieces
-
Manufacturer of Plastice Housing Hall Effect Gear Speed Sensor for AVT Motorcycle SpeedometerUS$ 3.5 - 4.5MOQ: 5 Pieces
-
Metal Housing Vacuum Pump Pressure Switch Sensor for Electric Brake AssistanceUS$ 11.6 - 14.6MOQ: 2 Pieces
Material
Metal
Certification
CE
Output Signal Type
Other, NPN PNP (Pulse Signal)
Customized
Customized
IP Rating
IP67
Theory
Hall Effect
Wires
3-core
Warranty
12 Months
Model Number
XYK- S01-3PF-UNF
Function
Detect RPM Of Gear Rotation
Size
5/8-18 UNF 100/70/50mm
Transport Package
Standard
Specification
Standard
Trademark
Xinyake
Origin
Shenzhen China
Gear Speed Sensor
▼ Product Features
* Built-in polarity and short circuit protection.
* Wide temperature range High IP grade:IP67.
* Good EMC anti-interference ability.
| Product Name: Speed Sensor | Output Current：20mA |
| Working voltage：DC5~24V | Output high level：>(VCC-0.5V) |
| Output method：PNP | Environment Humidity： |
| Working temperature：-40~125℃ | Detecting Object: Gear |
| Response frequency：0~15KHz | Size: M18*1.5*97mm; M18*1*60mm; UNF 5/8-18 optional |

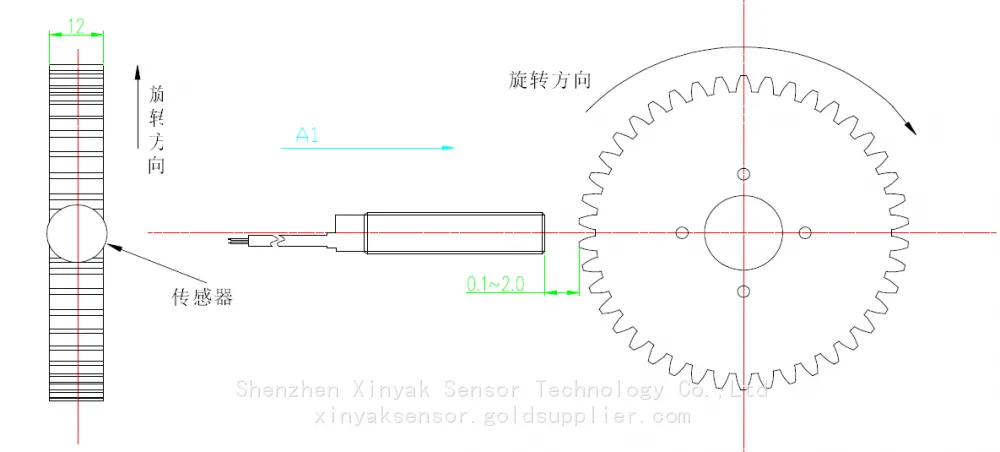

| Humidity： | Sensing distance：0~2mm |
| Connector: Optional | Wire lead：Red-VCC Black-GND Yellow-OUTPUT (Optional) |
Note: Since we don't know the shipping address of yours, the shipping cost is not included.
Please don't hesitate to reach out for any questions.
