Plastic Housing L35 L45 L39.5mm Hall Effect AC Motor Encoder, Magnetic Gear Speed Sensor for Electric Vehicle Parts
Product Spotlights
Low speed AC Motor encoders,Magnetic Speed Sensor widely used for New Energy Vehicle Motors. Customization is supported. We have several AC Motor Encoders available for options.
US$ 17.86
2 - 499 Pieces
US$ 15.86
500 - 999 Pieces
US$ 13.86
≥1000 Pieces
Key Specifications
Get Latest Price
Housing material:
Plastic
Response frequency:
0~20Khz
Supply voltage:
4.5 ~ 24V DC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
Manufacturer of 4 Wires L35 L45 Hall Effect AC Motor Encoder, Speed Sensor for Forklift,Golf Cart PartsNegotiableMOQ: 2 Pieces -
Wholesale 64-27mm NEV Low Speed AC Motor Encoder of Doosan Motor, Gear Speed Sensor for Forklift PartsNegotiableMOQ: 2 Pieces
-
Manufacturer of L35 L45mm AC Motor Encoder, Speed Direction Sensor for Forklift Parts & New Energy VehiclesNegotiableMOQ: 2 Pieces
-
Manufacturer of L35 L45 L39.5mm Low Speed AC Motor Encoder, Magnetic Gear Speed Sensor for Forklift PartsNegotiableMOQ: 2 Pieces
-
Wholesale 4 Installation Holes 64 & 48 Teeth Wheel NEV Low Speed AC Motor Encoder,Gear Speed Sensor for Forklift PartsNegotiableMOQ: 2 Pieces
Housing material
Plastic
Response frequency
0~20Khz
Supply voltage
4.5 ~ 24V DC
Sensing Distance
0~2mm

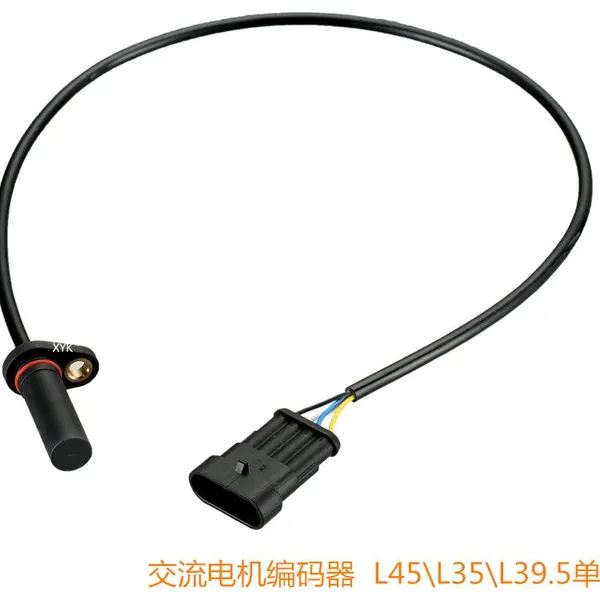

Wire
4-core
Function
AC Motor Encoder
Warranty
12 Months
Pulse
64
Model Number
XYK- Q01-L14-4NF

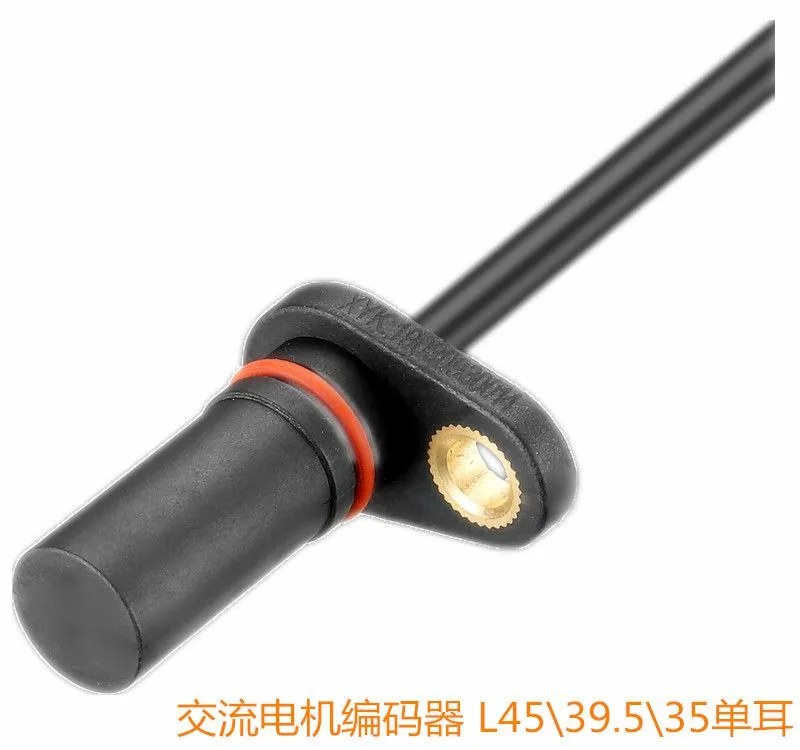

Installation
One hole type
Theory
Hall Sensor

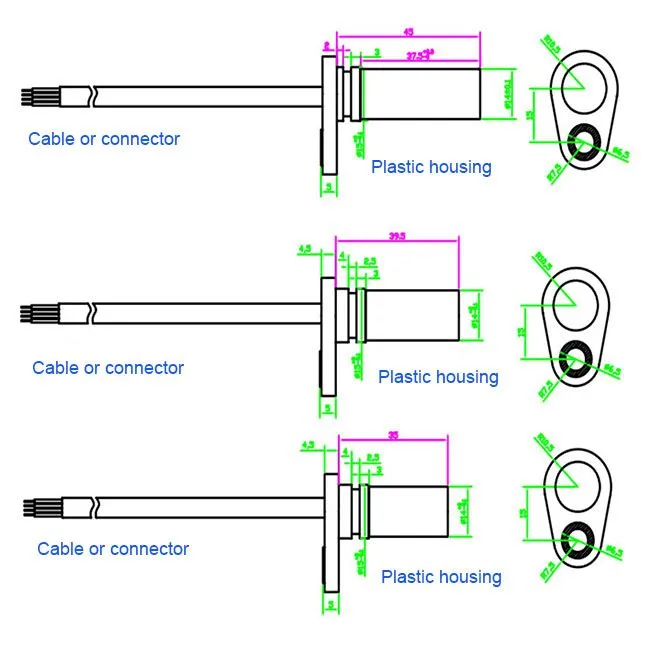

Size of the Sensor

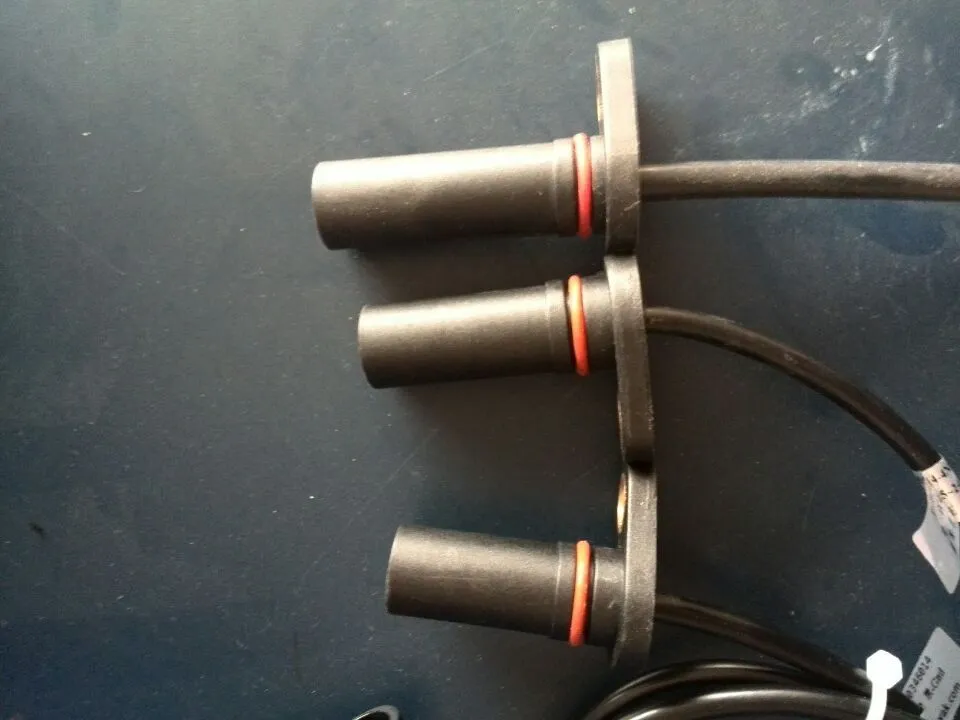

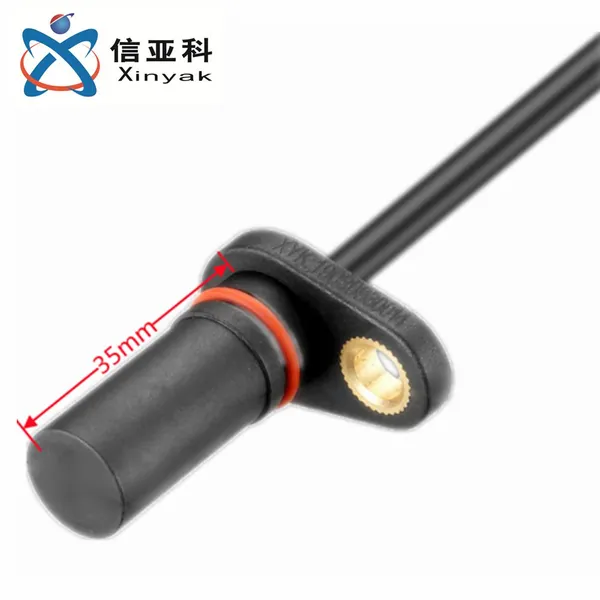

L35/L39.5/L45mm
Transport Package
Standard
Specification
Standard
Trademark
Xinyake
Origin
Shenzhen China
Our advantages: This series of products has passed CE certification; built-in short circuit protection avoids unnecessary loss; anti-interference design signal is more stable; full seal package protection level up to IP67, waterproof, oil proof and dust proof can work in harsh environments; various sizes available; customized solutions according to customer requirements.
| Fixing gap: 0~2mm，typical fix gap 1mm | Signal output form: square wave, collector, open collector |
| Service voltage: DC4.5~24V | Working temperature:-40~140℃ |
| AB phase-difference: 90±45 Degree | Lead Wire: from side or direct leadout |
| IP grade: IP67 | Connector: can be made according to the need of customer. |
Note: Since we don't know the delivery address of yours, the price doesn't include the shipping cost.
Please don't hesitate to reach out for any questions.
