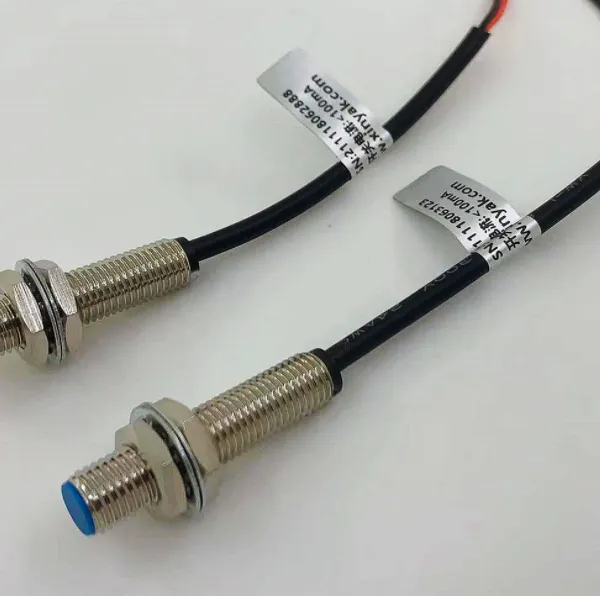

Hall Effect XYK- J02-M8-W52 2 Wires N/O & N/C Door Reed Magnetic Proximity Switch Sensor
Product Spotlights
High Performance, Valuable price, Easy installation, IP68,
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Metal
Certification:
CE
Output Signal Type:
Other, NPN PNP
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
Manufacturer of GPS Device Supportable Concrete Mixing Drum Rotation Sensor, Magnetic Proximity SwitchUS$ 30.86 - 34.86MOQ: 2 Pieces -
Manufacturer of GPS Device Supportable Magnetic Speed Sensor,Concrete Mixing Drum Rotation Sensor With MagnetNegotiableMOQ: 2 Pieces
-
Manufacturer of GPS Device Supportable Concrete Mixing Truck Magnetic Proximity Switch, Drum Rotation Sensor With Mounting BracketNegotiableMOQ: 2 Pieces
-
Wholesale 4 Installation Holes 64 & 48 Teeth Wheel NEV Low Speed AC Motor Encoder,Gear Speed Sensor for Forklift PartsNegotiableMOQ: 2 Pieces
-
High Performance 38*6mm 4~20mA Analog Output Hall Magnetic Rotary Absolute Encoder, 0~360 Degree Single Turn Angle DetectionNegotiableMOQ: 2 Pieces
Material
Metal
Certification
CE
Output Signal Type
Other, NPN PNP
Customized
Customized
IP Rating
IP67
Theory
Hall Effect
Wire
2-core
Warranty
12 Months
Model Number
XYK- J02-M8-W52
Applications

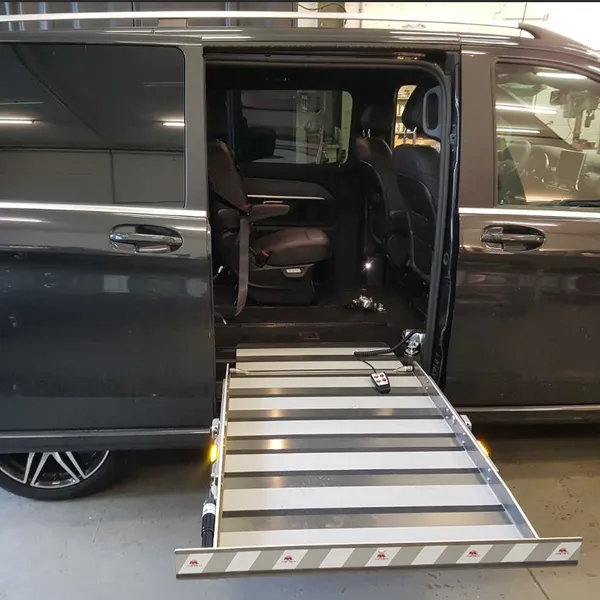

Doors,Vehicle foldable lift,Auto step
Size
M8*1*35mm
Transport Package
Standard
Specification
Standard
Trademark
Xinyake
Origin
Shenzhen China
Descriptions:
Detecting magnetic objects, can accurately reflect the position and stroke of the moving mechanism. Even for general stroke control, its positioning accuracy, operating frequency, service life, convenience of installation ,convenience of adjustment ,adaptability to harsh environment are better than the general mechanical stroke switch.
The proximity switch has the advantages of long service life, reliable operation, high repeated positioning accuracy, no
mechanical wear ,no damage Spark, no noise, strong anti vibration ability and its protection performance up to IP67.

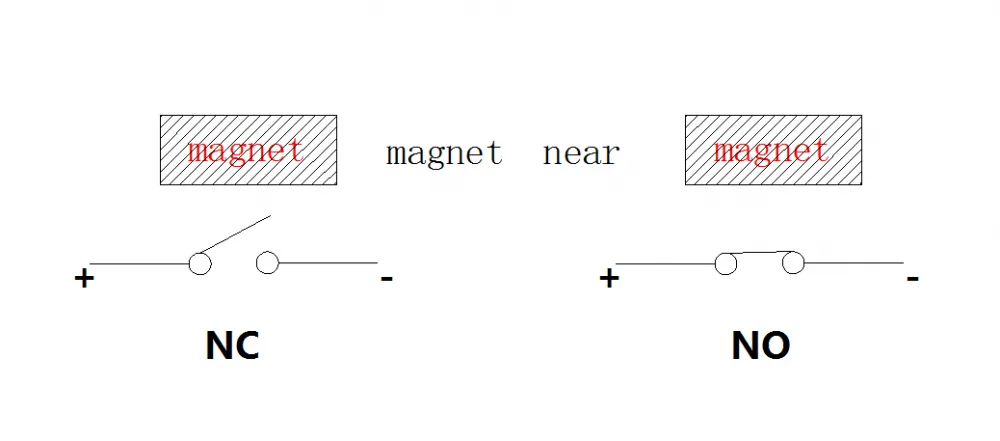

| Max switching voltage：100VDC/VAC | Output method：NC/NO | Operation temperature：-40~80℃ |
| Response frequency：4KHz | Working humidity： | Max switching current：0.5A |
| Output high level：>(VCC-0.5V) | Signal rise time： | Signal descent time： |
| Output low level： | Detecting object： magnet S and N pole | The length of the wire：300mm (can be made according to your need) |
| Contact Rating:100W | Contact Resistance (at initial value): 100mOhms | Pull in Value (AT):10-15 Drop out Value (AT):5 |
| Operation time: 1.0m Sec.(Max) | Release time: 0.4m Sec.(Max) | Breakdown Voltage: 220VDC(AT |
| Contact Capacitance: 0.7pF | Insulation Resistance:10 10mOhms | High Humidity:98%(Max) |
| Operation Frequency: 100Hz | Electrical Life: 10 8 (5V 10mA);10 5 (24V 400mA) | |
| Detecting range： ≦10mm | Cable:2 wires | IP67 |
Please don't hesitate to reach out for more information before place the order.
