Manufacturer of Plastice Housing Hall Effect Gear Speed Sensor for AVT Motorcycle Speedometer
Product Spotlights
Easy Installation, Valuable Price, OEM, Excellent Technical Support
US$ 4.5
5 - 499 Pieces
US$ 4
500 - 999 Pieces
US$ 3.5
≥1000 Pieces
Key Specifications
Get Latest Price
Material:
Plastic
Certification:
CE
Output Signal Type:
Other, NPN PNP (Pulse Signal)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
Factory Price of Hall Effect Magnetic Gear Speed Sensor for RPM of Gear RotationUS$ 14.8 - 18.8MOQ: 2 Pieces -
ABS M9*16m Plastice Housing Square Wave Signal Gear Speed Sensor for ATV MotorcycleNegotiableMOQ: 2 Pieces
-
Manufacturer of Magnetic Gear Speed Sensor for Gear BoxNegotiableMOQ: 2 Pieces
-
ABS Plastice Housing Hall Effect Gear Speed Sensor for Motorcycle SpeedometerNegotiableMOQ: 2 Pieces
-
38*6mm Solid Shaft SSI Single Turn Hall Sensor Magnetic Rotary Absolute Encoder, 0~360 Angle DetectionUS$ 65.8 - 68.8MOQ: 1 Piece
Material
Plastic
Certification
CE
Output Signal Type
Other, NPN PNP (Pulse Signal)
Customized
Customized
IP Rating
IP67
Theory
Hall Effect
Wires
3-core
Warranty
12 Months
Model Number
XYK- S01-L11-3NF
Function
Detect RPM Of Gear Rotation

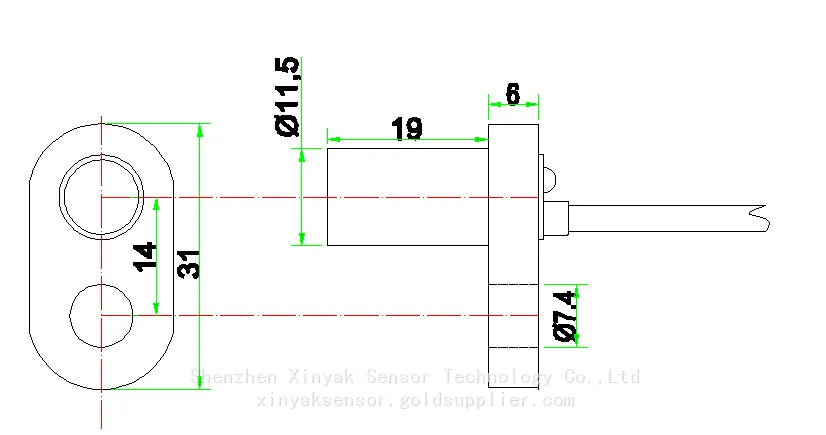

Size
M11.5*19mm
Transport Package
Standard
Specification
Standard
Trademark
Xinyake
Origin
Shenzhen China
Gear Speed Sensor
Product characteristics
* Single-circuit pulse signal output, can detect the irregular gear or rack rotation speed.
* Built-in polarity and short-circuit protection function.
* Wide temperature range.
* Good EMCanti-interference ability.
* High protection level IP67. Application: Beach cart, motorcycle odometer speed sensor
| Product Name: Speed Sensor | Output Current：20mA |
| Working voltage：DC5~24V | Output high level：>(VCC-0.5V) |
| Output method：NPN | Environment Humidity： |

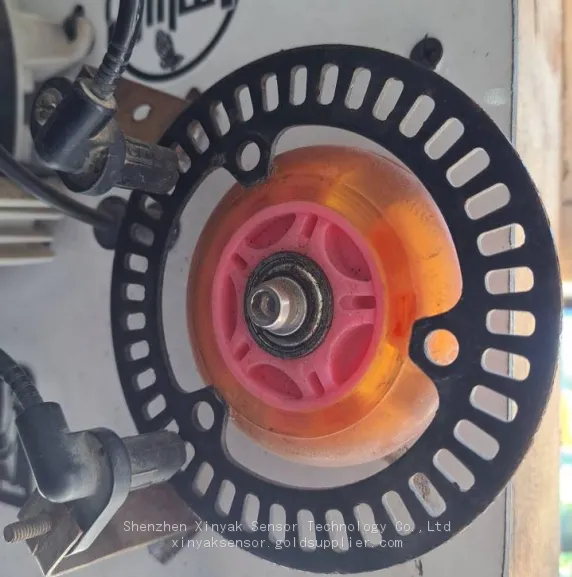

| Working temperature：-40~80℃ | Detecting Object: Steel Gear & Metal Disk Ring |
| Response frequency：0~15KHz | Size: M14.5*19mm optional |
| Humidity： | Sensing distance：0~2mm |
| Connector: Optional | Wire lead：Red-VCC Black-GND Yellow-OUTPUT (Optional) |
Note: Since we don't know the delivery address of yours, the price doesn't include the shipping cost.
Please don't hesitate to reach out for any questions.
