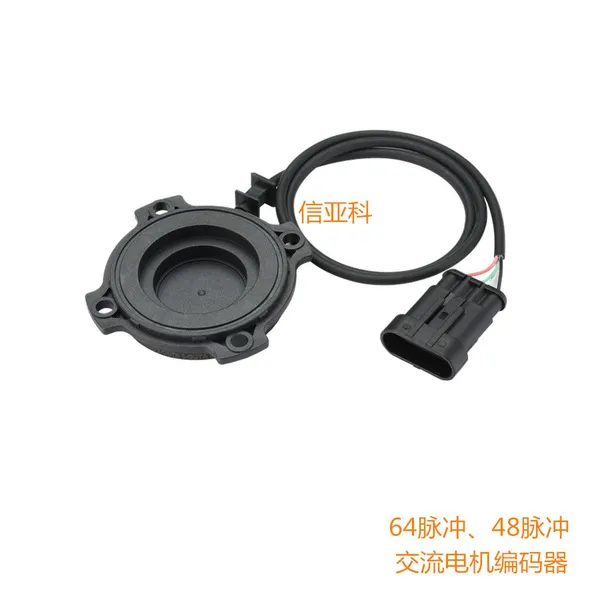

Wholesale 4 Installation Holes 64 & 48 Teeth Wheel NEV Low Speed AC Motor Encoder,Gear Speed Sensor for Forklift Parts
Product Spotlights
Low speed AC Motor encoders,Magnetic Speed Sensor widely used for 3~3.5KW Motors. Customization is supported. We have several AC Motor Encoders available for options.
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Housing material:
Plastic
Response frequency:
0~15Khz
Supply voltage:
5 ~ 24V DC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
Plastic Housing L35 L45 L39.5mm Hall Effect AC Motor Encoder, Magnetic Gear Speed Sensor for Electric Vehicle PartsUS$ 13.86 - 17.86MOQ: 2 Pieces -
Manufacturer of 4 Wires L35 L45 Hall Effect AC Motor Encoder, Speed Sensor for Forklift,Golf Cart PartsNegotiableMOQ: 2 Pieces
-
Wholesale 64-27mm NEV Low Speed AC Motor Encoder of Doosan Motor, Gear Speed Sensor for Forklift PartsNegotiableMOQ: 2 Pieces
-
Manufacturer of L35 L45mm AC Motor Encoder, Speed Direction Sensor for Forklift Parts & New Energy VehiclesNegotiableMOQ: 2 Pieces
-
Manufacturer of L35 L45 L39.5mm Low Speed AC Motor Encoder, Magnetic Gear Speed Sensor for Forklift PartsNegotiableMOQ: 2 Pieces
Housing material
Plastic
Response frequency
0~15Khz
Supply voltage
5 ~ 24V DC
Sensing Distance
0~2mm
Wire
4-core
Function
Forklift Motor Encoder
Warranty
12 Months
Pulse
64 & 48 teeth wheel
Model Number
XYK-Q01-T67-4NF (4 holes)
Theory
Hall Sensor
Our advantages: This series of products has passed CE certification ; built-in short circuit protection avoids unnecessary loss; anti-interference design signal is more stable; full seal package protection level up to IP67, waterproof, oil proof and dust proof can work in harsh environments; various sizes available; customized solutions according to customer requirements.
| Fixing gap: 0~2mm，typical fix gap 1mm | Signal output form: NPN square wave, |
| Service voltage: DC4.5~24V | Load current:Max25mA |
| AB phase-difference: 90±20 Degree | Working temperature:-40~140℃ |
| IP grade: IP67 | Connector: can be made according to your need. |
Please don't hesitate to reach out for any questions.
