Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 thumbnail-2

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 thumbnail-3

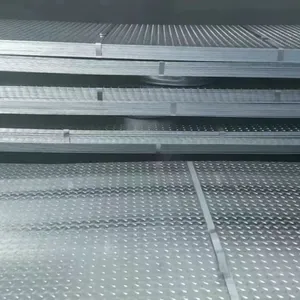

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 thumbnail-4

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 thumbnail-5

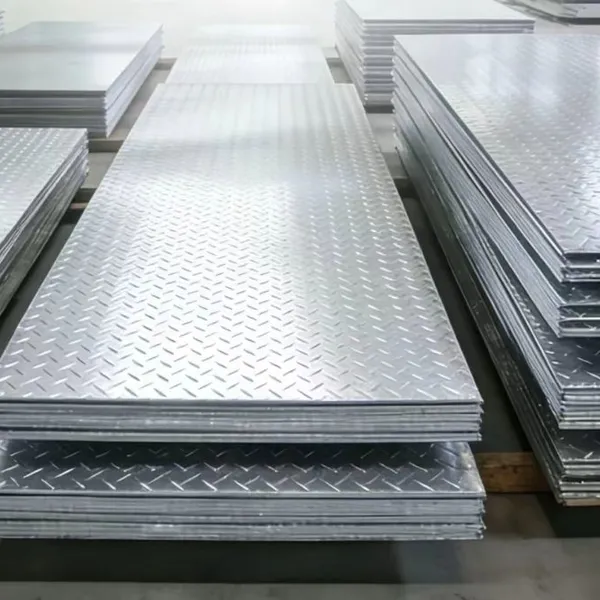

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 photo-1

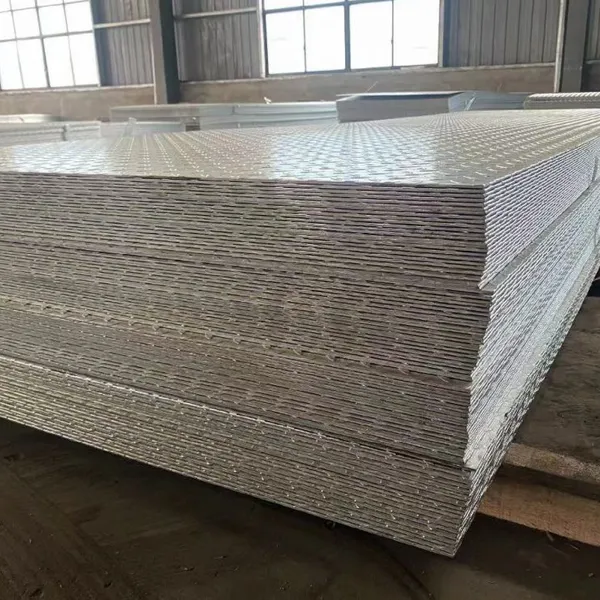

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 photo-2

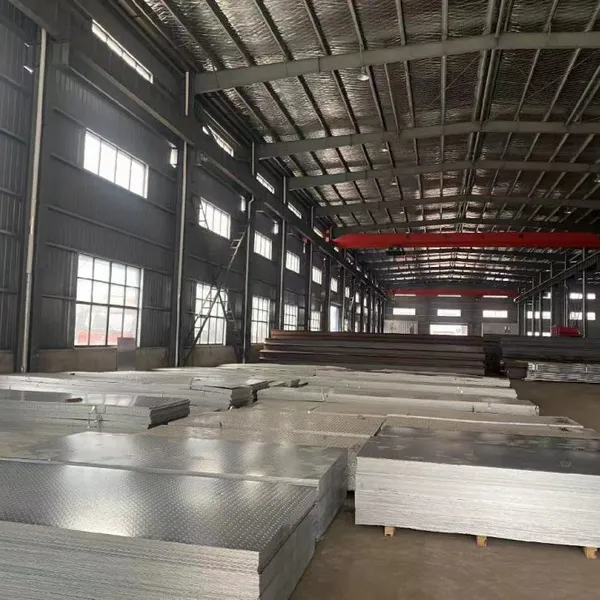

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 photo-3

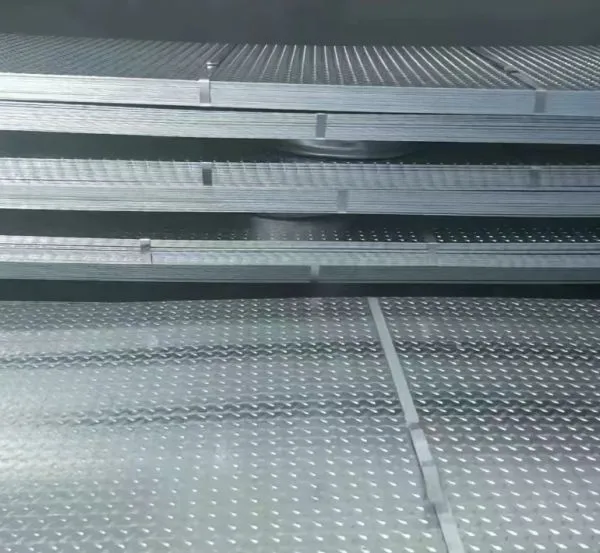

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 photo-4

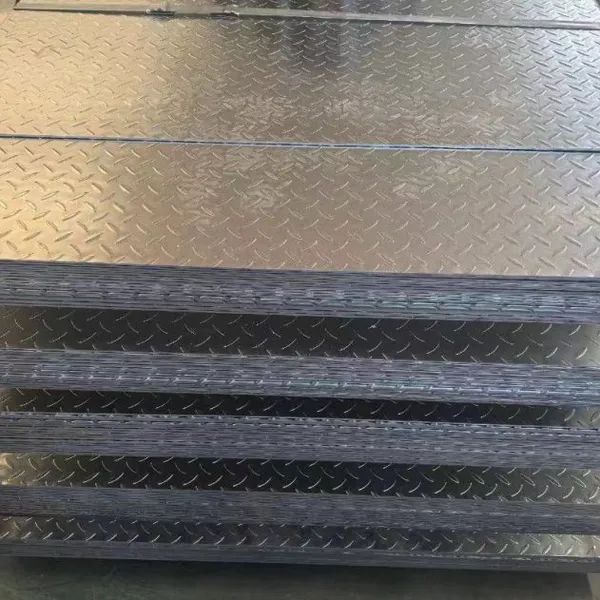

Steel Sheet & Plate & Checkered Steel Plate，GB/T 3277-2015 photo-5

Negotiable MOQ: 5 Metric Tons (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2024

Factory Size:

3,000-5,000 square meters

Contact Supplier Request Quote Chat Now

Shandong Shoukun Metal Materials Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port，Sanghai port,Tianjin port

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Chequered Plate Detailed Product Description

Chequered plate, also known as anti-slip plate or patterned steel plate, is a steel plate with regular raised patterns formed by hot rolling or stamping on the surface. It features excellent anti-slip performance, strong load-bearing capacity, good wear resistance and decorative effect, widely used in industry, construction, transportation and other fields.

1. Material & Execution Standard

Common Materials

Q235B: Ordinary carbon steel with yield strength of 235MPa, cost-effective, suitable for general anti-slip platforms, stairs and walkways.
Q355B: High-strength low-alloy steel with yield strength of 355MPa, ideal for heavy-load and high-pressure occasions such as mines, ports and heavy equipment platforms.
Galvanized & Galvalume Plate: Carbon steel base plate with hot-dip galvanized coating (Z80-Z275), outstanding rust and weather resistance, preferred for outdoor projects, ship and vehicle chassis.

Execution Standard: GB/T 3277-2015

2. Pattern Types & Characteristics

Pattern Type	Structural Feature	Friction Coefficient	Advantages	Typical Application
Diamond Pattern	Continuous rhombic protrusions	0.6-0.8	Superior anti-slip effect, uniform stress, easy to clean	Industrial platforms, stair treads, ship decks
Lentil Pattern	Elliptical strip protrusions	0.5-0.7	Comfortable walking feel, good bending resistance	Truck floor, equipment platforms, walkways
Round Bean Pattern	Round dot protrusions	0.4-0.6	Comfortable foot feel, easy cleaning, nice decoration	Mall walkways, exhibition halls, indoor decoration
Willow Leaf Pattern	Slim streamline protrusions	0.3-0.5	Good decorative property and drainage performance	Exterior wall, landscape components, door facade

3. Specification Parameters (Base plate thickness excluding pattern height)

Thickness: 2.0-12mm; Common sizes: 2.5/3.0/4.0/5.0/6.0mm; Pattern height: 0.5-2.0mm
Width: 1000/1220/1250/1500mm (customizable)
Length: 2000/2440/6000mm (fixed length cutting available)
Theoretical Weight (kg/㎡, Q235B reference)2.5mm≈20.4; 3.0mm≈24.0; 4.0mm≈32.0; 5.0mm≈40.0; 6.0mm≈48.0
Marking Example: Diamond chequered plate Q235B-4×1500×6000-GB/T 3277-2015

4. Core Performance

Anti-slip Safety: Dry surface friction coefficient ≥0.6, wet surface ≥0.4, effectively prevent slipping accidents.
High Load-bearing Capacity: Q355B can bear pressure of 2-5MPa, fit for heavy-duty platforms and forklift passages.
Durable & Wear-resistant: Patterned surface has strong wear resistance, longer service life than ordinary flat steel plates.
Good Drainage & Easy Maintenance: Pattern gaps accelerate water drainage, reduce dust accumulation, convenient for cleaning.
Beautiful Decoration: Three-dimensional pattern with elegant appearance, applicable to various architectural decoration projects.

5. Surface Treatment

Black Hot Rolled Finish: Economical choice, suitable for dry indoor use, can be painted for extra rust prevention.
Hot-dip Galvanized Finish: Zinc coating 60-275g/㎡, excellent anti-corrosion performance, perfect for outdoor, ship and vehicle use.
Spray Paint & Plastic Coating: Customizable colors, enhance anti-corrosion ability and overall appearance.

6. Application Scope

Industry: Workshop floor, equipment platform, stair tread, trench cover, mechanical pedal
Transportation & Logistics: Ship deck, truck floor, train pedal, port walkway
Construction Decoration: Industrial style stairs, exterior wall cladding, roof anti-slip layer, shopping mall floor, landscape plank road
Outdoor Engineering: Open-air walkway, factory passage, construction site anti-slip ground and other humid outdoor places

7. Processing & Installation

Cutting: Available for flame cutting, plasma cutting, laser cutting and shearing, customized size cutting is supported.
Bending: Lentil pattern and round bean pattern own good bending property; avoid bending along grain direction for diamond pattern.
Welding: Weldable with conventional carbon steel welding methods, firm and easy construction.
Installation: Available for welding fixation, bolt fastening and direct laying; reserve 3-5mm expansion joint during pavement.

8. Selection Guide

Ordinary stairs & indoor walkways: Choose Q235B, thickness 3.0-4.0mm, lentil or diamond pattern.
Heavy-duty workshop & port load-bearing platforms: Adopt Q355B high-strength steel, 5.0-6.0mm thick diamond chequered plate.
Outdoor open-air & vehicle use: Select hot-dip galvanized chequered plate for long-term anti-rust service.

9. Packaging & Delivery

Packaging: Bundled with steel strips, wrapped with moisture-proof materials, complete with product quality certificate.
Delivery Time: 5-7 days for regular specifications.

Product Tags: Cut To Length Checkered Plate , Cold Rolled Checkered Plate , Hot Rolled Checkered Plate
