Flat Steel Detailed Product Description
1. Product Definition
Flat steel is a long strip steel with rectangular cross-section and blunt edges, with width ranging from 12mm to 300mm and thickness from 3mm to 60mm. It belongs to section steel, which can be directly used as finished products, as well as raw materials for welded pipes, thin plates and mechanical processing.
2. Product Classification
1. By Production Process
Hot-rolled Flat Steel: Formed by high-temperature rolling, with black oxide surface, medium dimensional accuracy, good strength and toughness, widely used.
Cold-drawn Flat Steel: Formed by normal temperature drawing, featured with bright surface, high dimensional accuracy and strict tolerance, suitable for precision processing.
Forged Flat Steel: Shaped by forging, with dense internal structure and high strength, applied in heavy-load working conditions.
2. By Material
Carbon Structural Steel: Q235B, Q235A, Q275
High Strength Low Alloy Steel: Q345B, Q355B
High-quality Carbon Steel: 20#, 35#, 45#
3. By Usage
Ordinary structural flat steel, spring flat steel, tool flat steel, earthing flat steel for electric power and lightning protection projects.
3. Specifications and Dimensions
Common width: 12mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 75mm, 80mm, 100mm, 120mm, 150mm, 200mm, 250mm, 300mmCommon thickness: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mmConventional length: 3m, 6m, 9m, 12m, customized fixed length from 5m to 15m is available.
Marking Example: Q235B Hot Rolled Flat Steel 50×5×6000mm
Theoretical Weight Calculation Formula: Weight per meter(kg/m)=Width(mm)×Thickness(mm)×0.00785
4. Implementation Standards
GB/T 706-2016 Hot Rolled Section Steel
GB/T 700-2006 Carbon Structural Steel
GB/T 1591-2018 High Strength Low Alloy Structural Steel
YB/T 4212-2010 Hot Rolled Flat Steel
GB/T 13912-2020 Hot-dip Galvanized Layer Technical Standard
5. Production Process
Steel billet heating → Rough rolling → Finish rolling → Cooling → Straightening → Fixed-length cutting → Quality inspection → Surface treatment → Packaging and warehousing
6. Product Advantages
Complete specifications, customizable size to reduce cutting loss.
Precise dimension, neat edge, stable straightness.
Excellent mechanical property, good plasticity, toughness, cold bending and welding performance.
High material utilization rate, economical and practical.
Various surface treatments are optional to meet different usage demands.
7. Surface Treatment
Black Hot Rolled Surface: Low cost, ideal for welding structure.
Pickling & Shot Blasting: Remove oxide scale, convenient for painting and galvanizing.
Cold Drawn Bright Surface: Smooth appearance, high precision for fine processing.
Hot-dip Galvanized: Strong anti-corrosion performance, suitable for outdoor and buried engineering.
Anti-rust Oil Coating: Simple anti-rust treatment for short-term storage.
8. Main Applications
Construction steel structure: Building frames, connecting plates, stair steps, curtain wall brackets.
Machinery manufacturing: Equipment base, guide rail, support plate, stamping raw materials.
Electric power industry: Lightning protection grounding strip, engineering fixing brackets.
Hardware manufacturing: Tools, hinges, shelf accessories, fasteners.
Transportation and shipbuilding: Vehicle structural parts, ship platform accessories.
Pipeline industry: Welded pipe blanks, flange blanks and reinforcing parts.
9. Mechanical Properties (Q235B Standard)
Yield Strength ≥235MPaTensile Strength: 370-500MPaElongation ≥26%Good 180° cold bending performance

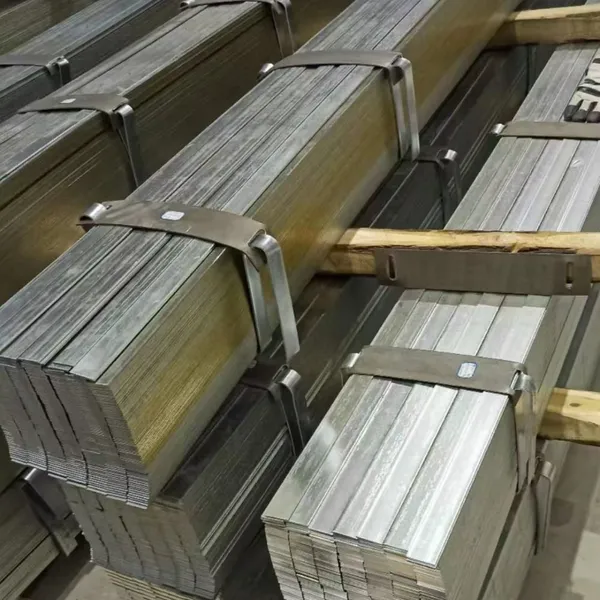

10. Packaging, Marking and Transportation
Firmly bundled in tons, labeled with material grade, specification, batch number, production standard and production date. Keep goods dry and moisture-proof during sea and land transportation.
11. Delivery Cycle
Conventional specifications: 5-7 working daysSpecial materials and customized sizes: 7-15 working days
12. Purchase Suggestions
Select Q235B for common structure, Q355B for heavy load bearing, stainless steel for anti-corrosion environment. Choose standard specifications to control cost, and provide official mill test certificate for quality verification.
