Product Introduction

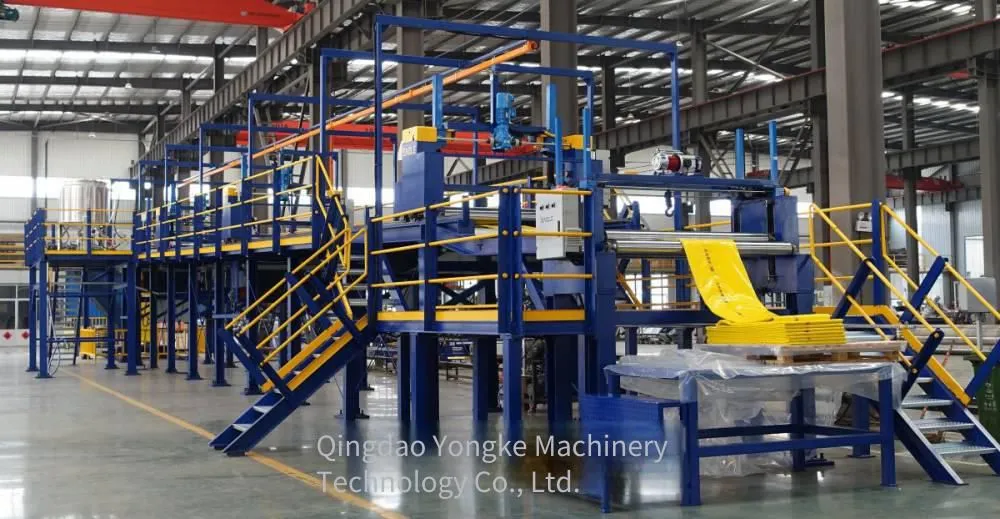

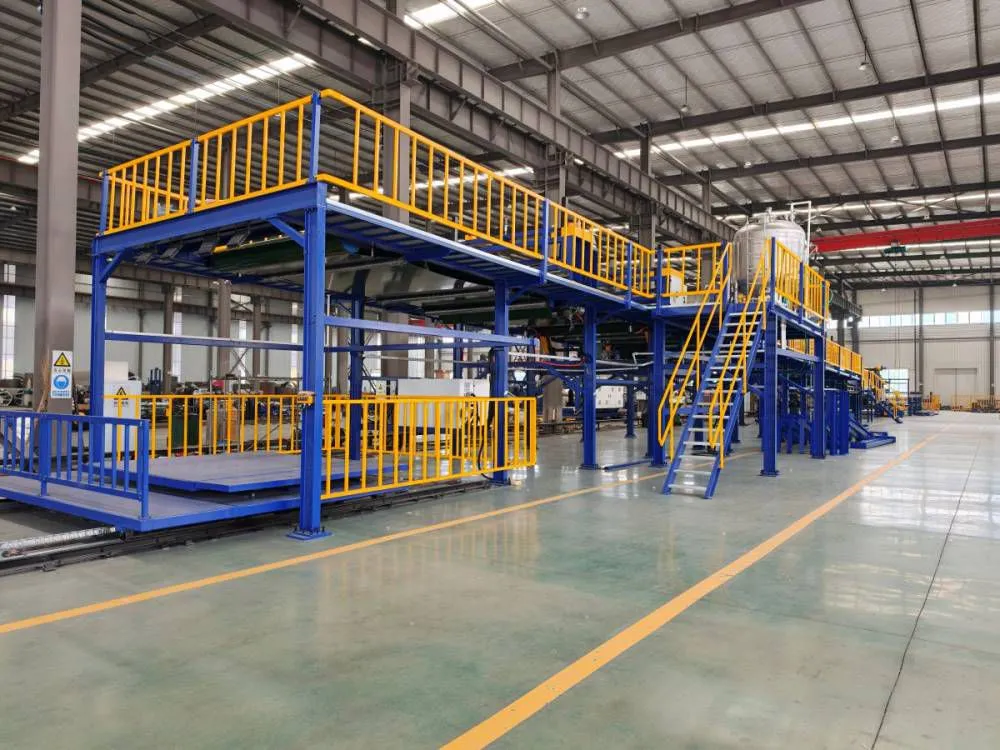

UV CIPP Lined Hose Production Line
UV CIPP Lined Hose Production Lineis a special production equipment for ultraviolet curing hoses developed based on the current domestic and international technological status, featuring high automation, high production speed, low labor intensity, and high cost - effectiveness. The production line is equipped with functions such as automatic weighing and resin mixing, high - precision hose thickness adjustment, efficient resin uniform distribution rolling, infiltration visual inspection, and automatic stacking and boxing. The production line is equipped with a professional and stable computer control system to monitor the entire production process of UV - CIPP ultraviolet curing hoses in real - time. Qingdao Yongke Machinery Technology Co., Ltd. provides design, installation, production, production technology and training for UV - CIPP ultraviolet curing hoses, and turn - key projects for later hose pipeline detection.
Introduction to UV - CIPP Ultraviolet Curing Lined Hoses

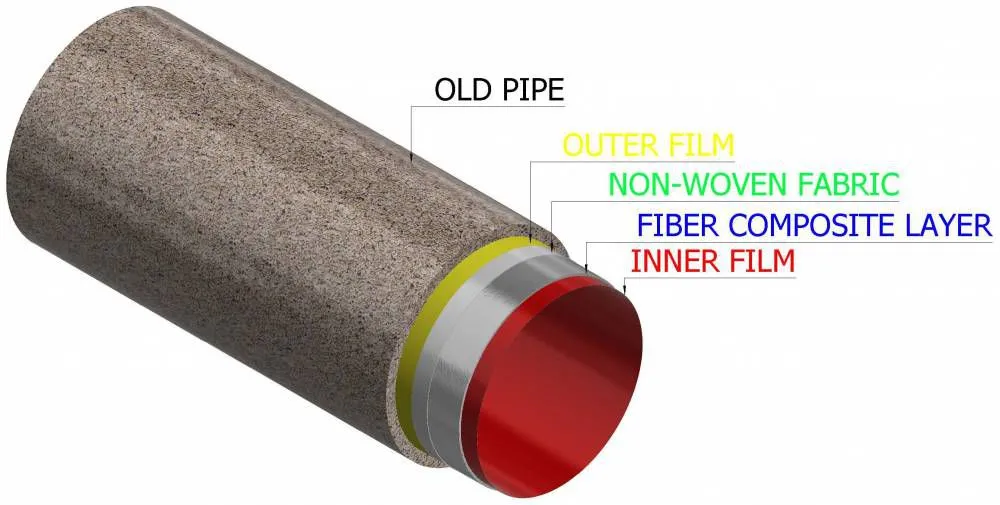

The product is made of special anti - ultraviolet outer film, anti - penetration film, high - quality glass fiber cloth, polyester resin, and transparent inner film through professional equipment and special process methods.
· Anti - ultraviolet outer film — Prevents the internal resin material from curing prematurely
· Anti - penetration film — Prevents resin from overflowing
· Main structure composite layer (glass fiber + resin) — Provides material strength
· Transparent inner membrane - Isolate resin and assist in construction
· The structure of the repaired pipeline meets or exceeds the requirements for strength, stability, and deformation
· Fast repair speed and energy - saving
· Effectively and tightly fit the original pipe wall. After repair, the pipeline is smooth, with small cross - sectional area loss; The fluid flow resistance is small
· Semi - structural and structural repairs can be carried out
· It can be applied to pipes with an arc of less than 30° for repair; It has excellent resistance to sewage corrosion
· The service life after repair can reach over 50 years

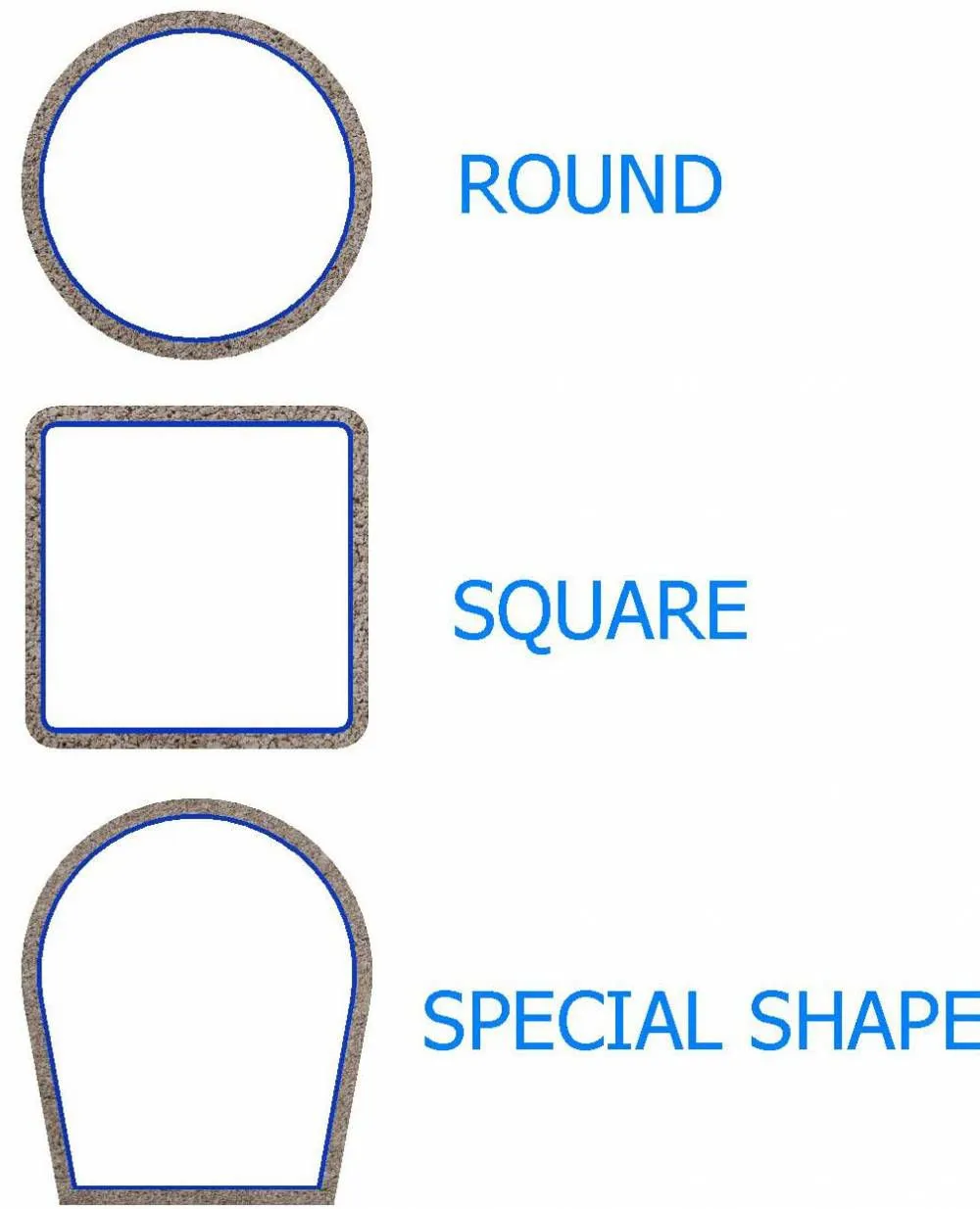

· It can repair pipes of various shapes: round, egg - shaped, square, and other special shapes
|
|
|
