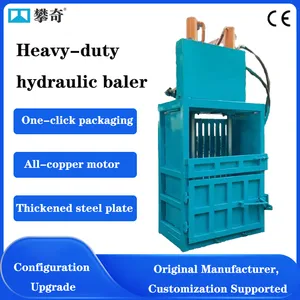

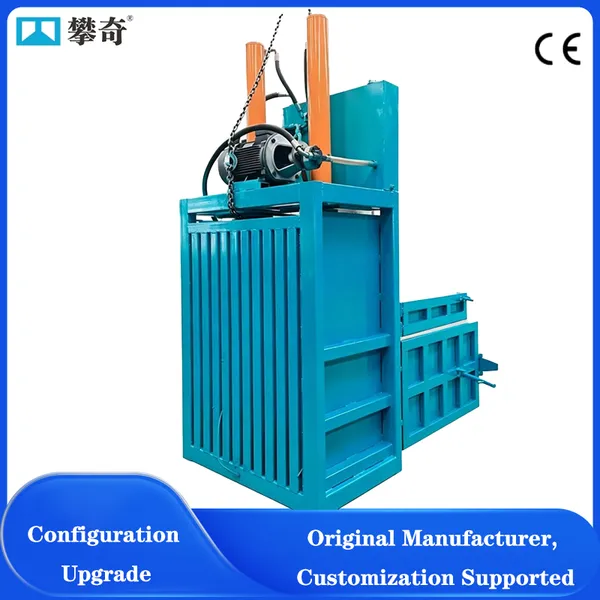

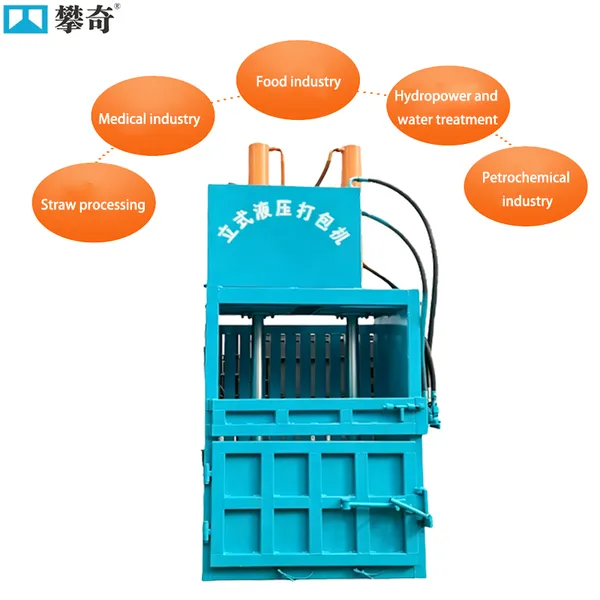

Vertical Hydraulic Baler

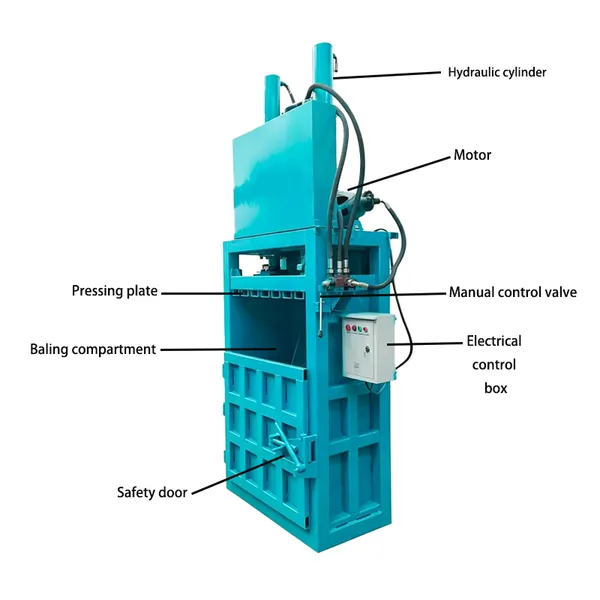

Our vertical hydraulic baler is designed for recycling various packaging materials and waste products, including waste cardboard, plastic film, waste paper, foam plastics, beverage cans, and general industrial waste. This vertical baler reduces waste storage space, saving 80% of stacking space, lowering transportation costs and contributing to environmental protection and waste recycling.
✅ Completely maintains the physical properties of the material.
✅Compacts up to a 5:1 ratio.
✅The platen automatically returns to its original position.
✅ Anti-rebound barbs maintain compression.
✅ Two lashing lanes for easy operation.
Specifications
| Model | Motor (kw) | Packing weight (kg) | Packing size (mm) | Machine size (mm) | Weight (kg) |
| 10T | 5.5 | 30-40 | 800*400*800 | 1450*650*2600 | 650 |
| 20T | 7.5 | 40-80 | 800*400*800 | 1450*650*2700 | 700 |
| 30T | 11 | 80-150 | 1000*600*800 | 1650*850*2700 | 800 |
| 40T | 11 | 150-200 | 1000*600*800 | 1650*850*2750 | 850 |
| 60T | 15 | 250-300 | 1200*800*1000 | 1600*2100*3100 | 1350 |
| 80T | 18.5 | 350-400 | 1200*800*1000 | 1700*2100*3300 | 1550 |
| 100T | 22 | 400-450 | 1200*800*1000 | 1700*2100*3900 | 1650 |
| 120T | 22 | 450-500 | 1100*700 | 1400*2000*4200 | 1750 |
(Note: We support customized bale size and automation configuration. We can provide a free exclusive selection plan according to your daily processing capacity, site size and budget.)
Fully functional and widely applicable for cans, waste cartons, straw, and textiles. Efficiently compress various waste materials into compact bales to save cost and improve recycling efficiency.
1. Usage Notes
• The equipment needs to be connected to 380V three-phase power supply, and good grounding protection must be done during installation;
• Regularly check the hydraulic oil level and cleanliness, and strictly use 46#/68# anti-wear hydraulic oil;
• Do not extend body parts into the material box during operation, and open the discharge door only after the bale is strapped;
• Regularly lubricate and maintain the equipment to extend its service life.
2. After-Sales Guarantee
• The equipment has passed comprehensive testing before delivery, supporting on-site installation, commissioning and operation training;
• Core components are provided with warranty services, wearing parts can be replaced quickly, and after-sales maintenance services are available nationwide;
• The equipment is continuously iteratively upgraded, and exclusive specifications can be customized according to customer needs.

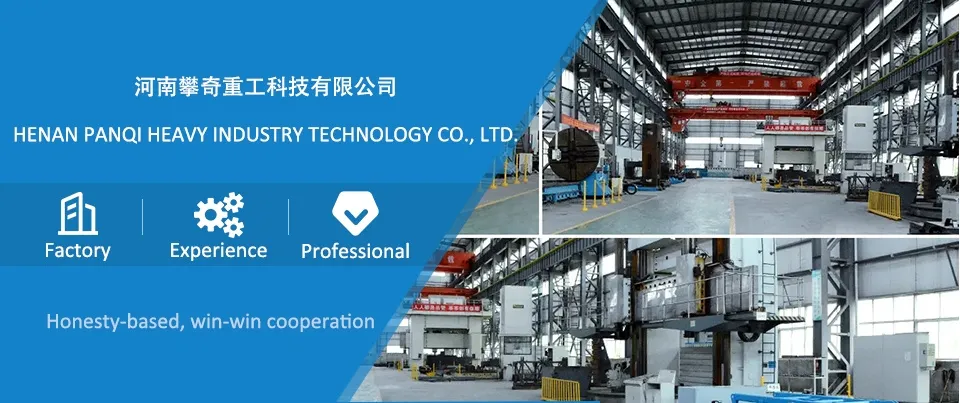

Henan Panqi Heavy Industry Technology Co., Ltd.
Henan Panqi Heavy Industry Technology Co., Ltd. is a well-known enterprise engaged in the professional production of various kinds of hydraulic machinery . Over the past decade, we have introduced advanced technology at home and abroad and have developed a series of products,such as horizontal baler,vertical baler,straw baler,silage baler,fully automatic hydraulic baler,semi-automatic hydraulic baler,waste paper baler,plastic bottles baler,industrial solid waste baler and so on.
Our products are popular with customers.Our products are complete in specification and model, and can meet the needs of different users. We are responsible for the revitalization of Chinese hydraulic machinery to cooperate wholeheartedly with the vast numbers of users.
FAQ
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer of hydraulic balers, with over 12 years of experience. We have extensive experience and professional production staff.
Q: Will the packaged bales become loose or poorly formed?
A: No, rest assured, our professional production team will tailor our equipment to your needs, ensuring this issue is never a problem. We have hundreds of successful field cases and a strong reputation.
Q: Can I request a customized bucket size?What is the device's voltage?
A: The default voltage is 380V industrial power, but the voltage can be changed to suit your needs. A diesel engine is also available.
Q: Is a factory tour possible?
A:Yes, we offer pre-order in-person visits and online video tours at any time.
Our factory is located 500 meters south of the intersection of Miaowang Road and Zhengshang Road, Xingyang City, Zhengzhou City, Henan Province.
Q: Can I customize the package size?
A: Of course, we will adjust the output package size based on your needs.
If you have any other questions, feel free to contact me.
