Product Overview
Product Description:

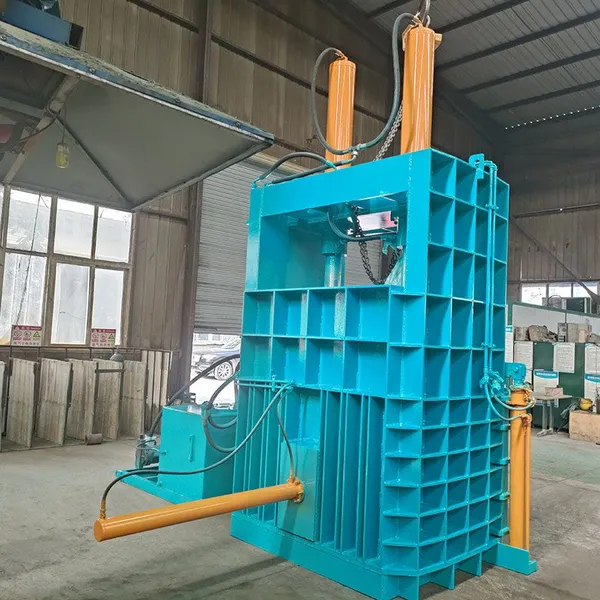

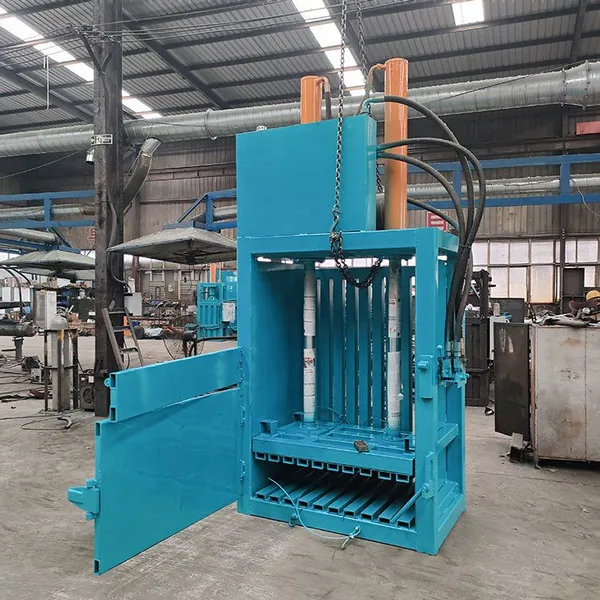

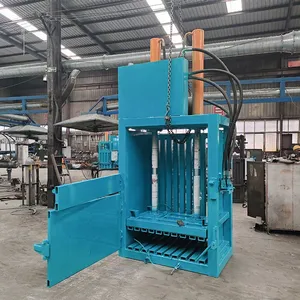

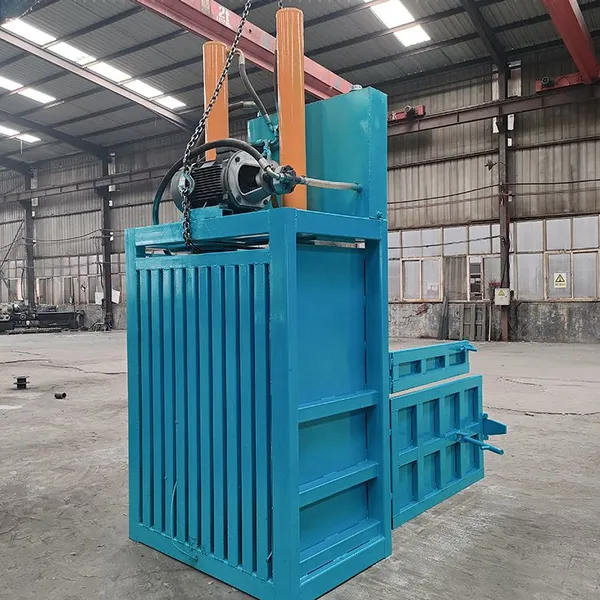

Vertical Hydraulic Baler
This 120T rated vertical hydraulic baler is a high-efficiency compression equipment designed for recycling centers, waste stations, and factory waste disposal. Equipped with dual main pressure cylinders with a rated pressure of 120 tons, it can strongly compress various loose materials such as waste paper, cardboard, textiles, plastic film, and pop cans, with a maximum compression ratio of 5:1, greatly saving storage space and transportation costs, and is the core volume reduction equipment for the recycling industry.
Core Technical Specifications
| Parameter Category | Specific Specification |
| Rated Pressure | 120 tons (2 main cylinders of 200*1350mm) |
| Hydraulic System | System rated pressure 31.5Mpa, working pressure 16-20Mpa |
| Feeding Port Size | 1200mm×650mm |
| Bale Size | 1200mm (L) × 800mm (W) × 850-1000mm (H, adjustable) |
| Equipment Dimension | 1380mm (L) × 900mm (W) × 3800mm (H) |
| Power Configuration | Main engine power 18.5KW, YCY100 oil pump, motor speed 1460 RPM |
| Hydraulic Oil Requirement | 46#/68# anti-wear hydraulic oil, tank capacity 170KG |
| Strapping Method | Fixed with 5 steel wire buckles |
| Production Efficiency | 2-3 tons/hour (affected by material density and feeding speed) |
| Operation Mode | Manual lever control, automatic stop at limit position for protection |
(Note: We support customized bale size and automation configuration. We can provide a free exclusive selection plan according to your daily processing capacity, site size and budget.)
Core Product Advantages
1. High-Efficiency Volume Reduction, Cost Reduction & Efficiency Improvement
The 120-ton high-pressure dual-cylinder design delivers high compression tightness, reducing the volume of loose materials by 70%-80%, directly cutting storage and transportation costs and increasing the sales value of recycled materials.
2. Simple Operation, Safe & Reliable
Adopting manual lever control, equipped with automatic stop at limit position and door interlock protection, it has a low operation threshold, allowing beginners to get started quickly, while fully ensuring operator safety.
3. Sturdy Structure, High Durability
The main frame is welded with thickened steel plates, and the hydraulic system has passed strict pressure tests, suitable for long-time continuous operation, with long service life and low later maintenance cost.
4. Flexible Adaptation, Strong Customization
The bale height can be flexibly adjusted according to material type and transportation needs, supporting customization of full series tonnage (10 tons to 600 tons) and bale sizes to meet personalized needs of different scenarios.
5. Wide Application, Multi-Scenario Compatibility
It can process various materials such as waste paper, cardboard, textiles, plastics, and metal scraps, suitable for full scenarios including recycling centers, factories, and logistics warehouses.

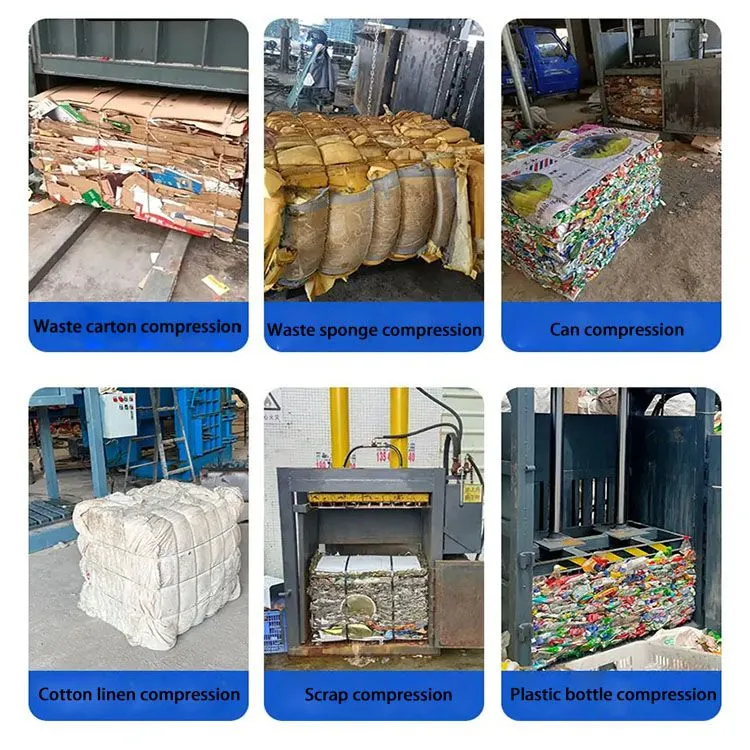

Finished Bale Display
The bales packed by this equipment are compact, regular, and uniform in size, with adjustable height, which is convenient for storage stacking and truck loading, greatly improving transportation efficiency, as well as facilitating the storage and sales of recycled materials.
Usage & After-Sales Instructions
1. Usage Notes
• The equipment needs to be connected to 380V three-phase power supply, and good grounding protection must be done during installation;
• Regularly check the hydraulic oil level and cleanliness, and strictly use 46#/68# anti-wear hydraulic oil;
• Do not extend body parts into the material box during operation, and open the discharge door only after the bale is strapped;
• Regularly lubricate and maintain the equipment to extend its service life.
2. After-Sales Guarantee
• The equipment has passed comprehensive testing before delivery, supporting on-site installation, commissioning and operation training;
• Core components are provided with warranty services, wearing parts can be replaced quickly, and after-sales maintenance services are available nationwide;
• The equipment is continuously iteratively upgraded, and exclusive specifications can be customized according to customer needs.
