Product Description:

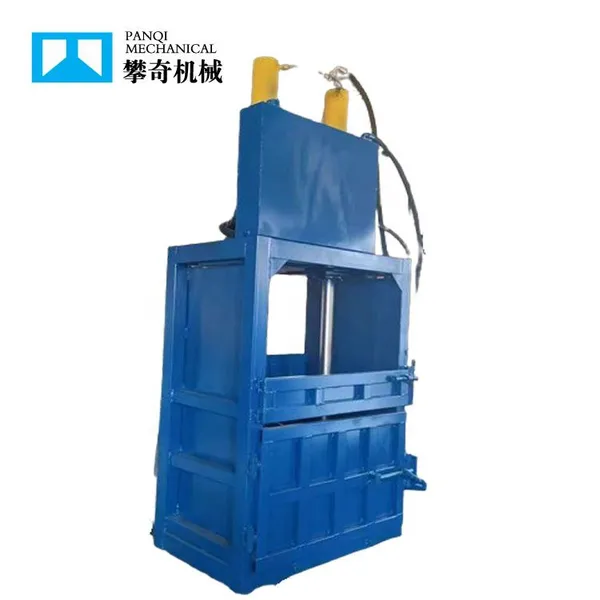

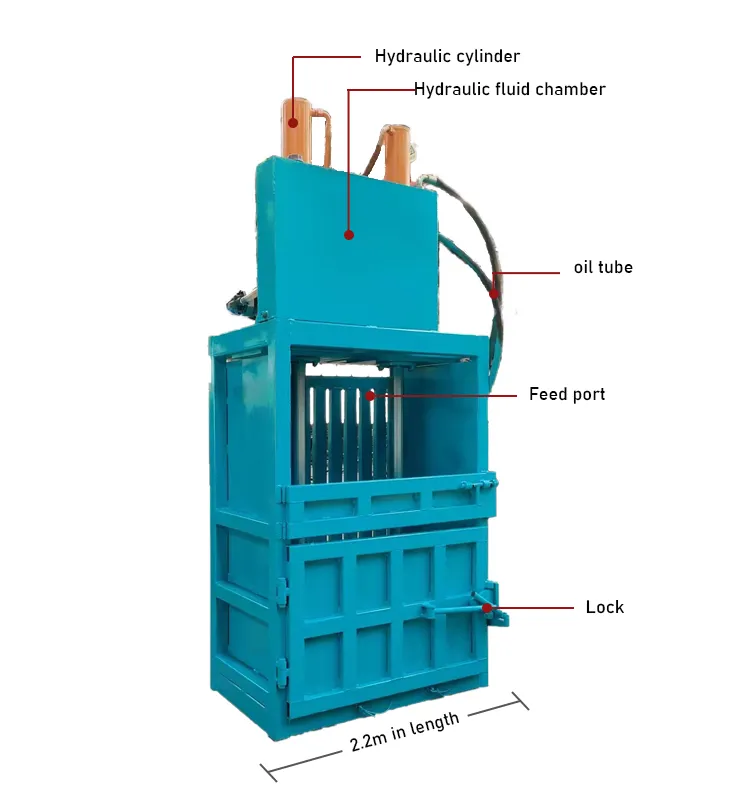

Vertical Hydraulic Baler
The Panqi 60T (Rated) Vertical Hydraulic Baler is a high-efficiency, cost-effective compression solution designed for recycling centers, textile mills, waste paper factories, and waste management facilities. It delivers stable 60-ton rated pressure to compress loose, bulky materials into dense, uniform bales, drastically reducing storage space and transportation costs.
Core Technical Specifications
| Parameter | Details |
| Product Model | Panqi 60T (Rated) Vertical Hydraulic Baler |
| Main Pressure Cylinder | 200*1200mm, 2 units, Rated 60 Tons |
| System Pressure | 31.5Mpa (Rated), 18-20Mpa (Working) |
| Feeding Port Size | 1200mm*800mm |
| Bale Size | 1200mm(L)800mm(W)850-1000mm(H) (Height Adjustable) |
| Bale Weight | Depends on Material Density |
| Main Machine Power | 15KW |
| Packing Method | 5 Strands of Steel Wire Buckle / Golden Rope |
| Working Mode | Manual Lever Control |
| Production Efficiency | 1-2 Tons/Hour (Approx., depends on material density & feeding speed) |
| Oil Pump Model | MCY-80 |
| Motor Rated Speed | 1460 rpm |
| Hydraulic Oil | 46# / 68# Anti-wear Hydraulic Oil |
| Oil Tank Capacity | 100L |
| Overall Dimensions | 1600mm(L)1200mm(W)3200mm(H) |
(Note: We support customized bale size and automation configuration. We can provide a free exclusive selection plan according to your daily processing capacity, site size and budget.)
Core Product Advantages
✅ Powerful & Efficient Compression
Equipped with 2 main pressure cylinders (200*1200mm), the machine provides a rated system pressure of 31.5Mpa and a working pressure of 18-20Mpa, achieving a high compression ratio for various materials.
✅ Large Capacity & Flexible Forming
1200mm800mm feeding port, with adjustable bale height (850-1000mm), suitable for different material densities and packaging requirements.
✅ Easy Operation & Low Maintenance
Manual lever control for simple operation, low failure rate, and easy daily maintenance, ideal for small to medium-sized production sites.
✅ Durable Structure & Long Service Life
Robust steel frame construction, 15KW high-power motor, and 100L large-capacity oil tank ensure stable long-term operation under heavy load.
✅ Wide Application Range

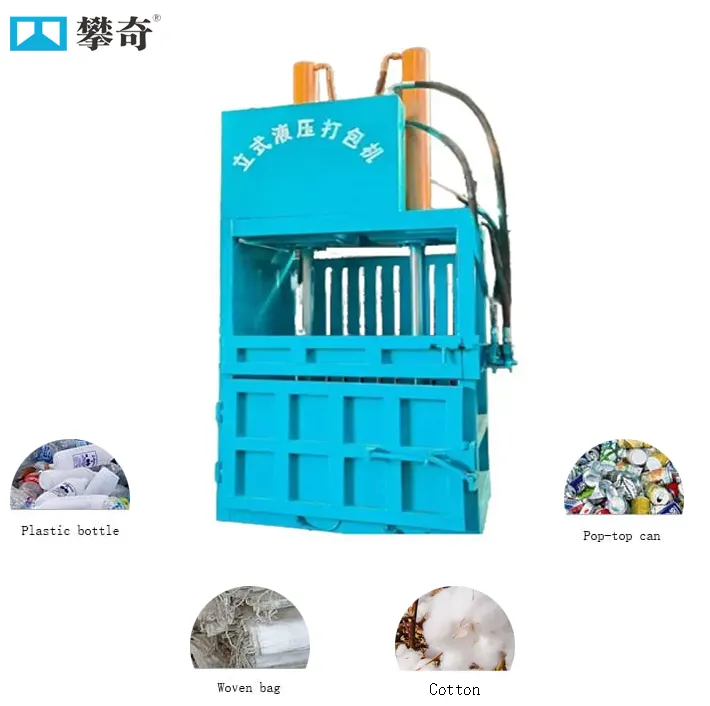

Suitable for compressing waste paper, cartons, cotton, textiles, old clothes, plastic films, and other loose materials.

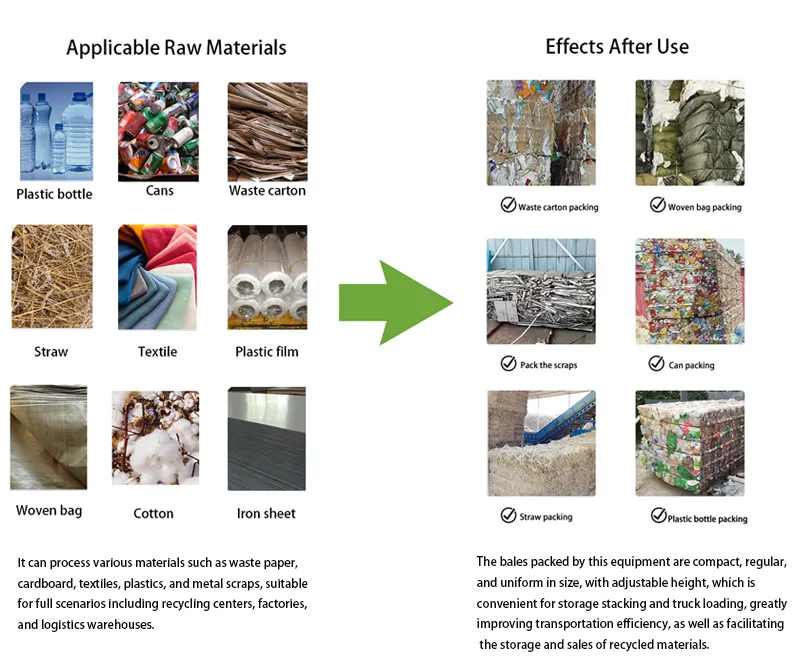

Applicable Raw Materials & Effects After Use
The bales packed by this equipment are compact, regular, and uniform in size, with adjustable height, which is convenient for storage stacking and truck loading, greatly improving transportation efficiency, as well as facilitating the storage and sales of recycled materials.
Usage & After-Sales Instructions
1. Usage Notes
• The equipment needs to be connected to 380V three-phase power supply, and good grounding protection must be done during installation;
• Regularly check the hydraulic oil level and cleanliness, and strictly use 46#/68# anti-wear hydraulic oil;
• Do not extend body parts into the material box during operation, and open the discharge door only after the bale is strapped;
• Regularly lubricate and maintain the equipment to extend its service life.
2. After-Sales Guarantee
• The equipment has passed comprehensive testing before delivery, supporting on-site installation, commissioning and operation training;
• Core components are provided with warranty services, wearing parts can be replaced quickly, and after-sales maintenance services are available nationwide;
• The equipment is continuously iteratively upgraded, and exclusive specifications can be customized according to customer needs.
