Help CenterHirose DF36 40Pin 0.4mm Pitch Coaxial Harness for Industrial Displays
Product Spotlights
Related Products
-
Custom Multi-Head Ultra-Fine Coaxial Cable With DF56 & DF36 ConnectorsNegotiableMOQ: 1000 Pieces -
9Pin/15Pin Serial Port to Dupont Connector Debug WireNegotiableMOQ: 1000 Pieces
-
PH2.0 8Pin Terminal to RJ45 Ethernet Patch CableNegotiableMOQ: 1000 Pieces
-
Blue-White Twisted Pair FX15S LVDS Cable for LCD/LED PanelsNegotiableMOQ: 1000 Pieces
-
68Pin High-Density IDC Flat Cable for Industrial ControlNegotiableMOQ: 1000 Pieces

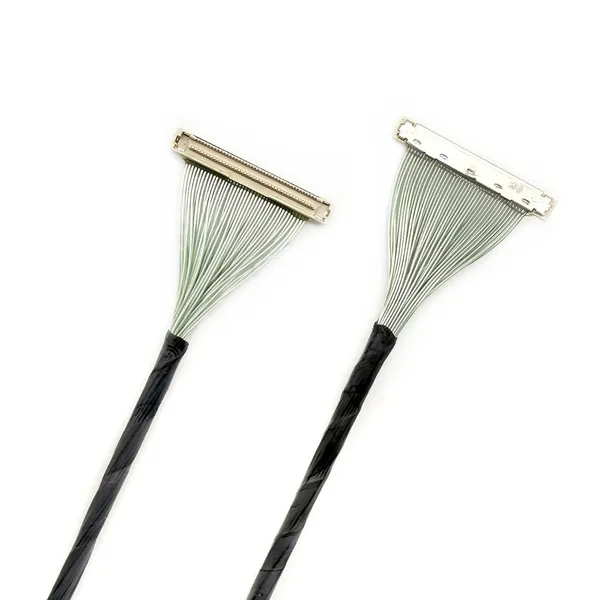

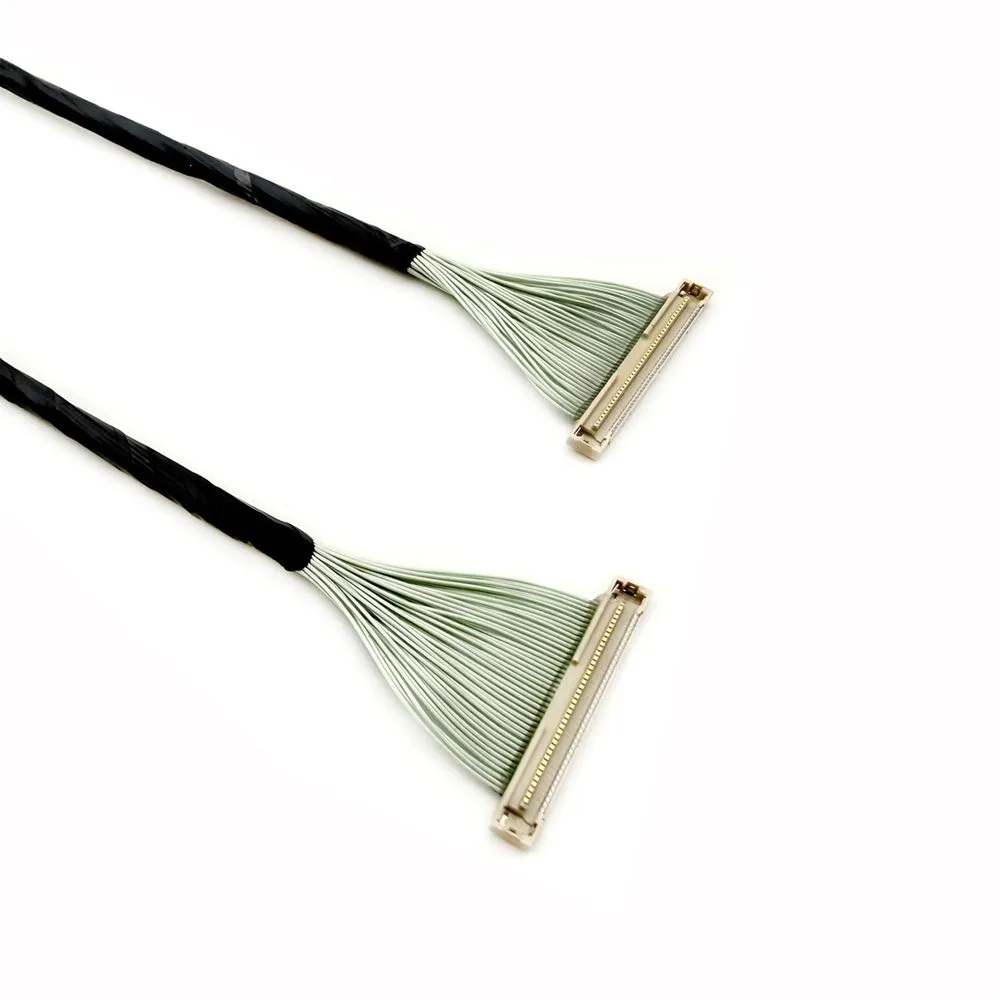

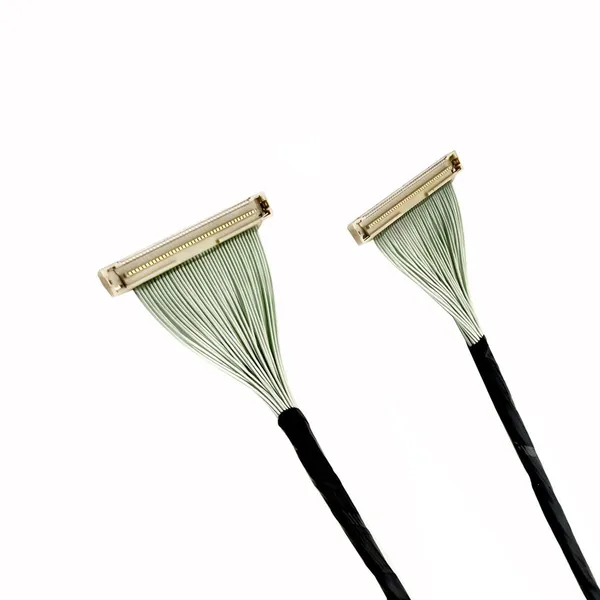

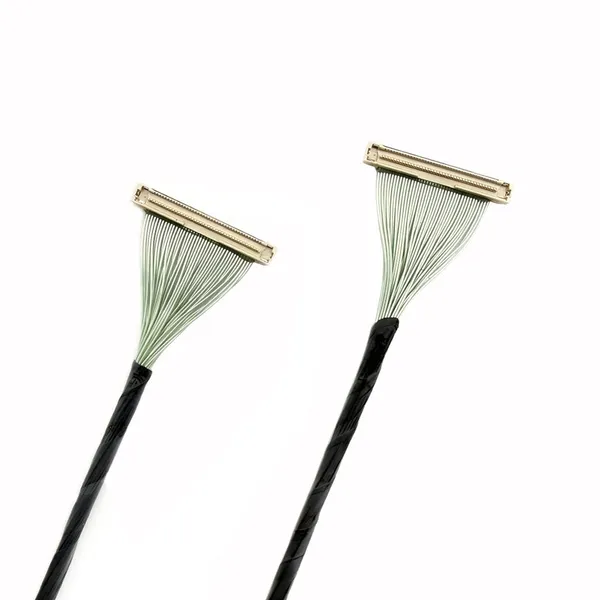

This high-performance ultra-fine coaxial cable uses the Hirose (HRS) DF36-40P-0.4SD connector from the DF36 series, featuring an ultra-fine 0.4mm pitch, 40Pin dual-end design, purpose-built for high-speed signal transmission in drone gimbals, industrial cameras, and high-definition displays.
The DF36 series connector is engineered for ultra-high-density, space-constrained applications, with gold-plated contacts ensuring stable high-speed signal transmission and minimal EMI interference. The ultra-fine coaxial wires provide excellent shielding performance, reducing crosstalk and signal loss at high frequencies, making them ideal for drone camera gimbals, 4K/8K displays, and high-resolution imaging systems. The black braided outer jacket protects the wires, reduces electromagnetic interference, and enhances durability in vibration-prone environments.
This cable supports both co-planar and offset (staggered) termination configurations to suit different device layouts. Fully RoHS compliant, it supports custom wire length, pin count, and termination configurations to meet specific application requirements. Widely used in drone gimbals, industrial cameras, laptop screens, and embedded vision systems.
