Detailed Product Description of Angle Steel
1. Product Overview

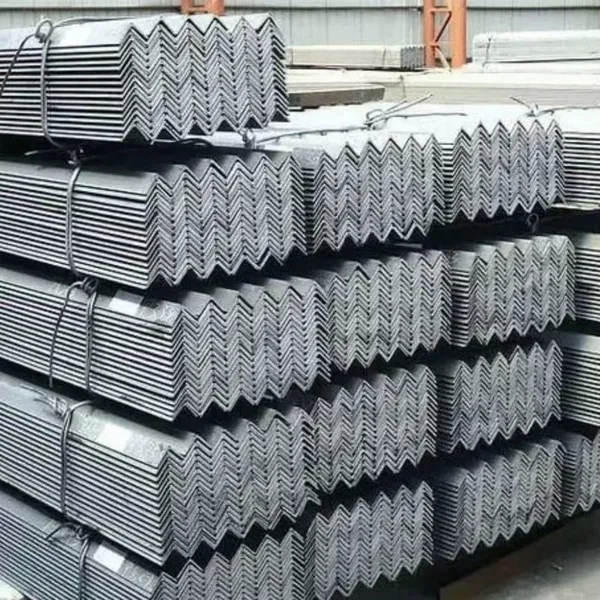

Angle steel, commonly known as angle iron, is a long steel section with a cross-section formed by two sides perpendicular to each other at 90 degrees. It is mainly divided into Equal Angle Steel and Unequal Angle Steel. It is one of the most widely used profiles in building steel structures, support frames, equipment bases, storage shelves and curtain wall projects. It features good material toughness, easy cutting, welding, punching and installation, with extensive applications and high cost performance.
2. Product Classification
Equal Angle SteelBoth sides have the same width. Specifications are expressed as side width × side thickness, such as 50×5, 63×6, 75×7. It has the strongest versatility, widely used in factory supports, steel structure frames, fences and storage shelves.
Unequal Angle SteelThe two sides have different widths, such as 63×40×5, 80×50×6. It is suitable for asymmetric stress structures, mechanical equipment bases and bridge auxiliary components.
By Production Process
Hot rolled angle steel: standard national specification, regular dimension and stable material, commonly used in engineering.
Cold rolled / punched angle steel: mainly used for storage shelves, photovoltaic supports and finished accessories.
Galvanized angle steel: pickled and hot-dip galvanized from black steel, with rust and corrosion resistance, specially used for outdoor, curtain wall and power engineering.
3. Implementation Standard
National standard: GB/T 706-2016 Hot Rolled Steel SectionsGalvanizing standard: GB/T 13912 Technical Requirements for Hot-Dip Galvanized Coatings on Metals
4. Common Material Grade
Q235B: Ordinary carbon structural steel with good toughness and weldability, commonly used in civil buildings, factory buildings and general supports.
Q355B: Low-alloy high-strength steel with high bearing capacity and strong impact resistance, applied to large steel structures, heavy industry equipment and bridge engineering.Available surface treatments: raw black steel, hot-dip galvanized and painted.
5. Specification Representation
Equal Angle Steel: Side Width × Side ThicknessExamples: 40×4, 50×5, 63×6, 70×7, 80×8, 100×10
Unequal Angle Steel: Long Side Width × Short Side Width × Side ThicknessExamples: 56×36×5, 70×45×6
6. Product Features
Stable structure with uniform stress at 90° right angle and excellent bearing performance.
Easy for cutting, welding, bending and punching, convenient for on-site construction.
Complete specifications and sufficient stock; fixed lengths of 6m, 9m and 12m are available.
Strong adhesion of hot-dip galvanized layer, good rust and corrosion resistance, long service life for outdoor use.
Moderate self-weight and low cost, saving overall project investment.
7. Main Application Fields
Construction Engineering: factory steel structure, beam and column bracing, wall frame, curtain wall keel.
Municipal Engineering: guardrail, fence, street lamp base, steel structure support.
Electric Power & Communication: cross arm of iron tower, power support, line fixing accessories.
Mechanical Equipment: equipment base, machine frame and cabinet frame.
Warehousing & Logistics: shelf column, layer support and storage frame.
Photovoltaic Engineering: photovoltaic support and foundation connecting parts.
8. Packaging & Delivery
Standard fixed length: 6 meters per piece, bundled with steel strips.Marked with specification, material grade and heat number at the end; supplied with factory mill test certificate.Delivery cycle: 5-7 days.
9. Quality Assurance
Products are manufactured strictly in accordance with national standards. Dimensional tolerance, mechanical properties and chemical composition all meet standard requirements. Third-party inspection is acceptable. Material certificate and factory qualification certificate can be provided.
