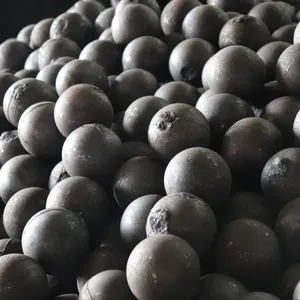

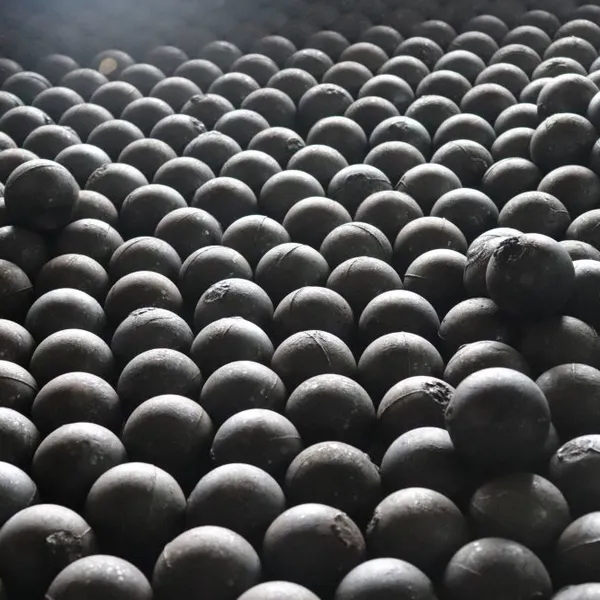

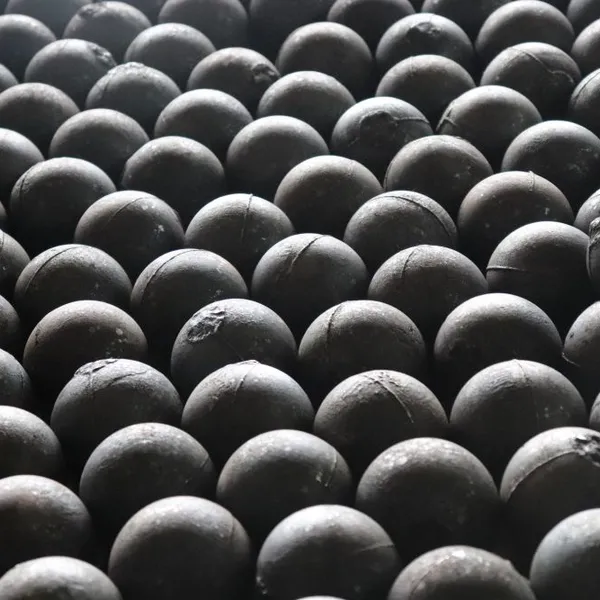

Ultra High Chrome Cast Grinding Balls Cr 20%-36% Extreme Hardness 60-65HRC Low Breakage For Ball Mill Mining
Product Spotlights
Ultra-high chrome cast grinding balls, Cr 20%-30%. Hardness 60-65 HRC, impact ≥2.5 J/cm², breakage ≤0.5%. Advanced heat treatment for maximum wear resistance. Ideal for highly abrasive ores and SAG mills. ISO certified.
US$ 600 - 1200
MOQ: 34 Metric Tons
Key Specifications
Get Latest Price
Material:
Iron
Type:
Grinding Ball
Application:
Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Customized Cast Grinding Balls Any Size Cr 1%-30% High Hardness Low Breakage For Ball Mill SAG Mill MiningUS$ 600 - 1200MOQ: 34 Metric Tons -
Chromium Alloy Cast Grinding Balls Full Range Cr 1%-30% High Hardness Low Breakage For Mining Cement Ball MillUS$ 600 - 2000MOQ: 34 Metric Tons
-
Chromium Alloy Cast Grinding Media Cr 1%-30% High Hardness 45-72HRC Low Breakage For Mineral ProcessingUS$ 600 - 2000MOQ: 34 Metric Tons
-
China Factory Direct High Chrome Cast Grinding Balls Cr 10%-30% Low Breakage For Mining Cement Ball MillUS$ 600 - 2000MOQ: 34 Metric Tons
-
High Chrome Cast Grinding Balls Cr 10%-30% Ultra Hardness 58-65HRC Extremely Low Breakage For Hard Rock MiningUS$ 600 - 2000MOQ: 27 Metric Tons
Material
Iron
Type
Grinding Ball
Application
Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, Other
Standard
GB, ASTM, AISI, Other, ISO9001, ISO14001, ISO45001
Cr Content
20%-30%
C Content
2.5%-3.5%
Diameter
φ20-100mm
Surface Hardness
60-65 HRC
Core Hardness
≥58 HRC
Impact Value
≥2.5 J/cm²
Breakage Rate
≤1.0%
Heat Treatment
Oil Quenching + Tempering
Microstructure
Martensite + Carbide
Certification
ISO9001, ISO14001, ISO45001
Transport Package
Steel Drum / Ton Bag
Specification
Dia φ20-100mm; Hardness 60-65 HRC; Cr 20%-30%
Trademark
Ninghua Feng
Origin
Ningguo City, Anhui, China
Ultra-High Chrome Cast Grinding Balls – Extreme Hardness for Highly Abrasive Ores
Product Description
Ningguo Huafeng supplies ultra-high chrome cast grinding balls with chromium content from 20% to 30%, achieving surface hardness up to 65 HRC. These balls are designed for the most demanding grinding conditions, including SAG mills processing highly abrasive ores.
Key Technical Parameters
- Diameter: φ20mm – φ100mm
- Surface Hardness: 60 – 65 HRC
- Core Hardness: ≥58 HRC
- Impact Value: ≥2.5 J/cm²
- Breakage Rate: ≤0.5%
- Chromium Content: 20% – 30%
- Heat Treatment: Oil Quenching + Tempering
- Microstructure: Martensite + M7C3 Carbide
Applications
SAG mills, highly abrasive iron ore, copper ore, gold ore, and other hard rock mining.
Contact us for a quote.
