GB/T 5310 Seamless Steel Tubes and Pipes
For High Pressure Boiler – Current Standard: GB/T 5310-2023
Grades 20G, 25MnG, 15MoG, 15CrMoG, 12Cr2MoG, 12Cr1MoVG
Hot rolled, Cold drawn, or Hot expanded – Heat treated condition
Product Overview
GB/T 5310 is the Chinese national standard for seamless steel tubes and pipes used in the manufacture of high pressure boilers and high temperature pressure equipment. These tubes are specifically designed for service where temperatures reach 450°C to 650°C and working pressures exceed 9.8 MPa.
Key applications include:
Superheater tubes
Reheater tubes
Economizer tubes
Water wall tubes
Boiler headers and steam pipelines
Standard Update – Important:
Previous standard: GB/T 5310-2017 (effective 2018-09-01, expired 2024-04-01)
Current standard: GB/T 5310-2023 (effective 2024-04-01)
Key change: Hot expansion process now fully recognized in the seamless tube manufacturing system
Available Grades:
Carbon steel: 20G (most popular), 25MnG
Molybdenum alloy: 15MoG
Chrome-molybdenum alloy: 15CrMoG, 12Cr2MoG, 12Cr1MoVG
✅ GB/T 5310-2023 compliant – Current standard (effective April 1, 2024)
✅ High pressure capability – Working pressure >9.8 MPa
✅ High temperature service – Up to 650°C
✅ Seamless construction – No weld seam – pressure integrity assured
✅ Multiple manufacturing methods – Hot rolled, cold drawn, or hot expanded
✅ Heat treated – Normalized, normalized + tempered, or quenched + tempered
✅ 100% hydrostatic tested – Guaranteed pressure integrity
✅ EN 10204 Type 3.1 MTC provided with full traceability
✅ Factory direct | Stock available | Fast delivery
Key Specifications
| Parameter | Details |
|---|---|
| Standard | GB/T 5310-2023 (supersedes GB/T 5310-2017) |
| Product Type | Seamless Steel Tube and Pipe for High Pressure Boiler |
| Steel Grades | 20G, 25MnG, 15MoG, 15CrMoG, 12Cr2MoG, 12Cr1MoVG |
| Manufacturing Methods | Hot rolled, Cold drawn (rolled), Hot expanded |
| OD Range (Hot rolled) | 22mm – 530mm |
| OD Range (Cold drawn) | 10mm – 108mm |
| OD Range (Hot expanded) | Up to 820mm (by agreement) |
| Wall Thickness (Hot rolled) | 2.0mm – 70mm |
| Wall Thickness (Cold drawn) | 2.0mm – 13.0mm |
| Length | 4m – 12m (fixed or random) |
| Delivery Condition | Normalized, normalized + tempered, quenched + tempered |
| Surface Finish | Black / Bare / Oiled |
| End Finish | Plain / Beveled |
Steel Grade Overview
| Grade | Type | Max Temp (°C) | Yield Strength (MPa) | Tensile (MPa) | Typical Application |
|---|---|---|---|---|---|
| 20G | Carbon steel | 450 | ≥245 | 410-550 | Economizer, water wall, low temp superheater |
| 25MnG | Carbon steel (Mn) | 450 | ≥240 | ≥415 | Higher strength carbon boiler tubes |
| 15MoG | Mo-alloy | 500 | ≥270 | 450-600 | Medium temperature service |
| 15CrMoG | 1Cr-0.5Mo | 550 | ≥235 | 440-640 | High temperature superheater |
| 12Cr2MoG | 2.25Cr-1Mo | 550 | ≥280 | 450-600 | High pressure, high temperature |
| 12Cr1MoVG | 1Cr-1Mo-V | 580 | ≥255 | 470-640 | Advanced high temperature |
💡 20G is the most popular grade – widely used for general high pressure boiler service.
Chemical Composition – GB/T 5310 Grades
| Grade | C (%) | Mn (%) | Si (%) | Cr (%) | Mo (%) | V (%) | P,S max |
|---|---|---|---|---|---|---|---|
| 20G | 0.17-0.24 | 0.35-0.65 | 0.17-0.37 | — | — | — | 0.030 |
| 25MnG | 0.22-0.30 | 0.70-1.00 | 0.17-0.37 | — | — | — | 0.030 |
| 15MoG | 0.12-0.20 | 0.40-0.80 | 0.17-0.37 | — | 0.25-0.35 | — | 0.030 |
| 15CrMoG | 0.12-0.18 | 0.40-0.70 | 0.17-0.37 | 0.80-1.10 | 0.40-0.55 | — | 0.030 |
| 12Cr2MoG | 0.08-0.15 | 0.40-0.70 | ≤0.50 | 2.00-2.50 | 0.90-1.20 | — | 0.030 |
| 12Cr1MoVG | 0.08-0.15 | 0.40-0.70 | 0.17-0.37 | 0.90-1.20 | 0.25-0.35 | 0.15-0.30 | 0.030 |
💡 Low phosphorus and sulfur (≤0.030%) ensures excellent toughness and weldability.
Mechanical Properties – GB/T 5310 Grades
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) min | Elongation (%) min |
|---|---|---|---|
| 20G | 410 – 550 | ≥245 | ≥24 |
| 25MnG | ≥415 | ≥240 | ≥22 |
| 15MoG | 450 – 600 | ≥270 | ≥22 |
| 15CrMoG | 440 – 640 | ≥235 | ≥21 |
| 12Cr2MoG | 450 – 600 | ≥280 | ≥20 |
| 12Cr1MoVG | 470 – 640 | ≥255 | ≥21 |
💡 20G offers excellent balance of strength (≥245 MPa yield) and ductility (≥24% elongation) – the workhorse grade for high pressure boilers.
Grade Selection Guide – High Pressure Boiler Application
| Boiler Section | Operating Temp | Recommended Grade | Key Property |
|---|---|---|---|
| Economizer | ≤400°C | 20G | Corrosion resistance |
| Water Wall | ≤400°C | 20G | Thermal fatigue resistance |
| Low Temp Superheater | ≤450°C | 20G | Creep strength |
| Medium Temp Superheater | 450-500°C | 15MoG | Mo-alloy creep resistance |
| High Temp Superheater | 500-550°C | 15CrMoG | Cr-Mo oxidation resistance |
| Reheater | 550-580°C | 12Cr1MoVG | V-alloy high temp strength |
| High Pressure Header | ≤550°C | 12Cr2MoG | Heavy wall capability |
💡 20G is suitable for temperatures up to 450°C. For service above 450°C, alloy grades (15CrMoG, 12Cr1MoVG) must be used.
Manufacturing Methods – GB/T 5310-2023
| Method | Description | OD Range | Typical Applications |
|---|---|---|---|
| Hot rolled | Rolled at high temperature | 22-530mm | Standard boiler tubes |
| Cold drawn (rolled) | Cold worked for precision | 10-108mm | Small diameter, precision tubes |
| Hot expanded | Expanded by heating | Up to 820mm | Large diameter boiler components |
💡 The 2023 standard officially recognizes hot expansion as a seamless tube manufacturing method.
Applications – High Pressure Boiler Tubes
| Industry | Application | Recommended Grade | Service Temp/Pressure |
|---|---|---|---|
| Power Generation | Superheater tubes | 15CrMoG, 12Cr1MoVG | 450-580°C |
| Power Generation | Reheater tubes | 15CrMoG, 12Cr1MoVG | 450-580°C |
| Power Generation | Economizer tubes | 20G | ≤400°C |
| Power Generation | Water wall tubes | 20G | ≤400°C |
| Power Generation | Boiler headers | 12Cr2MoG, 12Cr1MoVG | High pressure |
| Industrial Boilers | Steam boiler tubes | 20G | 450°C |
| HRSG | Heat recovery tubes | 15CrMoG | 500°C |
| Petrochemical | High temp transfer lines | 12Cr1MoVG | Up to 580°C |
💡 Working conditions: Temperature 450-650°C, pressure >9.8 MPa.
Quality Testing & Inspection – GB/T 5310
| Test | Method | Coverage | Requirement |
|---|---|---|---|
| Hydrostatic Test | Water pressure | 100% | Each tube |
| Ultrasonic Testing (UT) | Non-destructive | 100% | Optional/by agreement |
| Eddy Current Testing (ET) | Non-destructive | 100% | Optional/by agreement |
| Tensile Test | EN ISO 6892-1 | Per lot | All grades |
| High Temperature Creep Test | GB/T standard | Per lot | For alloy grades |
| Flattening Test | Ductility | Per lot | All grades |
| Flaring Test | Tube end expansion | Per lot | All grades |
| Intergranular Corrosion Test | For stainless | As required | For stainless grades |
| Microstructure Examination | Metallographic | Per lot | Grain size, decarburization |
| Dimensional Inspection | Micrometer | 100% | Standard |
💡 100% hydrostatic testing is mandatory for all high pressure boiler tubes.
Heat Treatment Requirements – GB/T 5310
| Grade | Required Heat Treatment | Purpose |
|---|---|---|
| 20G, 25MnG | Normalized | Uniform grain structure, good strength |
| 15MoG, 15CrMoG | Normalized + Tempered | Improved toughness |
| 12Cr2MoG | Normalized + Tempered | High temperature strength |
| 12Cr1MoVG | Normalized + Tempered | Creep resistance at high temp |
💡 Microstructure and grain size requirements are specified – fine grain structure (≥5) is required for all grades.
Available Sizes – GB/T 5310 Boiler Tubes
Hot Rolled Tubes:
| OD (mm) | WT Range (mm) | Typical Grade | Application |
|---|---|---|---|
| 22 – 60 | 2.0 – 8.0 | 20G | Small boiler tubes |
| 60 – 114 | 3.0 – 12.0 | 20G, 15CrMoG | General boiler |
| 114 – 219 | 5.0 – 20.0 | 20G, 12Cr1MoVG | Main steam – most common |
| 219 – 325 | 6.0 – 30.0 | 12Cr1MoVG, 12Cr2MoG | Headers, large tubes |
| 325 – 426 | 8.0 – 40.0 | 12Cr2MoG | Superlarge headers |
| 426 – 530 | 10.0 – 70.0 | By agreement | Special applications |
Cold Drawn (Rolled) Tubes:
| OD (mm) | WT Range (mm) | Typical Grade | Application |
|---|---|---|---|
| 10 – 25 | 1.5 – 4.0 | 20G | Small diameter |
| 25 – 50 | 2.0 – 6.0 | 20G, 15CrMoG | Precision tubes |
| 50 – 76 | 2.5 – 10.0 | 15CrMoG | Superheater elements |
| 76 – 108 | 3.0 – 13.0 | 12Cr1MoVG | High strength small bore |
💡 Most popular size: 114.3mm to 219.1mm OD for main steam lines and headers.
Quality Requirements – Surface Defects
Acceptable Surface Condition:
Inner and outer surfaces shall be free of cracks, folds, scabs, delaminations, and seams
Minor defects may be removed by grinding
Wall thickness after defect removal must remain within tolerance
No weld repair permitted
Mill Test Certificate – GB/T 5310
EN 10204 Type 3.1 MTC – Provided with heat number
EN 10204 Type 3.2 – Available upon request (third-party: SGS, BV, TUV)
Heat treatment records – Normalizing, tempering temperatures
Mechanical test reports – Tensile, flattening, flaring results
High temperature test report – For alloy grades (creep strength)
Microstructure report – Grain size, decarburization
Traceability: Full traceability from melt to finished tube
Processing Services
| Service | Description |
|---|---|
| Cutting | Precision cutting to exact length |
| Beveling | For welding preparation (30°-37.5°) – standard for SCH40 and above |
| Bending | Cold or hot bending for superheater coils |
| Heat treatment | Normalizing, tempering, stress relieving |
| Surface coating | Oiling, painting |
| End finishing | Plain or beveled |
Packaging & Shipping
| Item | Details |
|---|---|

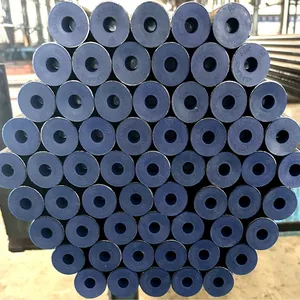

| Packaging | Hexagonal bundles or steel crates |
| Protection | Anti-rust oil + plastic end caps |
| Marking | Stencil/spray with Grade, size, heat number, GB/T 5310 |
| Documentation | MTC + test reports + heat treatment records |
| Lead time | 7-15 days (stock: 20G), 20-30 days (alloy grades/custom) |
| Port | Tianjin / Shanghai / Guangzhou |
Why Choose Our GB/T 5310 High Pressure Boiler Tubes?
| Advantage | Description |
|---|---|
| Current standard | GB/T 5310-2023 – fully compliant with latest requirements |
| Full grade range | 20G to 12Cr1MoVG – one-stop sourcing |
| 20G in stock | Most popular grade – ready to ship |
| Multiple manufacturing methods | Hot rolled, cold drawn, hot expanded – all recognized |
| 100% hydrostatic tested | Mandatory per standard – guaranteed integrity |
| Heat treated | Normalized or normalized + tempered – proper microstructure |
| High temperature performance | Creep strength data available for alloy grades |
| Full traceability | EN 10204 3.1 MTC with heat number |
| Global export | Shipped to power plants and boiler manufacturers worldwide |
Contact for Quote – GB/T 5310 Boiler Tubes
Please provide the following details for your high pressure boiler tube project:
Grade : 20G / 25MnG / 15MoG / 15CrMoG / 12Cr2MoG / 12Cr1MoVG
OD (mm) : _______
WT (mm) : _______
Length (m) : _______
Quantity : _______ (pieces / meters / tons)
Manufacturing : Hot rolled / Cold drawn / Hot expanded
Application : Superheater / Reheater / Economizer / Water wall / Header
Service Temperature : _______ °C
Inspection : Standard / Third-party (SGS/BV/TUV/DNV)
📧 Email: yjhtrade@gmail.com
📞 WhatsApp: +86 15106174543
🌐 Website:
Reply within 24 hours.
FAQ – GB/T 5310 High Pressure Boiler Tubes
Q1: What is GB/T 5310 used for?
A: GB/T 5310 seamless steel tubes are used for high pressure boilers – superheaters, reheaters, economizers, water walls, and steam pipelines with operating temperatures up to 650°C and pressures exceeding 9.8 MPa.
Q2: What is the current version of GB/T 5310?
A: GB/T 5310-2023 (effective April 1, 2024), superseding GB/T 5310-2017.
Q3: What is the most popular grade in GB/T 5310?
A: 20G – carbon steel grade with ≥245 MPa yield strength, used for economizers, water walls, and low temperature superheaters.
Q4: What is the maximum operating temperature for 20G?
A: 450°C – for higher temperatures, use alloy grades (15CrMoG, 12Cr1MoVG).
Q5: What is 15CrMoG used for?
A: 15CrMoG is a 1% Chrome-0.5% Molybdenum alloy used for high temperature superheater and reheater service up to 550°C.
Q6: What is 12Cr1MoVG used for?
A: 12Cr1MoVG is a Cr-Mo-V alloy used for advanced high temperature applications up to 580°C, including high pressure headers and superheater tubes.
Q7: What is new in the 2023 standard?
A: The 2023 standard officially recognizes hot expansion as a seamless tube manufacturing method, addressing large diameter seamless tube supply.
Q8: Does GB/T 5310 require hydrostatic testing?
A: Yes – 100% hydrostatic testing is mandatory for all tubes.
Q9: Do you provide third-party inspection?
A: Yes. SGS, BV, TUV, or any customer-specified agency.
Q10: Do you offer free samples?
A: 30cm sample available for common grades (20G). Shipping fee applies.
Related Products – Boiler Tubes
GB/T 5310 – High pressure boiler tubes (this product)
GB/T 3087 – Low and medium pressure boiler tubes
GB/T 8163 – Seamless steel tubes for fluid transport
ASTM A192 – High pressure boiler tubes (US standard)
ASTM A213 – Seamless alloy steel boiler tubes
EN 10216-2 – European pressure tube standard for elevated temperature
Tags: GB/T 5310 High Pressure Boiler Tube 20G Boiler Tube 15CrMoG 12Cr1MoVG Seamless Boiler Tube Chinese Standard Power Plant Tube Superheater Tube
Quick Reference – GB/T 5310 Grade Selection
| Grade | Type | Max Temp | Yield (MPa) | Tensile (MPa) | Application |
|---|---|---|---|---|---|
| 20G | Carbon | 450°C | ≥245 | 410-550 | Economizer, water wall |
| 25MnG | Carbon | 450°C | ≥240 | ≥415 | Higher strength carbon |
| 15MoG | Mo-alloy | 500°C | ≥270 | 450-600 | Medium temp service |
| 15CrMoG | 1Cr-0.5Mo | 550°C | ≥235 | 440-640 | High temp superheater |
| 12Cr2MoG | 2.25Cr-1Mo | 550°C | ≥280 | 450-600 | High pressure |
| 12Cr1MoVG | 1Cr-1Mo-V | 580°C | ≥255 | 470-640 | Advanced high temp |
Grade Comparison Summary
| Feature | 20G | 15CrMoG | 12Cr1MoVG |
|---|---|---|---|
| Material | Carbon | 1Cr-0.5Mo alloy | 1Cr-1Mo-V alloy |
| Cost | $ | $$ | $$$ |
| Weldability | Excellent | Good (preheat) | Good (preheat) |
| Oxidation resistance | Limited | Good | Very good |
| Creep strength | Low (≤450°C) | Medium (≤550°C) | High (≤580°C) |
| Applications | Economizer, water wall | Superheater | High temp superheater, header |
Send Inquiry to This Supplier
You May Also Like
-
GB/T 3087 Seamless Steel Tubes and Pipes For Low and Medium Pressure Boiler – Current Standard: GB/T 3087-2022NegotiableMOQ: 1 Metric Ton
-
GB/T 3087 Seamless Steel Tube – Low and Medium Pressure Boiler Grades 10#, 20# – Current Standard: GB/T 3087-2022NegotiableMOQ: 1 Metric Ton
-
GB/T 3087 Seamless Low and Medium Pressure Boiler Tube – Chinese StandardNegotiableMOQ: 1 Metric Ton
-
GB/T 3087 – Low & Medium Pressure Boiler Tube Technical DataNegotiableMOQ: 1 Metric Ton
-
GB/T 9948 Seamless Steel Tubes and Pipes For Petrochemical and Refining Facilities – Furnace, Heat Exchanger, and Pressure PipingNegotiableMOQ: 1 Ton
-
GB/T 9948 Seamless Steel Tube – Petrochemical and Refining Facilities Grades 10, 20, 15CrMo, 1Cr2Mo, 1Cr5MoNegotiableMOQ: 1 Metric Ton
-
GB/T 9948 Seamless Petrochemical Tube – Refinery GradeNegotiableMOQ: 1 Ton
-
GB/T 9948 – Petrochemical Tube Technical DataNegotiableMOQ: 1 Metric Ton
-
GB/T 6479 Seamless Steel Tubes For High-Pressure Chemical Fertilizer EquipmentNegotiableMOQ: 1 Ton
-
GB/T 6479 Seamless Steel Tube – High-Pressure Chemical Fertilizer Equipment Grades 10, 20, 16Mn, 15CrMoNegotiableMOQ: 1 Metric Ton
