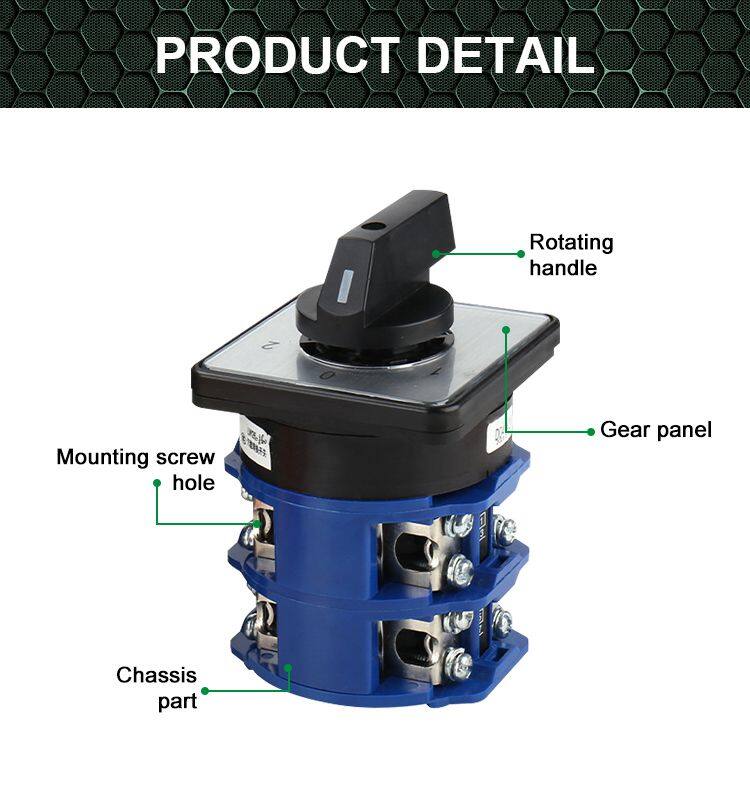

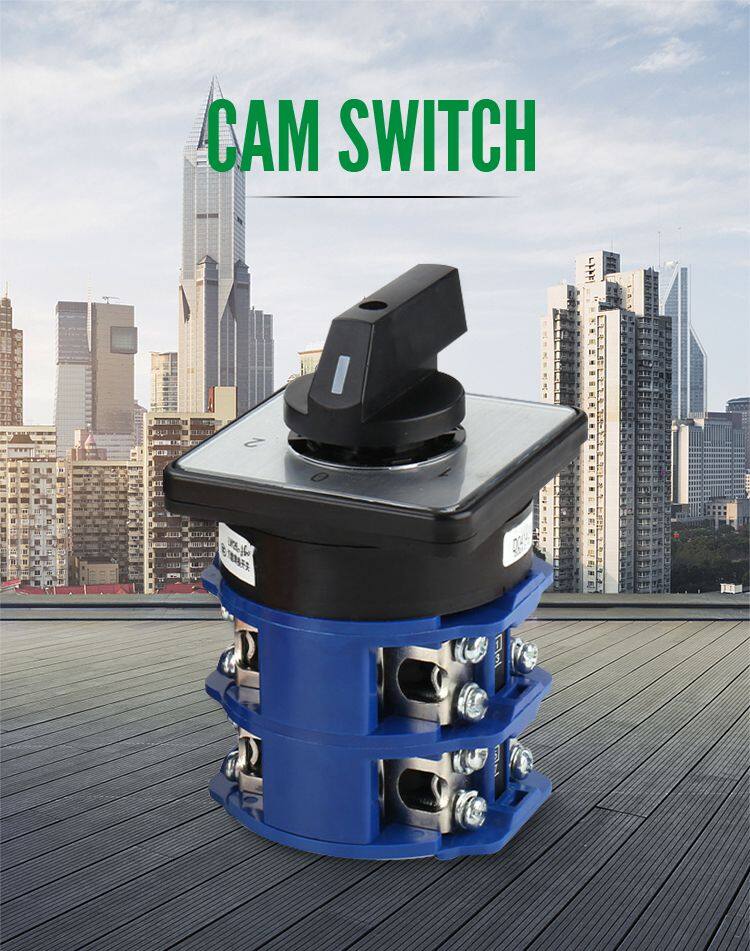

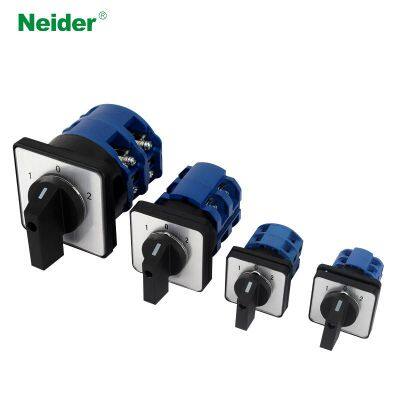

3 Phase Rotary Changeover Cam Switch 1-0-2 Position With 100% On-time Delivery
Product Spotlights
3-phase rotary cam switch with fail-safe 1-0-2 positioning for critical power transfers. Features customizable current ratings (10A-63A), industrial-grade construction, and optional IP65 protection. Manufactured under ISO9001 standards with guaranteed on-time global delivery. Ideal for generator/UPS switching and motor control applications.
US$ 4.5
≥10 Units
Key Specifications
Get Latest Price
Application:
Other, Power Transfer
Switch Type:
Rotary Changeover Cam
Phase Configuration:
3 Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Neider 3 Position Selector Switch for Electrical Panel Wiring and AutomationUS$ 4.5MOQ: 10 Units -
KLD-28 Magnetic Switch for CNC Machines 16A 250V Self-locking Safety DesignUS$ 2 - 4MOQ: 10 Units
-
KLD-28A Magnetic Self-locking Switch 16A 250V/220V Waterproof Industrial GradeUS$ 2 - 4MOQ: 10 Units
-
KLD-28A Start Switch With 2-Year Warranty 16A 250V Magnetic Locking MechanismUS$ 2 - 4MOQ: 10 Units
-
Machinery Safety Switch LAY38-11ZS Mushroom Head Design 1NO1NC ContactsUS$ 1.2MOQ: 100 Units
Application
Other, Power Transfer
Switch Type
Rotary Changeover Cam
Phase Configuration
3 Phase
Position Setting
1-0-2
Certification
ISO9001
Material Composition
High-grade Insulation and Metal
Rated Current
Customizable (10A to 63A)
Mounting Type
Panel Mount
As an ISO9001-certified manufacturer with over a decade of industrial expertise, Jinhua Dika Electrical Equipment Co., Ltd. delivers premium 3-phase rotary cam switches engineered for critical power transfer applications. With US$1-1.5 million annual exports to 15+ global markets including North America and EU regions, our 1-0-2 position changeover switches guarantee operational reliability backed by 100% on-time delivery commitment.
Core Technical Advantages:
- Precision Switching: 1-0-2 configuration enables clear isolation between two power sources with neutral off position

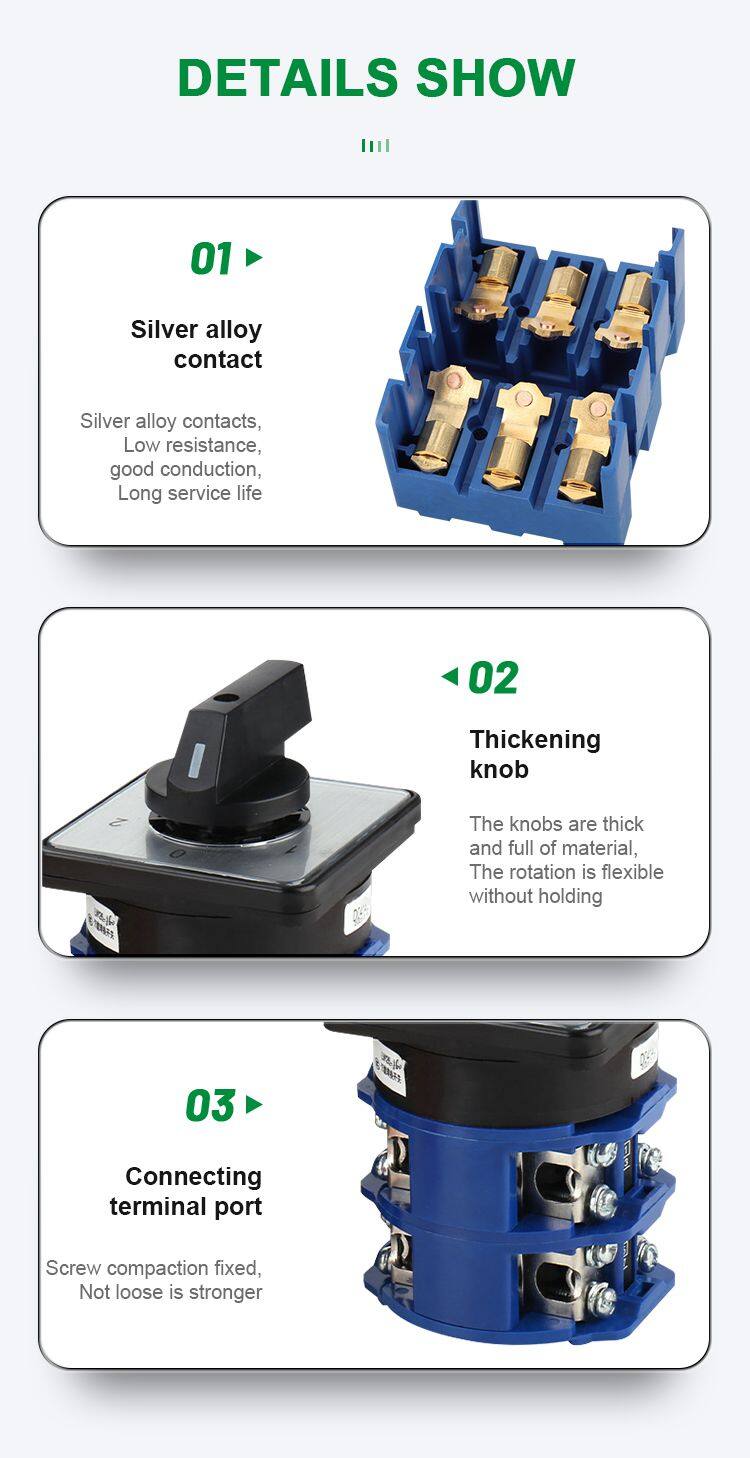

- Robust Construction: Reinforced metal shaft and silver-alloy contacts withstand >100,000 mechanical operations
- Adaptive Ratings: Customizable current handling from 10A to 63A with optional 690V AC voltage tolerance
- Environmental Resilience: Optional IP65 protection for dust/water resistance in harsh industrial environments
Technical Specifications:
| Parameter | Specification |
|---|---|
| Contact Configuration | Make-before-break design |
| Insulation Resistance | >100 MΩ at 500V DC |
| Dielectric Strength | 2500V AC for 1 minute |
| Operating Temperature | -25°C to +55°C |
| Termination Type | Screw clamp or quick-connect |
Operational Benefits:
- Prevents phase-to-phase short circuits during source transfer
- Reduces maintenance costs with >20,000 electrical cycles at full load
- Simplifies installation through standardized panel cutouts
- Enables generator/UPS backup system integration
Serving 50,000+ industrial clients across six continents from our Zhejiang manufacturing facility, Jinhua Dika guarantees switch reliability through multilayer QC checks. Our 11-50 technical specialists ensure seamless export via Shanghai/Tianjin ports with documentation compliance for all target markets. Experience uninterrupted power transfer - request your sample unit today with industry-competitive lead times.
Frequently Asked Questions:
-
Q: What applications suit this switch configuration?
A: Ideal for critical power transfer between mains/generator sources in data centers, manufacturing plants, and healthcare facilities. -
Q: Can I customize contact materials?
A: Silver-nickel or silver-cadmium oxide contacts available for specific load requirements. -
Q: How does the 1-0-2 position enhance safety?
A: The central "0" position provides complete circuit isolation during maintenance or source switching. -
Q: What mounting options exist?
A: Front-panel mounting with 22mm or 30mm cutout diameters; optional mounting kits available. -
Q: Are auxiliary contacts supported?
A: Yes, configurable signaling contacts for PLC integration and status monitoring. -
Q: What's the lead time for modified units?
A: Customized orders ship within 3 weeks while maintaining on-time delivery commitment. -
Q: Do you provide technical documentation?
A: Comprehensive installation manuals and wiring diagrams accompany every shipment.
