Help CenterLAY38-11ZS Safety Stop Button With 1NO1NC Contacts for CNC Equipment
Product Spotlights
Related Products
-
Factory Direct LAY38-11ZS Emergency Stop Button Plastic Body 10A 250VUS$ 1.2MOQ: 100 Units -
Durable LAY38-11ZS Emergency Switch 10A Load Capacity Plastic ConstructionUS$ 1.2MOQ: 100 Units
-
Waterproof Emergency Stop Button LAY38-11ZS 10A Contact Rating CE StandardUS$ 1.2MOQ: 100 Units
-
LAY38-11ZS Mushroom Head Emergency Stop Button With IP65 Protection 10A 1NO1NCUS$ 1.2MOQ: 100 Units
-
Industrial Grade LAY38-11ZS Emergency Stop Switch Plastic Housing 250V ACUS$ 1.2MOQ: 100 Units
As a trusted manufacturer with ISO9001 certification, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing high-reliability safety components like the LAY38-11ZS Safety Stop Button. With over US$1 million in annual exports to 145+ countries, our solutions meet global industrial standards for critical applications. This emergency stop device features dual-contact redundancy to ensure fail-safe operation in CNC machinery protection systems.
Core Technical Specifications:
- Contact Rating: 5A @ 250V AC / 10A @ 30V DC

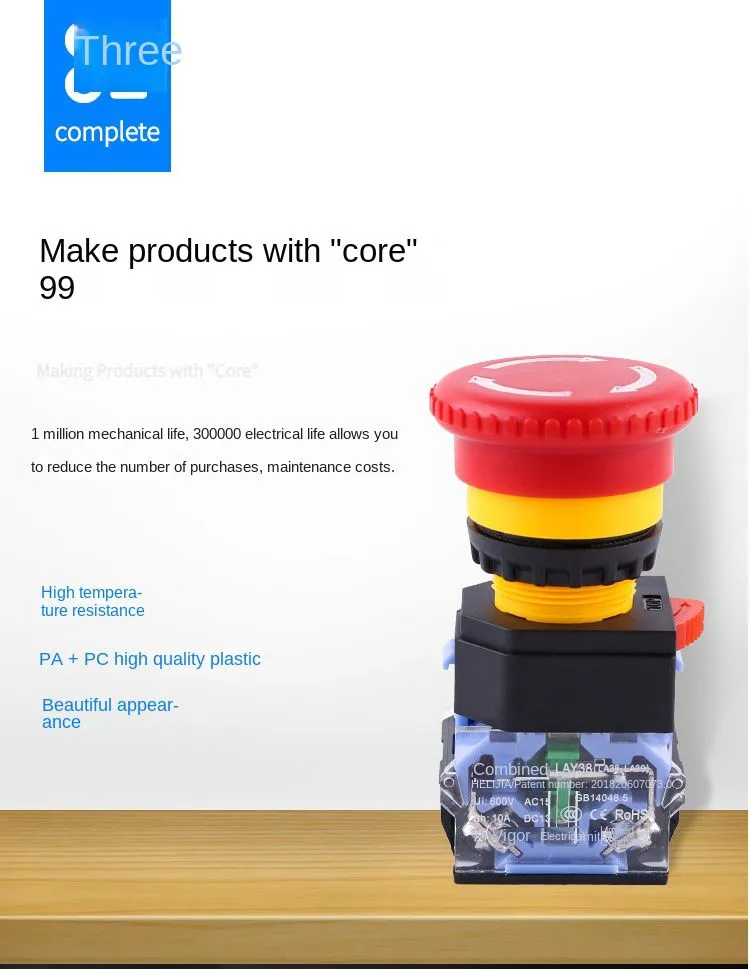

- Electrical Life: 100,000 cycles minimum
- Mechanical Life: 300,000 cycles minimum
- Insulation Resistance: 100MΩ min (500VDC)
- Dielectric Strength: 2000V AC for 1 minute
| Parameter | NO Contact | NC Contact |
|---|---|---|
| Initial Contact Resistance | ≤50mΩ | ≤50mΩ |
| Breakdown Time | ≤15ms | ≤15ms |
Critical Safety Features:
- Positive break mechanism with mechanical latching
- Twist-to-release operation for controlled restart
- IP67 rated dust/water protection
- Anti-vibration lock design maintains shutdown state
- Double insulation between contacts and actuator
Backed by our 11-50 person engineering team and serving markets from North America to Oceania, this safety button undergoes 23 quality checks. Our ISO9001 processes guarantee consistent performance across all production batches shipped from Shanghai, Tianjin, Guangzhou, and Ningbo ports.
FAQ:
Q: What mounting diameter does this button require?
A: Standard 38mm cutout with panel thickness up to 4mm.
Q: Is CE certification available?
A: Can be provided upon request for specific market requirements.
Q: How does 1NO1NC configuration enhance safety?
A: The dual contacts provide redundant circuit breaking and allow integration with diverse control systems.
Q: What maintenance is required?
A: Designed for minimal maintenance - periodic function check recommended every 6 months.
Q: Can custom labeling be provided?
A: Yes, multilingual "STOP" legends are available.
Q: What's the lead time for bulk orders?
A: Typically 15-20 days for 500+ units with expedited options.
