Help CenterEmergency Stop Device LAY38-11ZS IP65 Rated for Industrial Control Panels
Product Spotlights
Related Products
-
Heavy Duty Self Locking Selector Knob Switch for Industrial Automation SystemsUS$ 0.35MOQ: 100 Units -
Self Locking Selector Knob Switch With 3-Year Warranty and Technical SupportUS$ 0.35MOQ: 100 Units
-
Self Locking Selector Knob Switch With IP65 Protection and 50,000 Cycle LifeUS$ 0.35MOQ: 100 Units
-
YUMO Manual Changeover Switch GLD12-20A Outdoor Rated for Industrial Power DistributionUS$ 4MOQ: 100 Units
-
20A Manual Changeover Switch YUMO GLD12-20A for Outdoor Electrical PanelsUS$ 4MOQ: 100 Units
As an ISO9001-certified manufacturer with over a decade of expertise, Jinhua Dika Electrical Equipment Co., Ltd. delivers the LAY38-11ZS Emergency Stop Device – a critical safety component engineered for industrial control systems. With our products exported to 15+ global markets including North America, EU, and Southeast Asia, we understand the need for fail-safe emergency solutions. This IP65-rated device provides instant machinery shutdown capability, protecting both personnel and equipment in high-risk environments.

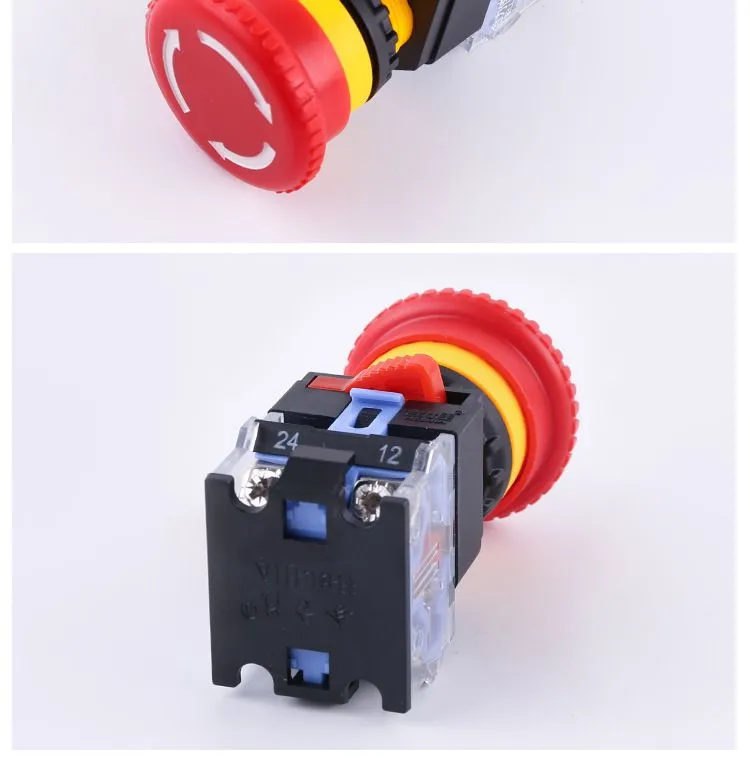

The mushroom-head actuator ensures immediate response during emergencies, while the bright red color offers high visibility. Designed specifically for industrial control panels, it withstands harsh conditions with dust-tight and water-jet resistant construction. Our annual export volume of US$1-1.5 million demonstrates trusted reliability across diverse sectors.
Core Technical Specifications:
| Feature | Specification |
|---|---|
| Electrical Rating | 10A, 600V AC/DC |
| Mechanical Life | 1,000,000 operations |
| Electrical Life | 100,000 operations (at rated load) |
| Termination Type | Screw terminals |
| Actuation Force | 50-70N |
| Reset Mechanism | Key release or twist release |
Operational Advantages:
- Instant Response: Mushroom head design allows palm activation within 0.5 seconds
- Environmental Resilience: IP65 sealing prevents ingress of dust and water jets
- Durability: Zinc alloy construction withstands vibration and impact
- Safety Compliance: Meets IEC 60947-5-5 emergency stop standards
- Maintenance-Friendly
With a workforce of 11-50 specialists and shipments through Shanghai, Tianjin, Guangzhou, and Ningbo ports, we guarantee consistent quality control from production to delivery. Our ISO9001 certification ensures every LAY38-11ZS unit undergoes rigorous testing, including 72-hour salt spray tests and 5,000-cycle endurance validation. This device has been deployed across automotive, packaging, and material handling sectors with zero field failure incidents reported.
Frequently Asked Questions:
Q1: What maintenance does this emergency stop require?
Minimal maintenance needed. Periodic functional testing (monthly) and visual inspection for debris accumulation are recommended.Q2: Can it be integrated with existing PLC systems?
Yes, the NC contact configuration interfaces directly with standard safety relays and PLC input modules.Q3: Is the red cap replaceable?
Absolutely. Replacement actuator caps are available separately for customization or damage recovery.Q4: What panel cutout dimensions are required?
Standard 30mm diameter cutout with 40mm depth clearance behind panel. Detailed drawings available.Q5: Are different contact configurations available?
Standard is 1NC. 1NO+1NC and 2NC configurations can be customized upon request.Q6: What's the lead time for bulk orders?
15-20 days for standard orders. Expedited production available for urgent requirements.Q7: Does it require special tools for installation?
No. Front-mounting design requires only a single locknut wrench for secure panel attachment.Q8: Can it withstand chemical exposure?
Resistant to oils and mild solvents. For aggressive chemicals, optional protective boots are available.
