Detailed Description of Steel Wire Products
Steel wire is a coiled steel product made from hot-rolled wire rod through cold drawing, warm drawing or cold rolling. It is one of the four major steel varieties (plate, pipe, section, wire), featuring high strength, good toughness and diverse specifications, and is widely used in industrial, construction, civilian and other fields. On the basis of the original content, the detailed parameters of material models and dimensions are supplemented below to ensure the product information is complete and verifiable.
I. Core Raw Materials and Material Models
Steel wire is mainly processed from high-quality carbon steel, alloy steel hot-rolled wire rods. Different materials correspond to clear models, and the core chemical composition, material models and contents are as follows:
Carbon Steel Material: Models: Q195, Q235, 10#, 20#, 35#, 45#, 65#, 70#, 80#, T8A, T10A (classified by carbon content and application) Chemical Composition: Carbon (C) 0.4%-1.0%, Manganese (Mn) 0.3%-1.0%, Silicon (Si) 0.1%-0.3%, Phosphorus (P) and Sulfur (S) impurity content ≤ 0.045%; Application Scenarios: Basic scenarios such as ordinary nail making, netting, welding electrodes and packaging. Among them, high-carbon steel (65# and above) can be used for springs and rope making.
Alloy Steel Material: Models: 40Cr, 50CrV, 60Si2Mn, 30CrMnSiA, 12CrNi3A (classified by added alloying elements) Chemical Composition: On the basis of carbon steel, alloying elements such as Chromium (Cr), Nickel (Ni), Molybdenum (Mo), Vanadium (V), Silicon (Si) and Manganese (Mn) are added. The specific content is adjusted according to the model (e.g., 40Cr contains 0.8%-1.1% Cr); Application Scenarios: High-strength fasteners, springs, wear-resistant parts, aerospace components, etc., improving corrosion resistance, wear resistance and toughness.
II. Product Classification (Divided by Core Dimensions, Supplementary Size Details)
(I) By Cross-Section Shape and Corresponding Size Range
Round Steel Wire: The most common type with a circular cross-section, suitable for most scenarios; Size Range: Diameter 0.01mm-50mm (conventional specifications 0.1mm-12mm, extra-thick specifications 12mm-50mm), supplied in coils. The length of each coil is adjusted according to the diameter (the thinner the diameter, the longer the length of each coil; the conventional length of each coil is 50m-1000m).
Special-Shaped Steel Wire: Non-circular cross-section, including square, rectangular, triangular, elliptical, flat, trapezoidal, Z-shaped, S-shaped, etc., used for special structural or functional needs; Size Range: - Square Steel Wire: Side length 0.5mm-20mm (conventional 1mm-10mm); - Flat Steel Wire: Thickness 0.2mm-5mm, width 1mm-30mm; - Rectangular Steel Wire: Long side 1mm-25mm, short side 0.5mm-15mm; - Other Special Shapes (triangular, elliptical, etc.): Corresponding circumscribed circle diameter 0.3mm-18mm, length the same as round steel wire, supplied in coils.
(II) By Diameter Specification (Unit: mm, Supplementary Conventional/Special Size Description)
Extra Fine: ＜0.1 (special specifications 0.01mm-0.09mm, used for medical sutures and precision electronics);
Fine: 0.1-0.5 (conventional 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, used for weaving and precision instruments);
Medium-Fine: 0.5-1.5 (conventional 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, used for nail making and crafts);
Medium: 1.5-3.0 (conventional 1.6mm, 2.0mm, 2.5mm, 3.0mm, used for netting and cable reinforcement);
Coarse: 3.0-6.0 (conventional 3.5mm, 4.0mm, 5.0mm, 6.0mm, used for rope making and scaffolding);
Medium-Coarse: 6.0-8.0 (conventional 6.5mm, 7.0mm, 8.0mm, used for fasteners and springs);
Extra Coarse: ＞8.0 (conventional 9mm, 10mm, 12mm, special specifications up to 50mm, used for bridges and mines).
(III) By Tensile Strength (Unit: MPa, Reference Corresponding Material Models)
Low Strength: ＜390 (Corresponding Materials: Q195, Q235; used for ordinary packaging and nail making);
Low-Medium Strength: 390-785 (Corresponding Materials: 10#, 20#; used for welding electrodes and woven nets);
Ordinary Strength: 785-1225 (Corresponding Materials: 35#, 45#; used for rope making and fasteners);
Medium-High Strength: 1225-1960 (Corresponding Materials: 65#, 70#, 40Cr; used for springs and wear-resistant parts);
High Strength: 1960-3135 (Corresponding Materials: 50CrV, 60Si2Mn; used for prestressed steel wire and aerospace components);
Extra High Strength: ＞3135 (Corresponding Material: 30CrMnSiA; used for special ropes and high-end springs).
(IV) By Surface Treatment (Supplementary Adaptability of Different Material Models to Surface Treatment)
Bright Steel Wire: No coating, bright surface, low cost, easy to rust; Adaptable Materials: All carbon steel and alloy steel (not suitable for humid/corrosive environments), full size coverage;
Galvanized Steel Wire: Hot-dip galvanizing/electrogalvanizing treatment, dense zinc layer, rust and corrosion resistance, long service life; Adaptable Materials: Q235, 20#, 35# (conventional), size 0.3mm-12mm;
Copper-Plated Steel Wire: Copper-plated surface, good conductivity and strong adhesion, mostly used for rubber and plastic reinforcement; Adaptable Materials: 10#, 20#, 40Cr, size 0.2mm-5mm;
Rubber-Coated Steel Wire: Outer layer wrapped with PVC, PE and other plastics, insulation, wear resistance and rust resistance, suitable for humid and corrosive environments; Adaptable Materials: All materials, size 0.5mm-8mm, rubber coating thickness 0.1mm-1mm (customizable).
(V) By Application (Supplementary Corresponding Material Models and Sizes for Each Application)
Ordinary Steel Wire: Welding electrodes, nail making, netting, packaging, printing industry, etc.; Materials: Q195, Q235, 10#; Size: 0.5mm-3.0mm;
Cold Heading Steel Wire: Used for cold heading rivets, screws, bolts and other fasteners; Materials: 20#, 35#, 40Cr; Size: 1.0mm-6.0mm;
Electrical Steel Wire: Overhead communication lines, steel-cored aluminum strands, cable reinforcement, etc.; Materials: 10#, 20#; Size: 0.8mm-4.0mm;
Textile Steel Wire: Textile machine card clothing, healds, needles, etc.; Materials: 20#, 35#; Size: 0.1mm-0.5mm;
Rope-Making Steel Wire: Processing steel wire ropes and spokes, used for hoisting, mining, bridges, etc.; Materials: 45#, 65#; Size: 1.5mm-8.0mm;
Spring Steel Wire: Springs, spring washers, tire cords, conveyor belts, etc.; Materials: 65#, 70#, 50CrV, 60Si2Mn; Size: 0.3mm-5.0mm;
Prestressed Steel Wire: Large components such as concrete sleepers, electric poles, bridges, pressure water pipes, etc.; Materials: 70#, 30CrMnSiA; Size: 2.0mm-12mm;

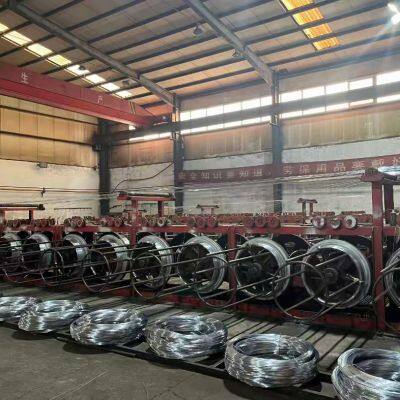

III. Production Process (Supplementary Process Control Related to Size and Material)
Raw Material Selection: Select hot-rolled wire rods that meet the standards, check the chemical composition and mechanical properties, and select the corresponding wire rods according to the final product material model and size (e.g., fine steel wire selects fine-diameter wire rods);
Descaling Treatment: Chemical pickling or mechanical grinding to remove the oxide scale on the surface of the wire rod, avoid damaging the mold, and ensure the accuracy of subsequent drawing dimensions;
Coating and Drying: Coat the surface with lubricant carriers such as lime and phosphating solution, and dry at a low temperature of 150-250℃ to remove moisture and hydrogen, prevent hydrogen embrittlement, especially suitable for high-strength and fine-diameter steel wire;
Heat Treatment: Raw material/intermediate/finished product heat treatment to improve the structure, eliminate internal stress, restore plasticity, and adapt to drawing requirements. The heat treatment temperature and time are different for different material models (such as alloy steel);
Wire Drawing: Cold drawing through wire drawing dies for multiple passes at room temperature to gradually reduce the diameter and improve strength. The pass area reduction rate is 10%-40%, and the number of drawing passes is adjusted according to the final size (more passes for fine steel wire);
Plating/Rubber Coating: Perform galvanizing, copper plating or rubber coating treatment as needed to improve surface performance. The plating thickness and rubber coating thickness are customized according to the size and application;
Inspection and Packaging: Detect the diameter, strength, toughness and surface quality to ensure the dimensional tolerance meets the standards. After passing the inspection, package in coils and mark the specifications, material, batch number, size and length.
IV. Core Performance Parameters (Supplementary Dimensional Tolerance Details)
Dimensional Tolerance: ±0.01-±0.1mm (implemented according to specifications and standards; the tolerance of fine steel wire is stricter: ＜0.5mm steel wire tolerance ±0.01mm; 0.5-3.0mm tolerance ±0.03mm; ＞3.0mm tolerance ±0.05-±0.1mm);
Tensile Strength: 300-3500MPa (customizable on demand, corresponding to different material models, e.g., Q195 is about 300-390MPa, 30CrMnSiA can reach 3500MPa);
Elongation: ≥2%-≥20% (the higher the strength, the lower the elongation; the softer the material, the higher the elongation, e.g., Q235 elongation ≥20%, high-strength steel wire elongation ≥2%);
Hardness: HV 100-800 (different materials have different hardness, e.g., Q195 HV 100-150, 60Si2Mn HV 600-800);
Surface Quality: No cracks, no rust, no burrs, uniform coating without peeling, uniform size, no burrs or delamination on the cross-section.
V. Main Application Scenarios (Supplementary Corresponding Sizes and Material Models for Scenarios)
Industrial Field: Steel wire ropes (Materials: 45#, 65#; Size: 1.5mm-8.0mm), springs (Materials: 65#, 50CrV; Size: 0.3mm-5.0mm), fasteners (Materials: 35#, 40Cr; Size: 1.0mm-6.0mm), cable reinforcement (Materials: 10#, 20#; Size: 0.8mm-4.0mm), rubber tire frameworks (Material: 65#; Size: 0.5mm-1.0mm), screens and filters (Material: Q235; Size: 0.1mm-3.0mm);
Construction Field: Concrete prestressed components (Materials: 70#, 30CrMnSiA; Size: 2.0mm-12mm), steel mesh (Material: Q235; Size: 3.0mm-6.0mm), guardrails and anti-theft nets (Material: Q235; Size: 2.0mm-5.0mm), scaffolding (Material: Q235; Size: 4.0mm-8.0mm);
Civilian Field: Clothes lines (Material: Q235; Size: 1.5mm-3.0mm), clothes hangers (Material: Q235; Size: 2.0mm-4.0mm), crafts (Size: 0.1mm-1.0mm), woven nets (Material: Q235; Size: 0.3mm-2.0mm), gardening wire (Material: Q195; Size: 0.5mm-1.0mm), pet cages (Material: Q235; Size: 1.0mm-3.0mm);
Special Field: Medical surgical sutures (Size: 0.01mm-0.1mm), aerospace components (Material: 30CrMnSiA; Size: 0.5mm-4.0mm).
VI. Packaging and Storage (Supplementary Packaging Requirements Related to Size and Material)
Packaging: Bundled in coils, each coil weighs 50-500kg (the thinner the diameter, the lighter the weight of each coil; e.g., ＜0.5mm steel wire per coil 50-100kg, ＞8.0mm steel wire per coil 300-500kg). The outer layer is wrapped with moisture-proof paper and woven bags; galvanized steel wire is additionally wrapped with a protective film; special-shaped steel wire is packaged with customized pallets to avoid dimensional deformation; each coil is marked with material model, diameter, length, weight and batch number.
Storage: Store in a dry and ventilated warehouse, avoid moisture, rain, acid and alkali corrosion, keep away from high temperature and sharp objects to prevent surface damage and rust; fine-diameter and high-strength steel wire should be stored separately to avoid extrusion deformation.
VII. Product Advantages
High Strength: The tensile strength has a large range, which can adapt to different needs such as load-bearing, wear resistance and impact resistance, and different material models correspond to different strength levels;
Good Toughness: The cold drawing process improves toughness, making it not easy to break and having excellent fatigue resistance, especially suitable for springs and ropes that are subjected to repeated forces;
Complete Specifications: Diameter, shape and surface treatment can be customized, with a complete range of material models, covering the full size range from extra fine 0.01mm to extra coarse 50mm, adapting to multi-scenario application needs;
Corrosion Resistance: Galvanizing, rubber coating and other treatments extend the service life and adapt to harsh environments, and different material models can meet the needs of different corrosion scenarios;
Easy to Process: It can be bent, welded, woven and stranded, with simple processing technology, adapting to various forming methods. The processing difficulty of steel wires of different sizes and materials is adapted to the corresponding processes.
