Home > Electrical & Electronics > Insulation > Insulation Sheet > CCL Copper Clad Laminate / FR4 CCL / FR1 CCL / CEM-1

CCL Copper Clad Laminate / FR4 CCL / FR1 CCL / CEM-1

CCL Copper Clad Laminate / FR4 CCL / FR1 CCL / CEM-1 thumbnail-3

CCL Copper Clad Laminate / FR4 CCL / FR1 CCL / CEM-1 thumbnail-4

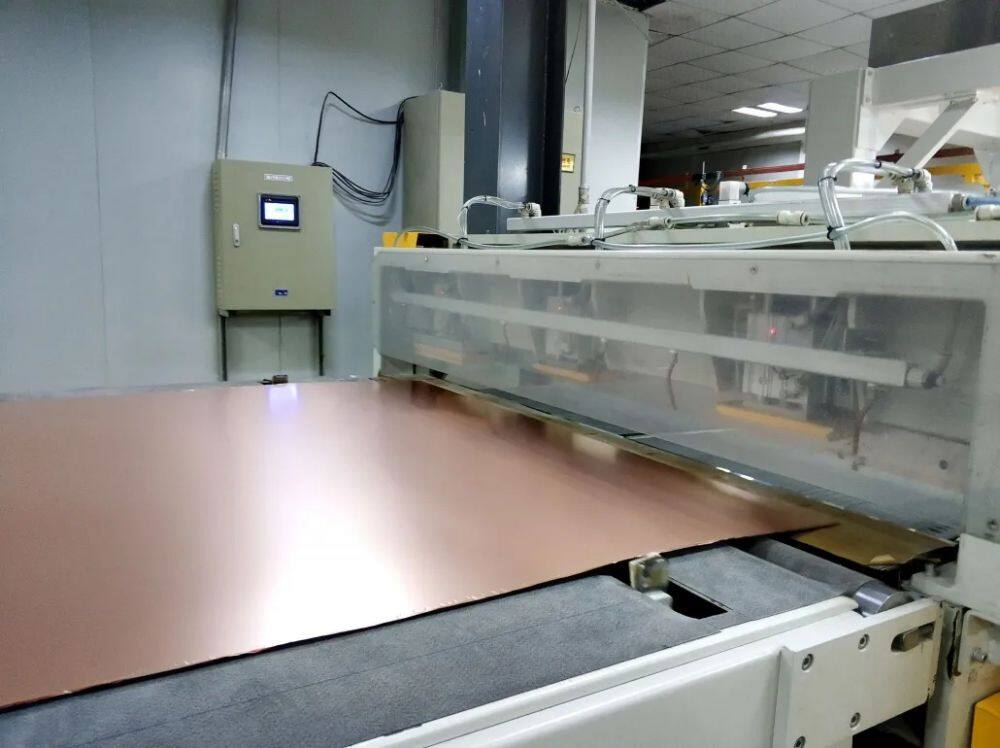

CCL Copper Clad Laminate / FR4 CCL / FR1 CCL / CEM-1 photo-1

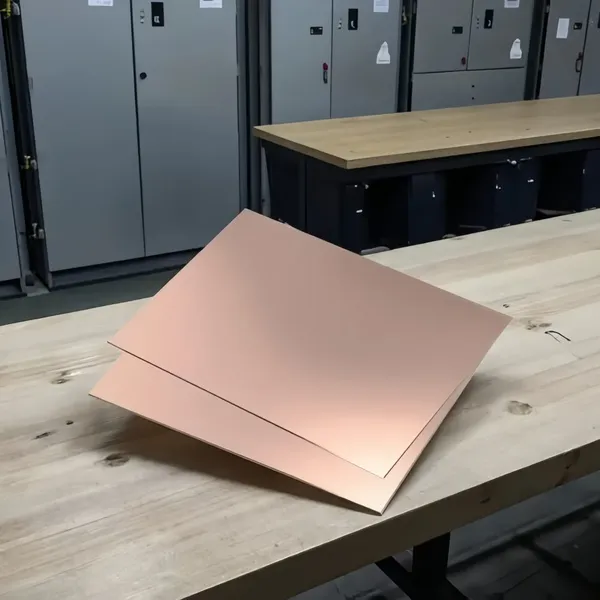

CCL Copper Clad Laminate / FR4 CCL / FR1 CCL / CEM-1 photo-2

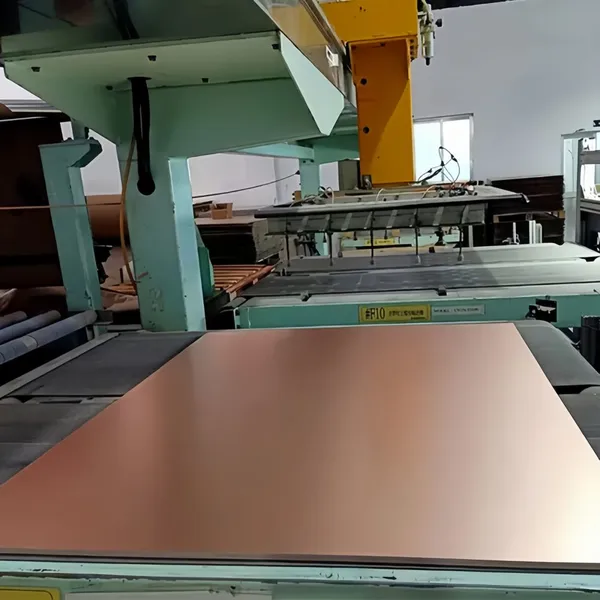

CCL Copper Clad Laminate / FR4 CCL / FR1 CCL / CEM-1 photo-3

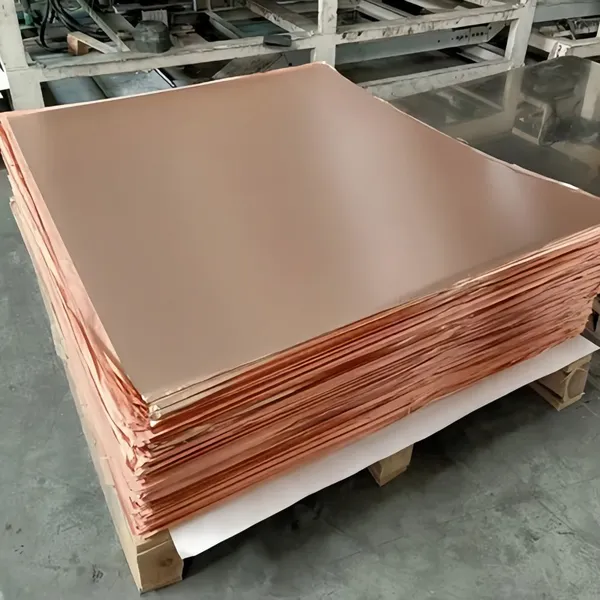

CCL Copper Clad Laminate / FR4 CCL / FR1 CCL / CEM-1 photo-4

Product Spotlights

Fiberglass reinforced with epoxy resin; copper foil laminated for conductivity; FR-1 to FR-5 grades available; supports multilayer PCB design; eco-friendly and suitable for mass production; reliable for electronic applications.

Negotiable MOQ: 500 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Glassfiber+Epoxy Resin+Copper Foil

Thickness:

1 mm

Color:

Other, Pink

Contact Supplier Request Quote Chat Now

Qingdao Yilong Insulation Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao, Ningbo, Shanghai, Tianjin

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Material Other, Glassfiber+Epoxy Resin+Copper Foil

Thickness 1 mm

Color Other, Pink

Application Electrical Power System, Electronic Communication, Electronic Device, Industrial Equipment, Medical Equipment, Transportation

Thermal Rating B 130

Transport Package Pallet or Wooden Case

Specification 1020mmx1220mm

Trademark YILONG

Origin China

Description

Copper Clad Laminate, abbreviated to CCL, is a type of base material of PCBs. With glass fiber or wood pulp paper as reinforcing material, a CCL is a type of product through lamination with copper clad on either one side or both sides of reinforcing material after being soaked in resin.

According to different classification standards, CCLs can be classified into various categories:

1. Based on CCL mechanical rigidity, we have rigid CCL(FR-4, CEM-1, etc.) and flex CCL. Rigid PCBs depend on rigid CCLs while flex PCBs are on flex CCLs (flex-rigid PCBs are on both rigid CCLs and flex CCLs).

2. Based on insulation material and structures, we have organic resin CCL (FR-4, CEM-3, etc.), metal-base CCL, ceramic-base CCL etc.

3. Based on CCL thickness, we have standard thickness CCL and thin CCL. The former one requires at least 0.5mm thickness while the latter can be thinner than 0.5mm. Copper foil thickness is excluded from CCL thickness.

4. Based on reinforcing material types, we have glass fiber cloth base CCL (FR-4, FR-5), paper base CCL (XPC), compound CCL (CEM-1, CEM-3).

5. Based on applied insulation resin, we have epoxy resin CCL (FR-4, CEM-3) and Phenolic CCL (FR-1, XPC).

fr4 copper clad, use glass fiber cloth as substrate material, immersed with epoxy resin, bake into prepreg sheet, combined several prepreg sheets single side or double sides with copper foil, hot pressing, curing, then forming CCL.

Features

Strong mechanical reinforcement with fiberglass cloth

Excellent electrical insulation with epoxy resin

Copper foil laminated for conductivity

Available in FR-1 to FR-5 types

Supports high-density, multi-layer PCB designs

Environmentally friendly and suitable for high-throughput production

Reliable performance for demanding electronic applications

Applications

Printed circuit boards (PCBs) for consumer electronics

High-Density Interconnect (HDI) boards

High layer count (HLC) PCBs

IC carrier boards

Automotive-grade PCBs

Computers, mobile phones, and other high-performance electronic devices

XPC/FR-1
Type	Model	Flammability	Color	Features
XPC	YL-1150	HB	Yellow-brown	General phenolic paper based CCL, Low cost
FR-1	YL-3151C	V-0	Yellow-brown	CTI 175V/600V; Wide application range, Flame retardant
FR-1	YL-3151HS	V-0	Yellow-brown	CTI ≥600V; High thermal and insulation properties
FR-1	YL-3152	V-0	Yellow-brown	CTI 175V/600V; Halogen-free, Environmentally friendly

CEM-1/22F
Type	Model	Flammability	Color	Features
22F (GB)	YL-5152	V-0 / V-1	Yellow	Excellent for punching
CEM-1 (Common)	YL-5150	V-0	Yellow/White/ Pure White	CTI 175V/600V, Excellent for punching
CEM-1 (Common)	YL-5150H	V-0	Yellow/White/ Pure White	CTI300V, Excellent moisture resistance and thermal resistance
CEM-1 (Common)	YL-5150A	V-0	Yellow	CTI300V, Excellent for punching
CEM-1 (Common)	YL-5150HC	V-0	Yellow	CTI600V, Excellent moisture resistance and thermal resistance
CEM-1 (Halogen-Free)	YL-5152	V-0	Yellow	CTI 175V, Halogen-Free
CEM-1 (Halogen-Free)	YL-5150G	V-0	Yellow	CTI 600V, Halogen-Free

CEM-3
Type	Model	Flammability	Color	Features
CEM-3 (Common)	YL-7150, YL-7150C	V-0	Yellow/Cream White	CTI 175V/600V; Better drilling performance than FR-4

FR-4.0/FR-4.1/FR-15.1
Type	Model	Tg (℃)	Td (℃)	CTE (%)	Dk/Df (@1Ghz)	Features
FR-4 (Common)	YL-6160	138	310	4.3	4.4/0.018	CTI 175V, UV Blocking
	YL-6160A	138	310	4.3	4.4/0.018	CTI 175V, UV Blocking
	YL-6160C	135	314	3.6	4.6/0.015	CTI 600V, UV Blocking
	YL-6160F	135	313	4	4.6/0.016	CTI 175V, UV Blocking, Low CTE
	YL-6160LC	135	350	4.3	4.6/0.018	CTI 175V, UV Blocking
	YL-6160LC(C)	135	350	3.6	4.6/0.015	CTI 600V, UV Blocking
	YL-6150	132	305	4.3	4.5/0.018	CTI 150V
Lead Free Series	YL-6164	140	330	3.5	4.6/0.016	CTI 175V, Anti-CAF, suitable for lead free process
	YL-6164F	145	340	3.4	4.6/0.016	CTI 175V, Anti-CAF, suitable for Automotive
	YL-6165	153	348	3	4.6/0.016	CTI 175V, Anti-CAF, suitable for Automotive
	YL-6165F	157	352	2.8	4.6/0.016	CTI 175V, Anti-CAF, suitable for Automotive
	YL-6165LE	162	355	2.6	4.6/0.016	CTI 300V, Anti-CAF, suitable for Automotive, Low CTE
	YL-6165C	157	352	2.8	4.6/0.016	CTI 600V, Anti-CAF, suitable for Automotive
	YL-6167F	175	356	2.6	4.6/0.016	CTI 175V, Anti-CAF, suitable for Automotive
	YL-6168LE	190	370	2.1	4.6/0.016	CTI 300V, Anti-CAF, suitable for Automotive, Low CTE
Halogen Free Series	HF-140	141	350	3.3	4.6/0.011	CTI 175V, Halogen-free
	YL-6165G	155	365	2.8	4.6/0.011	CTI 175V, Halogen-free, Anti-CAF
	YL-6165GC	155	365	2.7	4.6/0.011	CTI 600V, Halogen-free, Anti-CAF
	PI-515G	162	373	2.6	4.6/0.011	Halogen-free, Anti-CAF, HDI recommended
	HF-170	180	385	2.2	4.6/0.011	Halogen-free, Anti-CAF, HDI recommended
	YL-6169GT	193	395	1.9	4.6/0.011	CTI 600V, Halogen-free, Anti-CAF, RTI-150℃
	PI-520G	204	412	1.9	4.6/0.011	Halogen-free, Anti-CAF, HDI recommended, Low CTE
HSD Series	YL-6165GMD	162	370	2.6	4.2/0.009	CTI 175V, Anti-CAF, HDI recommended, Middle loss
	YL-6167GMD	178	387	2.1	4.1/0.008	CTI 175V, Anti-CAF, HDI recommended, Middle loss
	YL-3200G	178	387	1.8	4.1/0.0075	CTI 175V, Anti-CAF, HDI recommended, Low loss
	YL-6167GLD	220 (DMA)	409	1.8	3.9/0.006	CTI 175V, Anti-CAF, HDI recommended, Low loss
