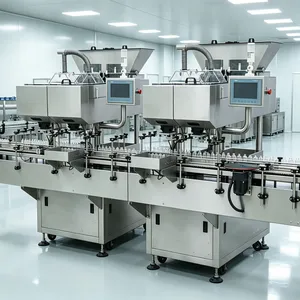

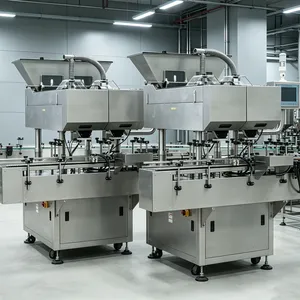

Help Center32-Channel BPS-D32 Capsule Counter With Polished Stainless Steel Construction
Product Spotlights
Related Products
-
BPS-D32 Multi-Channel Tablet Counter With Dual-Stage Vibration Tray & Gate SystemNegotiableMOQ: 1 Piece -
Pharmaceutical-Grade BPS-D32 Capsule Counter With Stainless Steel Contact PartsNegotiableMOQ: 1 Piece
-
Industrial Pill Counter BPS-D32 With 4-Speed Vibration Control & Dustproof DesignNegotiableMOQ: 1 Piece
-
BPS-D8 Multi-Channel Electronic Counting Machine for Pharmaceutical Tablets and CapsulesNegotiableMOQ: 1 Set
-
Industrial Electronic Counting Machine BPS-16 for Tablets, Capsules & Pills Up to 12,000 Pills/MinNegotiableMOQ: 1 Set

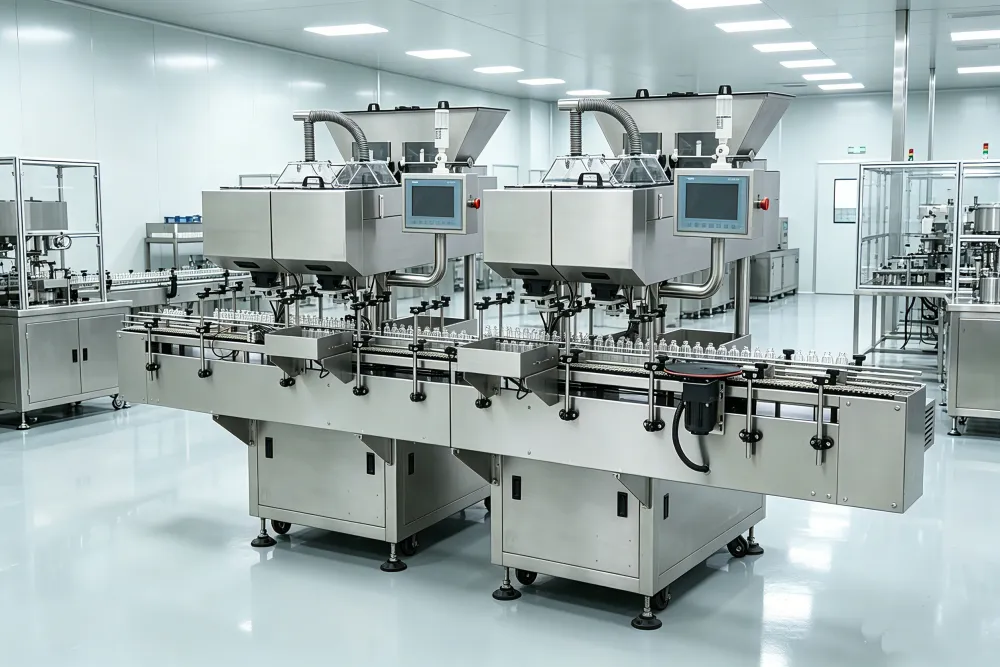

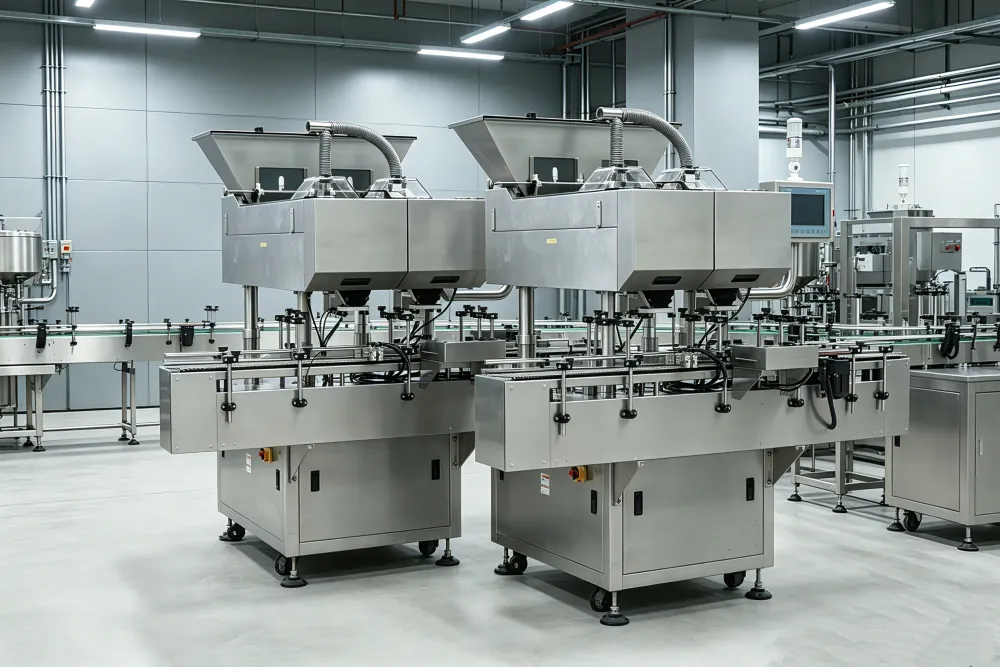

BPS-D32 Electronic Counting Machine Overview
This fully automatic multi-channel electronic tablet/capsule counter is designed and manufactured in strict accordance with GMP standards, delivering reliable counting and filling performance at maximum operational efficiency. The box-type structural design ensures dust protection, lubrication, noise reduction, and easy maintenance. All product-contact parts are made of stainless steel or non-toxic, chemically stable non-metallic materials with high-precision polishing.
Working Principle: Pharmaceuticals are fed from the hopper to a two-stage vibrating plate (8 tracks per plate), arranged sequentially, then drop into photoelectric counting boxes. When the preset count is reached, gates automatically close and reopen immediately after bottle replacement for the next cycle.
Key Features of BPS-D32 Electronic Counting Machine
Compact Modern Design – Features a compact, elegant structure with aluminum alloy components and premium stainless steel housing, ensuring lightweight construction for easy transportation and installation while maintaining durability and aesthetic appeal.
Stable Vibration Feeding – Utilizes multi-channel vibration technology for uniform product feeding, delivering reliable and stable operation with significantly reduced noise levels, ensuring consistent performance throughout production cycles.
High-Precision Counting – Employs unique high-dust-resistant photoelectric sensors with automatic counting functionality, achieving exceptional accuracy with filling errors well below national standards, ensuring consistent product quality and compliance.
Intelligent Safety Systems – Equipped with photoelectric sensors for automatic bottle detection and jam monitoring, featuring automatic shutdown mechanisms and multiple safety interlocks to protect operations and prevent material waste.
Advanced Control Interface – Integrates PLC microcomputer control with bilingual touchscreen (Chinese/English switchable), offering cumulative counting, parameter settings, real-time display, and high automation with flexible adjustability within specified ranges.
User-Friendly Maintenance – Designed for straightforward operation with quick-release mechanisms, enabling simple disassembly, efficient cleaning procedures, and convenient part replacement, minimizing downtime and maintenance costs while ensuring operational efficiency.
Hygienic Construction – Main transmission components housed within sealed enclosure to prevent material contamination from mechanical wear, with all product-contact surfaces precision-polished and equipped with dust collection system.
Certified Components – All control system components carry international standardization certifications and undergo rigorous quality testing and inspection protocols, guaranteeing reliable functionality and long-term operational stability.
Advanced Detection Technology – Features three-stage vibration feeding for smooth product flow and state-of-the-art photoelectric technology with high resolution, self-adjusting capability to compensate for powder accumulation, integrated self-diagnostic system for fragment detection and rejection, stored parameters for multiple product specifications, and intuitive user interface suitable for all operator skill levels.
Scope and Applications of the BPS-D32 Electronic Counting Machine
💊 Pharmaceutical
🧪 Chemical
🍔 Food & Beverage
🏭 Light Industry
This BPS-D32 Electronic Counting Machine is primarily designed for pharmaceutical, chemical, and food industries. It is an integrated electromechanical counting and filling system for accurate processing of tablets, pills, and capsules. Through automated counting and filling, it significantly enhances production efficiency while eliminating manual contamination risks associated with traditional hand-counting and filling operations.
Compatible Equipment Integration:
The machine can operate independently or be integrated with other auxiliary equipment such as bottle unscramblers, bottle cleaners, desiccant inserters, capping machines, sealing machines, and labeling machines to form a complete automated production line.
Technical Specifications of The BPS-D32 Electronic Counting Machine
|
Search |
|
|---|---|
| Project | Technical Parameters |
| Equipment Name | Electronic Tablet/Capsule Counter |
| Model | BPS-D32 |
| Bottle Specification (ml) | 20-500 |
| Maximum Production Capacity (bottles/min) | 20-120 (depending on bottle size and filling quantity) |
| Working Air Pressure (MPa) | 0.6 |
| Compressed Air Consumption (m/h) | 0.8 |
| Power Supply Voltage (V) | 208V (3-phase 4-wire) |
| 120V (single-phase 3-wire) | |
| Total Power (kW) | 2.6 |
| Overall Dimensions (mm) (L*W*H) | 6040×1900×1600 |
| Power Source | 208V (3-phase 4-wire) |
| 120V (single-phase 3-wire) 60Hz |

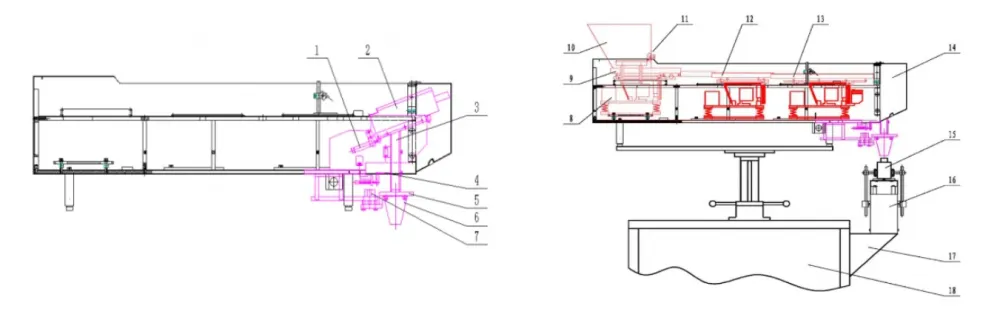

BPS-D32 Electronic Counting Machine Structure
1 – Gate cylinder
2 – Counting device
3 – Material hopper
4 – Secondary baffle plate
5 – Bottle dividing gate solenoid valve
6 – Material bucket
7 – Material bucket discharge gate
8 – Vibration block component
9 – Rear material feeding
10 – Material adding
11 – Material adding gate
12 – Medium material feeding dividing plate
13 – Front material feeding dividing plate
14 – Cover
15 – Bottle
16 – Conveyor belt
17 – Support frame
18 – Working platform
