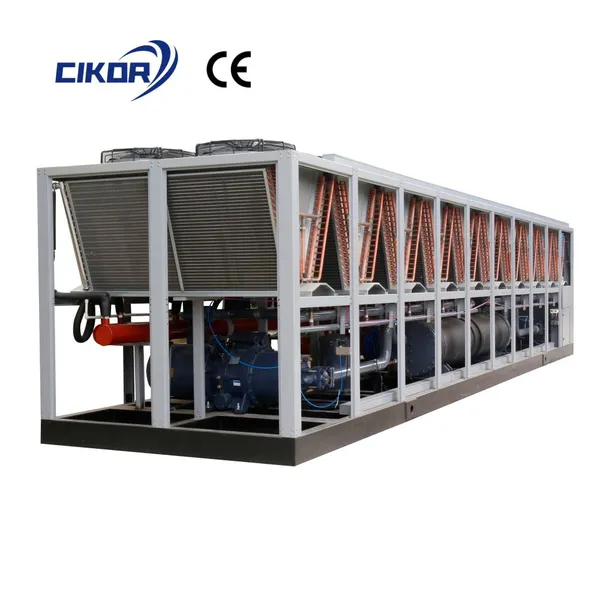

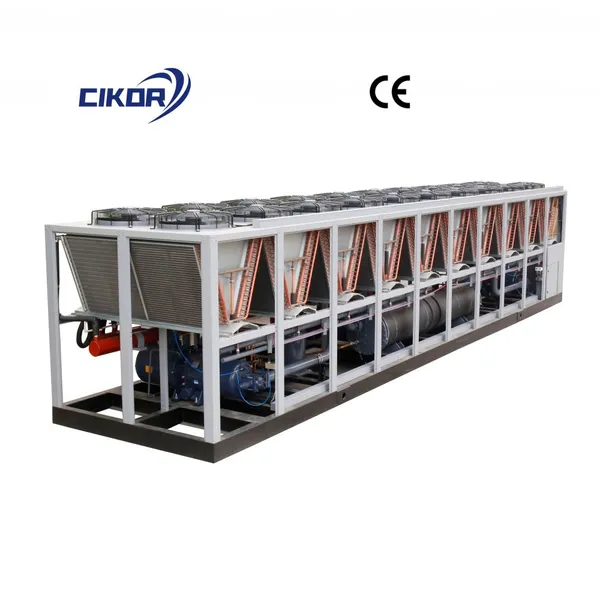

High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System

High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System thumbnail-1
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System thumbnail-2
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System thumbnail-3
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System thumbnail-4
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System thumbnail-5
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System photo-1
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System photo-2
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System photo-3
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System photo-4
High Efficiency Air Cooled Screw Water Chiller For Industrial Cooling System photo-5

Product Spotlights

Reliable, energy-saving, and precision-engineered, this chiller features screw compressors, eco-friendly refrigerant, and microchannel condensers. It delivers stable temperature control, and includes a PLC touchscreen with remote monitoring.
US$ 22700 - 34500 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
CE
Type:
Air-Cooled
Warranty:
1 year
Contact Supplier Request Quote Chat Now
Jinan Cikor Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE
Type Air-Cooled
Warranty 1 year
Cooling Method Air-cooled
After-sales Service Whole life
Application Fields Plastic
Unit Structure Integral
Selected Voltage 380V/50HZ
Compressor Number 1
Application Machine Other
Condition NEW
Noise Level Ordinary
Model CKG-440A
Cooling capacity 443.1KW
Power supply 3 phases/380V/50Hz
Compressor power 69.9*2KW
Water flow 75.96m³/h
Compressor Screw type
Pump Stainless steel centrifugal type
Dimension 6200x2000x2200mm
Weight 4200kg
Refrigerant R22/R407C/R410A
Transport Package Standard export case
Specification CKG-440A
Trademark Cikor
Origin China

Air cooled screw chiller features


Cooling capacity:78~600kw

New generation screw compressor with high operation efficiency

Most efficient full load and part load operation

Variable speed drives option

Easy to install,operation and maintenance


Air cooled screw chiller specifications

Model

CKG-80A

CKG-110A

CKG-140A

CKG-160A

CKG-200A

CKG-240A

CKG-310A

CKG-440A

CKG-530A

CKG-610A





Cooling Capacity

USRT

22.5

31.0

40.7

43.5

58.6

72.8

87.3

120.6

149.8

174.6

Kcal/h

67940

93740

122980

131580

177160

220160

264020

364640

453220

528040

(KW)

79

109

143

153

206

256

307

424

527

614

 P ow e r

3PH-380/415/440/460V-50/60Hz

Refrigerant

Type

R22/R407C/R410a

Control

Thermostatic expansion valve





Compressor

Type

Semi-closed screw type

Power(kw)

28

37

46

51

66

79

94

127

160

182

Start

Y-△

Capacity adjust

33%-66%-100%

25%-50%-75%~100%



Evaporator

Type

High efficiency copper tube shell and tube type

Water flow (m³/h

14

19

25

26

35

44

53

73

90

105

Inlet/outlet

DN65

DN65

DN80

DN80

DN80

DN80

DN80

DN100

DN125

DN150



Condenser

Type

 High efficiency hydrophilic aluminum foll finned type

Flow(m²/h)

30000

40000

50000

60000

80000

10000(

120000

160000

200000

240000

Protection System

Compressor overheat protection,high/low pressure protection,phase missing/sequence protection,flow rate protection,anti-frozen protection



Dimension

L(mm)

2720

2450

2380

3250

4050

4050

4950

4680

5780

6680

W(mm

1120

1400

1900

1950

1950

1950

195C

2250

2250

2250

H(mm)

1800

2110

1950

2000

2000

2100

2100

2460

2460

2460

Weight (kg)

1800

1900

2300

2480

3000

3100

3600

5000

6000

6800

Air cooled screw chiller woking principle
Industrial chillers work based on the following principles of operation.


Phase Change: When heated, a liquid coolant undergoes a phase change into a gas, and when the gaseous coolant is super cooled, it condenses back into a liquid.

Heat Flow: Heat energy always flows from an area of high concentration to an area of lower concentration

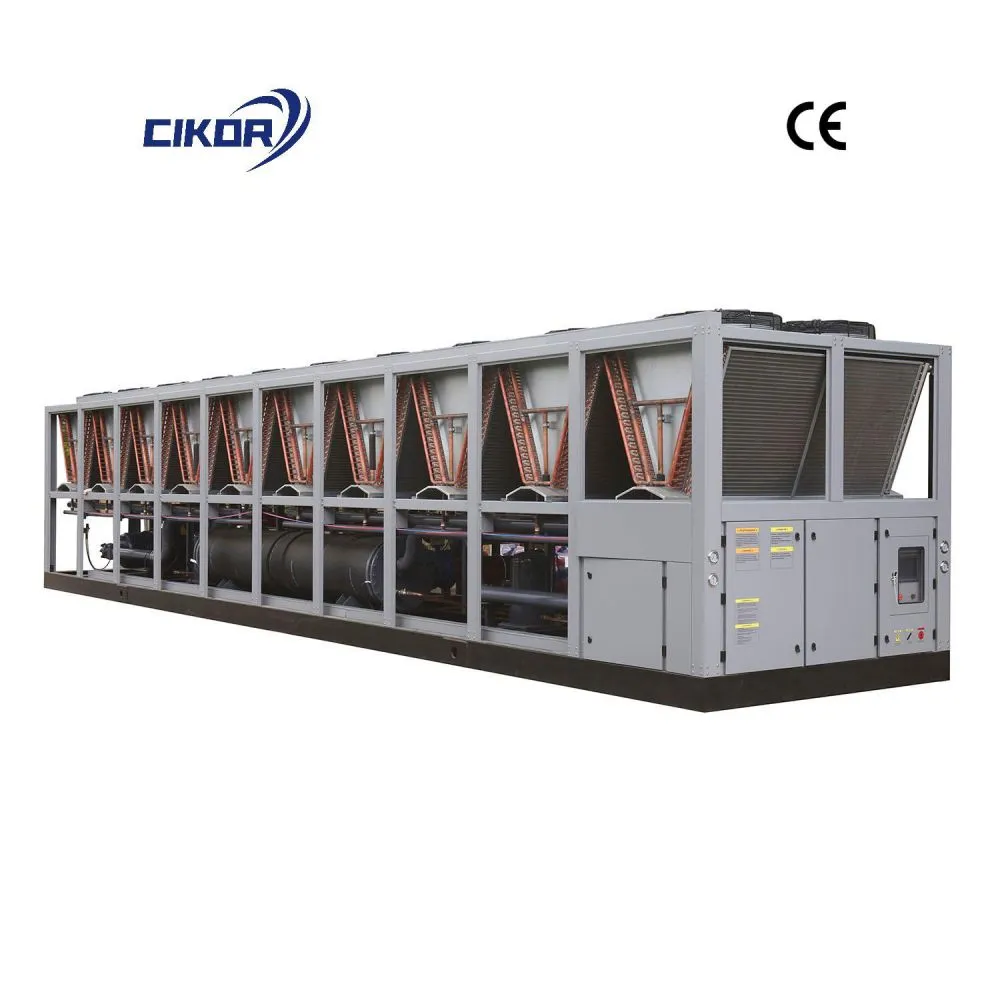

_Y7A9248(1)(1)

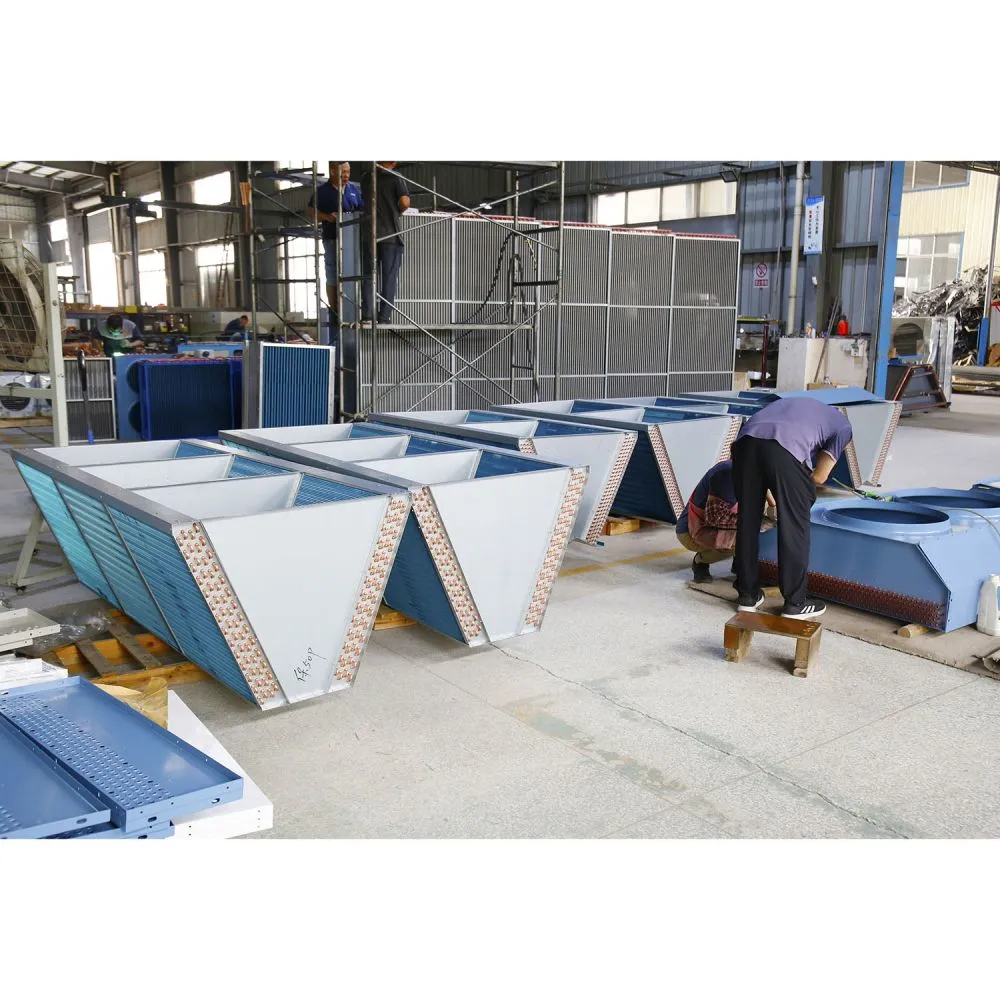

Water chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price

_Y7A9413

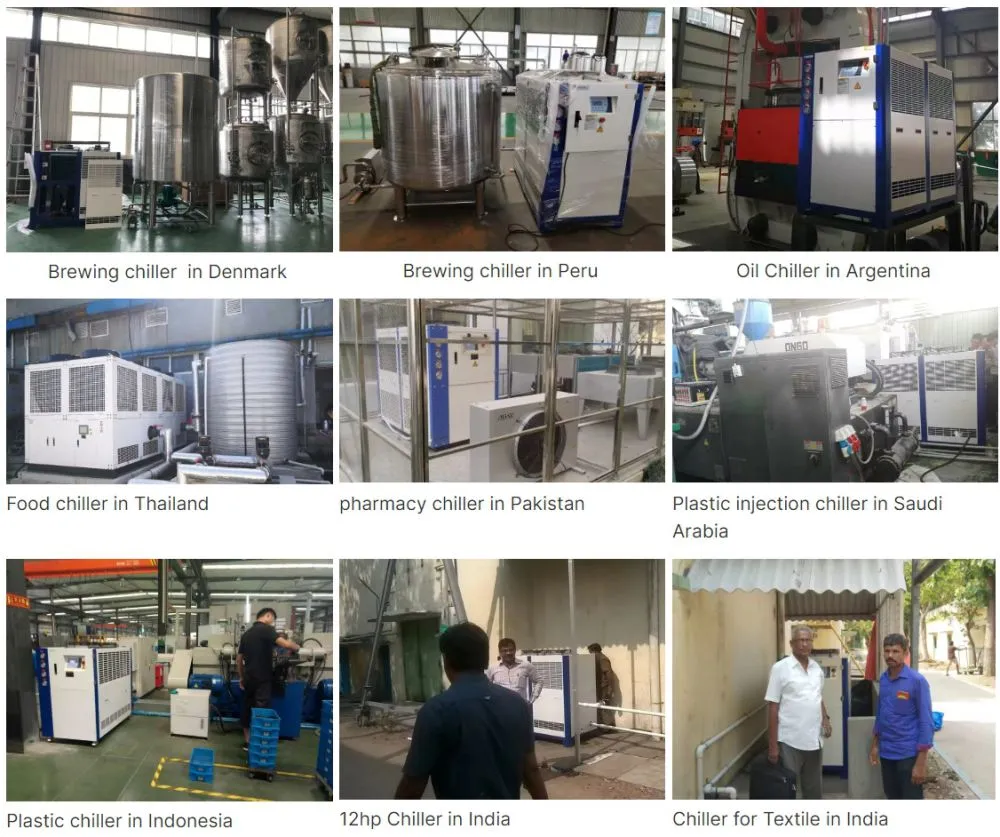

Customer user site of water chiller
冷水机使用现场

Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
industrial chiller application
