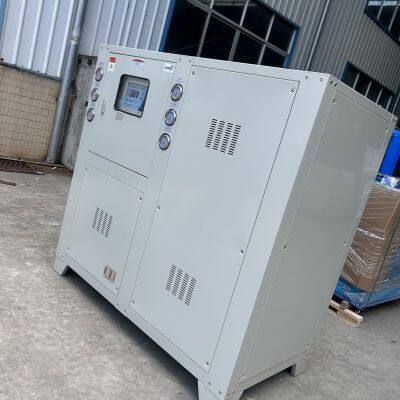

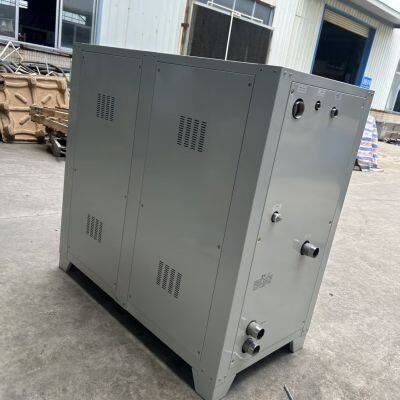

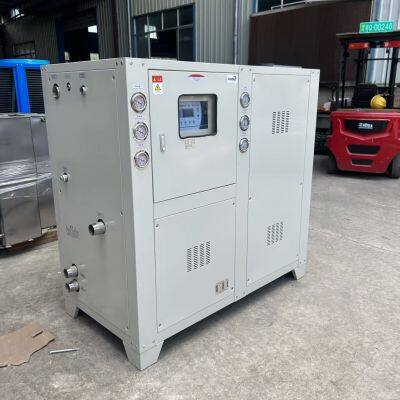

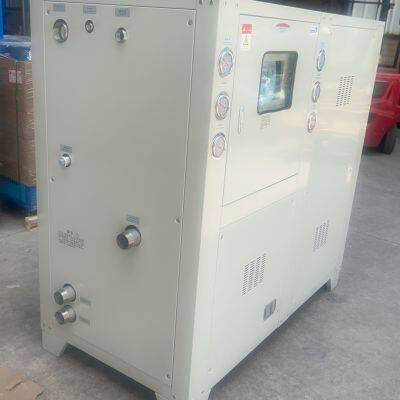

Help CenterCikor CK-15W 15HP 48KW Water Cooled Scroll Water Chiller For Home Applicance Industry
Related Products
-
60w JPT Mini Fiber Laser Marking Machine for Silver and Gold Cutting Jewelry BusinessUS$ 2780 - 2980MOQ: 1 Set -
2000w 4 in 1 Handheld Fiber Laser Welding Machine With Auto Wire Feeding DeviceUS$ 3750 - 3950MOQ: 1 Set
-
60w JPT Mopa Mini Fiber Laser Marking Machine for Silver and Gold Cutting Jewelry BusinessUS$ 3250 - 3450MOQ: 1 Set
-
Cikor CK-5A 5HP Air Cooled Scroll Water Chiller For Plastic IndustryUS$ 1590 - 1690MOQ: 1 Set
-
Cikor CK-10A 10HP 30KW Air Cooled Scroll Water Chiller For Plastic Bottle Blowing IndustryUS$ 2620 - 2820MOQ: 1 Set
Water cooled scroll chiller features
World famous brand compressor: Panasonic,Sanyo,Copeland,Danfoss
Stainless steel centrifugal pump
Independently of ambient conditions
Highly effective at rapidly lowering temperatures
Water cooled scroll chiller specifications
Model | CK-3W | CK-5W | CK-6W | CK-8W | CK-10W | CK-12W | CK-15W | CK-20W | CK-25W | CK-30W | CK-40W | CK-50W | CK-60W | ||
Water temperature range | 7-30℃ | ||||||||||||||
Control accuracy | ±0.5℃&±1.5℃ | ||||||||||||||
Communication(Optional) | RS485 communication interface,MODBUS communication protocol | ||||||||||||||
Cooling Capacity | kW | 10.0 | 16.5 | 20.0 | 26.0 | 32.0 | 38.0 | 48.0 | 65.0 | 78.0 | 95.0 | 126.0 | 155.0 | 182.0 | |
Power supply | 380/415/440V/3ph/50/60Hz | ||||||||||||||
Rated power | kW | 2.8 | 4.1 | 4.8 | 6.5 | 8.0 | 9.7 | 10.7 | 15.0 | 17.0 | 22.6 | 28.5 | 33.5 | 41.5 | |
Working current | A | 6.0 | 8.2 | 8.8 | 14.2 | 15.0 | 16.5 | 22.5 | 29.5 | 33.0 | 43.0 | 55.0 | 60.0 | 80.0 | |
Compressor | Type | Rotary type | Flexible scroll type | ||||||||||||
Power | kW | 2.2 | 3.5 | 4.2 | 5.5 | 7.0 | 8.5 | 9.5 | 13.0 | 15.0 | 20.2 | 25.0 | 29.5 | 37.0 | |
Pump | Type | Stainless steel centrifugal type | |||||||||||||
Power | kW | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 1.2 | 1.2 | 1.85 | 1.85 | 1.85 | 3.0 | 3.0 | 4.0 | |
Lift | m | 25 | 24 | 21 | 24 | 22 | 23 | 22 | 25 | 24 | 23 | 22 | 20 | 21 | |
Water flow | m3/h | 1.7 | 2.8 | 3.5 | 4.5 | 5.5 | 6.5 | 8.3 | 11.2 | 13.4 | 16.3 | 21.7 | 26.7 | 31.3 | |
L/min | 28 | 47 | 57 | 75 | 92 | 109 | 137 | 186 | 224 | 272 | 361 | 445 | 522 | ||
Condenser type | High efficiency shell and tube type | ||||||||||||||
Evaporator type | Stainless steel shell and tube type | ||||||||||||||
Refrigerant | R22/R407C/R410A | ||||||||||||||
Refrigerant Control | Thermostatic expansion valve | ||||||||||||||
Tank volume | L | 50 | 70 | 70 | 100 | 135 | 135 | 135 | 230 | 230 | 300 | 300 | 300 | 300 | |
Inlet and outlet size | DN | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 65 | 65 | |
Noise | dB(A) | 56 | 56 | 56 | 57 | 57 | 58 | 58 | 62 | 63 | 63 | 64 | 64 | 65 | |
Weight | kg | 115 | 148 | 165 | 200 | 240 | 290 | 325 | 500 | 675 | 810 | 1050 | 1200 | 1350 | |
Dimension | L | mm | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 | 1600 | 1800 | 1800 | 2000 | 2450 | 2450 | 2450 |
W | mm | 550 | 550 | 550 | 700 | 700 | 700 | 850 | 950 | 950 | 850 | 1050 | 1050 | 1050 | |
H | mm | 1200 | 1200 | 1200 | 1400 | 1400 | 1400 | 1500 | 1500 | 1500 | 1750 | 1700 | 1700 | 1700 | |

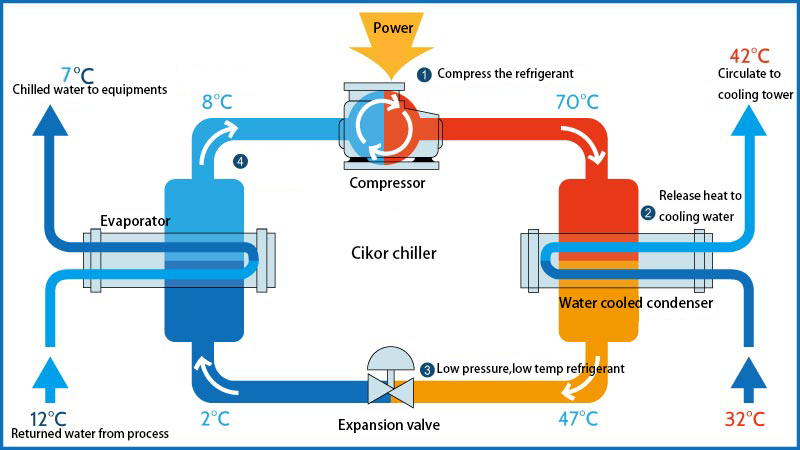

Water cooled scroll chiller working principle
Industrial chillers work based on the following principles of operation.
Phase Change: When heated, a liquid coolant undergoes a phase change into a gas, and when the gaseous coolant is super cooled, it condenses back into a liquid.
Heat Flow: Heat energy always flows from an area of high concentration to an area of lower concentration

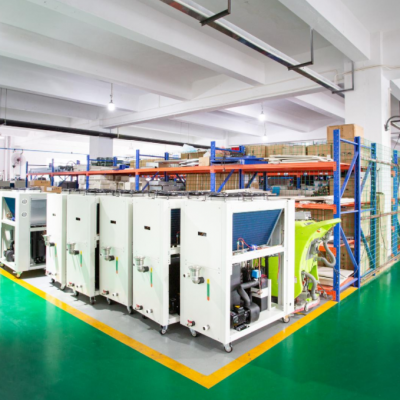

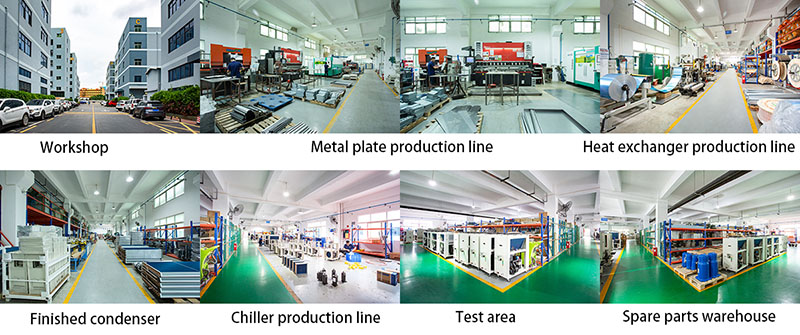

Water chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price

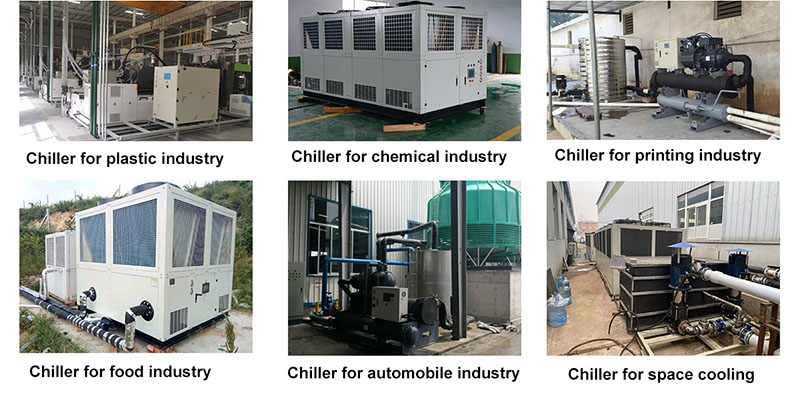

Customer user site of water chiller
Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
