Home > Industrial Equipment & Components > Refrigeration Equipment > Industrial Chiller > Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry

Jinan Cikor Machinery Co., Ltd.

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry thumbnail-1

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry thumbnail-2

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry thumbnail-3

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry thumbnail-4

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry thumbnail-5

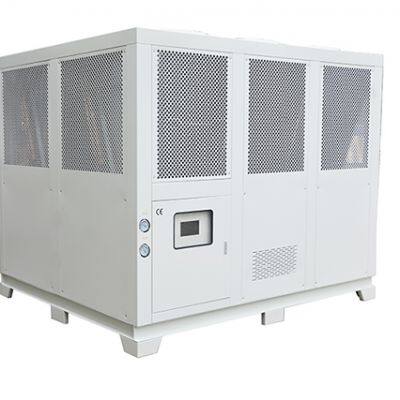

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry photo-1

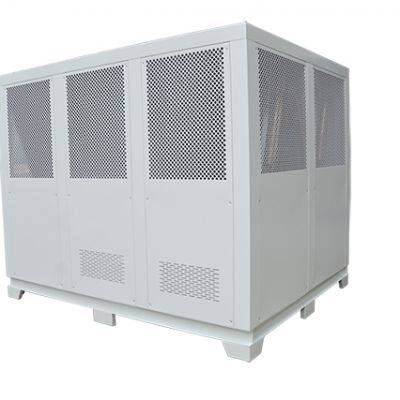

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry photo-2

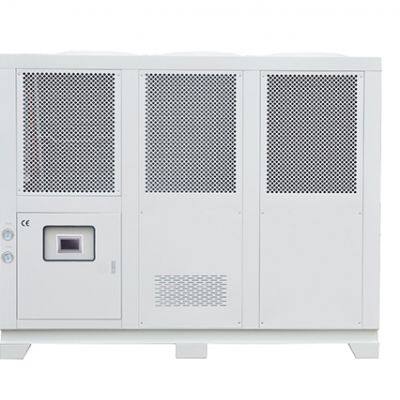

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry photo-3

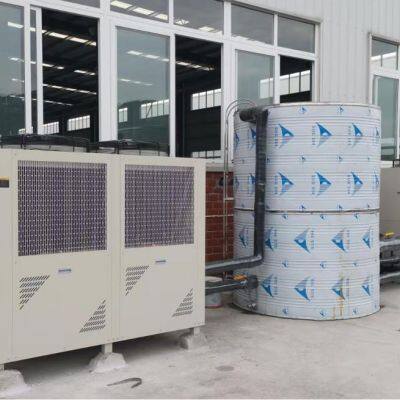

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry photo-4

Cikor CKG-160A 60HP 58KW Air Cooled Screw Water Chiller For Dairy Industry photo-5

US$ 15700 - 16000 MOQ: 1 Set

Key Specifications

Get Latest Price

Certification:

Type:

Air-Cooled

Warranty:

1 year

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Certification CE

Type Air-Cooled

Warranty 1 year

Cooling Method Air-cooled

After-sales Service Whole life

Application Fields Plastic

Unit Structure Integral

Selected Voltage 380V/50HZ

Compressor Number 1

Application Machine Other

Condition NEW

Noise Level Ordinary

Model CKG-160A

Cooling capacity 154.8KW

Power supply 3 phases/380V/50Hz

Rated power 54.8KW

Working current 78A

Compressor Screw type

Pump Stainless steel centrifugal type

Dimension 3250x1950x2000mm

Weight 2480kg

Refrigerant R22/R407C/R410A

Transport Package Standard export case

Specification CKG-160A

Trademark Cikor

Origin China

Air cooled screw chiller features

Cooling capacity:78~600kw

New generation screw compressor with high operation efficiency

Most efficient full load and part load operation

Variable speed drives option

Easy to install,operation and maintenance

Air cooled screw chiller specifications

Model		CKG-80A	CKG-110A	CKG-140A	CKG-160A	CKG-200A	CKG-240A	CKG-310A	CKG-440A	CKG-530A	CKG-610A
Cooling Capacity	USRT	22.5	31.0	40.7	43.5	58.6	72.8	87.3	120.6	149.8	174.6
	Kcal/h	67940	93740	122980	131580	177160	220160	264020	364640	453220	528040
	(KW)	79	109	143	153	206	256	307	424	527	614
P ow e r		3PH-380/415/440/460V-50/60Hz
Refrigerant	Type	R22/R407C/R410a
Refrigerant	Control	Thermostatic expansion valve
Compressor	Type	Semi-closed screw type
	Power(kw)	28	37	46	51	66	79	94	127	160	182
	Start	Y-△
	Capacity adjust	33%-66%-100%			25%-50%-75%~100%
Evaporator	Type	High efficiency copper tube shell and tube type
	Water flow (m³/h	14	19	25	26	35	44	53	73	90	105
	Inlet/outlet	DN65	DN65	DN80	DN80	DN80	DN80	DN80	DN100	DN125	DN150
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
Condenser	Flow(m²/h)	30000	40000	50000	60000	80000	10000(	120000	160000	200000	240000
Protection System			Compressor overheat protection,high/low pressure protection,phase missing/sequence protection,flow rate protection,anti-frozen protection
Dimension	L(mm)	2720	2450	2380	3250	4050	4050	4950	4680	5780	6680
	W(mm	1120	1400	1900	1950	1950	1950	195C	2250	2250	2250
	H(mm)	1800	2110	1950	2000	2000	2100	2100	2460	2460	2460
Weight (kg)		1800	1900	2300	2480	3000	3100	3600	5000	6000	6800

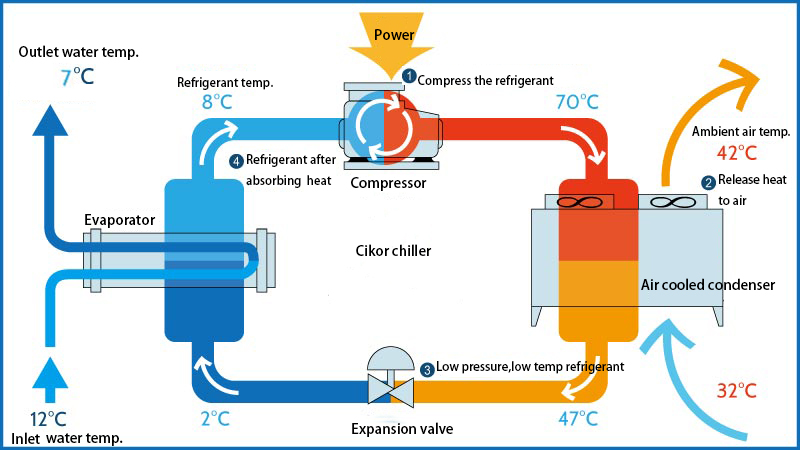

Air cooled screw chiller woking principle
Industrial chillers work based on the following principles of operation.

Phase Change: When heated, a liquid coolant undergoes a phase change into a gas, and when the gaseous coolant is super cooled, it condenses back into a liquid.

Heat Flow: Heat energy always flows from an area of high concentration to an area of lower concentration

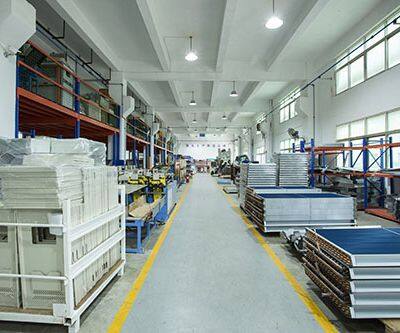

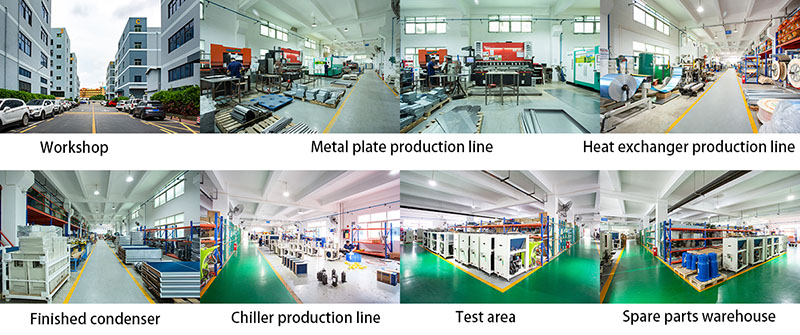

Water chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price

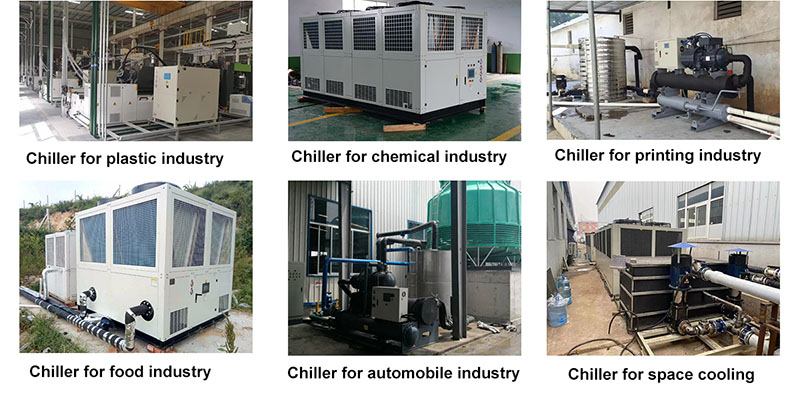

Customer user site of water chiller

Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
