Help CenterFactory Price Top Quality Digital PLANTOWER PMSA003-A PM2.5 Particulate Matter Sensor
Product Spotlights
2.Real-time response
3.Correct data
4.Minimum distinguishable particle diameter: 0.3 micrometer
5.High anti-interference performance because of the patent structure of six sides shielding
6.Optional direction of air inlet and outlet in order to adapt the different design
Related Products
-
PLANTOWER PMS7003M PM2.5 Sensor Module Digital Universal Particulate Matter SensorUS$ 8.9 - 9.5MOQ: 100 Pieces -
PLANTOWER PMS5003 PM2.5 Sensor ModuleUS$ 8.5 - 9.7MOQ: 100 Pieces
-
PLANTOWER PMS7003 PM2.5 Sensor ModuleUS$ 8.8 - 9.5MOQ: 100 Pieces
-
PLANTOWER PMS3003 PM2.5 Sensor ModuleUS$ 9.2 - 9.8MOQ: 100 Pieces
-
PLANTOWER DS-CO2-20A NDIR CO2 Sensor ModuleUS$ 15.9 - 21.3MOQ: 10 Pieces
Description:

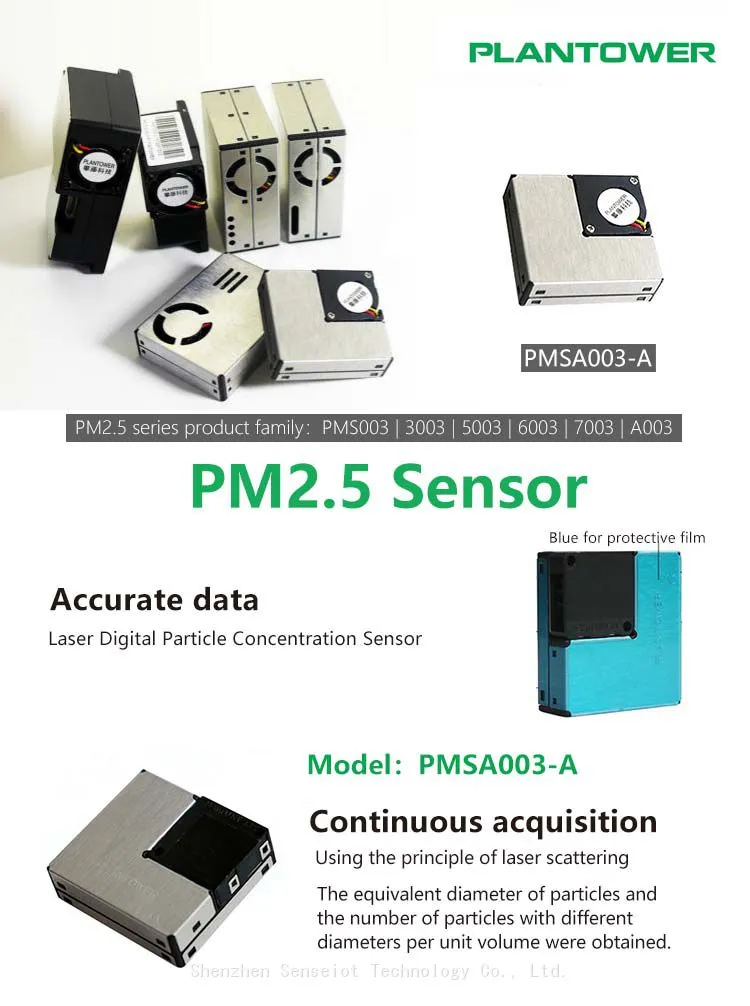

PMSA003 is a kind of digital and universal particle concentration sensor,which can be used to obtain the number of suspended particles in the air,i.e.the concentration of particles,and output them in the form of digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental improvement equipments to provide correct concentration data in time.
Working principle:
Laser scattering principle is used for such sensor, i.e. produce scattering by using laser to radiate suspending particles in the air, then collect scattering light in a certain degree, and finally obtain the curve of scattering light change with time. In the end, equivalent particle diameter and the number of particles with different diameter per unit volume can be calculated by microprocessor based on MIE theory.

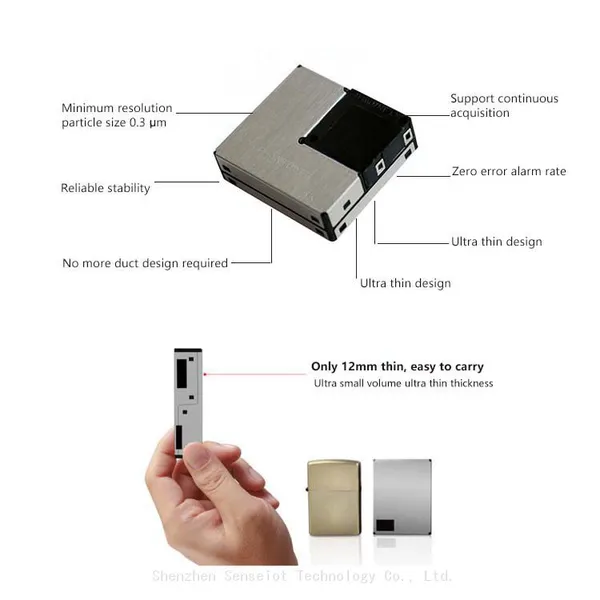

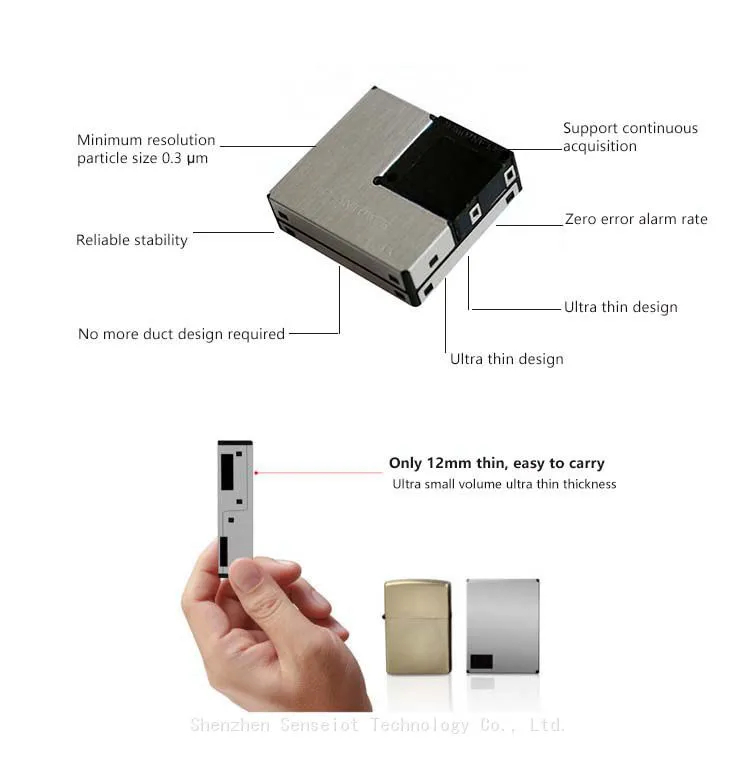

Main characteristics:
1.Zero false alarm rate
2.Real-time response
3.Correct data
4.Minimum distinguishable particle diameter: 0.3 micrometer
5.High anti-interference performance because of the patent structure of six sides shielding
6.Optional direction of air inlet and outlet in order to adapt the different design
7.Smallest

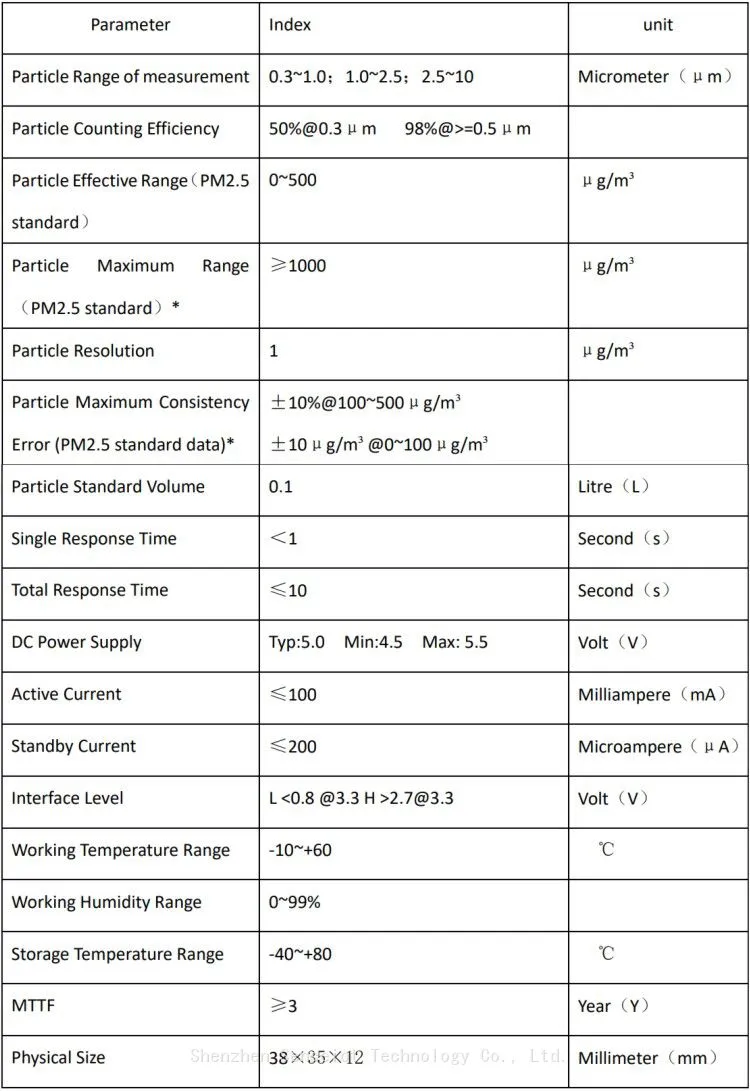

Specification:
